About Plan # 175-1041

About Plan # 175-1041

4953 SQUARE FEET 5 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 114' 4" WIDTH 120' 2" DEPTH 3 GARAGE BAY

This Mediterranean home plan is perfect for an estate lot. Stunning details in the elevation with precast banding, columns and scored stucco begin your experience with the Artesia Home Plan. Inside the foyer, you will find a radial ceiling with drop soffit which begins the architectural details in this home plan. For those outdoor lovers, this floor plan offers a private outdoor shower located off of the master bath shower; further complimenting the master suite, is the spacious master closet with ironing board and washer dryer. All the entertaining amenities are found in this Mediterranean home plan; a "sit at" wet bar between the kitchen and dining room, an outdoor kitchen and fireplace, and upstairs is a bonus room offering plenty of room for a pool table or could be a theater room! Would your estate lot look fabulous with this custom Mediterranean Home plan?

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

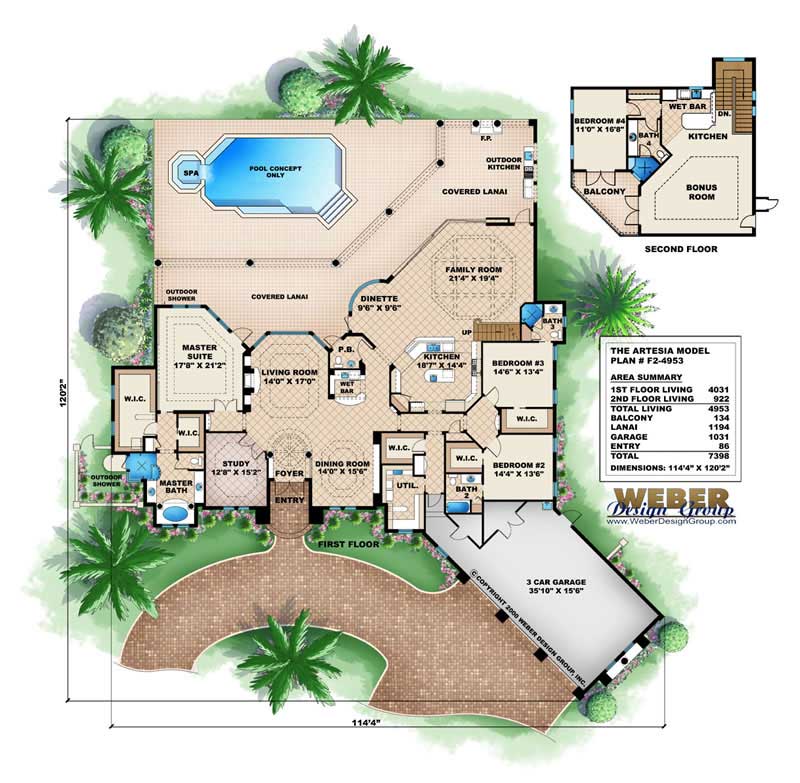

Home Plan: #175-1041 Floor Plan First Story - first story Floor Plan First Story of Mediterranean Plan #175-1041
Home Plan: #175-1041 Floor Plan First Story - first story Floor Plan First Story of Mediterranean Plan #175-1041
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1041
Floors:
2
Bedrooms:
5
Full Baths:
4
Half Baths:
1

Square Footage

Heated Sq Feet:
4953
Main Floor:
4031
Upper Floor:
922
Unfinished Sq Ft:
Garage :
1031

Dimensions

Width:
114' 4"
Depth:
120' 2"
Ridge Height:
32'0"' 0"

Architectural Styles

Mediterranean

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

6/12

Special Feature

Fireplace
Dining Room
Family Room
Main Level Laundry
Library
Balcony

Garage Type

Courtyard Entry

Fireplaces

One Fireplace

Exterior Wall Framing

Concrete

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Outdoor Kitchen

Porches and Exterior Features

Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
