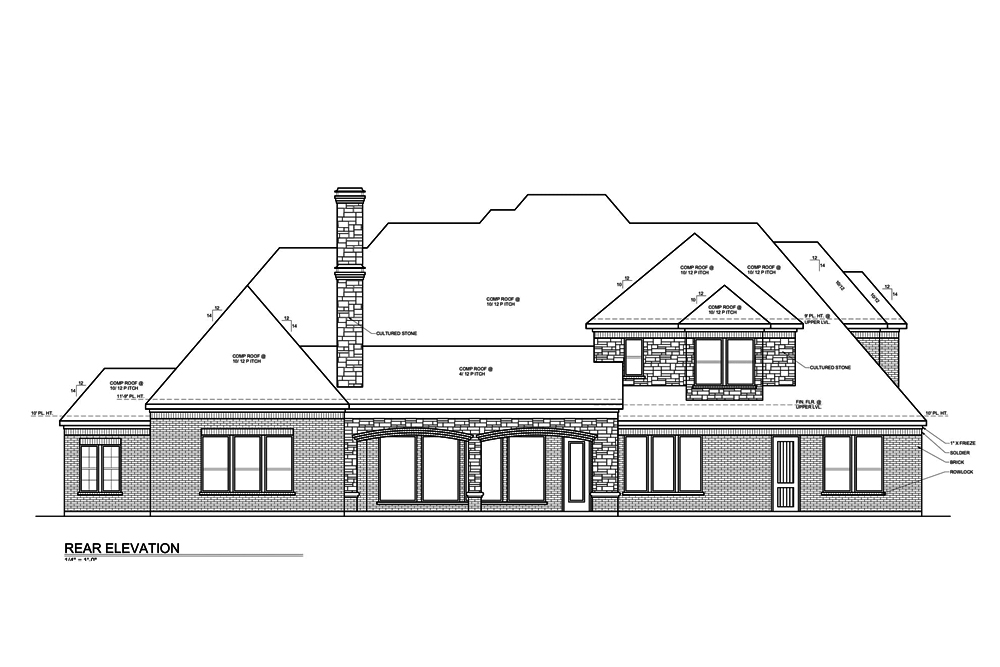

199-1015: Home Plan Rear Elevation

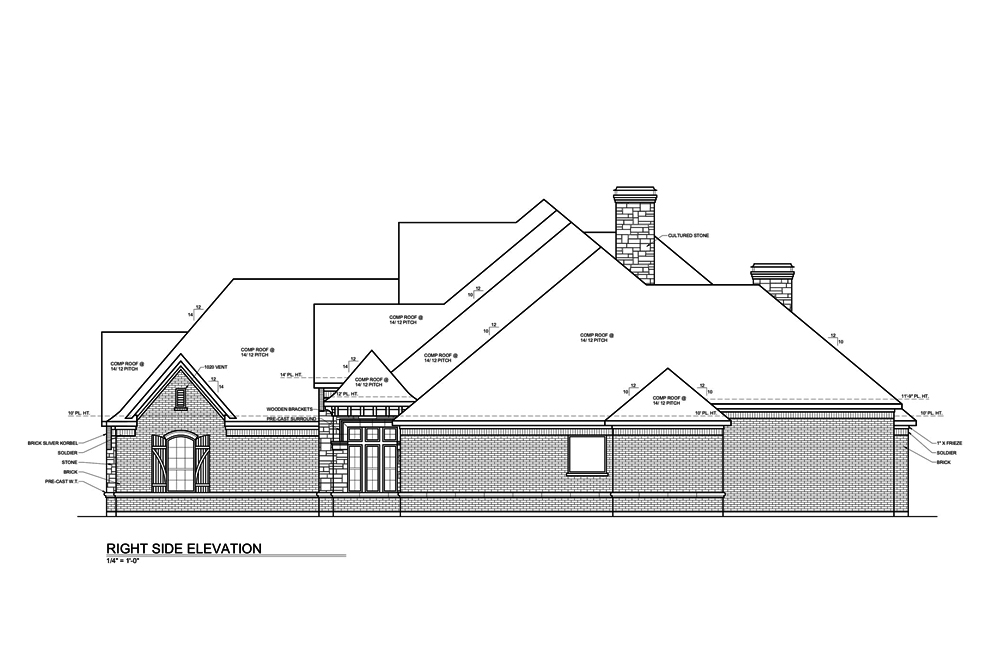

199-1015: Home Plan Right Elevation
199-1015: Home Plan Left Elevation

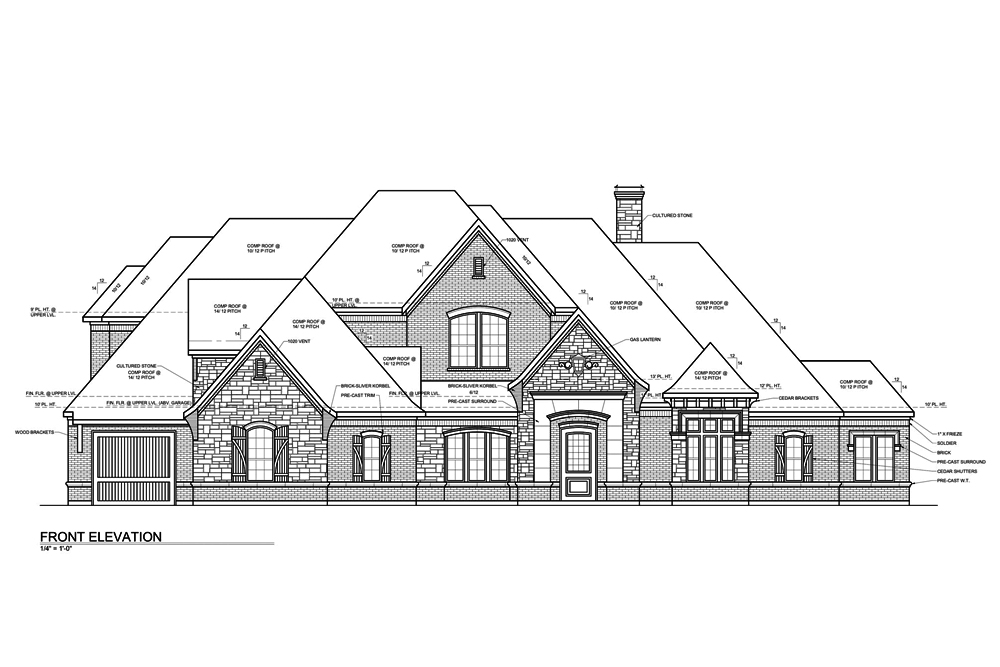

199-1015: Home Plan Front Elevation
4-Bedroom, 4190 Sq Ft Luxury Home Plan - 199-1015 - Main Exterior
199-1015: Home Plan Rear Elevation
199-1015: Home Plan Right Elevation

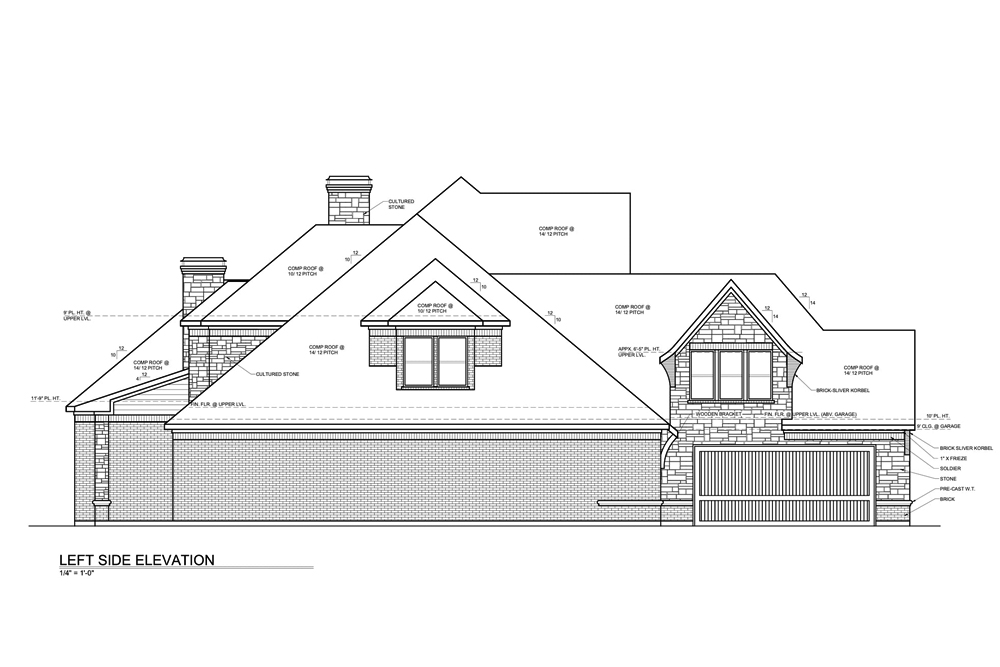

199-1015: Home Plan Left Elevation
199-1015: Home Plan Front Elevation

About Plan # 199-1015

About Plan # 199-1015

4190 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 89' 2" WIDTH 82' 2" DEPTH 4 GARAGE BAY

This amazing Luxuryl style home plan with European influences (House Plan #199-1015) has 4190 square feet of living space. The 2 story floor plan includes 4 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

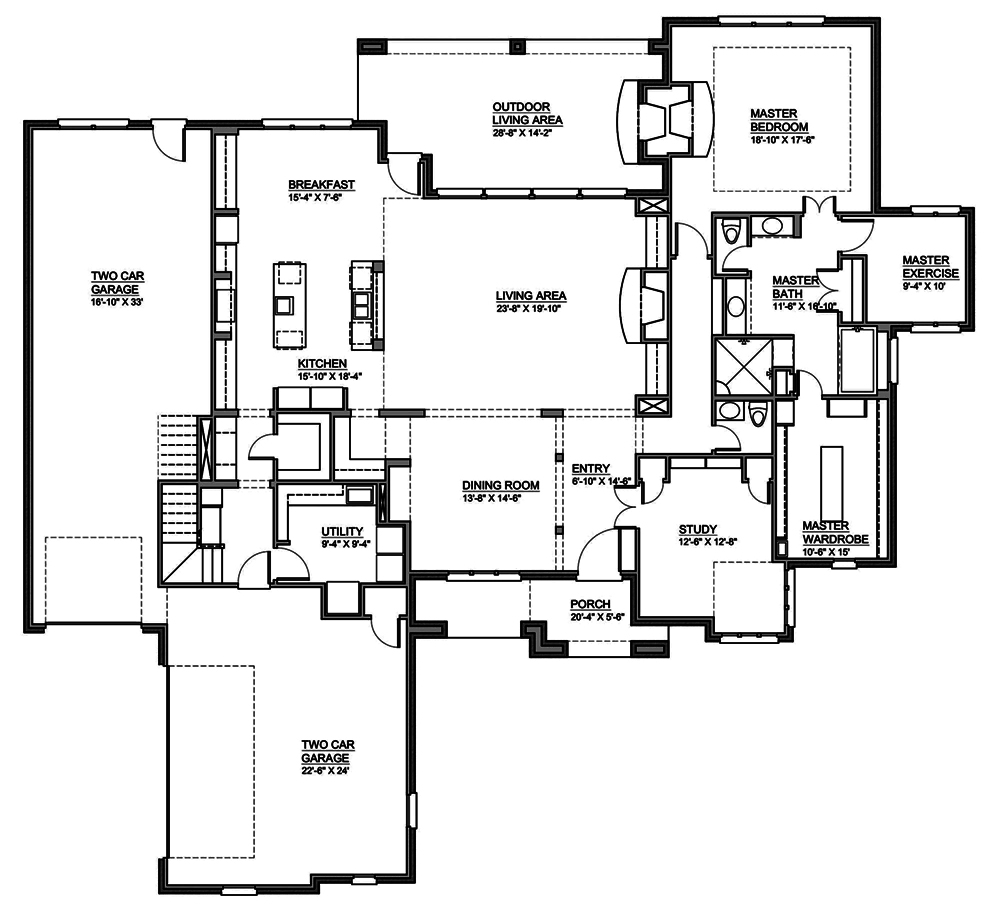

Home Plan: #199-1015 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #199-1015

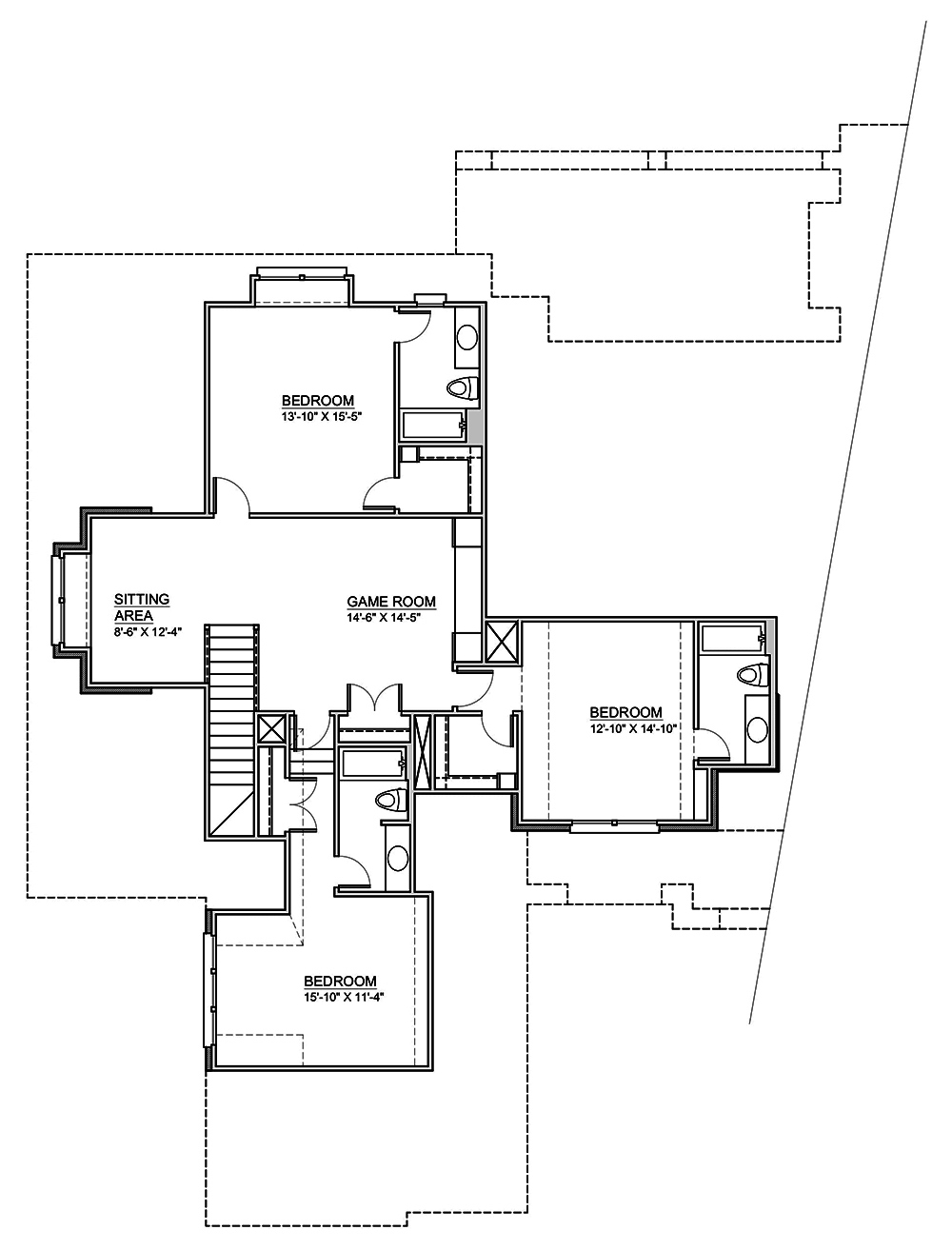

#199-1015 Floor Plan Second Story - upper level Floor Plan Second Story of Luxury Plan #199-1015
Home Plan: #199-1015 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #199-1015
#199-1015 Floor Plan Second Story - upper level Floor Plan Second Story of Luxury Plan #199-1015
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 199-1015
Floors:
2
Bedrooms:
4
Full Baths:
4
Half Baths:
1
Garage :
4

Square Footage

Heated Sq Feet:
4190
Main Floor:
3041
Upper Floor:
1149
Unfinished Sq Ft:

Dimensions

Width:
89' 2"
Depth:
82' 2"
Ridge Height:
33' 3"

Architectural Styles

Country
European
French
Luxury
Traditional

Exterior Wall Material

Brick
Rock/Stone

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

10/12
14/12

Ceiling Height

10 Foot Ceiling
12 Foot Ceiling

Special Feature

Fireplace
Dining Room
Home Office
Mud Room
Family Room
Game Room
Main Level Laundry
Exercise Room
Open Floor Plan

Garage Type

Attached Garage
Side Entry
Front Entry

Fireplaces

Three Fireplaces

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Fireplace in Master
Master Bathroom
Walk In Closet
Split Master Bedroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
