4-Bedroom, 4048 Sq Ft Colonial Plan with Fireplace in Master

Main image for house plan # 17353

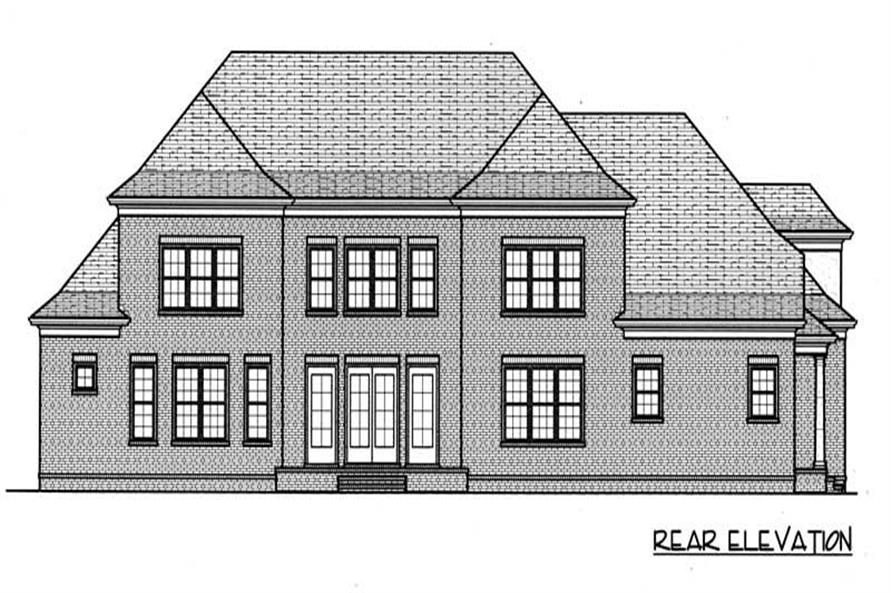

House Plan EDG-4048 Rear Elevation
4-Bedroom, 4048 Sq Ft Colonial Home Plan - 127-1056 - Main Exterior
House Plan EDG-4048 Rear Elevation

About Plan # 127-1056

About Plan # 127-1056

4048 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 85' 0" WIDTH 57' 3" DEPTH 3 GARAGE BAY
Home EDG-4048 has a smart floor plan with an open layout. The main floor has a formal room near the entry for dining. The rest of the floor is open with very little dividing the gathering room from the kitchen and dining spaces. All bedrooms are private. The master is spacious and has a large master bath with a deep shower and walk-in closets. The rest of the bedrooms are upstairs. Special features include high ceilings, a large island in the kitchen, big laundry room, an extra space for a home office, nursery, or guest quarters, media room, and a very large bonus room above the garage. See also house plans EDG-4069, EDG-4450, EDG-4574, and EDG-4690. Note: this plan is not available within a 50 mile radius of Charlotte, NC.

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

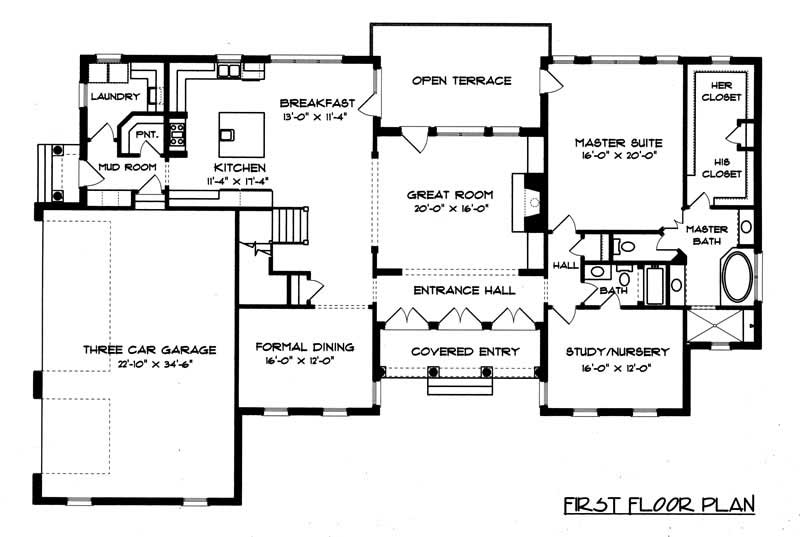

Home Plan: #127-1056 Floor Plan First Story - main Floor Plan First Story of Colonial Plan #127-1056

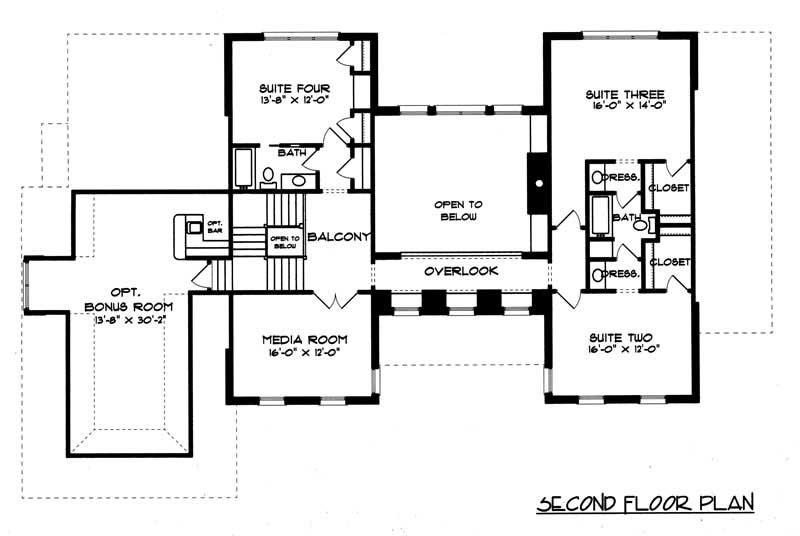

#127-1056 Floor Plan Second Story - second Floor Plan Second Story of Colonial Plan #127-1056
