Traditional House Plans - Home Design OHP-40087-1 # 16232

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #156-1374

3801

Sq Ft

5

Bedrooms

3

Baths

0

Half Baths

0

Cars

2

Stories

70' 0'

Width

54

Depth

From$1100What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

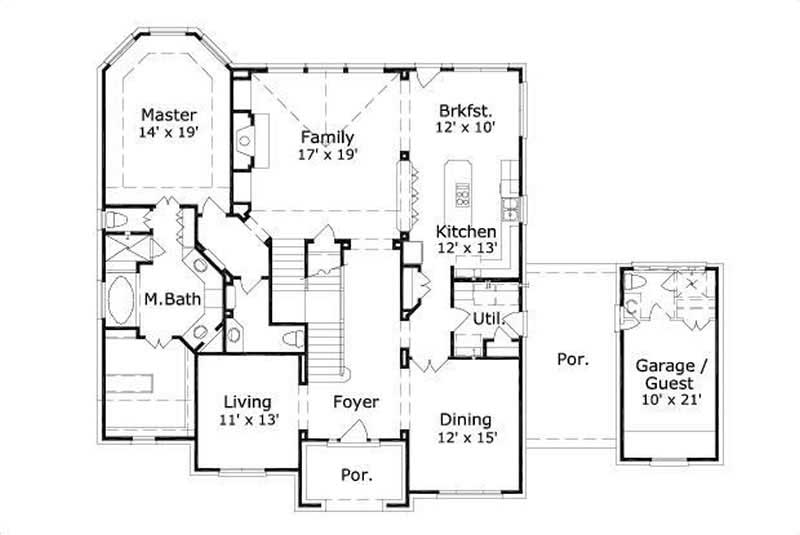

FIRST STORY FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

Home plan number 40087-1 is a two story, Traditional style home with a total square footage of 3,801. There are 5 bedrooms and 3 and 1/2 bathrooms, along with a detached garage. The master bedroom includes a sitting area. Features include a porte cochere, casita, unfinished storage and a bonus room.

Home Details

Summary

Plan #:156-1374

Floors:2

Bedrooms:5

Full Baths:3

Half Baths:0

Garage:

Square Footage

Heated Area::3801 Sq. Ft.

Main Floor:2222 Sq. Ft.

Upper Floor:1579 Sq. Ft.

Dimensions

Ridge Height:31' 0''

Architectural Styles

Traditional Texas Style

Exterior Wall Material

BrickRock/Stone

Ceiling Height

9 Foot Ceiling8 Foot Ceiling

Special Feature

Bonus Room

Garage Type

Attached GarageFront Entry

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Exterior,

Elevations

Floor Plans

Electrical Layout

Building Sections

Roofing Plan

Interior Elevations

General Details

Wall Sections

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
