About Plan # 157-1017

About Plan # 157-1017

3544 SQUARE FEET 6 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 20' 0" WIDTH 34' 0" DEPTH 2 GARAGE BAY

This Victorian-style duplex has 1772 living sq ft per unit. The 2-story plan includes 3 bedrooms and 2 baths per unit.

The main level of each unit is 680 sq. ft., and the upper level is 694 sq. ft. A 398-sq.-ft. den is located in the basement of each unit, in addition to a 1-car garage.

Each plan set includes the following:

  • Exterior elevations
  • Foundation plan
  • Floor plans
  • Cross sections
  • Staircase section
  • Roof truss drawings
  • Specifications
  • Construction details
  • Size of structural elements (posts, beams, concrete pads, etc.)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

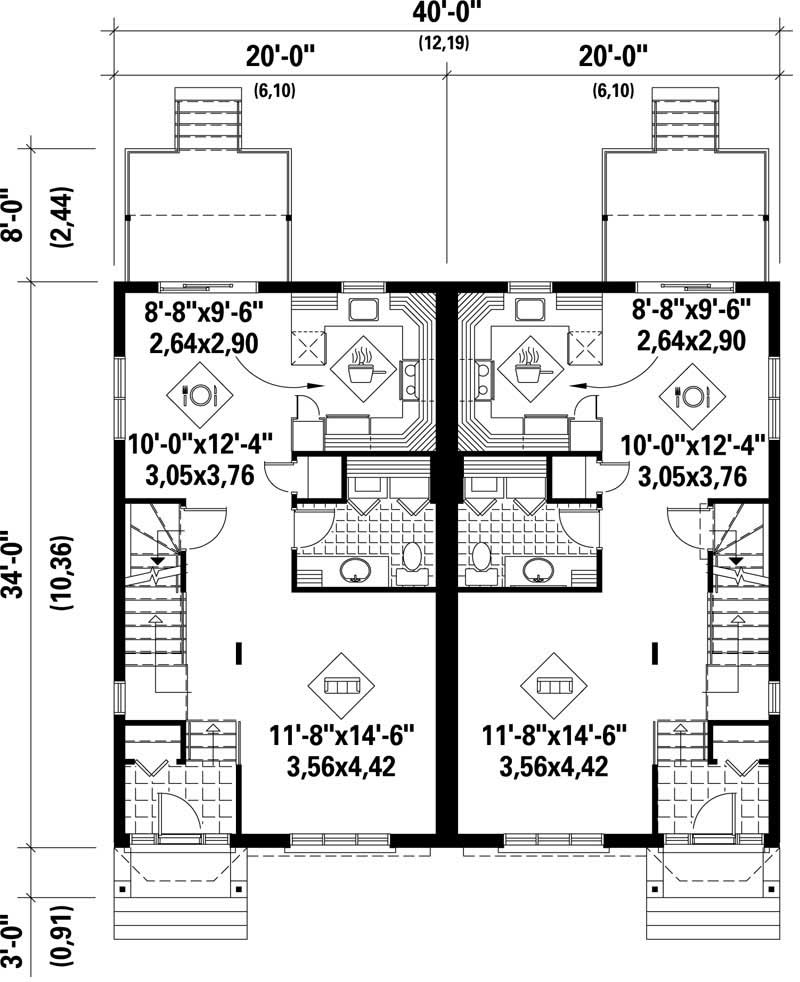

Home Plan: #157-1017 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #157-1017

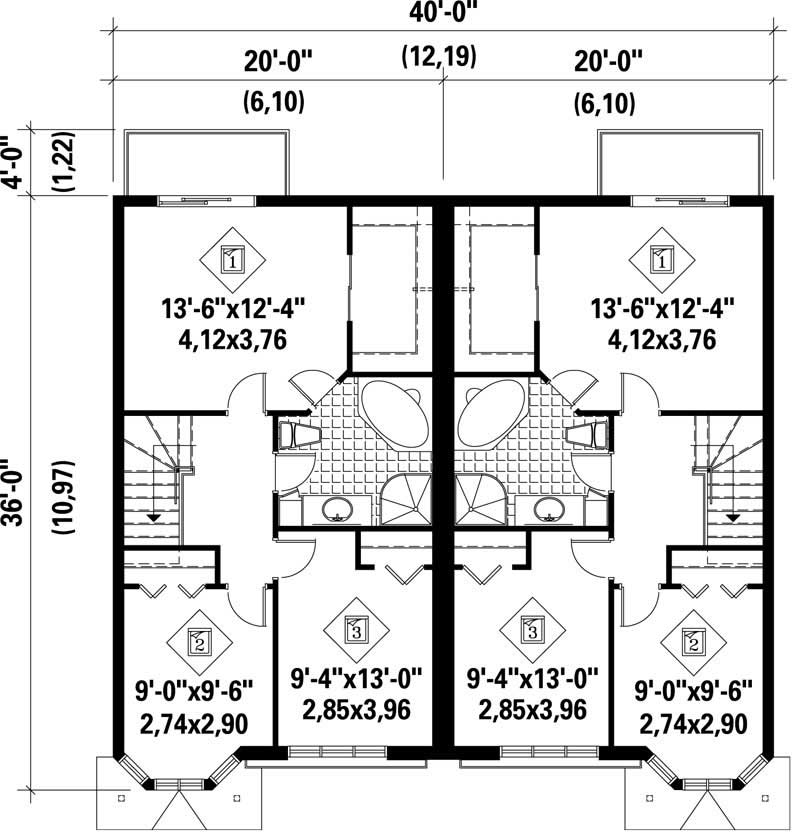

#157-1017 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #157-1017

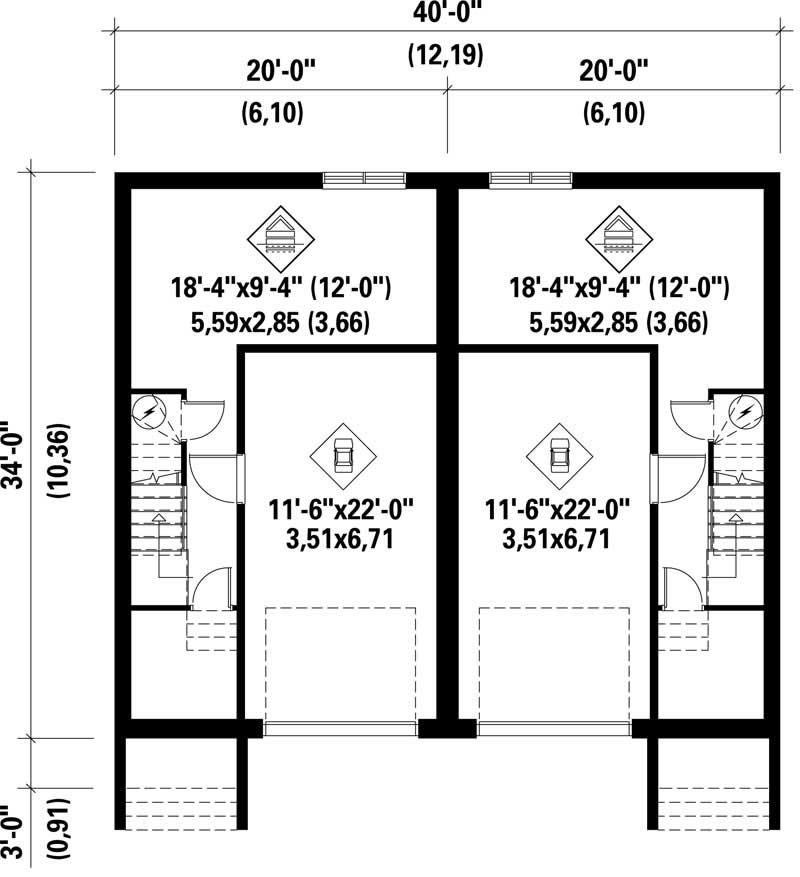

#157-1017 Floor Plan Basement - garage Floor Plan Basement of Multi-Unit Plan #157-1017
Home Plan: #157-1017 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #157-1017
#157-1017 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #157-1017
#157-1017 Floor Plan Basement - garage Floor Plan Basement of Multi-Unit Plan #157-1017
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 157-1017
Floors:
2
Bedrooms:
6
Full Baths:
4
Garage :
2

Square Footage

Heated Sq Feet:
3544
Main Floor:
1360
Upper Floor:
1388
Lower Floor:
796
Unfinished Sq Ft:
Garage :
564

Dimensions

Width:
20' 0"
Depth:
34' 0"

Architectural Styles

Victorian
Duplex/Multi-Unit
Condominiums
Traditional

Exterior Wall Material

Brick
Stucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Special Feature

Main Level Laundry
Den
Open Floor Plan

Garage Type

Attached Garage
Under Main Floor Entry

Building Lot Type

Narrow Lot Design

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Portico

Master Suite Features

Walk In Closet
Second Floor Master

Additional Notes from Designer
