Front elevation of Multi-Level home (ThePlanCollection: House Plan #157-1004)
3-Bedroom, 1255 Sq Ft Multi-Level House Plan - 157-1004 - Front Exterior

About Plan # 157-1004

About Plan # 157-1004

1255 SQUARE FEET 3 BEDROOMS 1 FULL BATH 0 HALF BATH
3 FLOOR 35' 0" WIDTH 39' 0" DEPTH 0 GARAGE BAY

House plan features and specifications represent one unit.

Each plan set includes the following:

  • Exterior elevations
  • Foundation plan
  • Floor plans
  • Cross sections
  • Staircase section
  • Roof truss drawings
  • Specifications
  • Construction details
  • Size of structural elements (posts, beams, concrete pads, etc.)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

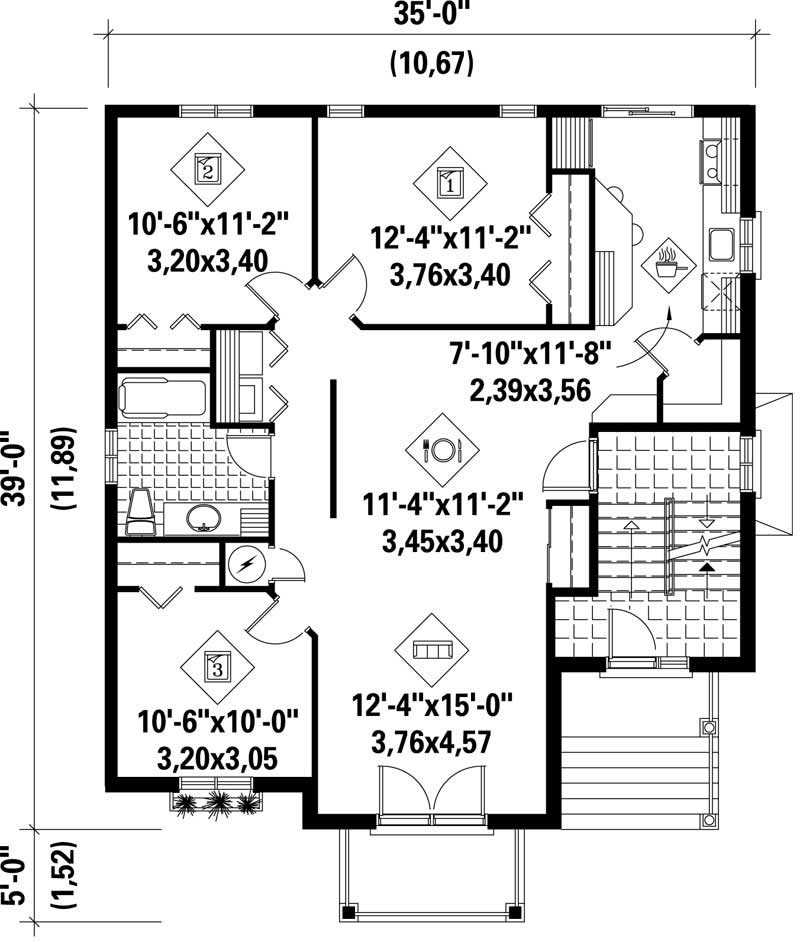

Home Plan: #157-1004 Floor Plan First Story - main level Floor Plan First Story of Multi-Level Plan #157-1004
#157-1004 Floor Plan Second Story - second level Floor Plan Second Story of Multi-Level Plan #157-1004

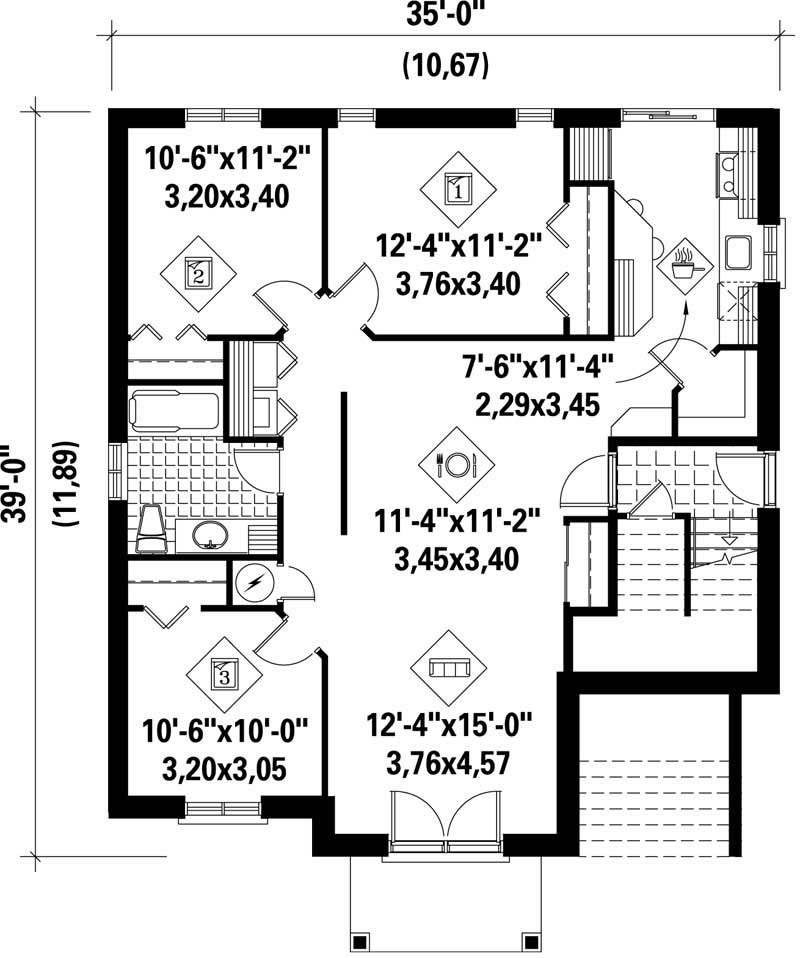

#157-1004 Floor Plan Basement - lower level Floor Plan Basement of Multi-Level Plan #157-1004
Home Plan: #157-1004 Floor Plan First Story - main level Floor Plan First Story of Multi-Level Plan #157-1004
#157-1004 Floor Plan Second Story - second level Floor Plan Second Story of Multi-Level Plan #157-1004
#157-1004 Floor Plan Basement - lower level Floor Plan Basement of Multi-Level Plan #157-1004
