Front elevation of Multi-Unit home (ThePlanCollection: House Plan #157-1034)
3-Bedroom, 1382 Sq Ft Multi-Unit Plan - 157-1034 - Main Exterior

About Plan # 157-1034

About Plan # 157-1034

1382 SQUARE FEET 3 BEDROOMS 1 FULL BATH 0 HALF BATH
3 FLOOR 34' 0" WIDTH 46' 0" DEPTH 0 GARAGE BAY

House plan features and specifications represent one unit.

Each plan set includes the following:

  • Exterior elevations
  • Foundation plan
  • Floor plans
  • Cross sections
  • Staircase section
  • Roof truss drawings
  • Specifications
  • Construction details
  • Size of structural elements (posts, beams, concrete pads, etc.)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

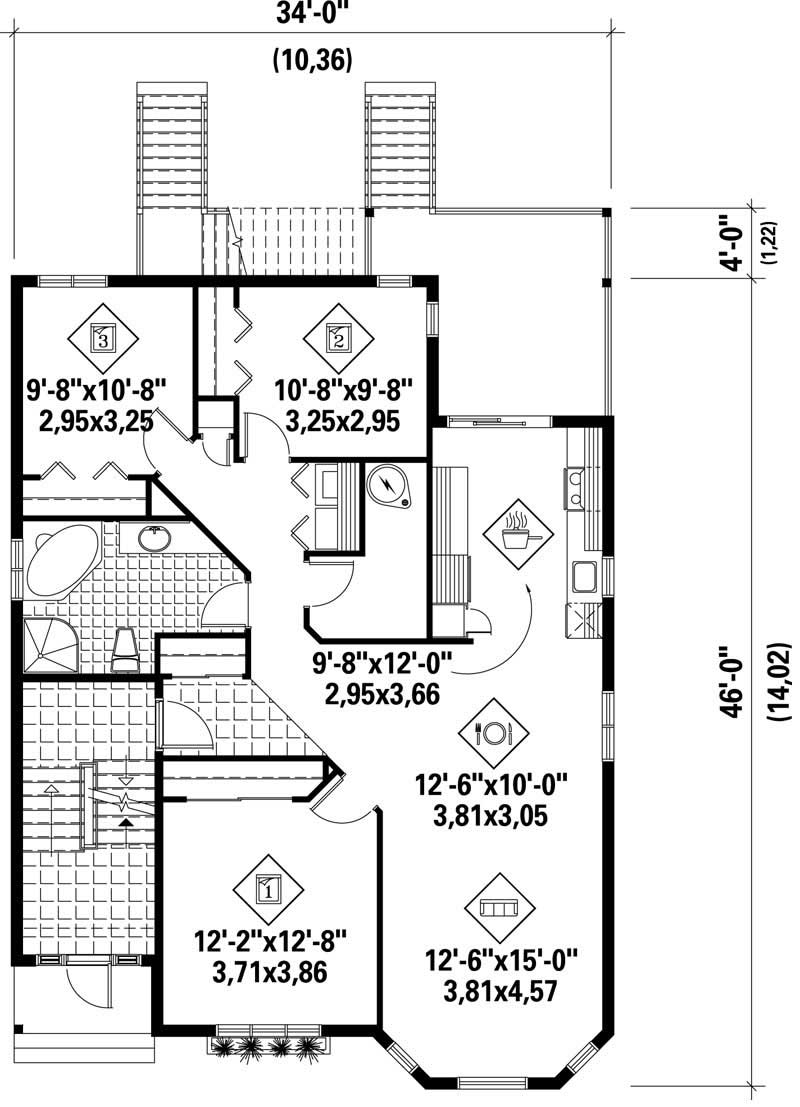

Home Plan: #157-1034 Floor Plan First Story - main level Floor Plan First Story of Multi-Level Plan #157-1034

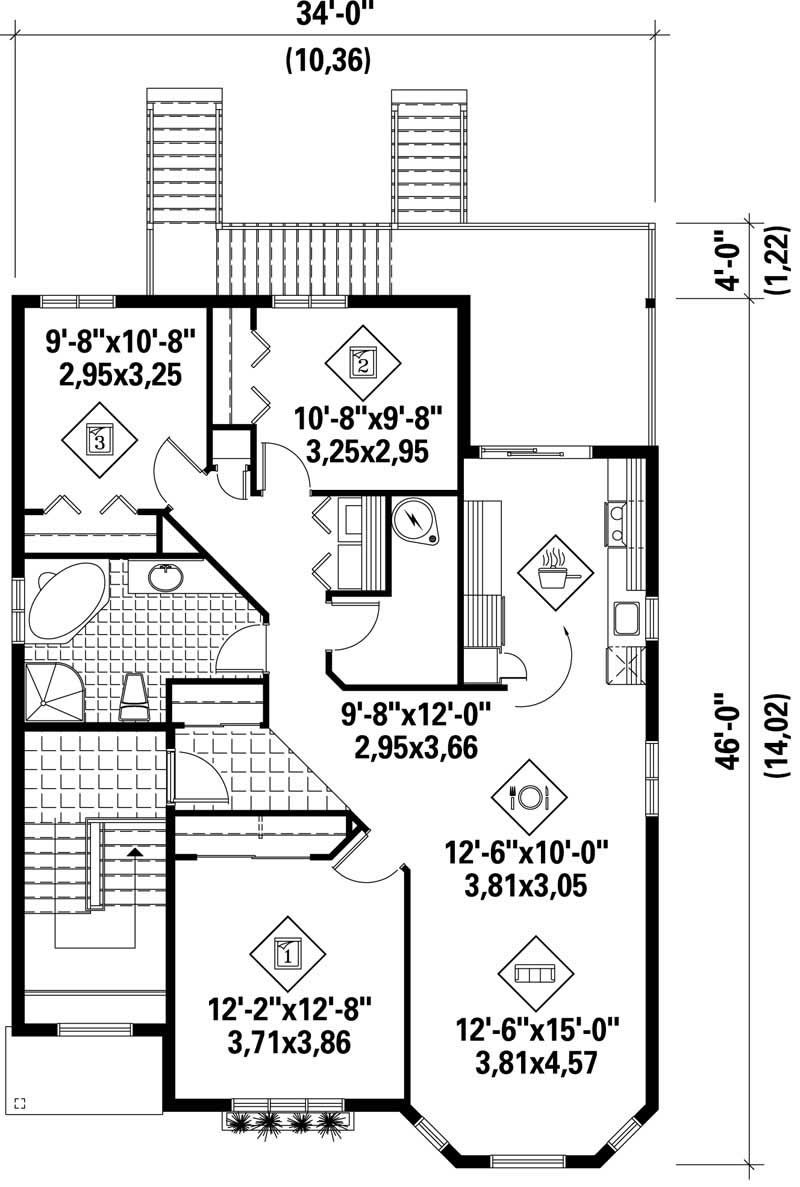

#157-1034 Floor Plan Second Story - second level Floor Plan Second Story of Multi-Level Plan #157-1034

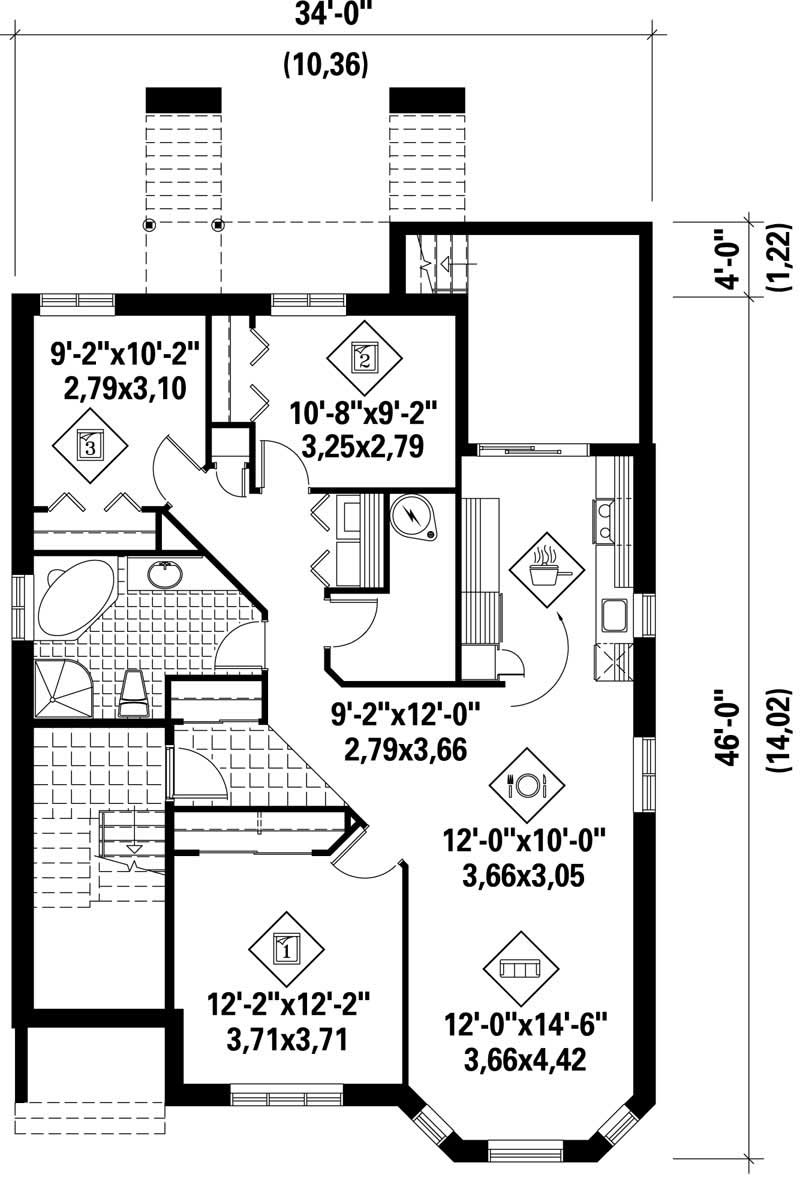

#157-1034 Floor Plan Basement - lower level Floor Plan Basement of Multi-Level Plan #157-1034
Home Plan: #157-1034 Floor Plan First Story - main level Floor Plan First Story of Multi-Level Plan #157-1034
#157-1034 Floor Plan Second Story - second level Floor Plan Second Story of Multi-Level Plan #157-1034
#157-1034 Floor Plan Basement - lower level Floor Plan Basement of Multi-Level Plan #157-1034
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 157-1034
Floors:
3
Bedrooms:
3
Full Baths:
1

Square Footage

Heated Sq Feet:
1382
Main Floor:
1382
Unfinished Sq Ft:

Dimensions

Width:
34' 0"
Depth:
46' 0"

Architectural Styles

Duplex/Multi-Unit
Multi-Level
Small House Plans

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

Please Note that the designer's office will be closed from July 19th to August 4th, 2024, inclusively. Any orders or modification requests submitted during this time will be processed when the designer resumes office on August 5th. This designer doesn't offer electrical layouts with their plans! For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.
