5-Bedroom, 3476 Sq Ft Ranch Plan with Screened Rear Porch

Ranch home (ThePlanCollection: Plan #108-1696)

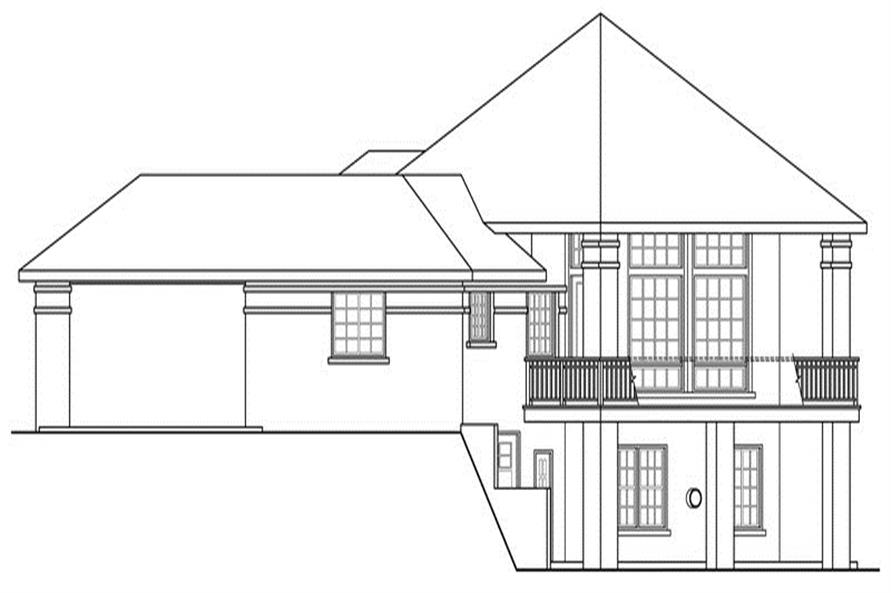

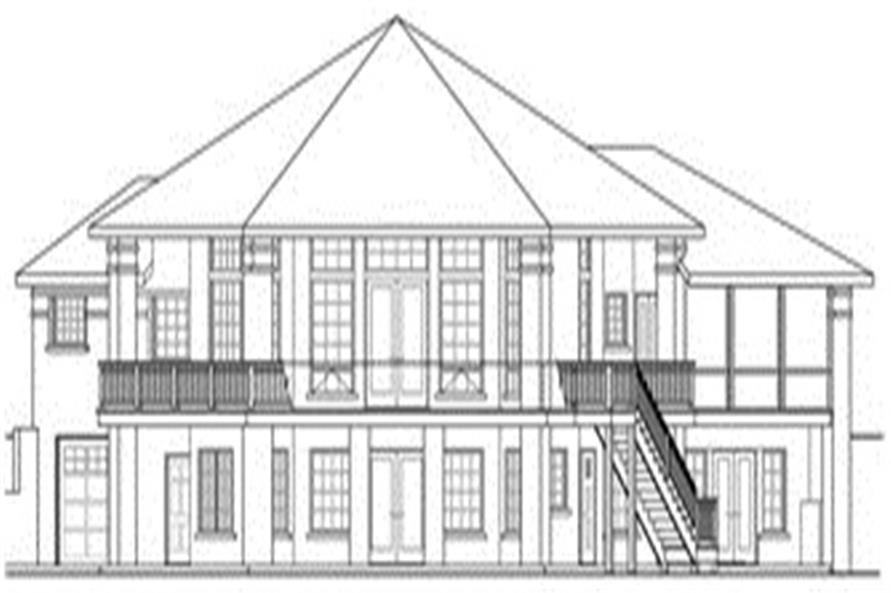

108-1696 rear

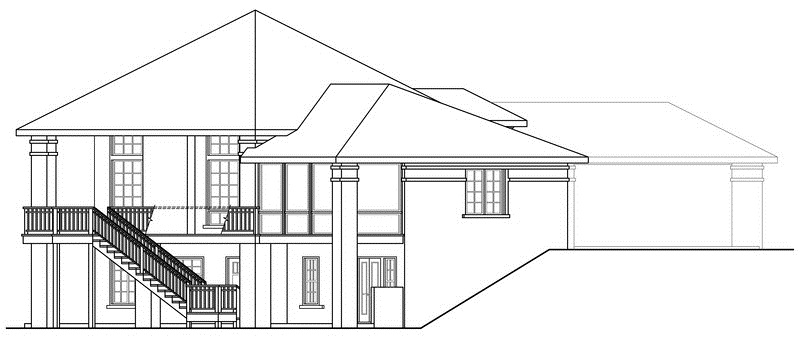

108-1696 left
108-1696 Right
5-Bedroom, 3476 Sq Ft Ranch Home - Plan #108-1696 - Main Exterior
108-1696 rear
108-1696 left
108-1696 Right

About Plan # 108-1696

About Plan # 108-1696

3476 SQUARE FEET 5 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 75' 10" WIDTH 79' 7" DEPTH 3 GARAGE BAY

A great house for a sloping lot needing a daylight (walkout basement), this smart-looking, well-designed Contemporary Ranch style home with Prairie characteristics (Plan #108-1705) has 3476 square feet of living space. The 2 story floor plan includes 5 bedrooms.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

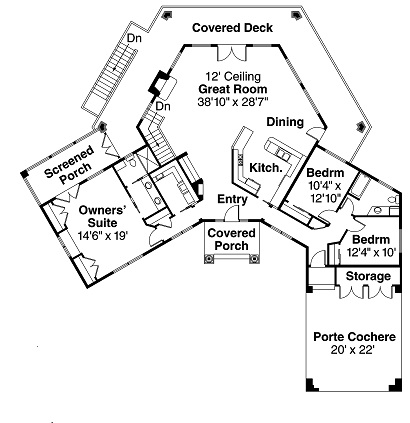

Home Plan: #108-1696 Floor Plan First Story - main level Floor Plan First Story of Country Plan #108-1696

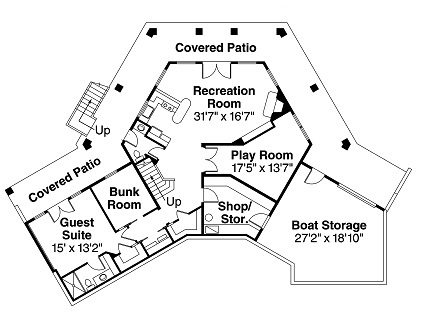

#108-1696 Floor Plan Basement - lower level Floor Plan Basement of Country Plan #108-1696
