3-Bedroom, 3414 Sq Ft Barn Style Plan with Vaulted Ceilings

Barn Style home (ThePlanCollection: Plan #193-1102)
193-1102: Home Plan Rendering
193-1102: Home Plan Rendering
193-1102: Home Plan Rendering
193-1102: Home Plan Rendering
193-1102: Home Plan Rendering
193-1102: Home Plan Rendering
3-Bedroom, 3414 Sq Ft Barn Style Home - Plan #193-1102 - Main Exterior
193-1102: Home Plan Rendering
193-1102: Home Plan Rendering
193-1102: Home Plan Rendering
193-1102: Home Plan Rendering
193-1102: Home Plan Rendering
193-1102: Home Plan Rendering

About Plan # 193-1102

About Plan # 193-1102

3414 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
1.5 FLOOR 55' 0" WIDTH 139' 9" DEPTH 3 GARAGE BAY

This impressive Barn Style style home with Farmhouse elements is designed in the Dutch Colonial tradition but with a decidedly contemporary interpretation. The 2-story-tall Great Room has a vaulted ceiling with large trusses, giving it very much of a barn-like felling inside. The sleeping loft and bathroom upstairs overlook this area. The home has 3414 square feet of living space, and the 1.5-story floor plan includes 3 bedrooms in addition to the sleeping loft.

Each plan set includes the following:

  • Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

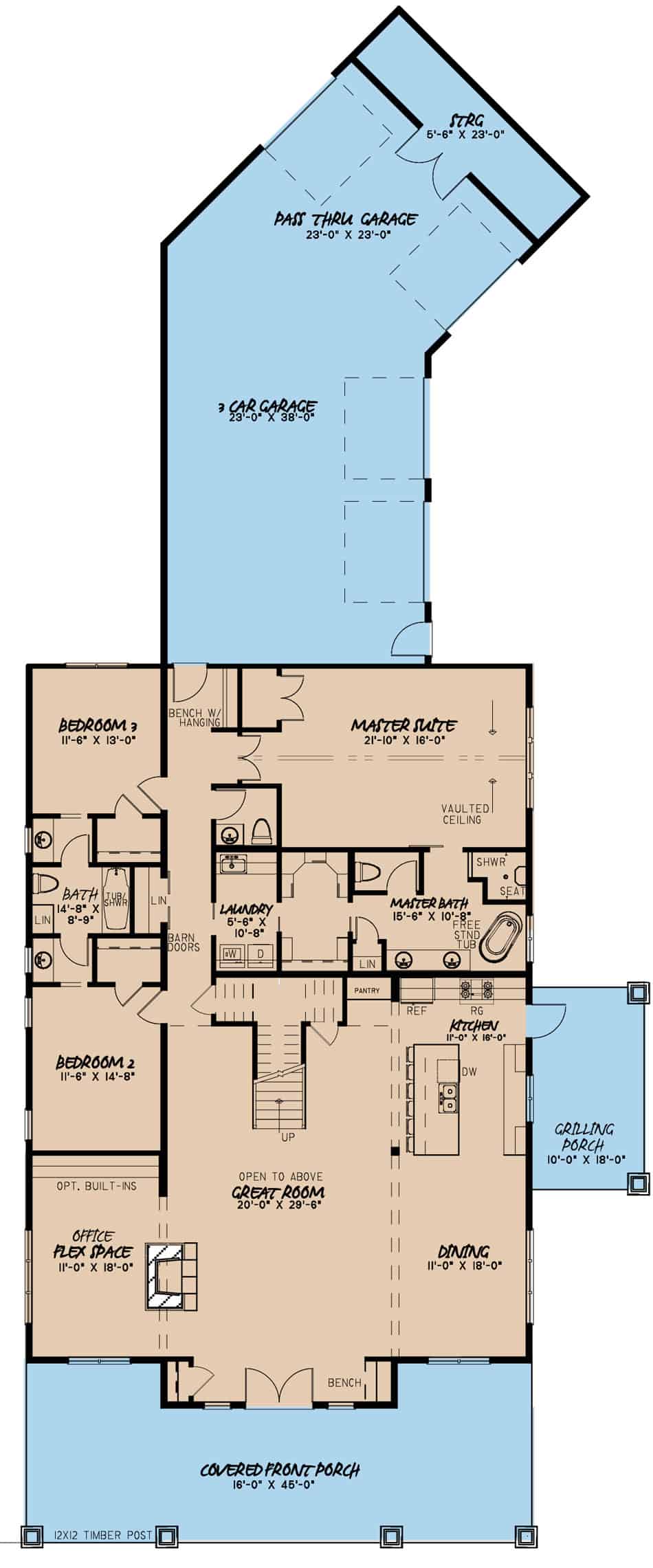

Home Plan: #193-1102 Floor Plan First Story - main level Floor Plan Main Level of Craftsman Plan #193-1102

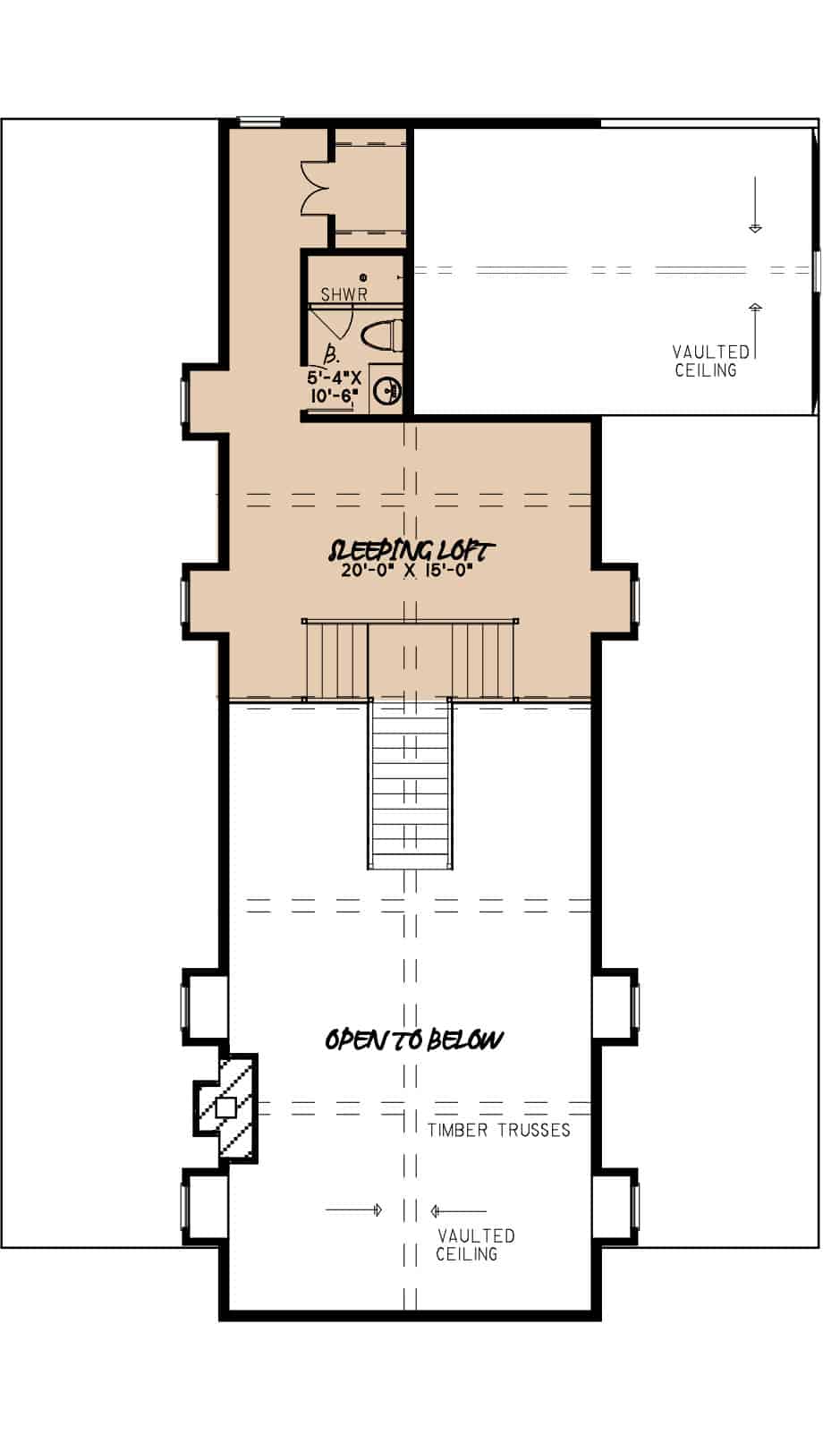

#193-1102 Floor Plan Second Story - upper level Floor Plan Upper Level of Craftsman Plan #193-1102
