5-Bedroom, 3190 Sq Ft Ranch Plan with Eat-In Kitchen
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 3190 SQUARE FEET | 5 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 63' 8" WIDTH | 66' 0" DEPTH | 3 GARAGE BAY |
Brick detailing, shuttered windows and hip roof lines makes this traditional ranch home the perfect addition to any neighborhood. The great room and kitchen are the heart of this home, and are located in the center of the plan for easy family access. The island kitchen provides seating for several and overlooks the nook and great room to create a comfortable living space. The dining room has front-facing windows, a step ceiling and easy access to the kitchen for serving formal meals. The master suite, topped by a tray ceiling, is sure to please with its large walk-in closet and Jacuzzi tub. Two additional family bedrooms share a bath and are located on the opposite side of the home for maximum privacy. Downstairs, you’ll find two additional bedrooms, a full bath and a large rec room.
Each plan set includes the following:
- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

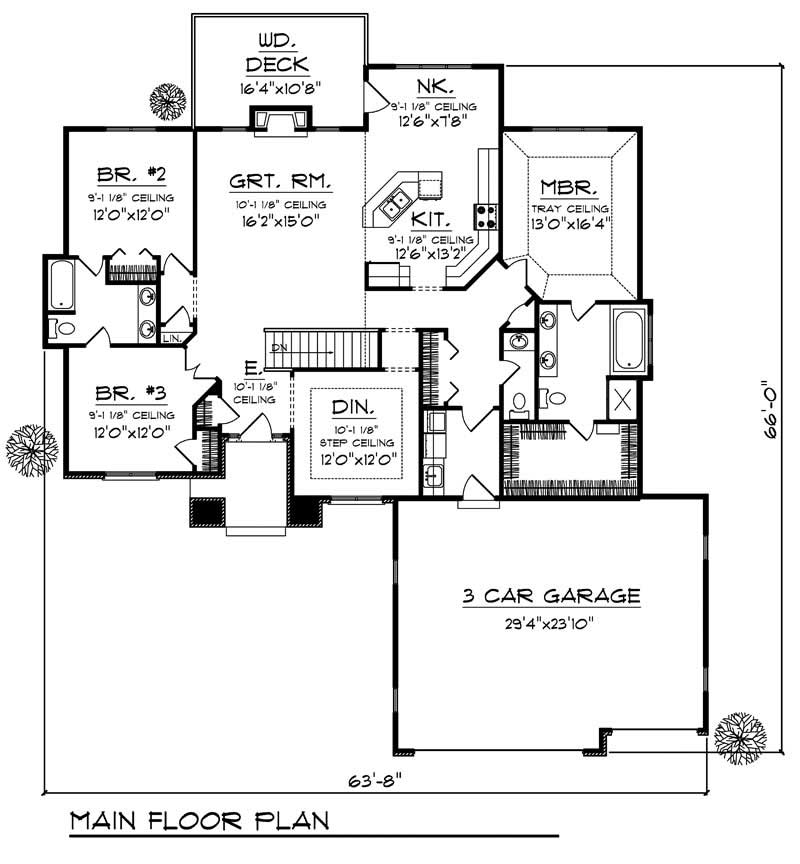

Home Plan: #101-1707 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #101-1707]( "MAIN FLOOR PLAN")

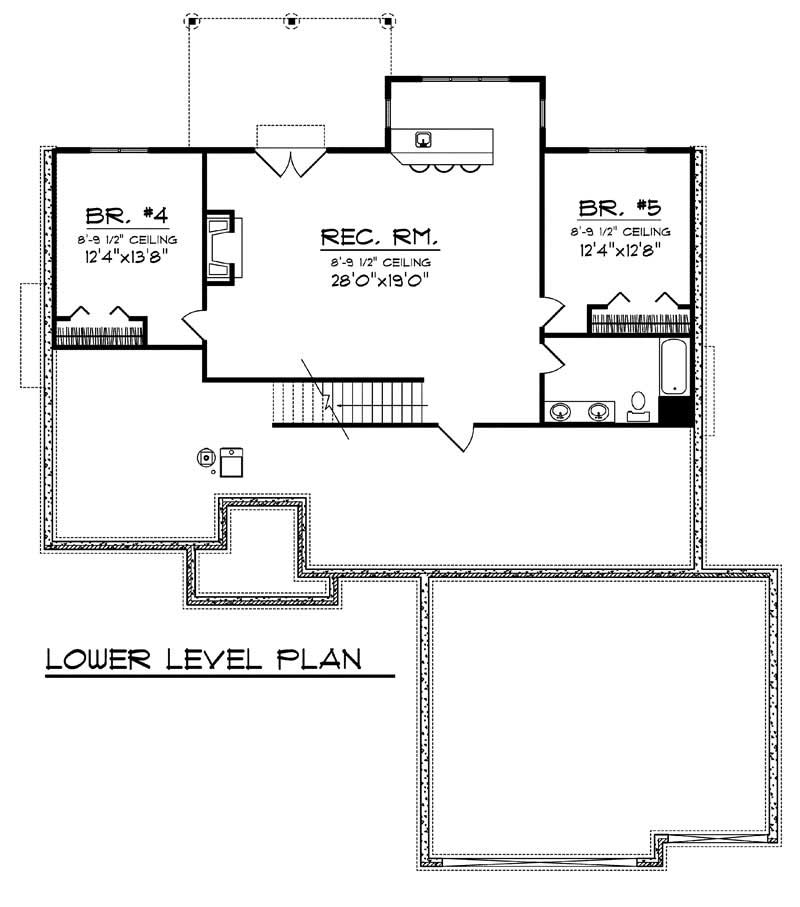

#101-1707 Floor Plan Basement
-
