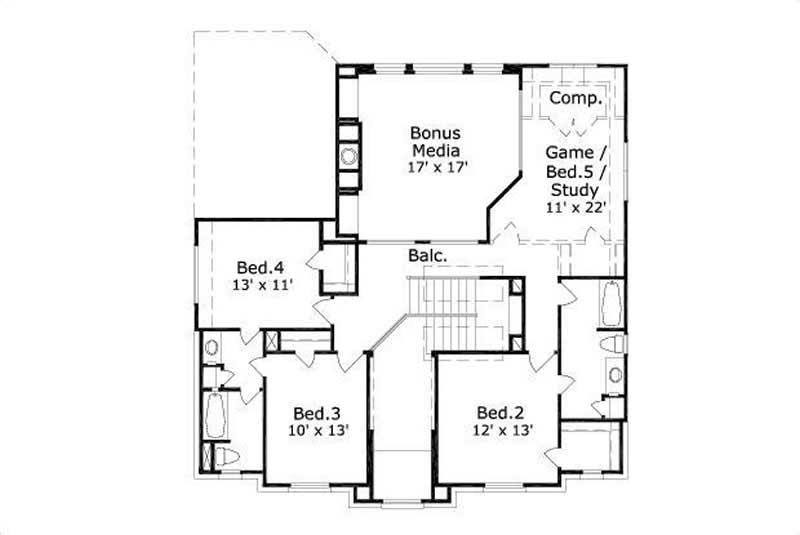

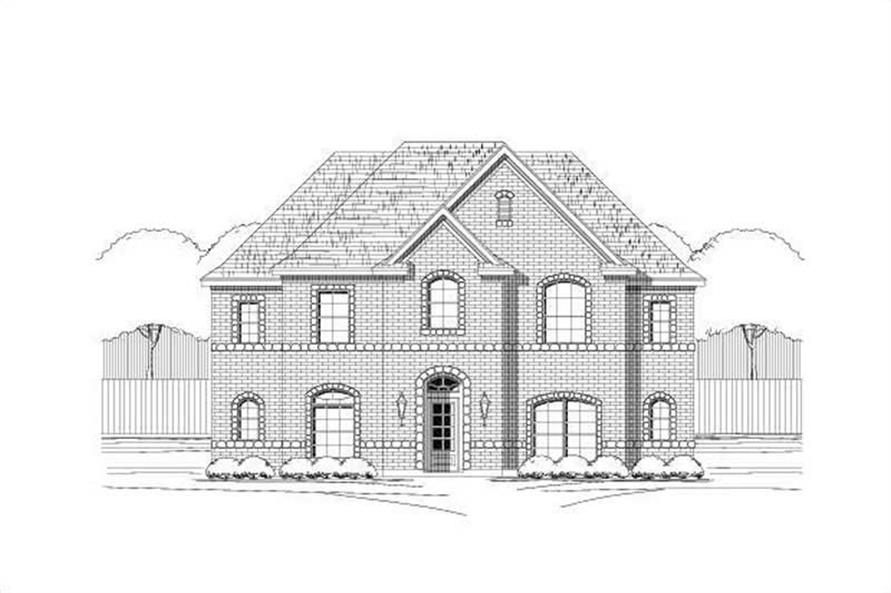

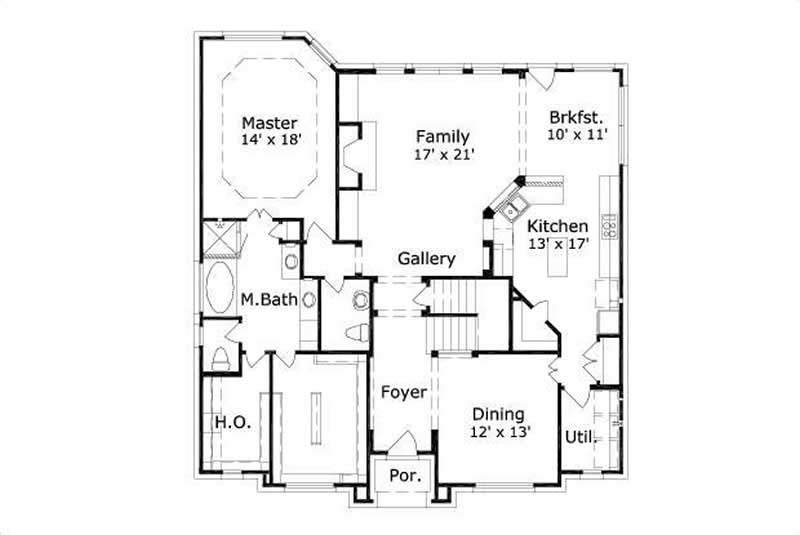

Home Plan #40364 is a two story traditional style home with brick exterior and 3173 total living square feet. It has 4 bedrooms, 3 baths, 1 living area, and 2 dining areas. This house plan also has a bonus room, a foyer, a home office, a playroom, a theater/media, a computer alcove, a gallery, a master with sitting area, a separate master closet, and a two story family room.
Each plan set includes the following:
- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
