2-Bedroom, 3017 Sq Ft Multi-Unit House Plan - 101-1817 - Front Exterior

About Plan # 101-1817

About Plan # 101-1817

3017 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 69' 8" WIDTH 58' 8" DEPTH 2 GARAGE BAY

Unit A:1530 main floor square footage, 2 bath, Unit B:794 main floor square footage, 693 second floor square footage.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

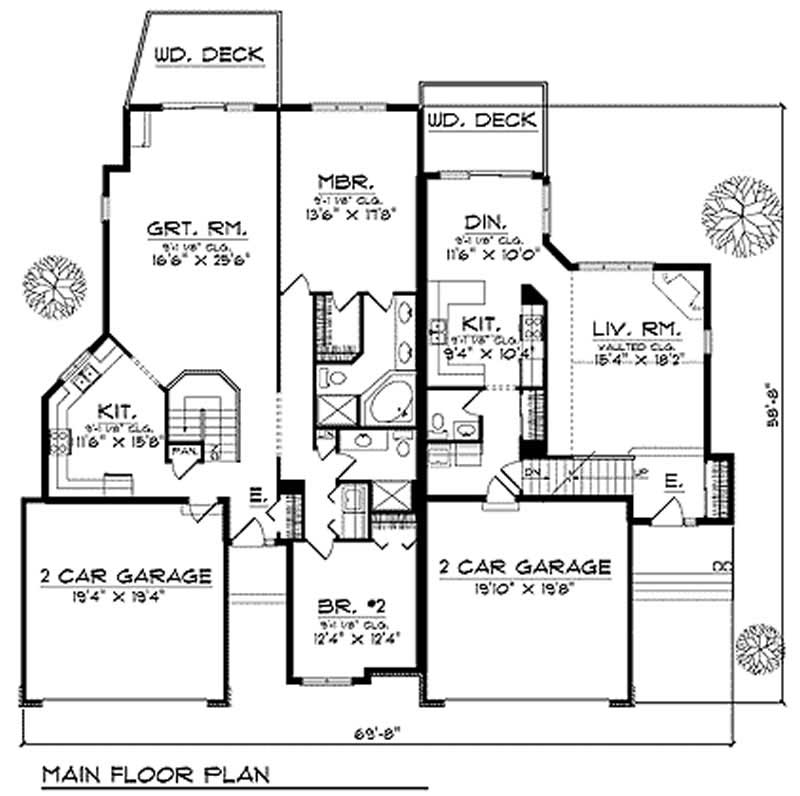

Home Plan: #101-1817 Floor Plan First Story - main Floor Plan First Story of Multi-Unit Plan #101-1817

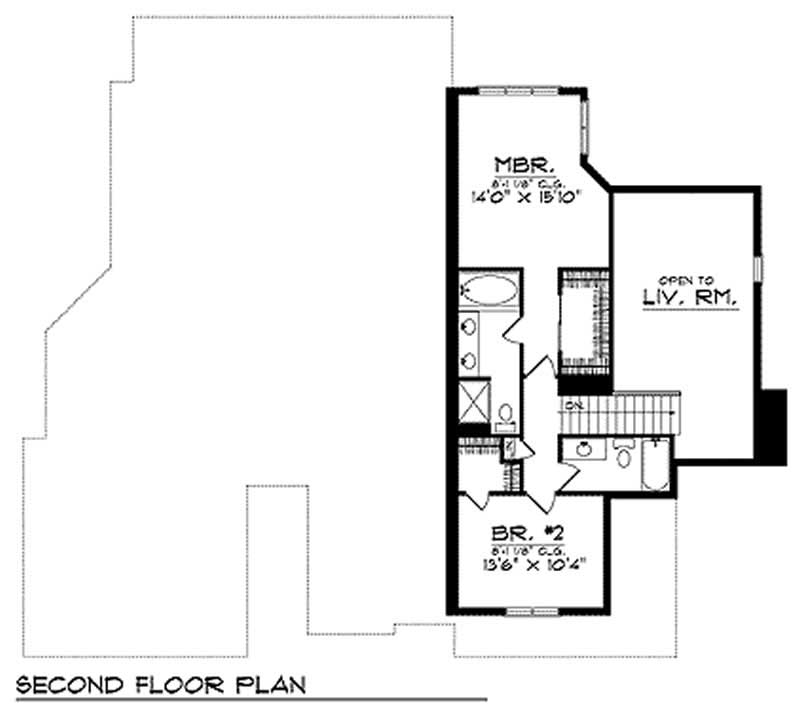

#101-1817 Floor Plan Second Story - second Floor Plan Second Story of Multi-Unit Plan #101-1817
Home Plan: #101-1817 Floor Plan First Story - main Floor Plan First Story of Multi-Unit Plan #101-1817
#101-1817 Floor Plan Second Story - second Floor Plan Second Story of Multi-Unit Plan #101-1817
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 101-1817
Floors:
1
Bedrooms:
2
Full Baths:
2

Square Footage

Heated Sq Feet:
3017
Main Floor:
3017
Unfinished Sq Ft:

Dimensions

Width:
69' 8"
Depth:
58' 8"

Architectural Styles

Country
Duplex/Multi-Unit
Traditional

Exterior Wall Material

Aluminum Siding
Vinyl Siding
Brick
Wood Siding

Roof Pitch

8/12

Garage Type

Front Entry

Additional Notes from Designer

Please Note: Specs are per unit. However, total square footage, width, and depth are for all units combined.
