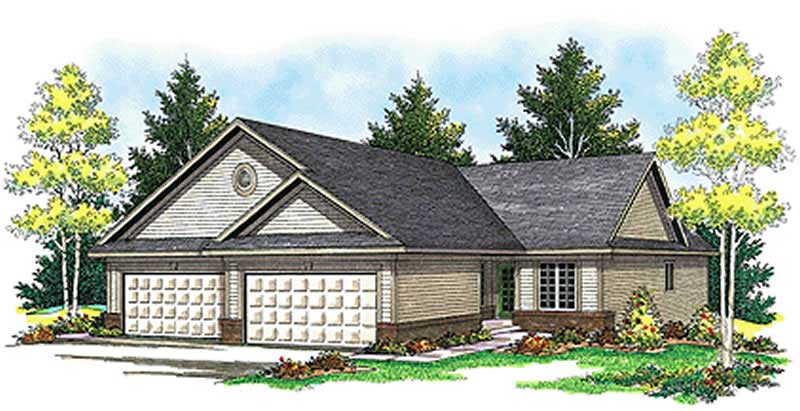

Duplex Ranch Plan with Open Floor Plan
| 2600 SQUARE FEET | 2 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 76' 0" WIDTH | 55' 0" DEPTH | 2 GARAGE BAY |
This is an ideal duplex plan designed for empty nesters or a family just starting out. Each of the two units has 1300 heated square feet with two bedrooms and two bathrooms. The layout is quite thoughtful and maximizes the use of the floor space. The main rooms are designed in an open floor plan layout and look out to the backyard and rear deck. The large living room opens to the dining area. The kitchen is efficiently designed and has its own breakfast nook. The master suite has a walk-in closet and an ensuite bath with double sinks. The second bedroom is at the front of the home and next to the second full bath. It would also make the perfect home office. There is also an attached 2-car garage with each unit.
Note: The main floor and specs are all per unit. Total square footage, width, depth, and pitch are both units together.
Each plan set includes the following:

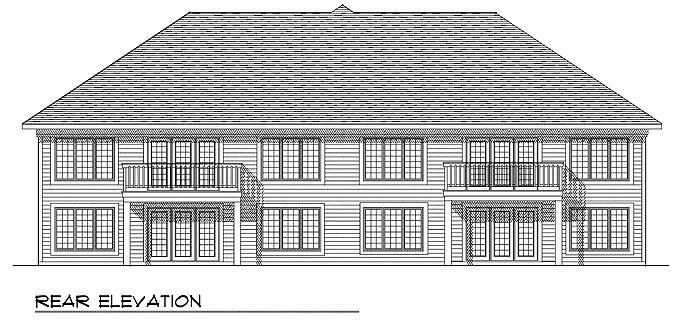

- Front, Back & Side Elevations

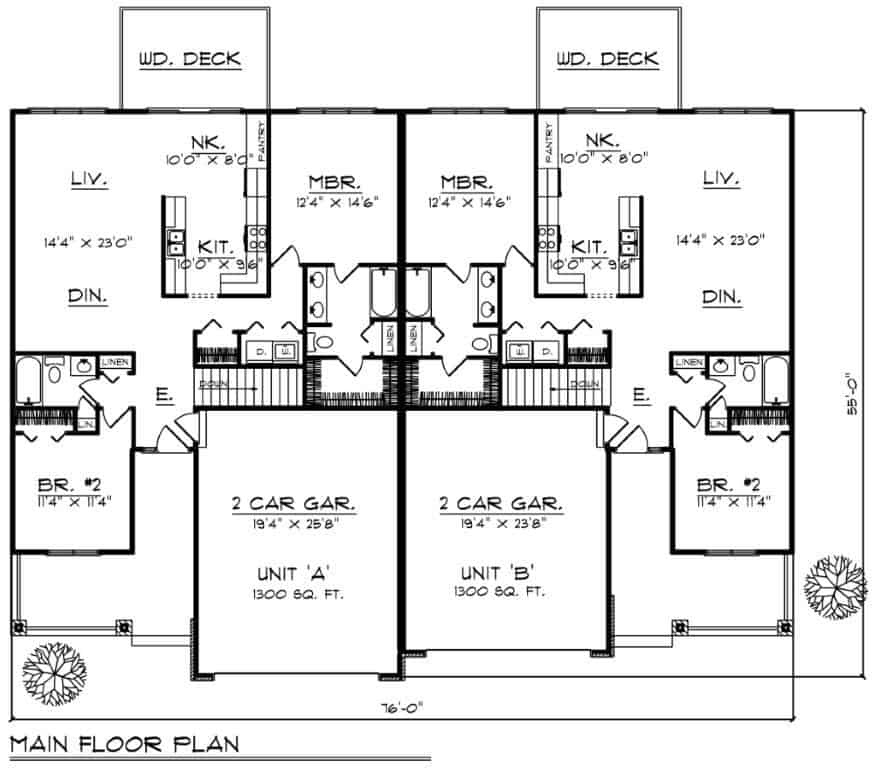

- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
Please Note: Specs are per unit. However, total square footage, width, and depth are for all units combined.
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
