2-Bedroom, 2776 Sq Ft Multi-Unit House Plan - 101-1065 - Front Exterior

About Plan # 101-1065

About Plan # 101-1065

2776 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 82' 0" WIDTH 48' 4" DEPTH 0 GARAGE BAY

Main floor square footage and specs are all per unit. Total square footage, width, depth, and pitch are all both units combined. Stone accents gives this traditionally inspired home a European flair that will be enjoyed in almost every neighborhood. With two identical units this duplex plan provides homeowners with a carefully designed floor plan that makes use of every square inch of space. The kitchen features a breakfast bar that overlooks the adjacent dining and great rooms and creates a living area that’s perfect for family gatherings. The master suite pampers with its walk-in closet and dual sink. A second bedroom and full bath complete each plan. Additional amenities include a corner fireplace in the great room, nine foot ceilings throughout, and a spacious covered porch off the back of each unit.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

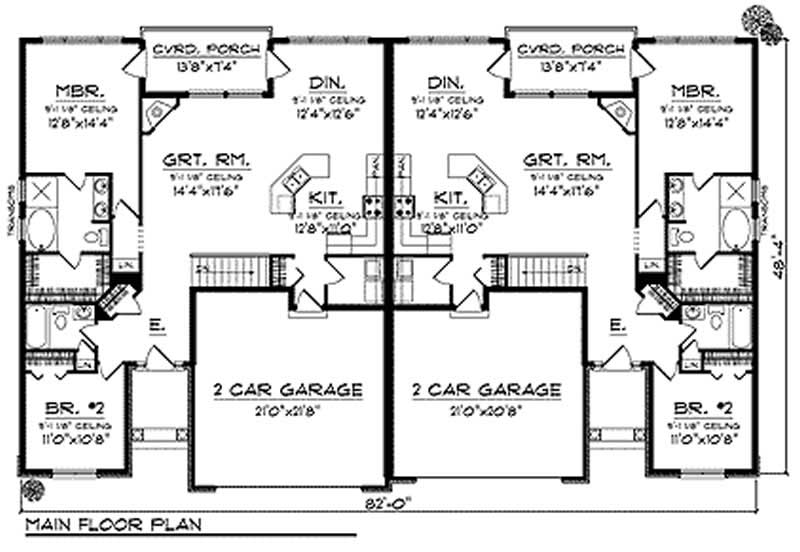

Home Plan: #101-1065 Floor Plan First Story - main Floor Plan First Story of Multi-Unit Plan #101-1065
