2-Bedroom, 3006 Sq Ft Ranch Plan with Nook/Breakfast Area

Bungalow Home Plans CLS-3022 colored front elevation rendering.

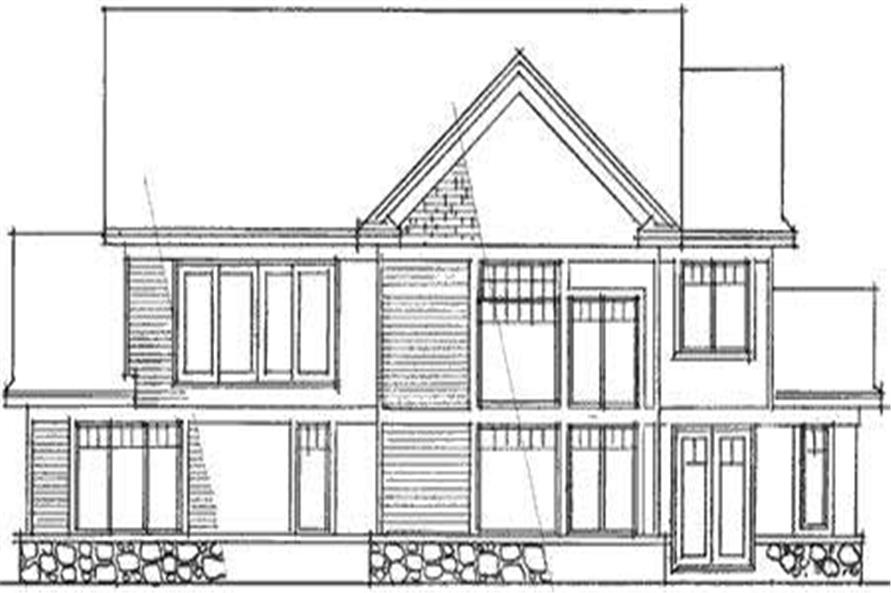

Home Plan Rear Elevation
2-Bedroom, 3006 Sq Ft Ranch Home Plan - 165-1091 - Main Exterior
Home Plan Rear Elevation

About Plan # 165-1091

About Plan # 165-1091

3006 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 60' 0" WIDTH 46' 0" DEPTH 0 GARAGE BAY

Who knew comfort and nature came hand in hand? With this bungalow-style home, you don't have to sacrifice either aspect. A unique floor plan puts the kitchen and dinette at the front of the home; behind them, the Gream Room is flooded with light and outdoor views with two walls of windows. A bedroom and office or optional bedroom share the full hall bath on the main floor. The master suite enjoys the privacy of the entire upper floor; it features an optional private terrace, a private bath and walk-in closet, and a spacious loft area with a wet bar and overlook into the Great Room.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

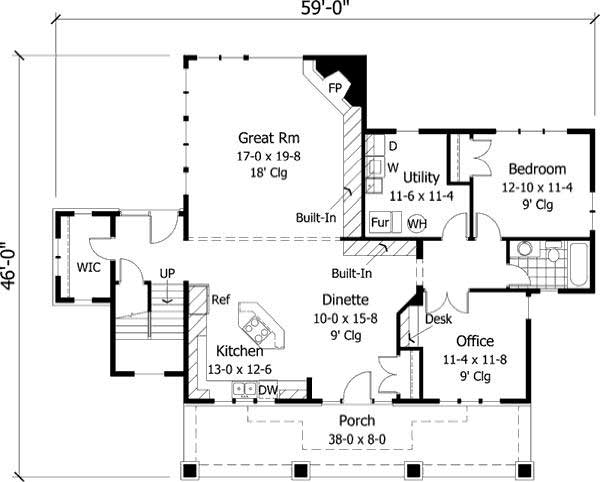

Home Plan: #165-1091 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #165-1091

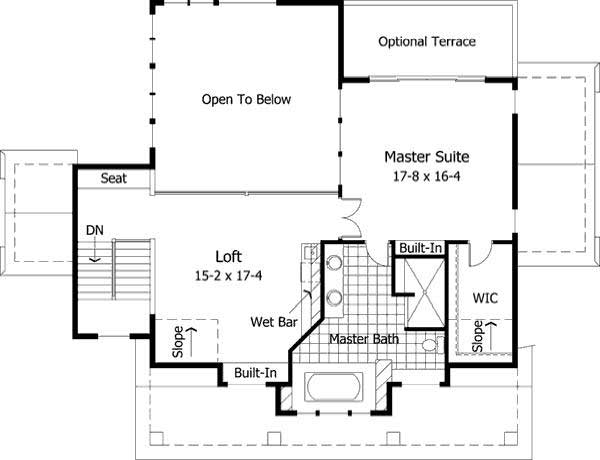

#165-1091 Floor Plan Second Story - second story Floor Plan Second Story of Ranch Plan #165-1091
Home Plan: #165-1091 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #165-1091
#165-1091 Floor Plan Second Story - second story Floor Plan Second Story of Ranch Plan #165-1091
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 165-1091
Floors:
2
Bedrooms:
2
Full Baths:
2

Square Footage

Heated Sq Feet:
3006
Main Floor:
1874
Upper Floor:
1132
Unfinished Sq Ft:

Dimensions

Width:
60' 0"
Depth:
46' 0"

Architectural Styles

Bungalow
Country
Craftsman
Traditional

Exterior Wall Material

Rock/Stone
Shakes
Vinyl Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Ceiling Height

9 Foot Ceiling

Special Feature

Balcony
Dining Room
Fireplace
Home Office
Loft
Main Level Laundry
Split Bathroom
Storage
Vaulted Ceilings

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Sundeck

Master Suite Features

Master Bathroom
Private Deck
Second Floor Master
Sitting Area
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: Materials Lists are based on the STOCK plan ONLY without modifications! Custom materials lists are available if you modify a plan. Please ask for a quote.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this PDF file set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
