3-Bedroom, 2995 Sq Ft Ranch Plan with Walk In Closet

Main image for house plan # 9321

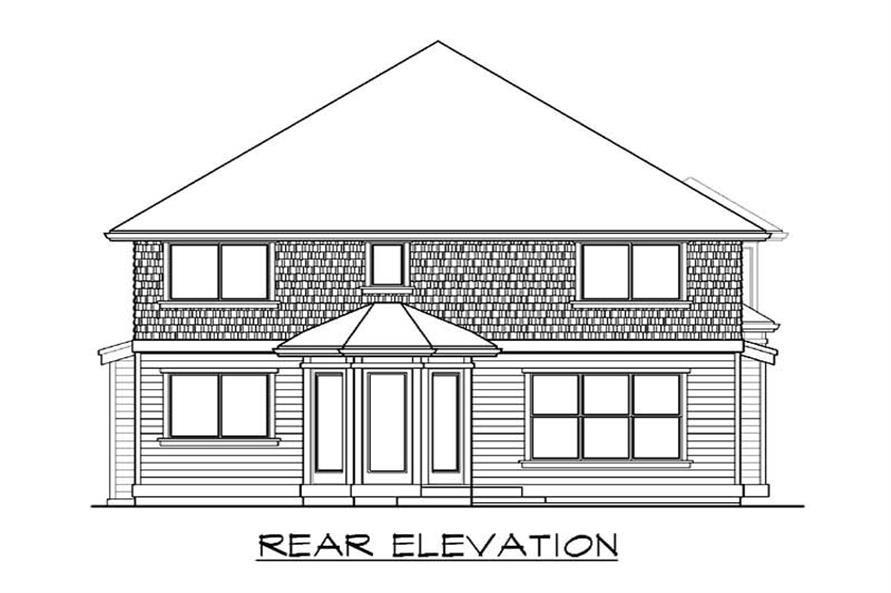

Rear Elevation
3-Bedroom, 2995 Sq Ft Ranch House Plan - 115-1276 - Front Exterior
Rear Elevation

About Plan # 115-1276

About Plan # 115-1276

Not to big, not to small, and just right for the enthusiast of craftsman/shingle style homes. The two-car garage has a spacious workshop for those who love auto, wood, and other sorts of mechanical hobbies, or use it for bike and mower storage. From the foyer your guests will notice a cozy den to the left; perfect for library collections and relaxing studies or other activities. To the right, a formal living room with a classic fireplace that opens to the rear to a formal dining room. The back of the first floor plan contains a second fireplace in the great room, a nook, and a kitchen with a spacious pantry. There is a half-bath on the main floor located centrally by the stairs for those coming from the garage or any other part of the home. Upstairs you’ll find three bedrooms and bonus room. There is a utility room with a sink located close to the bedrooms so that you won’t have to lug heavy laundry up and down the stairs or across the house. A full bath accommodates the bedrooms and bonus room. The Master Suite is complete with his and hers walk-in closets and a master bath with a jetted tub with windows to over looks the city lights, the coast, or mountain vistas. This is just right.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

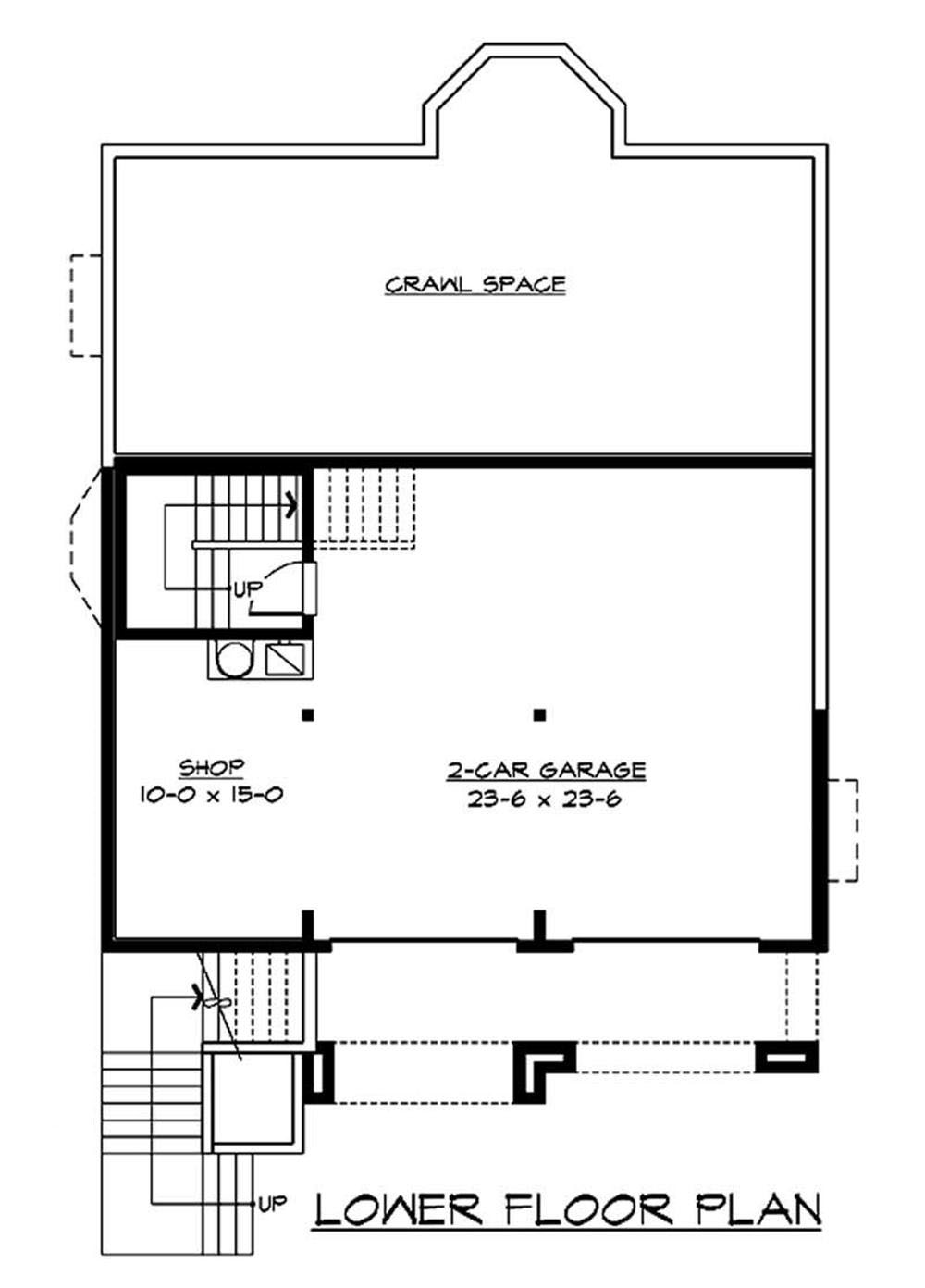

Home Plan: #115-1276 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #115-1276

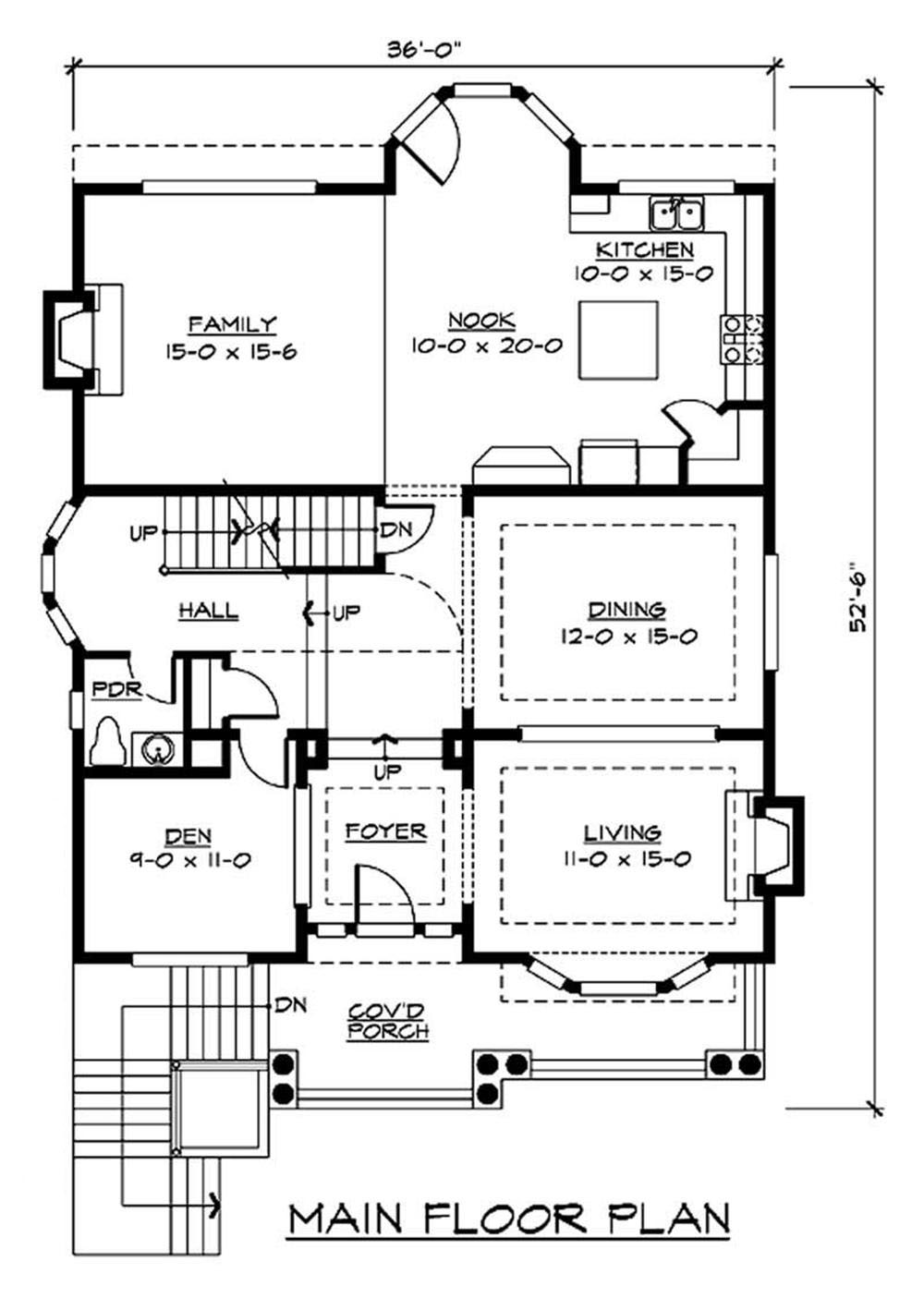

#115-1276 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #115-1276

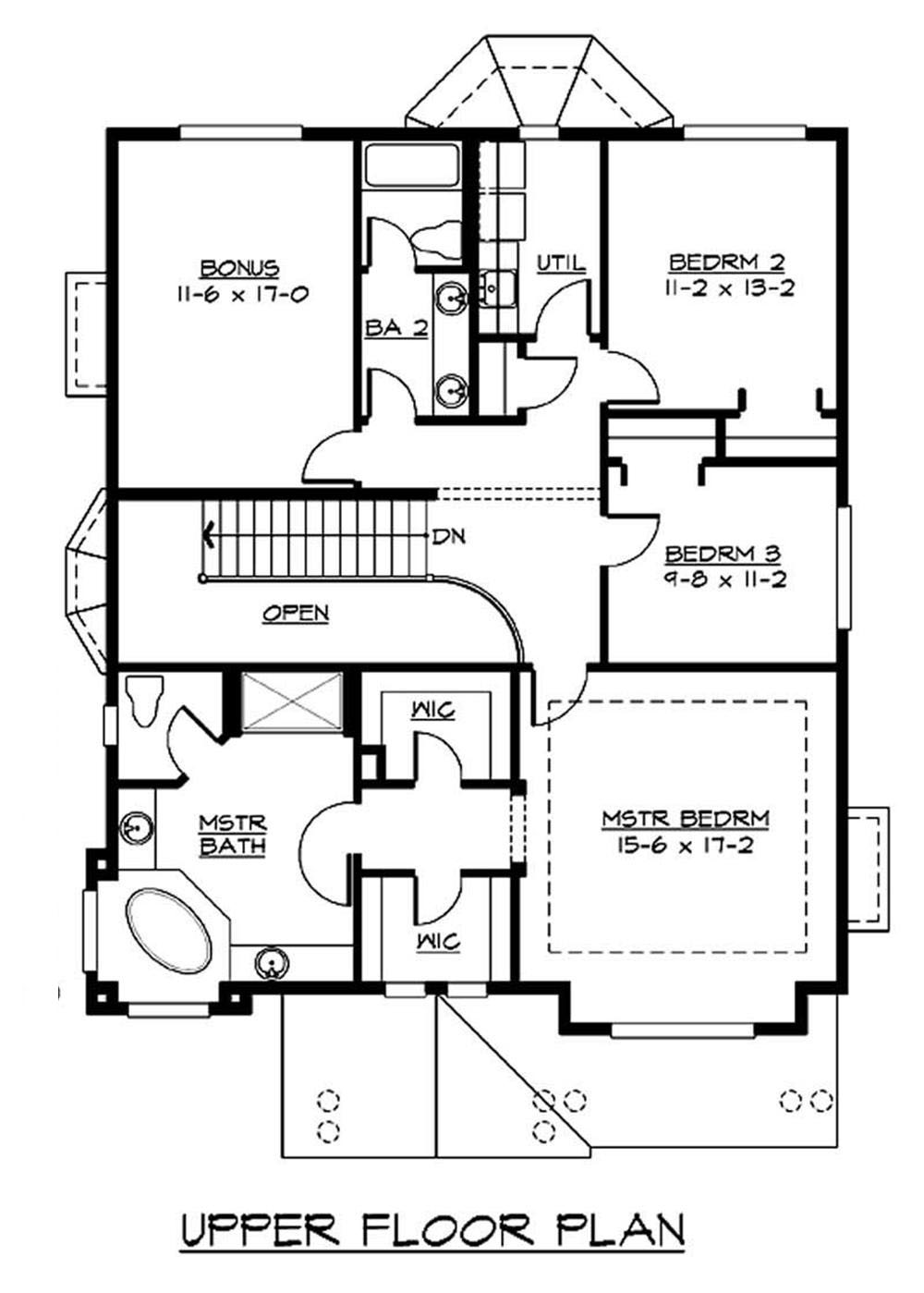

#115-1276 Floor Plan Second Story - second story Floor Plan Second Story of Ranch Plan #115-1276
