3-Bedroom, 2805 Sq Ft Craftsman Plan with Peninsula/Eating Bar

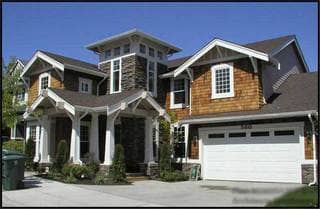

This is an actual color photo of these very popular Craftsman House Plans.

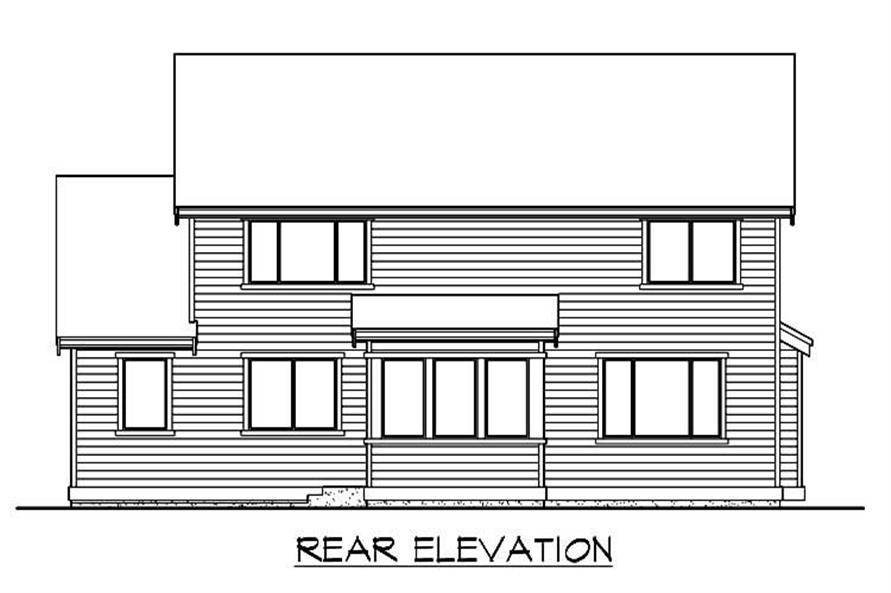

Home Plan Rear Elevation

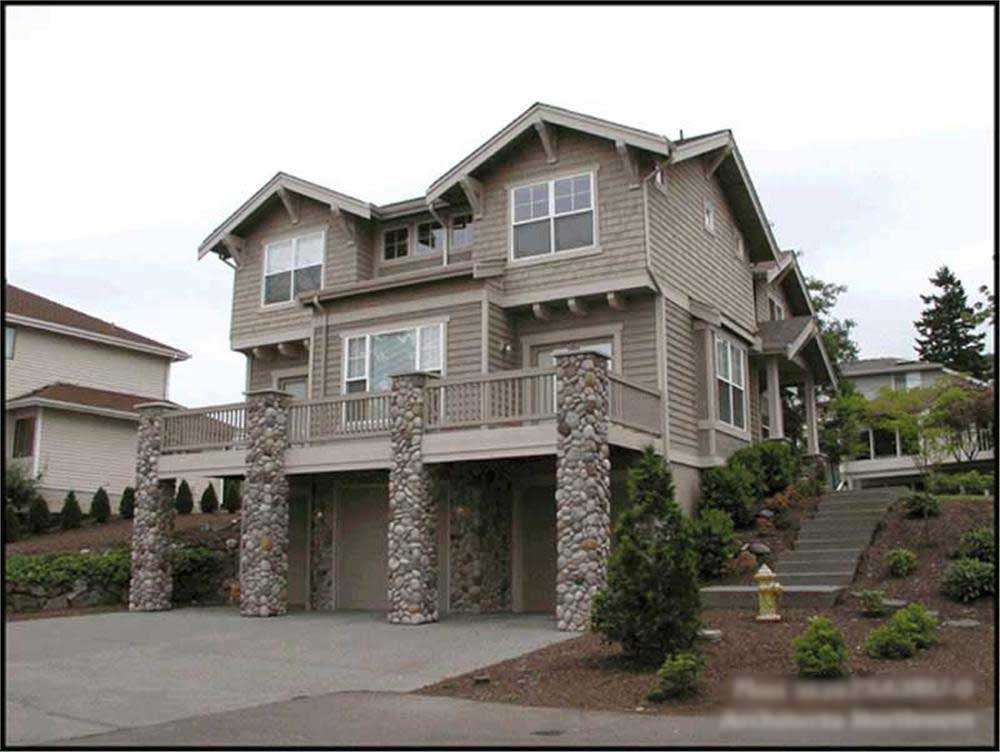

3-Bedroom, 2805 Sq Ft Craftsman Home Plan - 115-1245 - Main Exterior

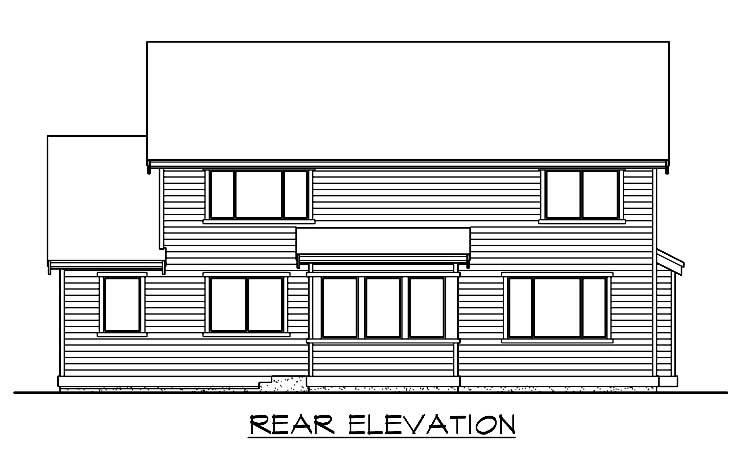

Home Plan Rear Elevation

About Plan # 115-1245

About Plan # 115-1245

2805 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 48' 0" WIDTH 60' 0" DEPTH 3 GARAGE BAY

This is an arts and crafts house plan to be enjoyed. There are lots of fun details that will please you and your guests for years. --- Both the foyer and the dining room are open to above balconies near the upper story bonus room. Wide open spaces inside, a large deck outside, and a spacious three car garage provide the generous space you'll need for entertaining and raising a family. Upstairs provides a conveniently located utility room, three bedrooms and the previously mentioned bonus room with vaulted ceilings. A full bath accommodates the bedrooms and bonus room upstairs, and a complete and spacious master bath room provides luxury to the master suite. The Master Suite has his and hers walk-in closets and vaulted ceilings.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

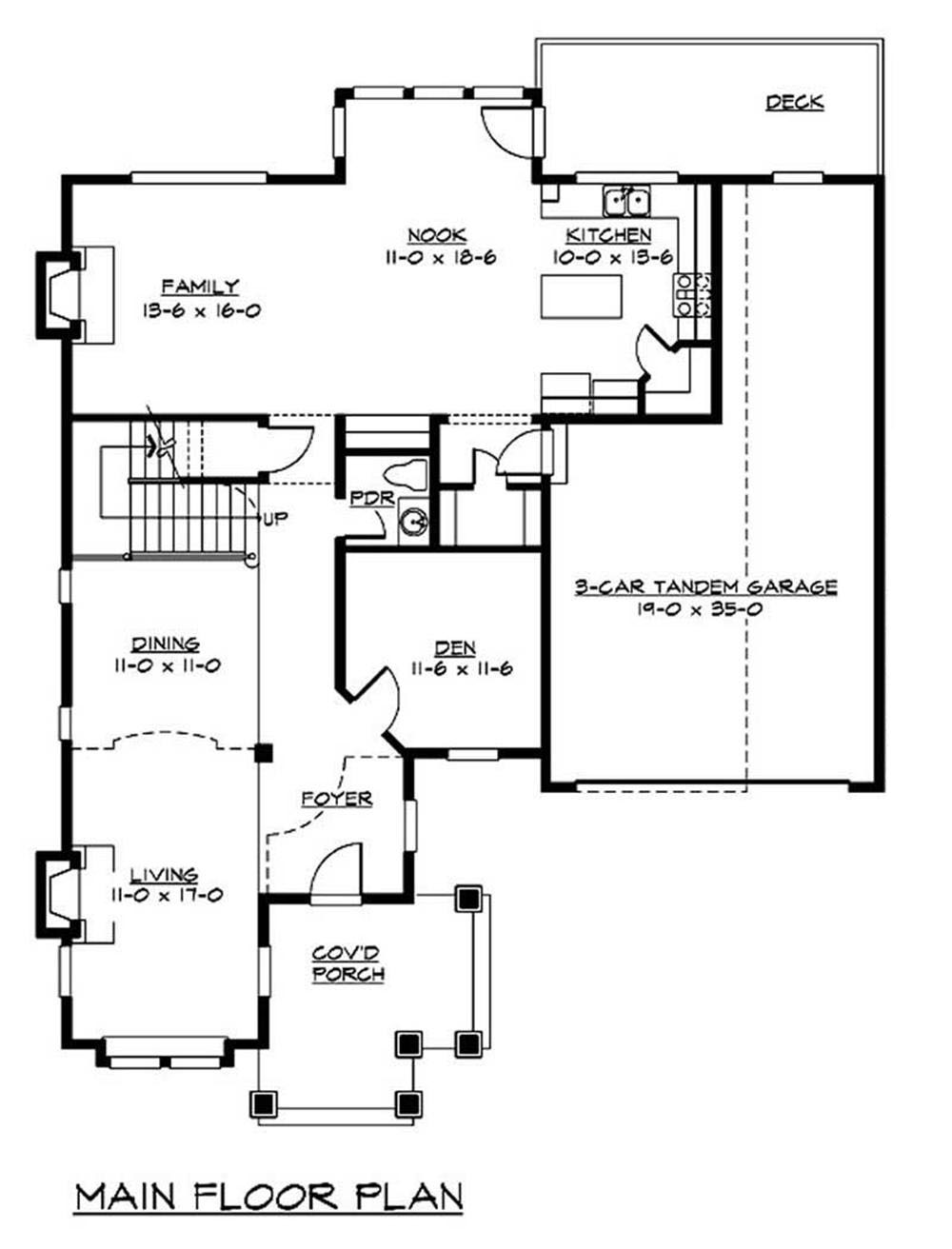

Home Plan: #115-1245 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #115-1245

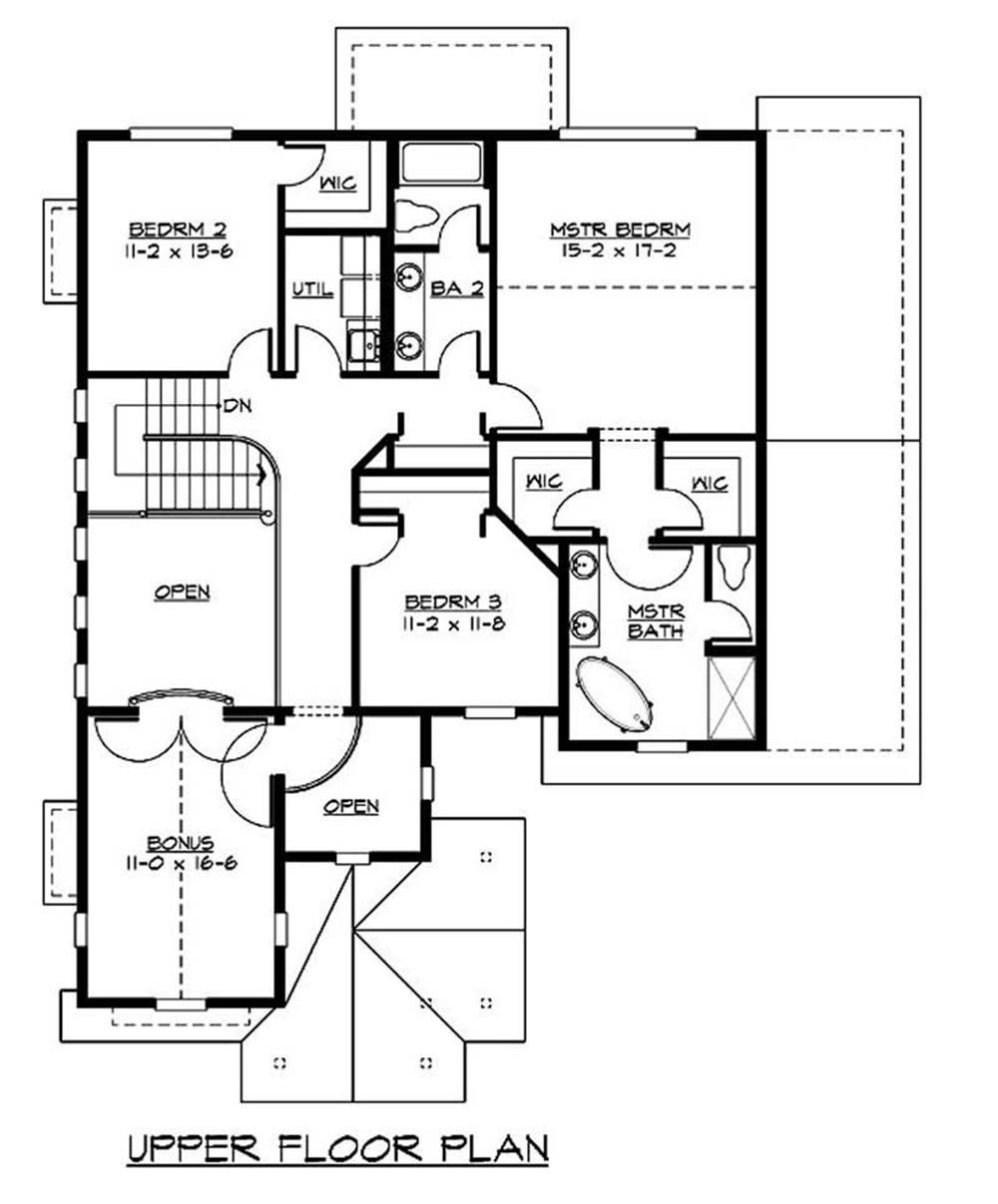

#115-1245 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #115-1245
Home Plan: #115-1245 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #115-1245
#115-1245 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #115-1245
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 115-1245
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
2805
Main Floor:
1425
Upper Floor:
1380
Unfinished Sq Ft:
Bonus Room:
181
Garage :
580

Dimensions

Width:
48' 0"
Depth:
60' 0"
Ridge Height:
26'11' 0"

Architectural Styles

Arts and Crafts
Bungalow
Craftsman
Shingle

Roof Pitch

6/12

Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Bonus Room
Color Photos
Dining Room
Guest Room

Garage Type

Attached Garage

Fireplaces

Two Fireplaces

Porches and Exterior Features

Covered Front Porch

Additional Notes from Designer

Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans. NOTE: If you are building this home in Washington State, please contact us BEFORE placing your order!
