3-Bedroom, 3130 Sq Ft Craftsman Plan with Peninsula/Eating Bar

Main image for house plan #115-1000

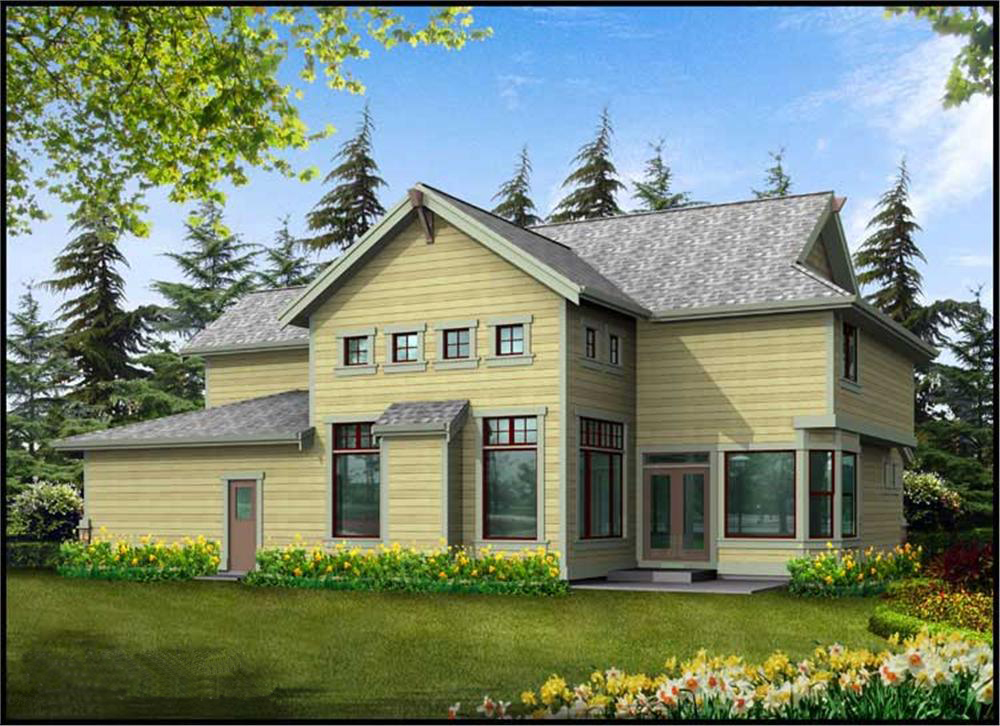

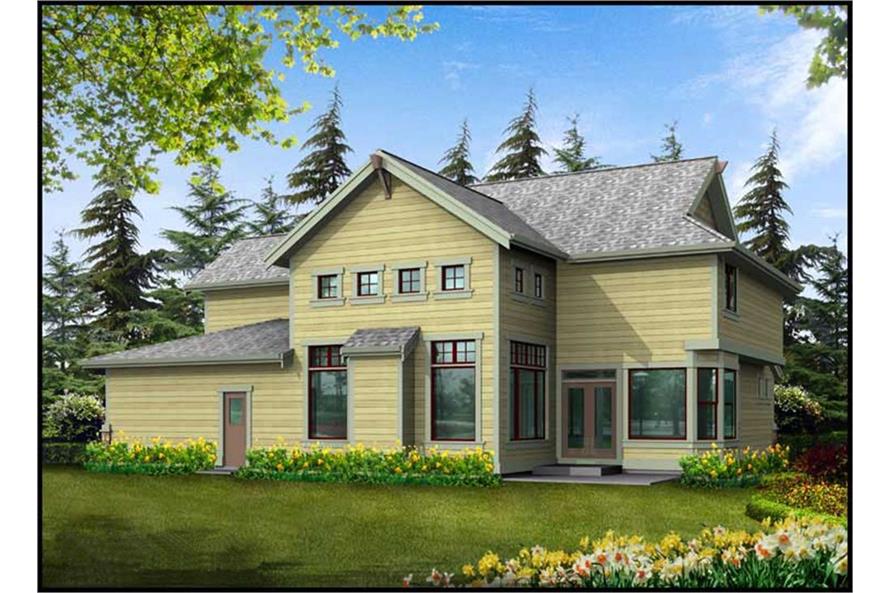

Home Plan Rear Elevation

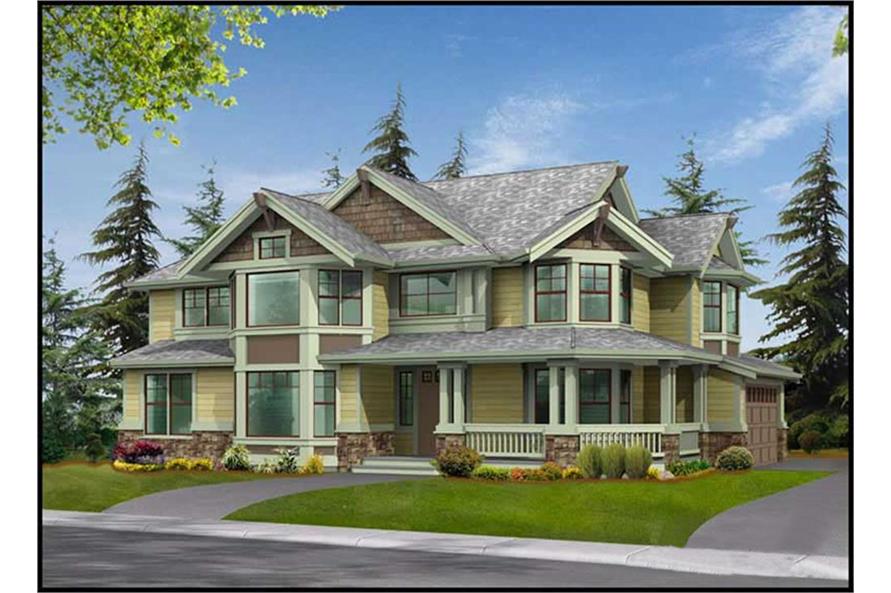

House Plan CD-M3130A3S-0 Front Elevation
House Plan CD-M3130A3S-0 Front Elevation

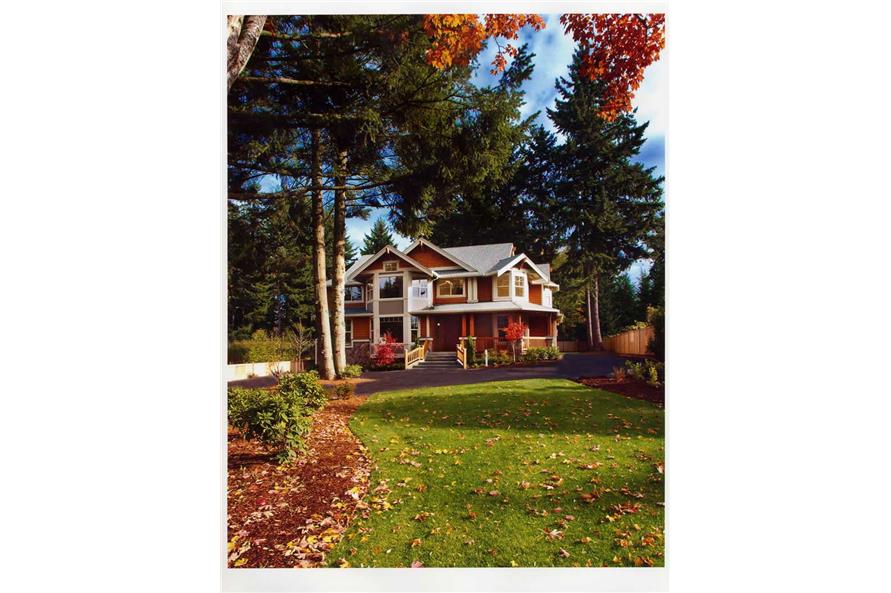

House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph

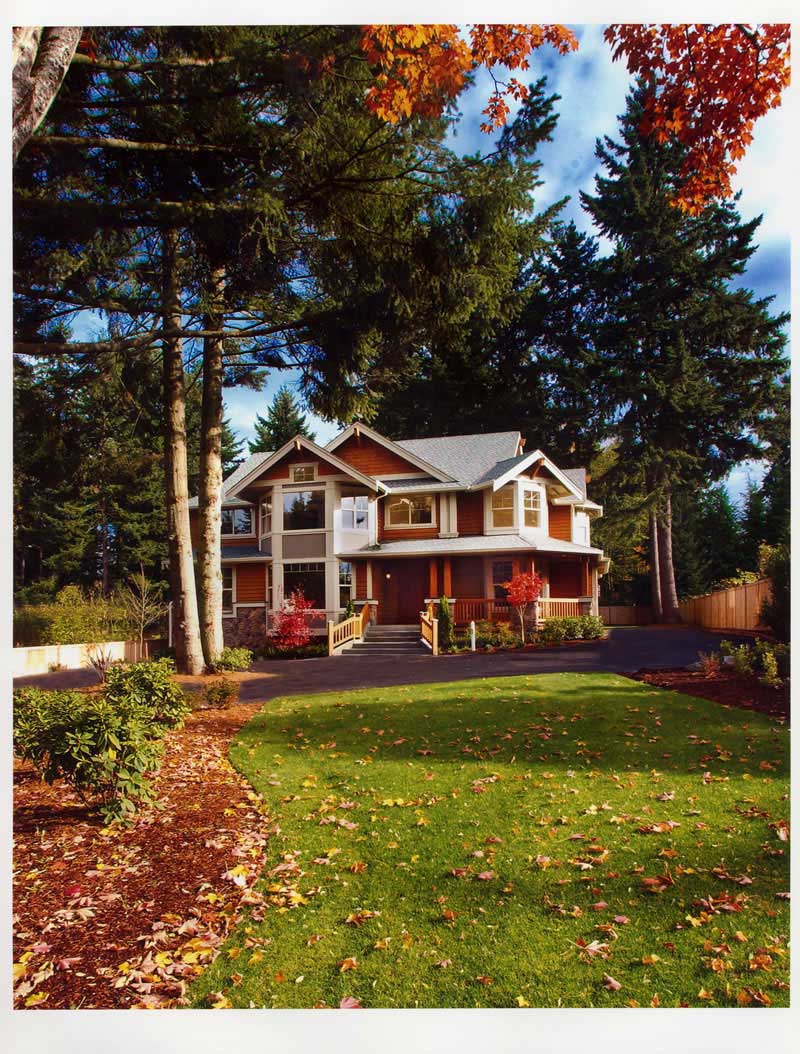

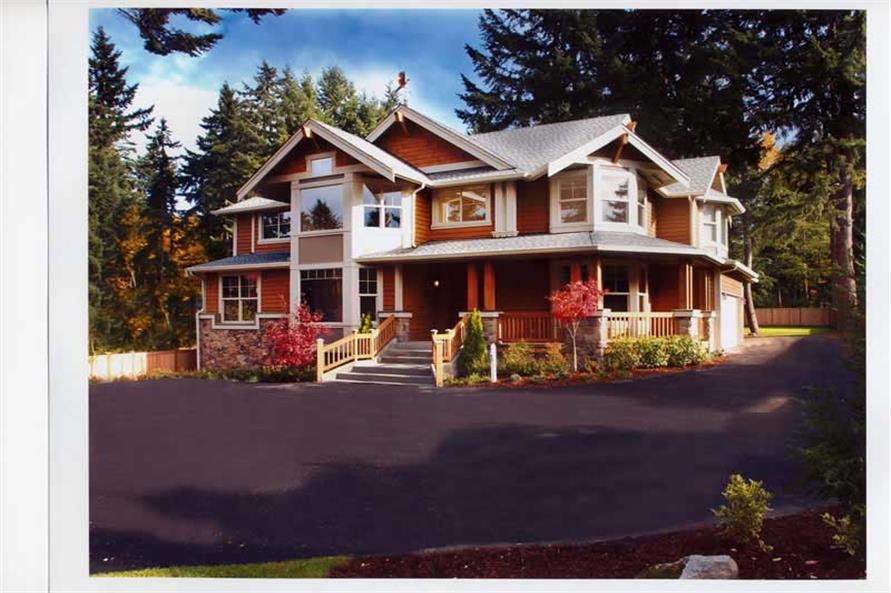

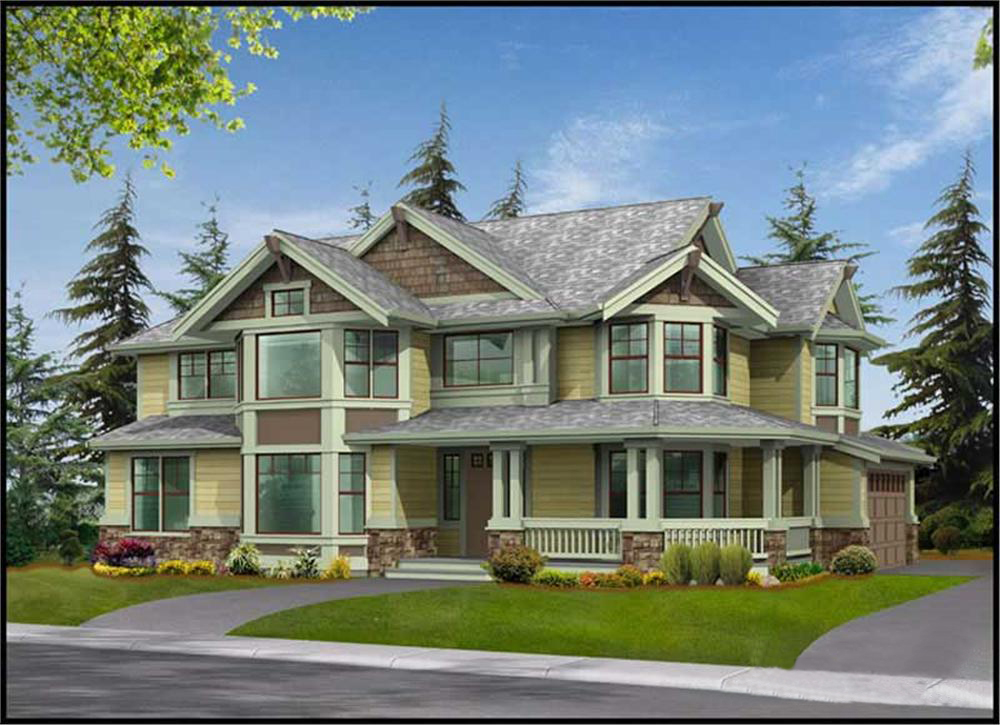

3-Bedroom, 3130 Sq Ft Craftsman House Plan - 115-1000 - Front Exterior
Home Plan Rear Elevation
House Plan CD-M3130A3S-0 Front Elevation
House Plan CD-M3130A3S-0 Front Elevation
House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph
House Plan CD-M3130A3S-0 Photograph

About Plan # 115-1000

About Plan # 115-1000

3130 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 59' 0" WIDTH 50' 0" DEPTH 3 GARAGE BAY

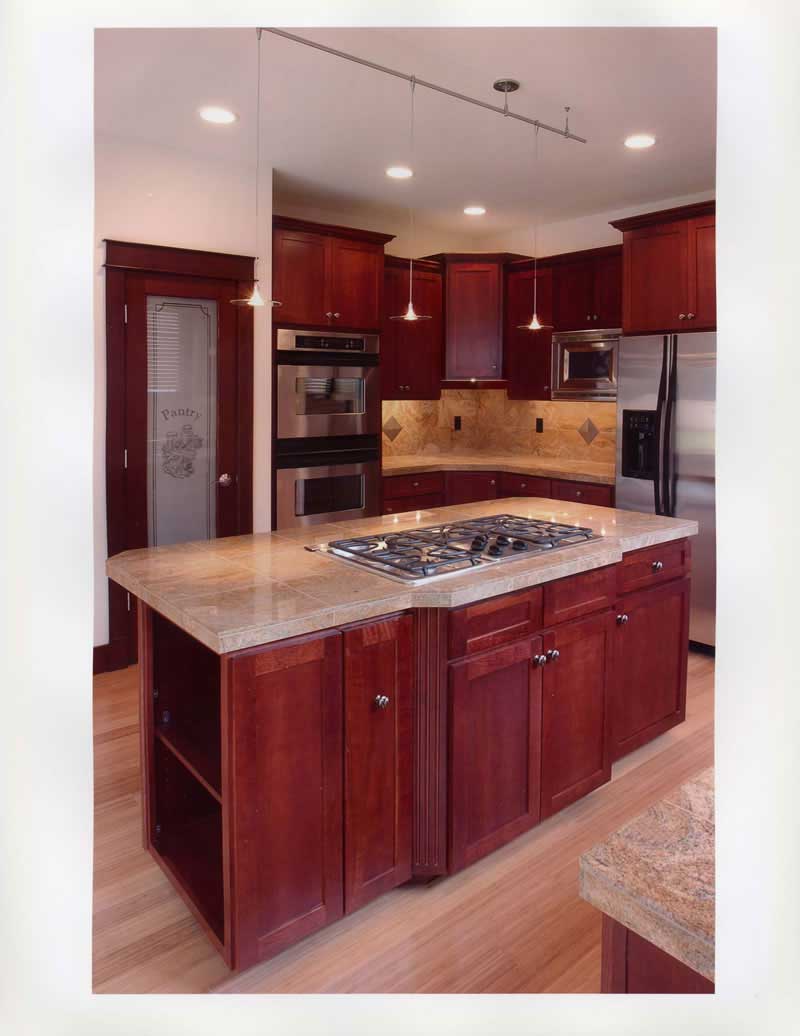

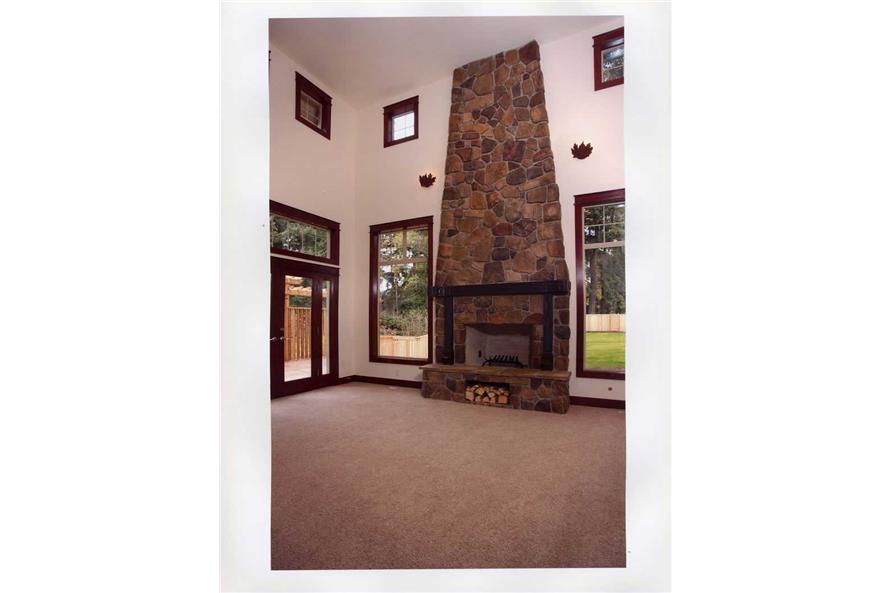

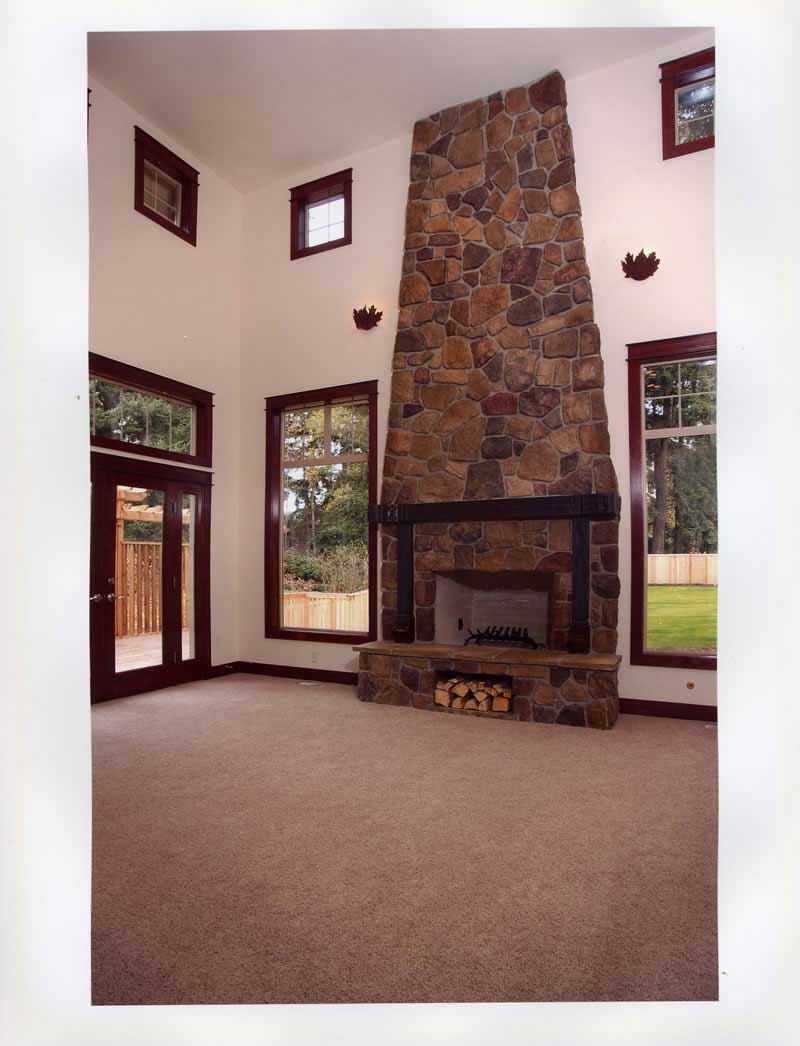

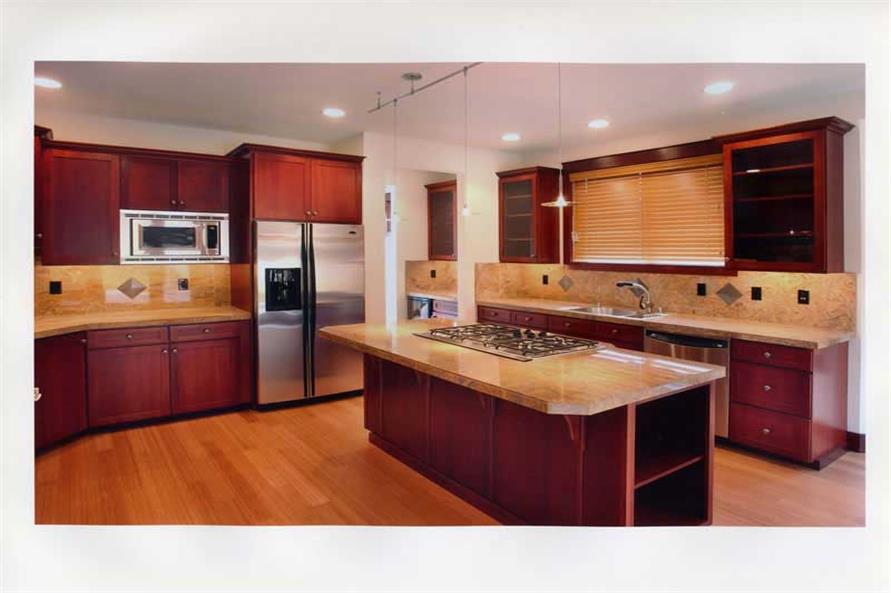

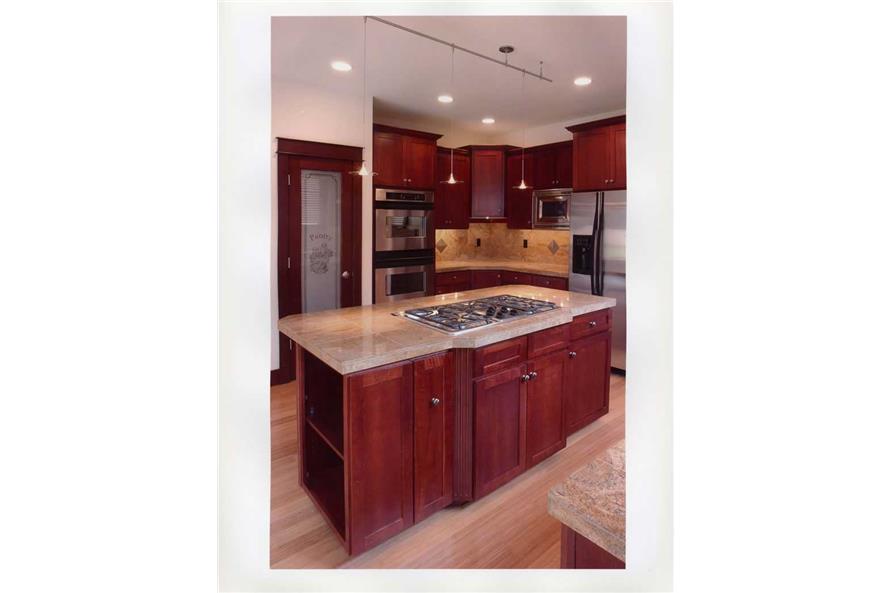

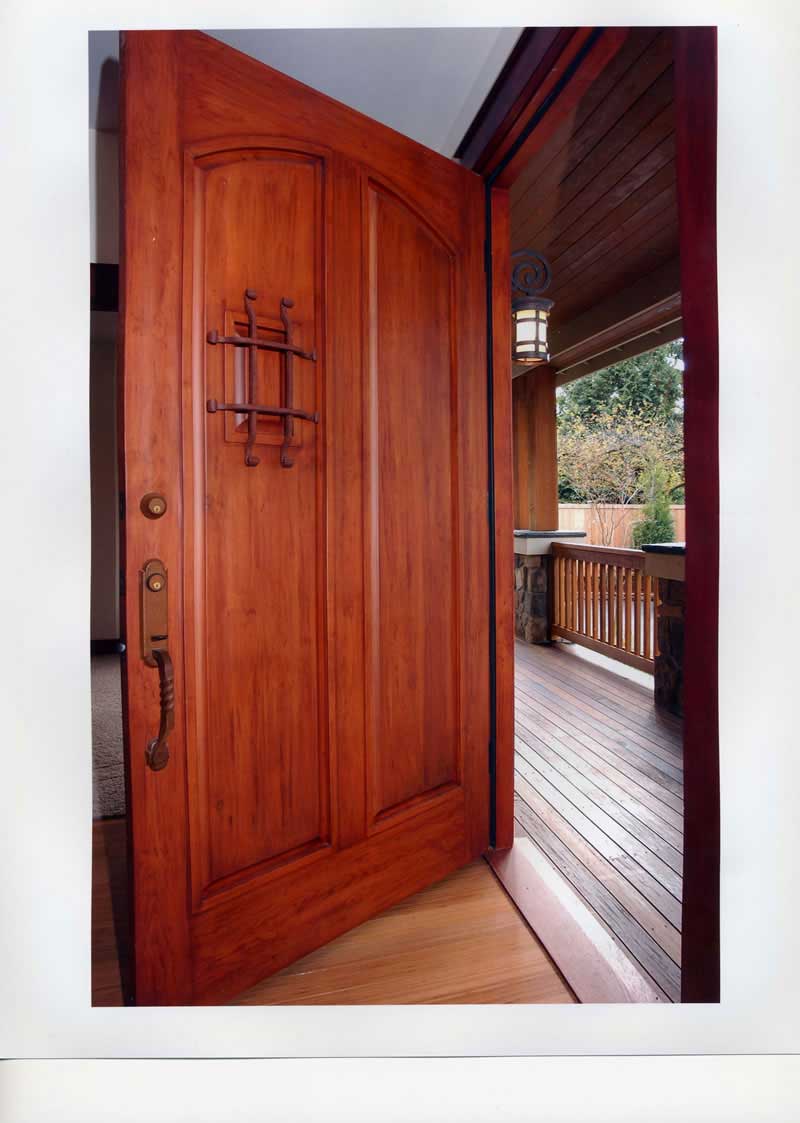

Enter this beautiful updated Arts and Crafts house plan from the large covered front porch. Classic features of the home plan include such exterior details as the columns, rafters, trim, windows, and rock base. The open floor plan has few hallways, formal living and dining rooms, family room with fireplace, main-level laundry room, and more, with plenty of opportunity for woodwork and craftsmanship. The large U-shape kitchen has a functional island, breakfast nook, and walk-in pantry.

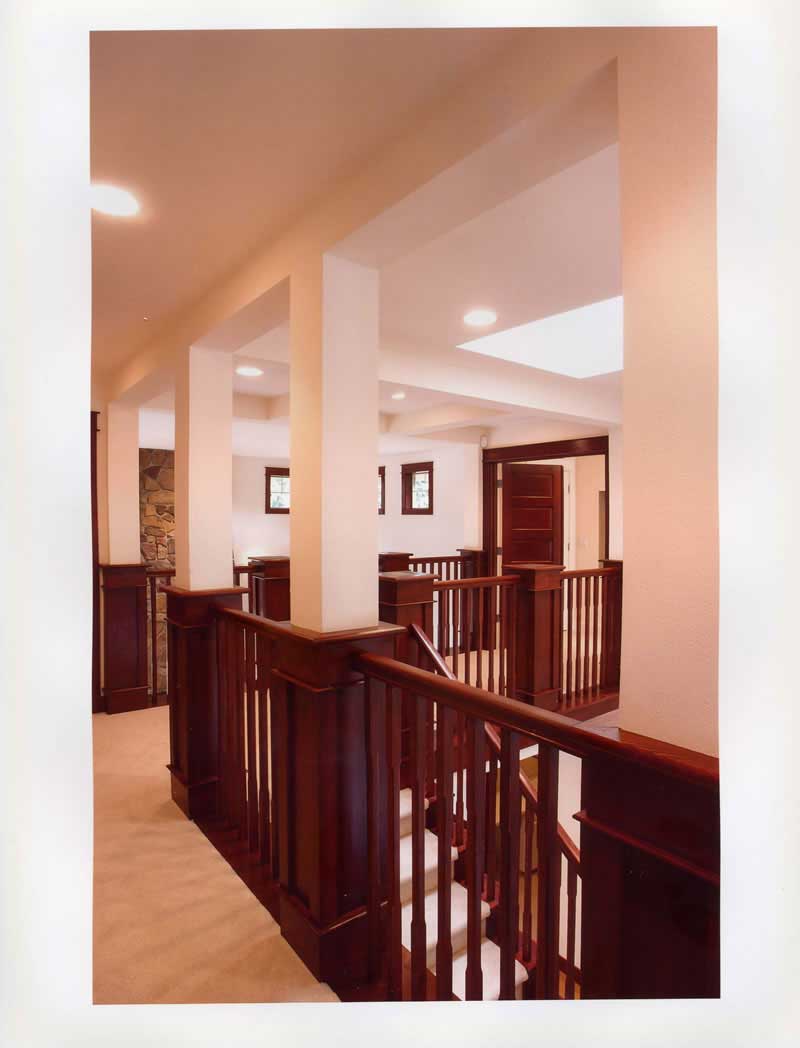

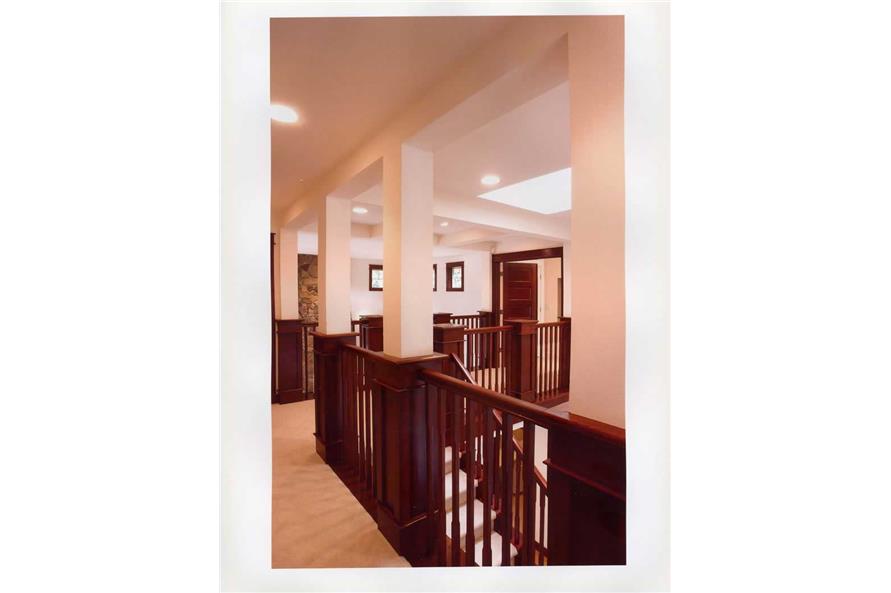

Upstairs, you will find the sumptuous master suite on one side of the house and two bedrooms, which share a splt bathroom, on the other. There is also a large bonus room and balcony overlooking the foyer and family room. Feel free to browse through the photographs; they speak for themselves!

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

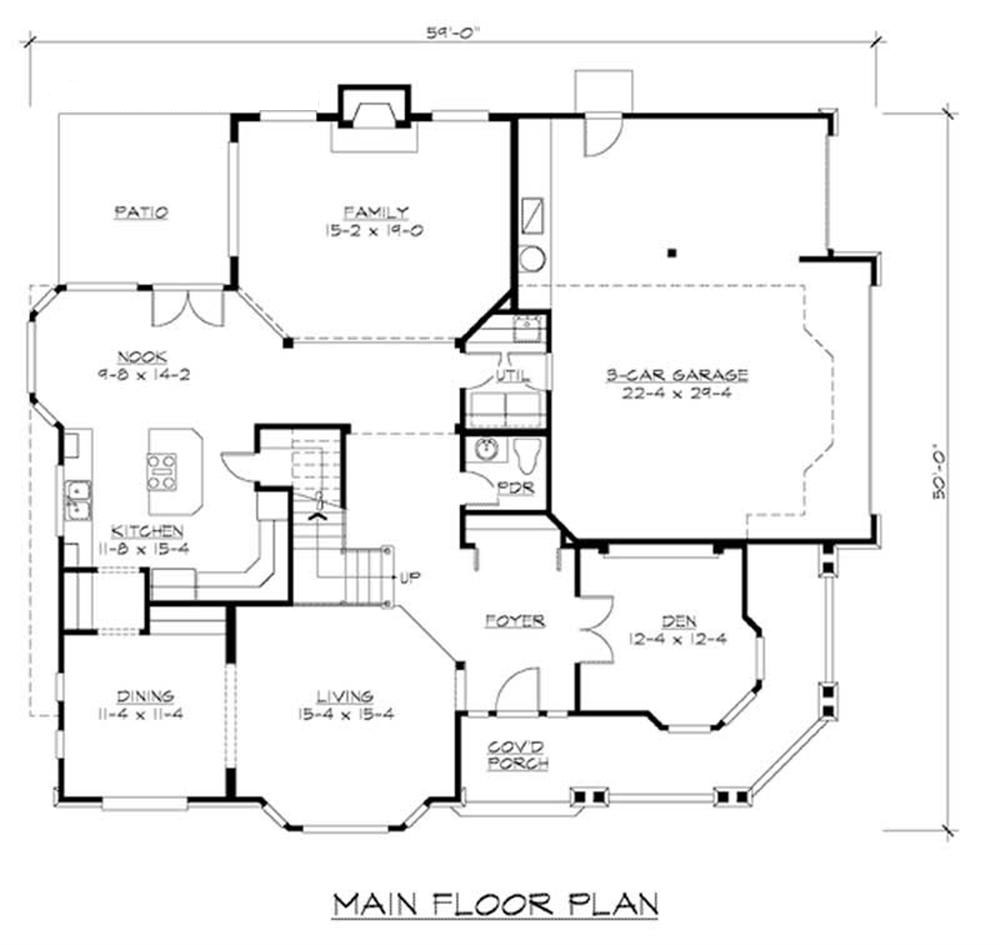

Home Plan: #115-1000 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #115-1000

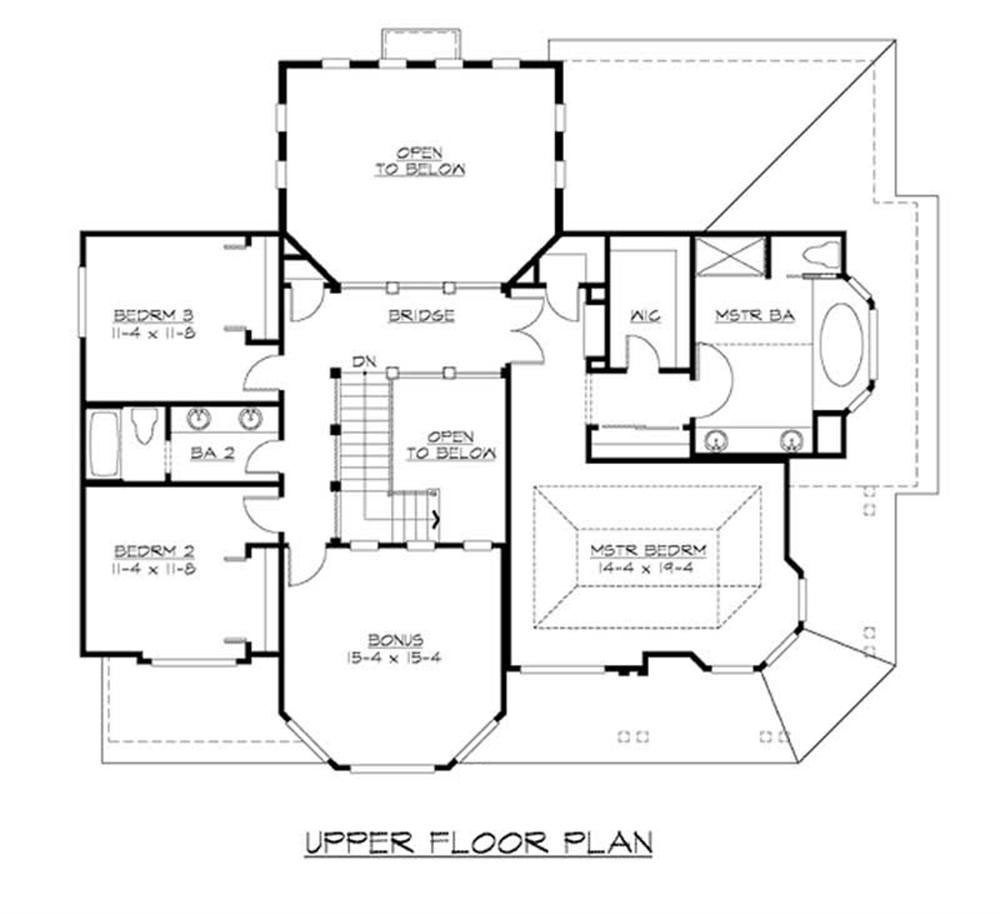

#115-1000 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #115-1000
Home Plan: #115-1000 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #115-1000
#115-1000 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #115-1000
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 115-1000
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
3130
Main Floor:
1630
Upper Floor:
1500
Unfinished Sq Ft:
Garage :
675

Dimensions

Width:
59' 0"
Depth:
50' 0"
Ridge Height:
29'3' 0"

Architectural Styles

Arts and Crafts
Craftsman
Historic

Exterior Wall Material

Rock/Stone
Shakes
Wood Siding

Roofing Type

Gable

Roof Pitch

6/12
8/12

Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Color Photos
Dining Room
Interior Photos
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry

Porches and Exterior Features

Wrap Around Porch

Additional Notes from Designer

Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans. NOTE: If you are building this home in Washington State, please contact us BEFORE placing your order!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
