3-Bedroom, 3220 Sq Ft Ranch Plan with Sundeck

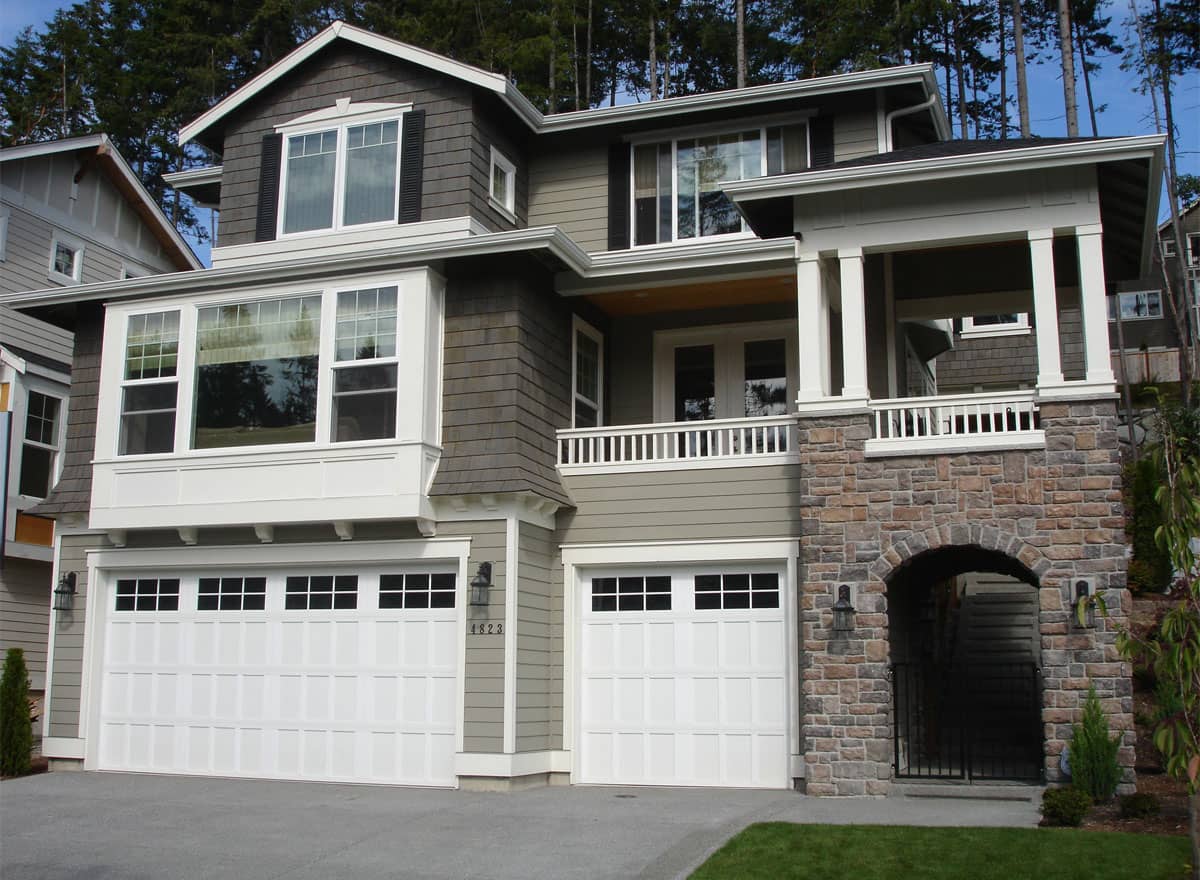

Main image for house plan # 9329

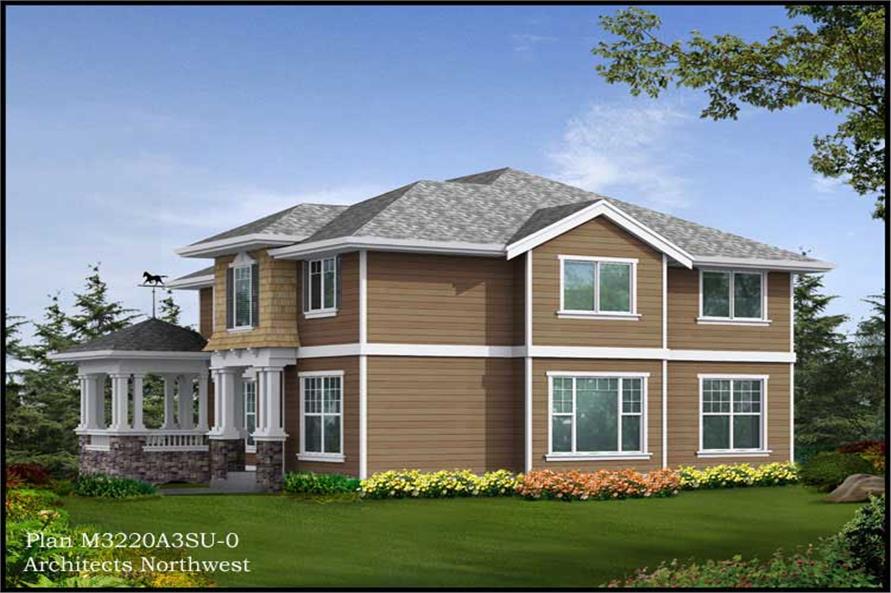

Home Plan Rear Elevation

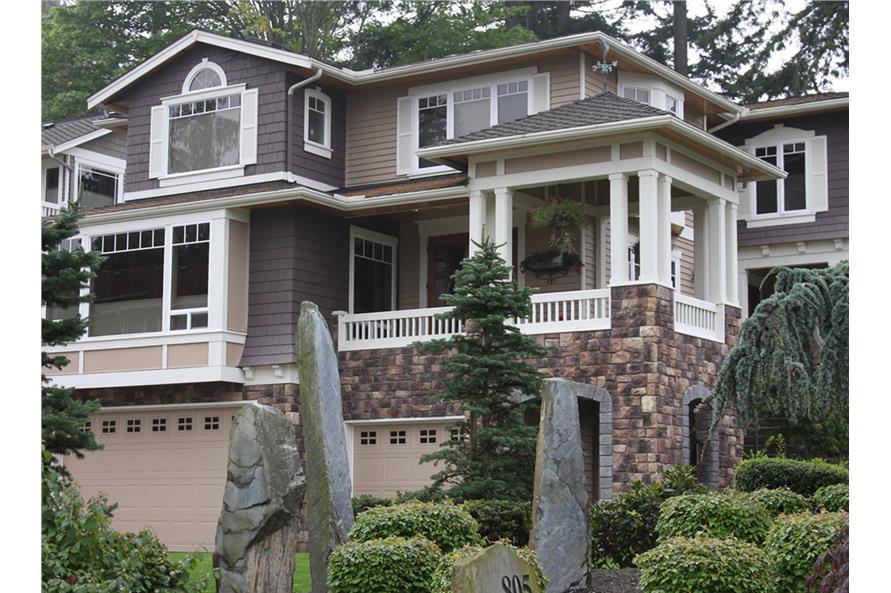

115-1413 house plan photo front

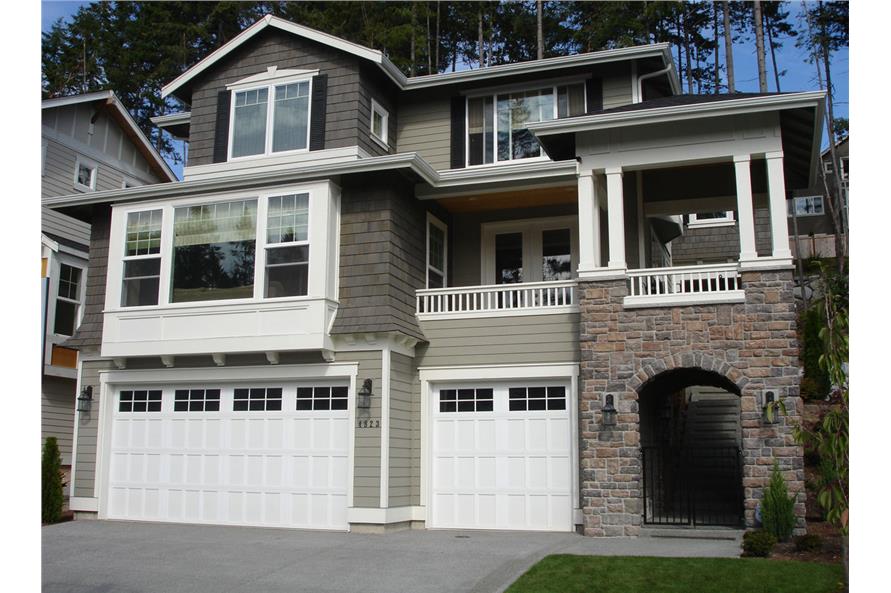

3-Bedroom, 3220 Sq Ft Ranch Home Plan - 115-1413 - Main Exterior
Home Plan Rear Elevation

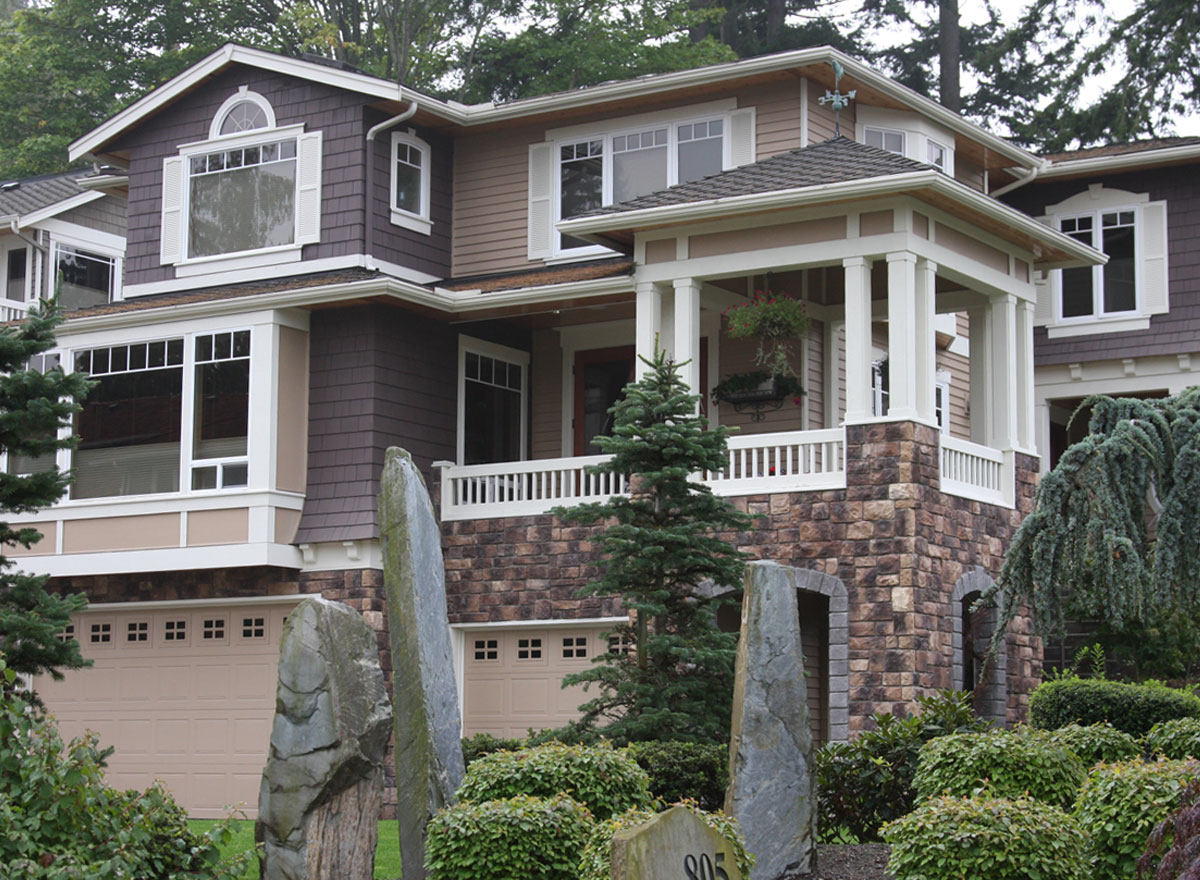

115-1413 house plan photo front

About Plan # 115-1413

About Plan # 115-1413

3220 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 40' 0" WIDTH 56' 0" DEPTH 3 GARAGE BAY
This house plan is stunning! From the built in gazebo to the sweet master suite, this plan leaves nothing out. From outside, you'll notice that this is the perfect plan for lots with slopes. A welcoming three car wide garage sits at street level, a private gazebo lets you enjoy evening sunsets or sunrises or any number of other daily outside lounging events in semi-private/private solitude. Within this masterpiece, youll notice from the foyer a secluded den through French doors, an open formal living room, and a view through the living room to a classic formal dining room. The dining room is connected to the kitchen by a butlers kitchen that is complete with a sink. The kitchen itself is grand and capable of great preparations. The nook is open to the kitchen, and allows access to the elevated outdoor balcony/gazebo. The family room is also on the front of the home, and has its own fireplace, picture windows, and a beautiful pass through to the kitchen. Upstairs, you will enter the homes master suite through French doors where youll find a spacious living area, a massive walk-in closet, and a beautiful modern master bathroom complete with a gigantic jetted tub, a shower, and split vanities. The upstairs also has two other bedrooms (three in all), a bonus room, an additional bathroom, and a roomy utility closet with linen storage and its own sink. This is one of the most beautiful plans weve come across in this style.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

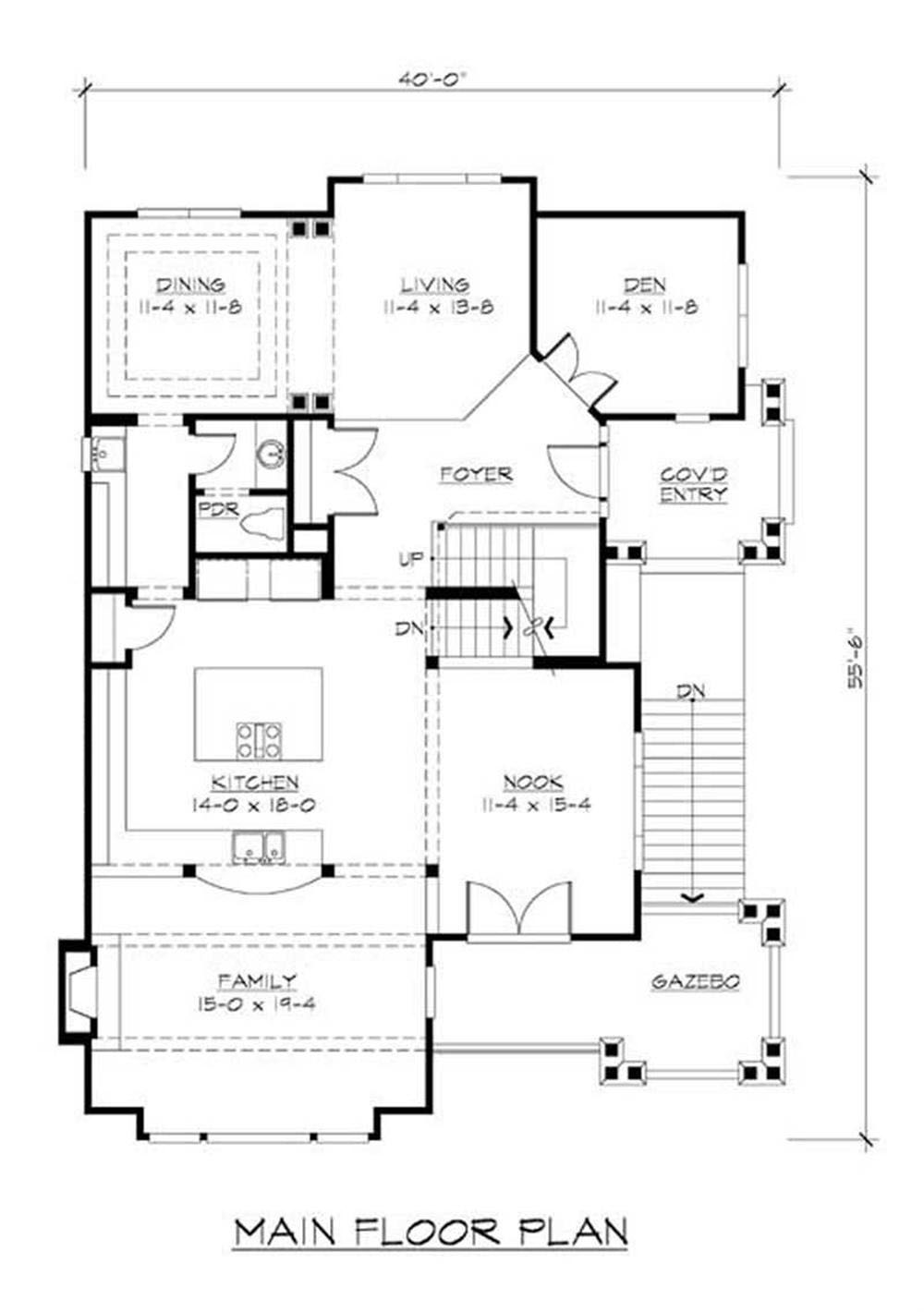

Home Plan: #115-1413 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #115-1413

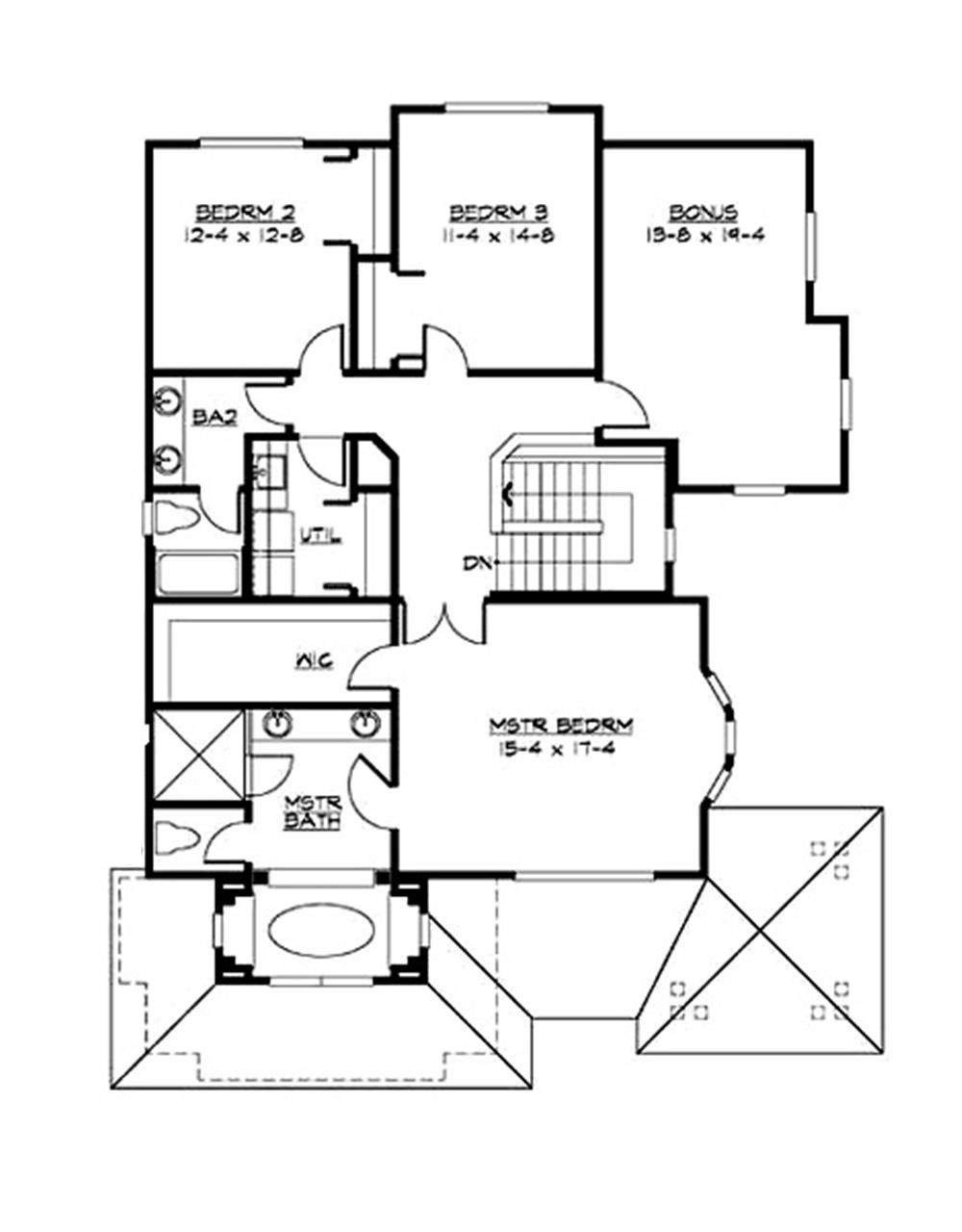

#115-1413 Floor Plan Second Story - second story Floor Plan Second Story of Ranch Plan #115-1413

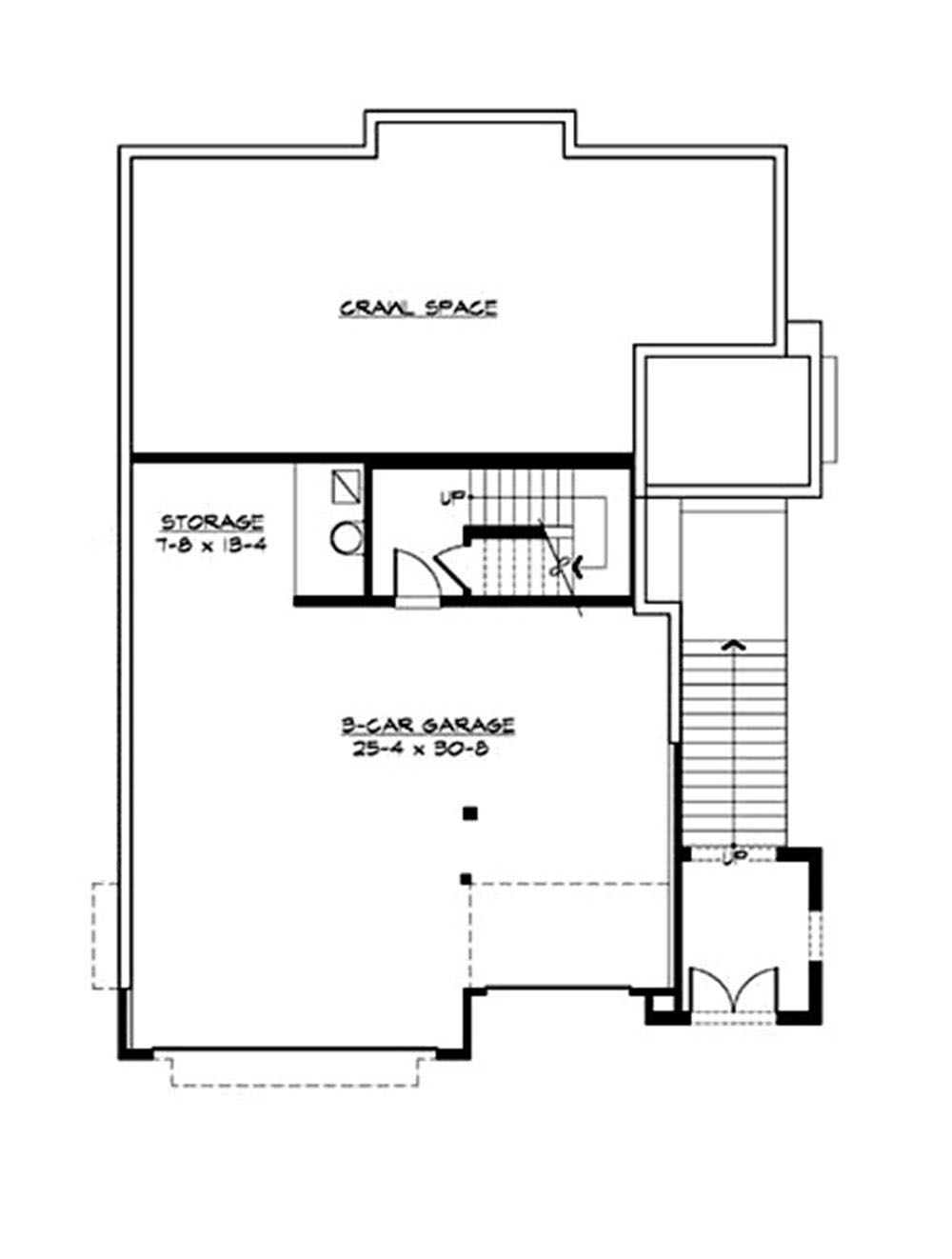

#115-1413 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #115-1413
Home Plan: #115-1413 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #115-1413
#115-1413 Floor Plan Second Story - second story Floor Plan Second Story of Ranch Plan #115-1413
#115-1413 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #115-1413
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 115-1413
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
3220
Main Floor:
1630
Upper Floor:
1460
Unfinished Sq Ft:
Lower Floor:
130
Bonus Room:
232
Garage :
900

Dimensions

Width:
40' 0"
Depth:
56' 0"
Ridge Height:
36' 4"

Architectural Styles

Bungalow
Craftsman
Shingle

Exterior Wall Material

Rock/Stone
Wood Siding

Roof Pitch

6/12

Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Bonus Room
Dining Room
Family Room
Fireplace

Garage Type

Attached Garage

Fireplaces

One Fireplace

Building Lot Type

Flat Site
Narrow Lot Design

Porches and Exterior Features

Covered Front Porch

Additional Notes from Designer

Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans. NOTE: If you are building this home in Washington State, please contact us BEFORE placing your order!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
