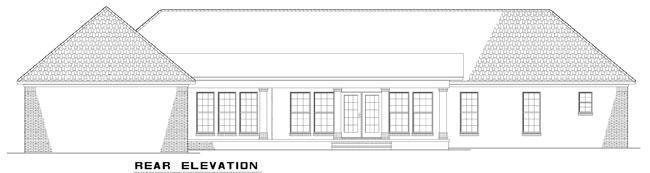

153-1866: Home Plan Rear Elevation
3-Bedroom, 2864 Sq Ft Ranch Home Plan - 153-1866 - Main Exterior
153-1866: Home Plan Rear Elevation

About Plan # 153-1866

About Plan # 153-1866

2864 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 88' 0" WIDTH 90' 6" DEPTH 3 GARAGE BAY

Special features include:

  • Arched Front Entry 12 inch brick columns
  • The foyer opens to Great Room with 12-inch columns
  • Great Room with 10 ft box ceiling, fireplace, and access to Rear Grilling Porch
  • Dining Room with 10 ft box ceiling and 10-inch columns
  • Kitchen with access to Rear Grilling Porch, island cook-top and open to Breakfast Room
  • Laundry Room with sink and builtin ironing board
  • Master Suite with 10 ft box ceiling Master Bath with walk-in closet, split vanities, whirlpool tub, and glass shower
  • Bedroom 2 with ample closet space
  • Bedroom 3 with bath nearby and close to the kitchen

Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

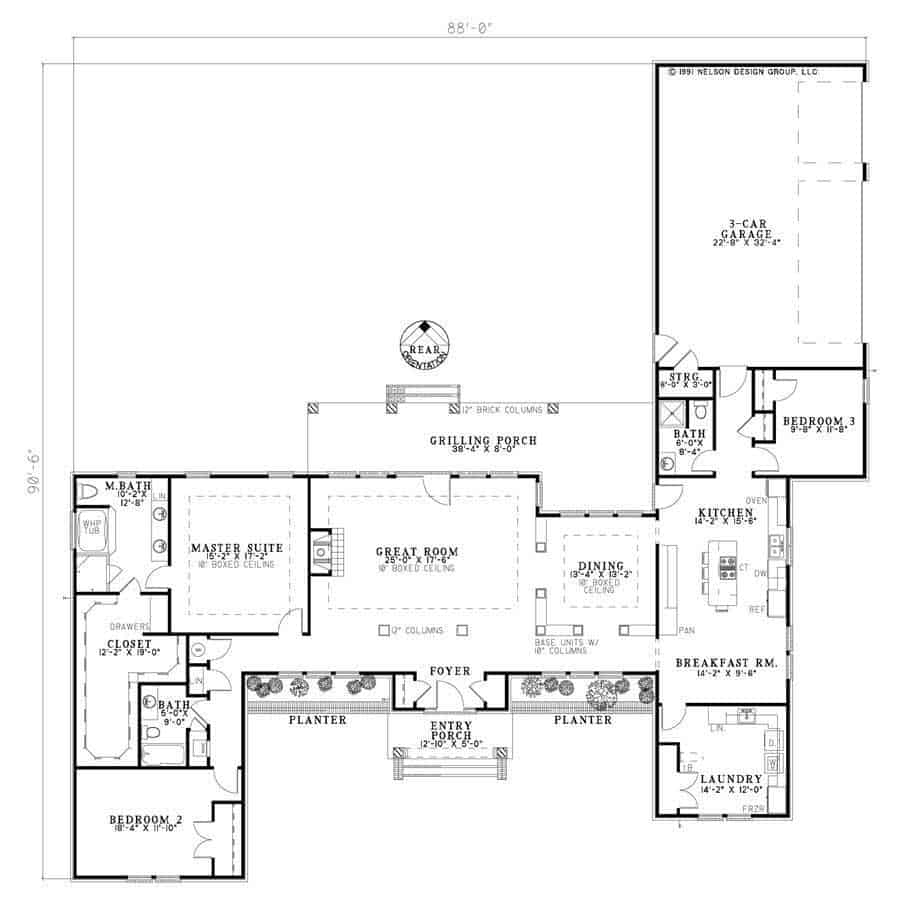

Home Plan: #153-1866 Floor Plan First Story - main level Main Level of Ranch Plan #153-1866
Home Plan: #153-1866 Floor Plan First Story - main level Main Level of Ranch Plan #153-1866
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1866
Floors:
1
Bedrooms:
3
Full Baths:
3

Square Footage

Heated Sq Feet:
2864
Main Floor:
2864
Unfinished Sq Ft:
Garage :
806

Dimensions

Width:
88' 0"
Depth:
90' 6"
Ridge Height:
19' 8"

Architectural Styles

Ranch
Contemporary

Roof Pitch

10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer
