About Plan # 194-1029

About Plan # 194-1029

2593 SQUARE FEET 3 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 79' 0" WIDTH 60' 0" DEPTH 2 GARAGE BAY

This single story Craftsman style home has a nice blend of a rustic look with clean fine lines. The house offers a total under-roof floor area of 4,643 square feet, heated/cooled and unheated/uncooled, including an optional bonus room over the garage. Its side-loaded two-bay garage can extend to include more bays easily and has easy access to the bedrooms and living room areas for the owners' privacy and convenience. An access stair is also provided near the garage to the attic space and unfinished room above the garage.

The main entrance at the front is protected by a covered porch where the owners can relax over the coffee table and lounge chairs. A nice vestibule serves as a transition area upon entering the house where a mirror and shoe rack can be installed. The living room provides an ample amount of space for the family to commune around the fireplace. The main kitchen is conveniently located to serve the three adjacent nook, living, and dining rooms. The living room can overflow to a covered patio area at the back where family and friends can gather together around the outdoor fireplace.

This home provides a total of 3 bedrooms with 4 full bathrooms for its residents. Each bedroom enjoys its own walk-in closet and full bath, with extra-generous space provided for the master suite. Other amenities located on the garage side are mechanical space, storage area, butler's pantry, and laundry room.

Each plan set includes the following:

  • Cover Sheet - project statistics, including square footage, 3D images (typically), general notes, and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts, joist direction, and often electrical outlets, switches, and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations, and other general notes.
  • Upper-Level Plan (if needed) - same information as Main Level.
  • Main Level Electrical Plan - electrical outlets, switches, and light locations shown.
  • Upper-Level Electrical Plan (if needed) - electrical outlets, switches, and light locations shown. (sometimes just the lighting is shown)
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions, and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

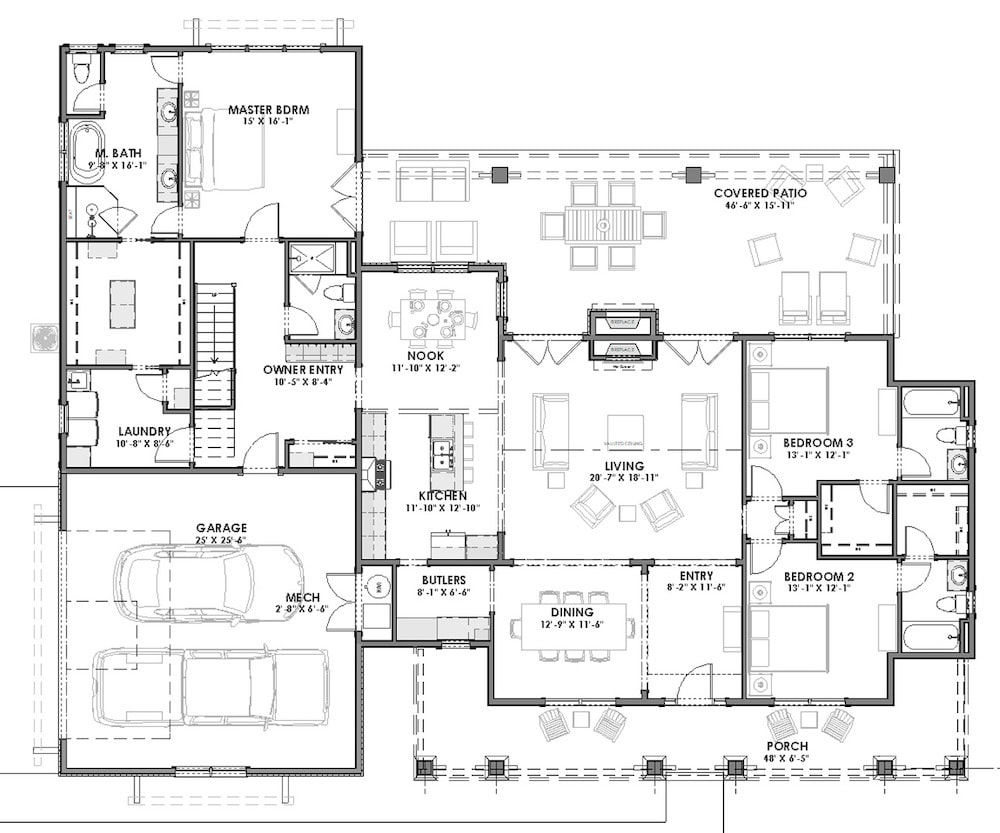

Home Plan: #194-1029 Floor Plan First Story - main level Floor Plan Main Level of Craftsman Plan #194-1029

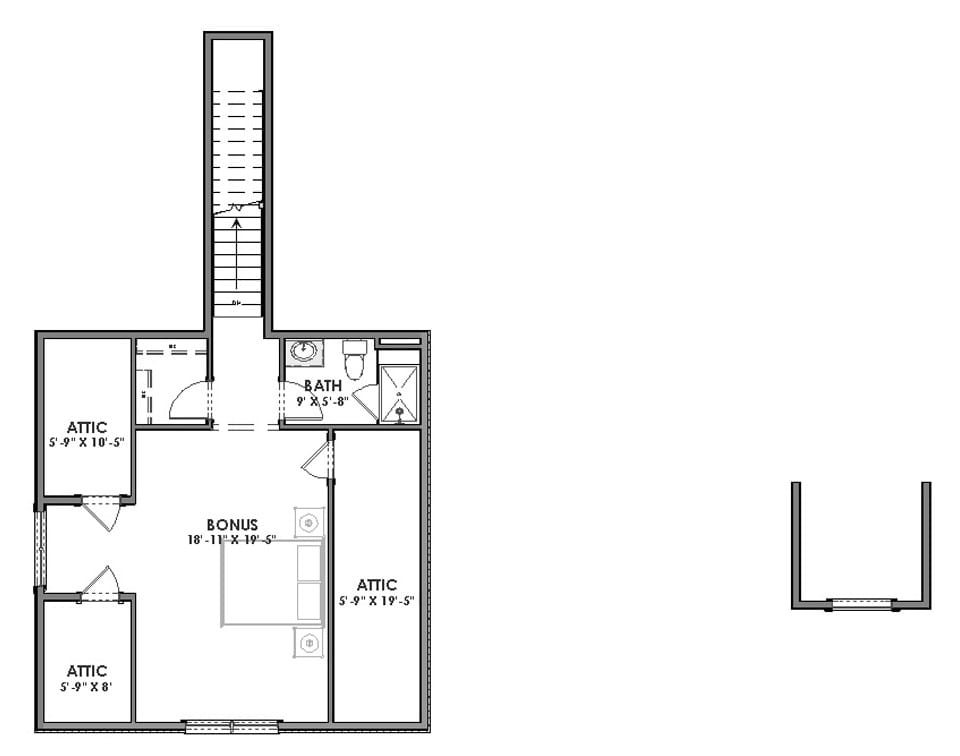

#194-1029 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Craftsman Plan #194-1029
