4-Bedroom, 2492 Sq Ft Country Plan with Nook/Breakfast Area

Main image for house plan # 16868
House Plan DP-2492 Interior Perspective
House Plan DP-2492 Rear Elevation
4-Bedroom, 2492 Sq Ft Country House Plan - 123-1033 - Front Exterior
House Plan DP-2492 Interior Perspective
House Plan DP-2492 Rear Elevation

About Plan # 123-1033

About Plan # 123-1033

2492 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 105' 8" WIDTH 48' 8" DEPTH 2 GARAGE BAY
This house plan is simple and divides the spaces well. The rooms are large and open. There are two covered porches, and the back one extends into the car port. Roof pitch changes from 4/12 for the porch to 8/12 for the main building.

Each plan set typically includes the following:

  • FLOOR PLAN(S): At ¼" scale, showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes a window and door schedule.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • ROOF LAYOUT: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and layout defining the location of lighting fixtures, receptacles, switches, outlets, etc.
  • INTERIOR ELEVATIONS: Includes cabinet details, columns, and walls with unique conditions.
  • BUILDING SECTIONS AND SPECIFICATIONS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

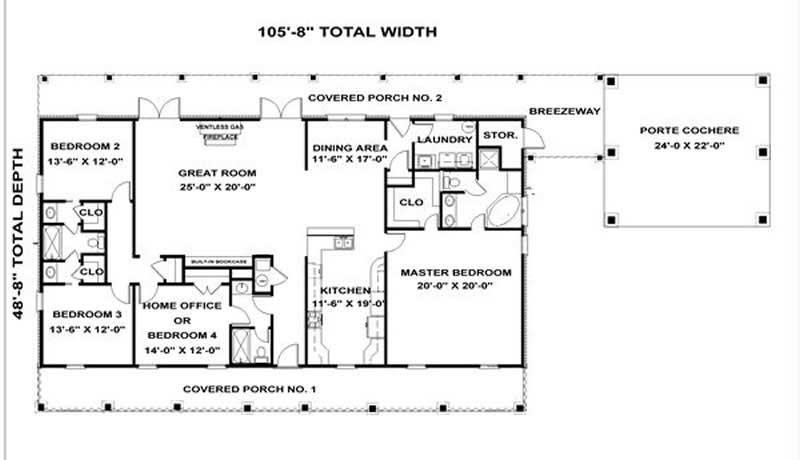

Home Plan: #123-1033 Floor Plan First Story - main Floor Plan First Story of Country Plan #123-1033
Home Plan: #123-1033 Floor Plan First Story - main Floor Plan First Story of Country Plan #123-1033
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 123-1033
Floors:
1
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
2492
Main Floor:
2492
Unfinished Sq Ft:
Garage :
676

Dimensions

Width:
105' 8"
Depth:
48' 8"
Ridge Height:
24'6' 0"

Architectural Styles

Country
Southern

Exterior Wall Material

Brick
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Fireplace
Home Office
Main Level Laundry
Storage

Garage Type

Detached Garage

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Porches and Exterior Features

Breezeway
Covered Front Porch
Covered Rear Porch
Porte-Cochere

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Three full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
