4-Bedroom, 2457 Sq Ft Florida Style Plan with Walk-in Pantry

Mediterranean House Plans color front elevation.

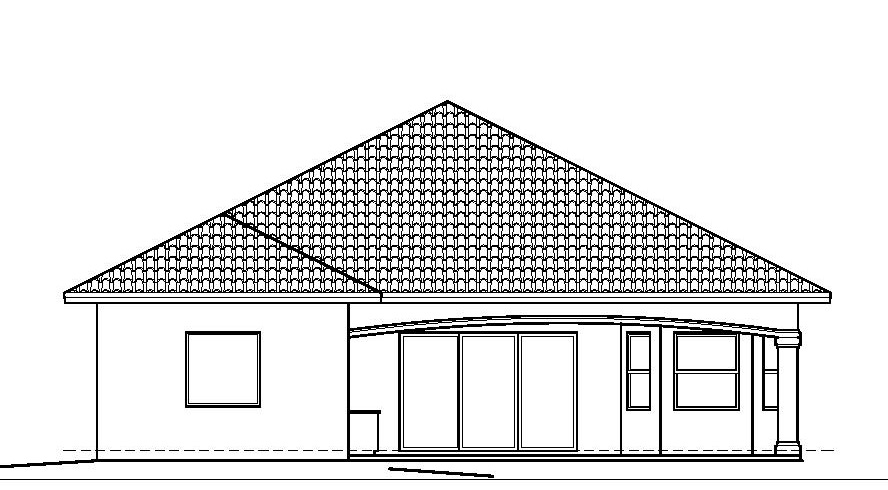

175-1074: Home Plan Rear Elevation
4-Bedroom, 2457 Sq Ft Florida Style House Plan - 175-1074 - Front Exterior
175-1074: Home Plan Rear Elevation

About Plan # 175-1074

About Plan # 175-1074

2457 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 47' 4" WIDTH 75' 0" DEPTH 2 GARAGE BAY

This house plans is a beautiful set of Mediterranean House Plans with 2457 square feet of ample living space yet it feels so much larger. With four bedrooms and three full baths, this house plan is perfect for the busy family. The functional kitchen is open to the great room and dining area. Abundant glass framed views of the lanai bring the outdoors in as sunshine streams through to the foyer.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

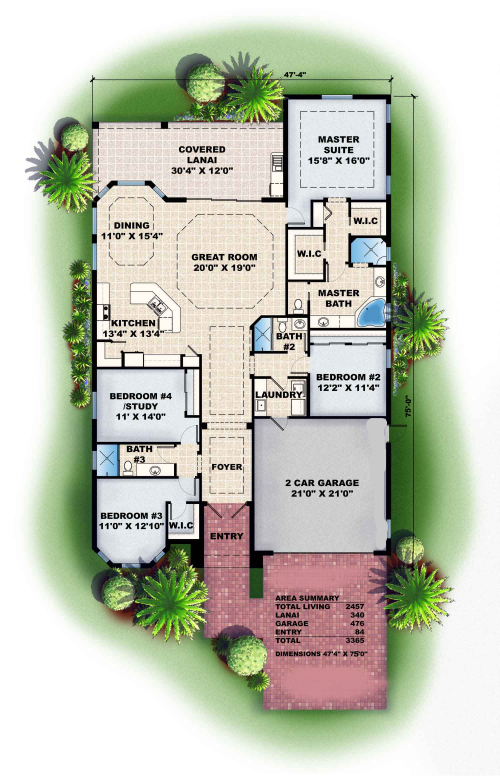

Home Plan: #175-1074 Floor Plan First Story - main level Floor Plan First Story of Florida Style Plan #175-1074
