4-Bedroom, 2343 Sq Ft Contemporary with Main Floor Master

Contemporary home (ThePlanCollection: Plan #205-1004)

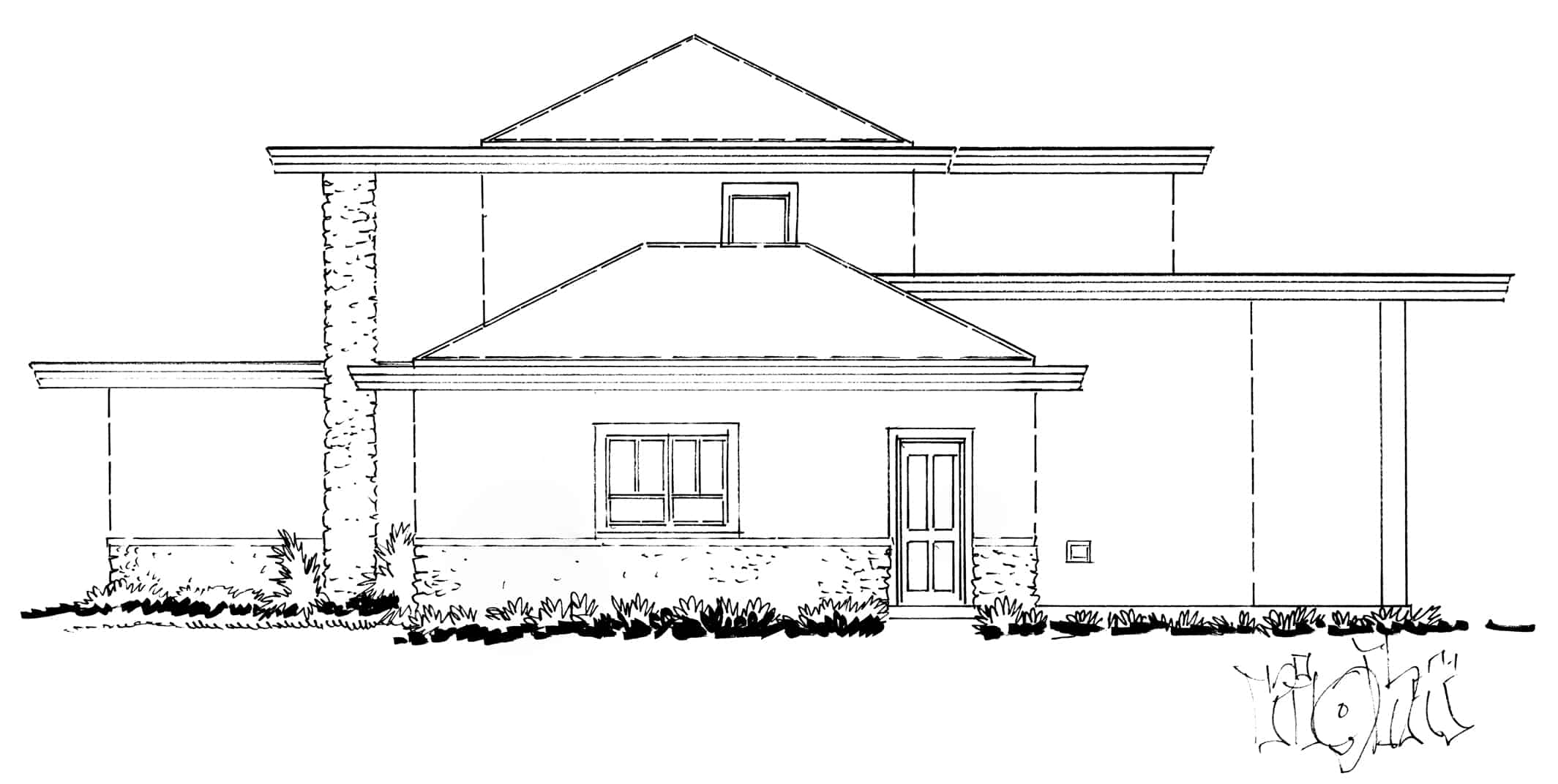

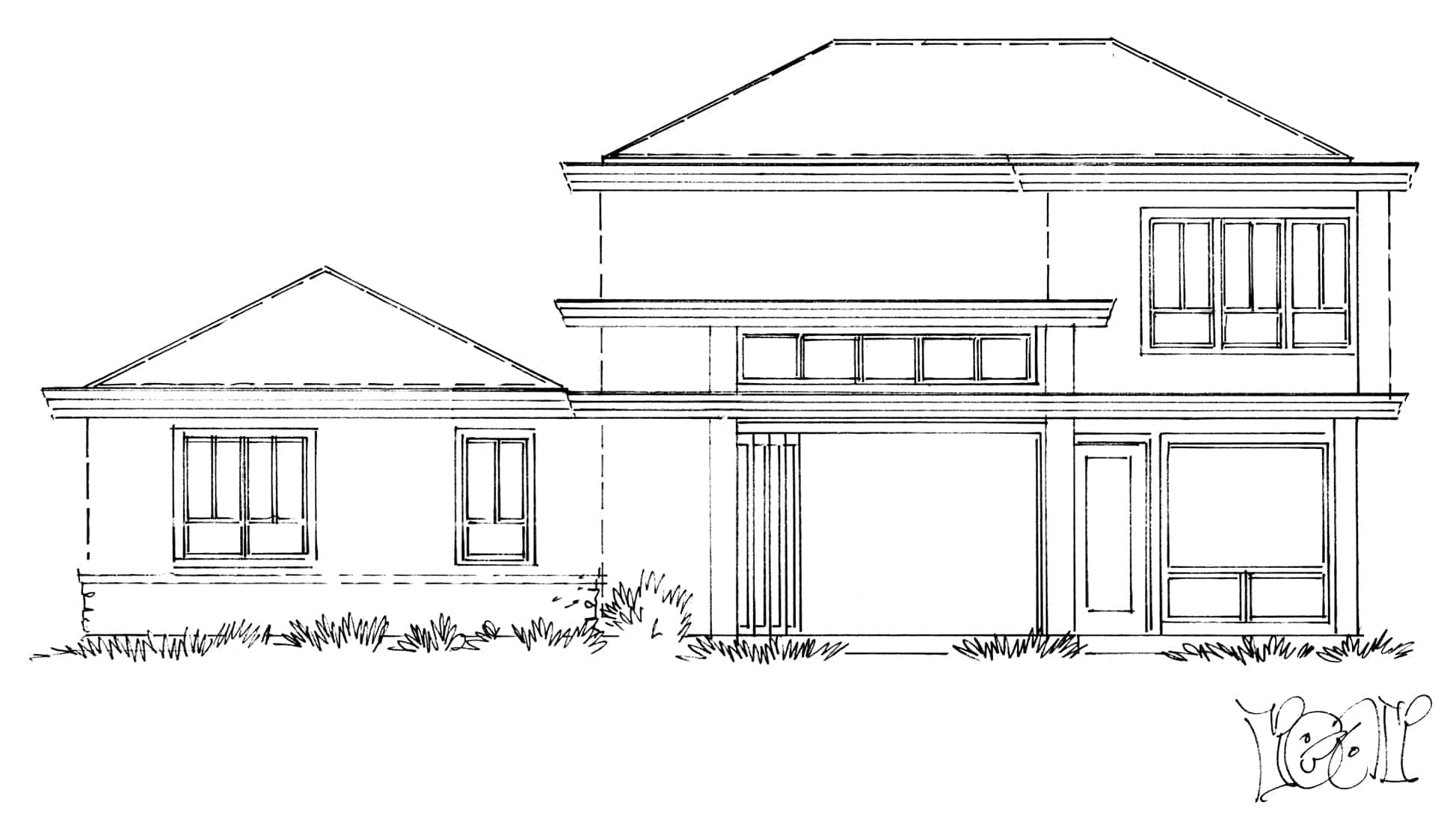

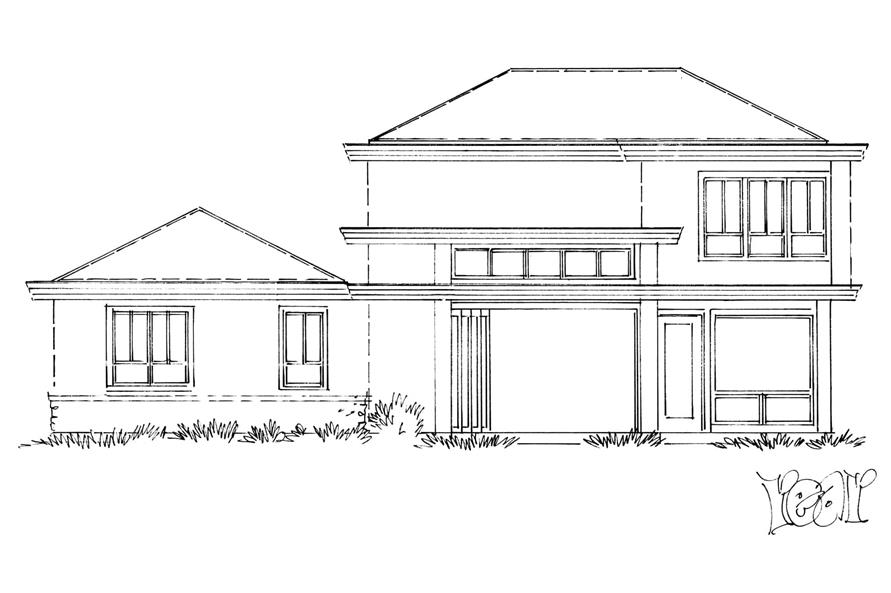

205-1004: Home Plan Rear Elevation

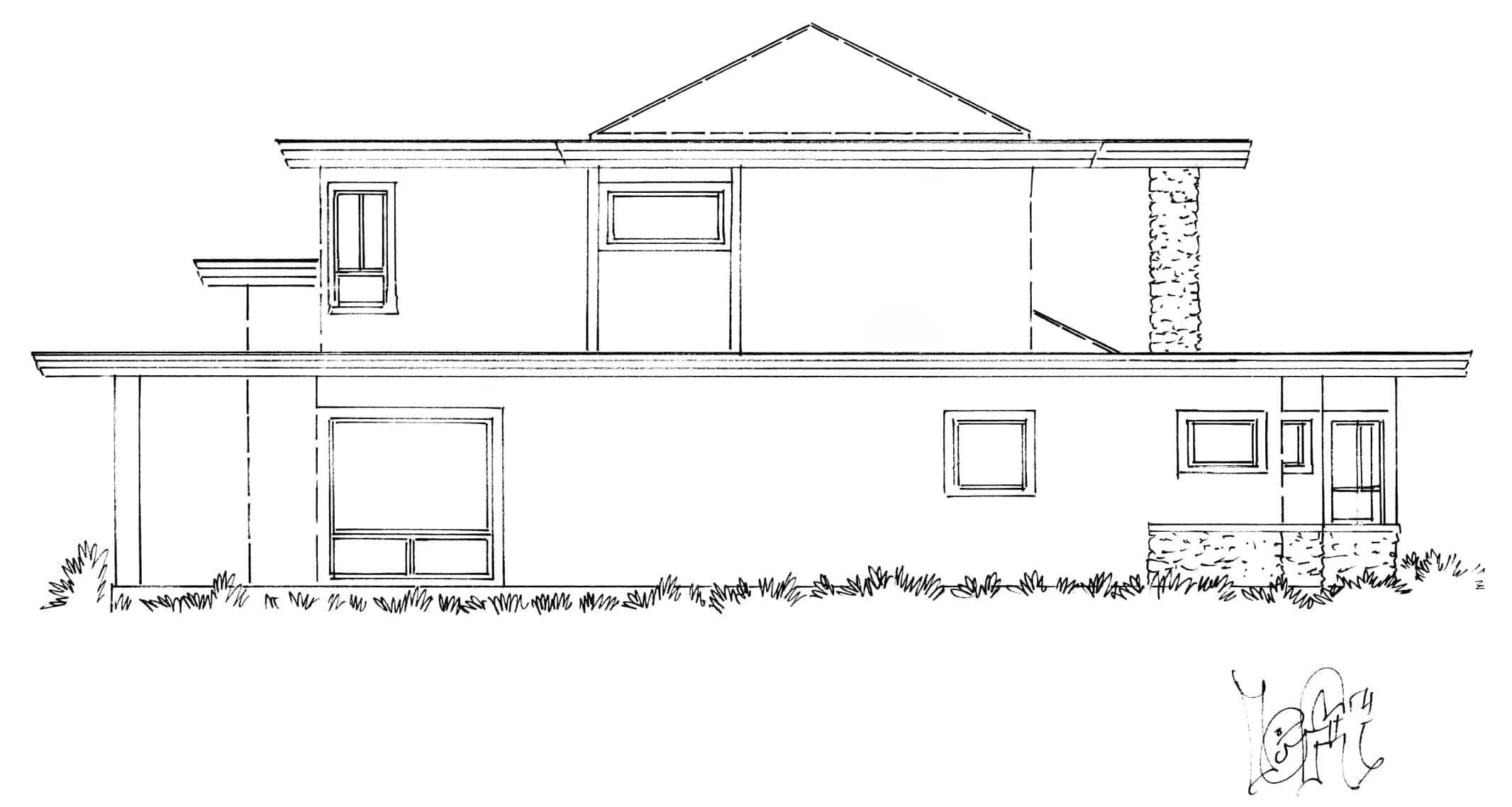

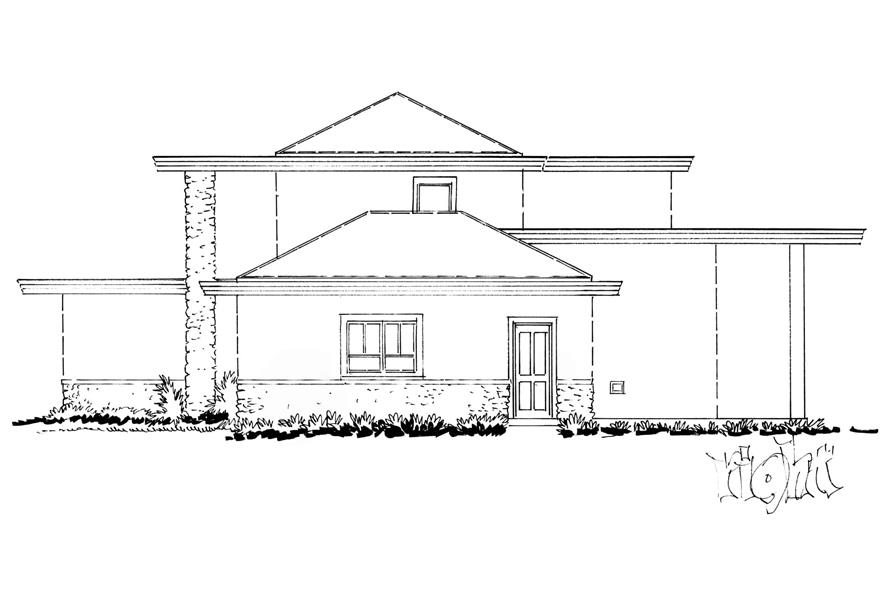

205-1004: Home Plan Left Elevation

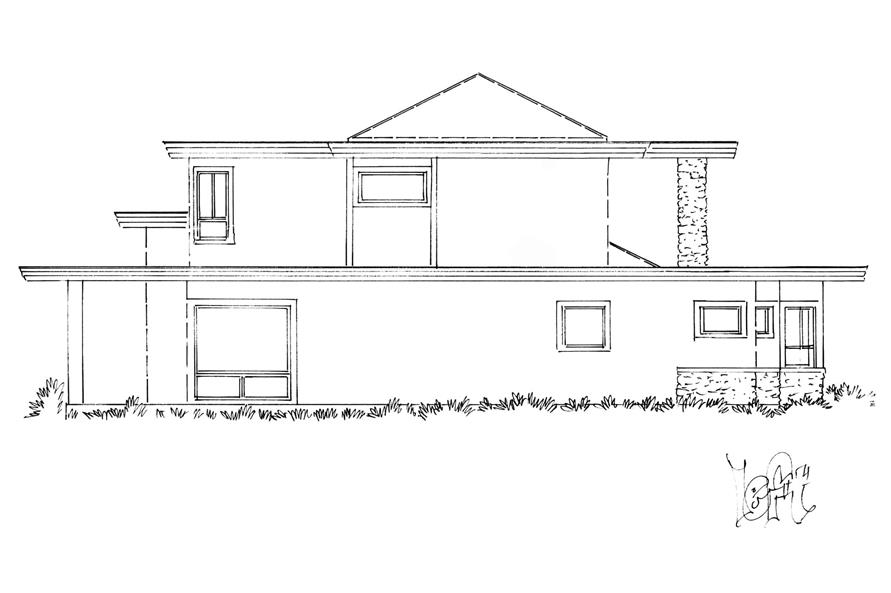

205-1004: Home Plan Right Elevation

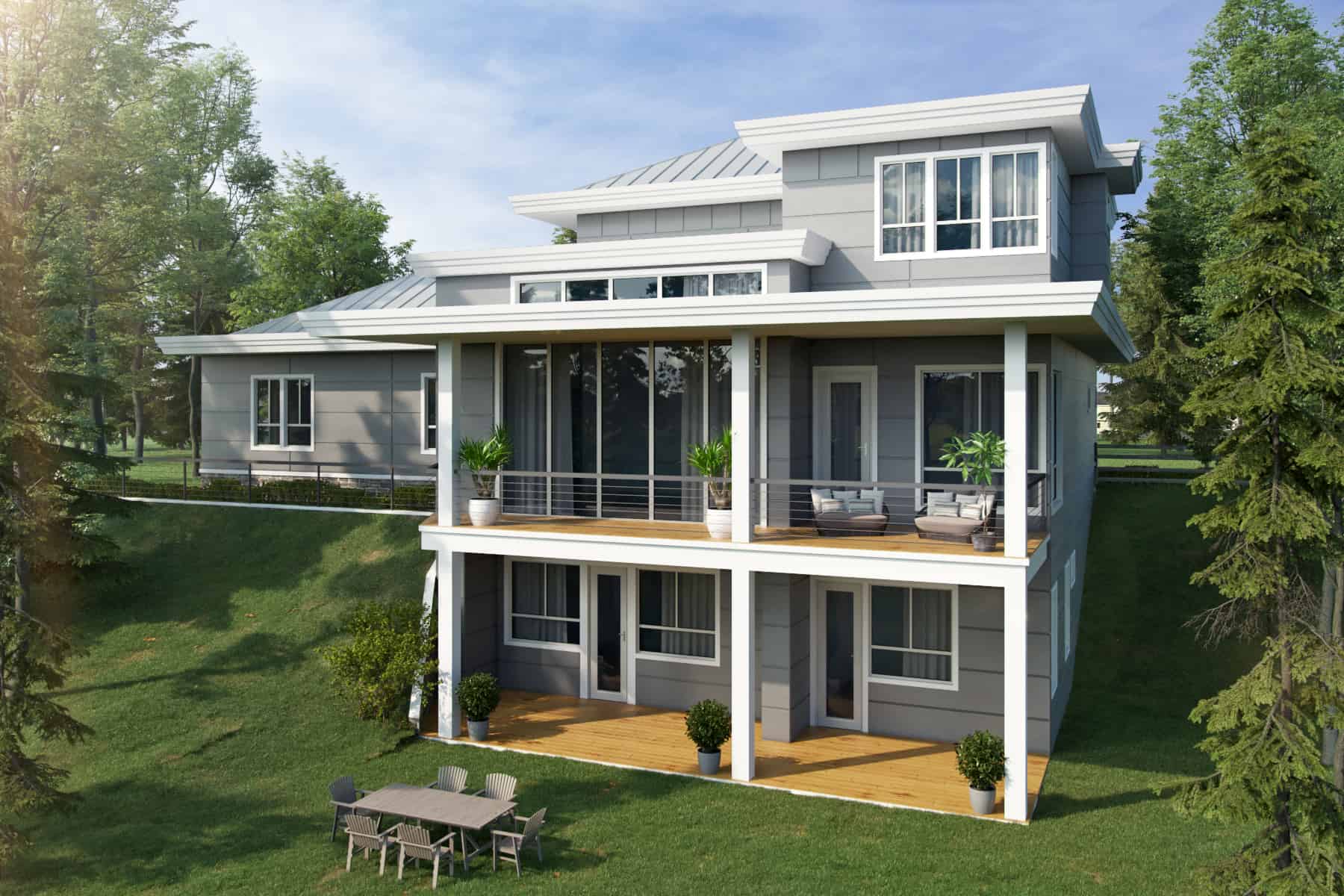

205-1004: Home Exterior Photograph-Rear View

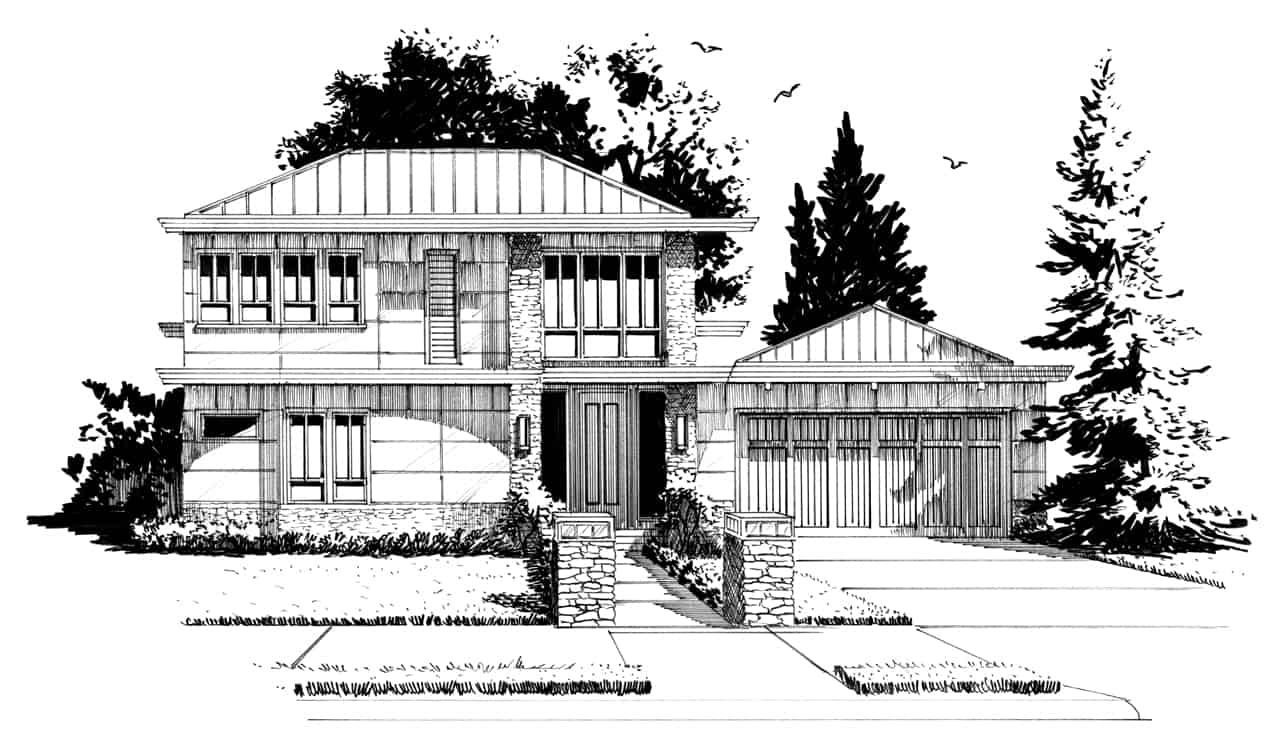

205-1004: Home Plan Front Elevation

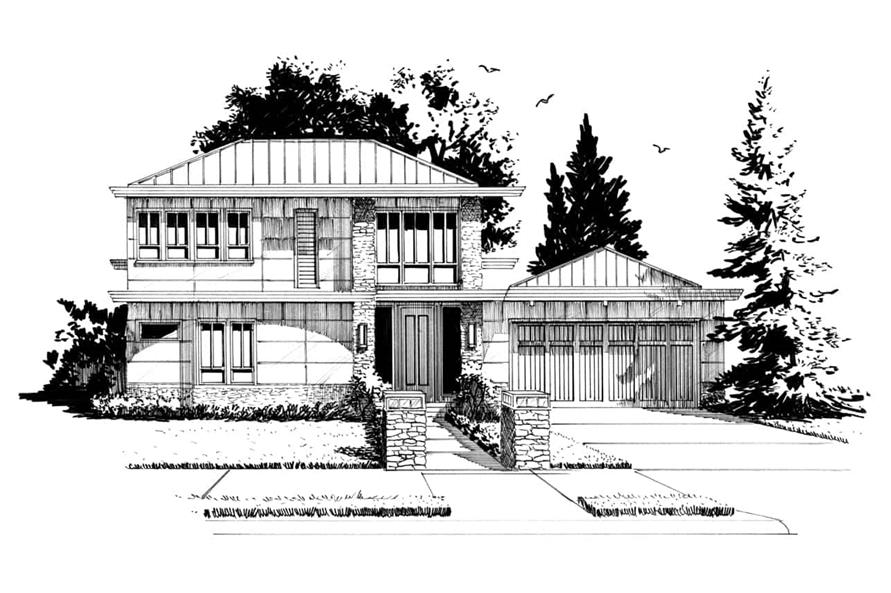

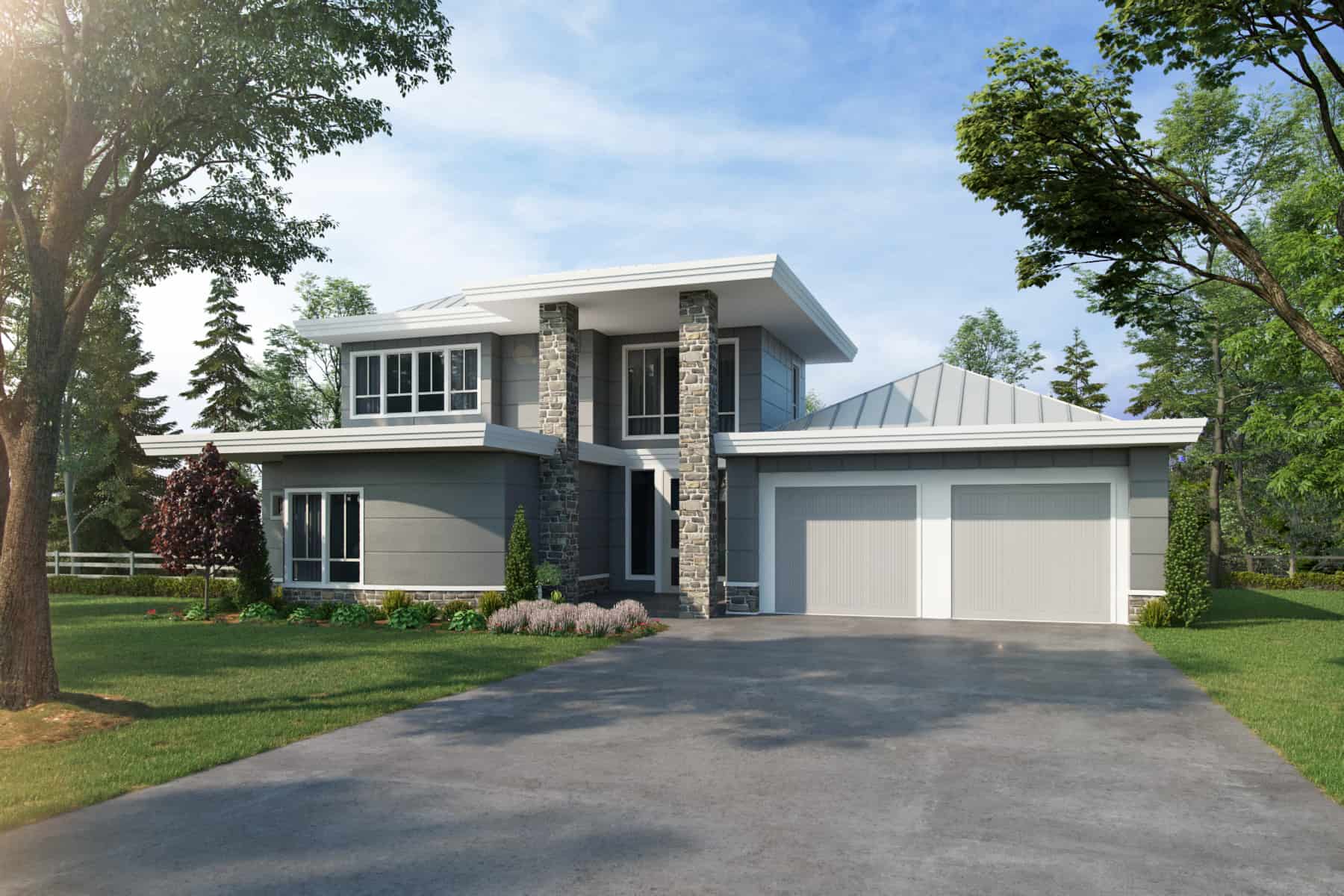

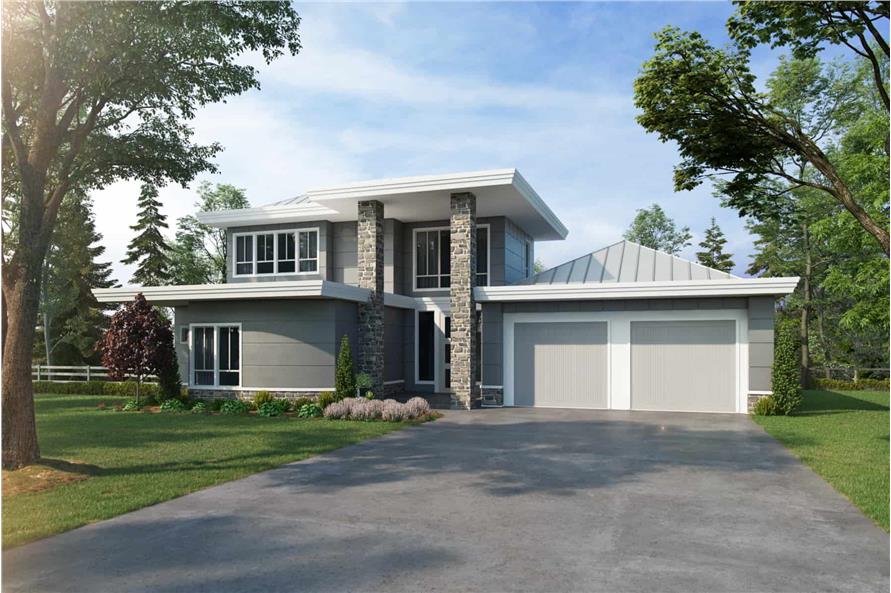

4-Bedroom, 2343 Sq Ft Contemporary Home - Plan #205-1004 - Main Exterior
205-1004: Home Plan Rear Elevation
205-1004: Home Plan Left Elevation
205-1004: Home Plan Right Elevation
205-1004: Home Exterior Photograph-Rear View
205-1004: Home Plan Front Elevation

About Plan # 205-1004

About Plan # 205-1004

2343 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 61' 0" WIDTH 59' 10" DEPTH 2 GARAGE BAY

This Contemporary style house is truly superb in design both inside out and a must-see for your family’s plan search. The 2-story floor plan is sure to capture your attention with its sleek, modern design and is irresistible for those who want to make a statement; it has 2,343 square feet of conditioned living space and includes 4 bedrooms. The optional basement adds a 4th bedroom, an office (or 5th bedroom), and a secondary living room or family room if finished according the suggested floor plan.

Each plan set includes the following:

  • All exterior elevations at 1/4” scale
  • All Floor plans at 1/4” scale
  • Interior sections at 1/4” scale (Amount of sections differ per plan)
  • Roof and floor framing layout at 1/4” scale (Not to Structural Specifications as each location demands specified details)
  • Electrical layouts at 1/4” scale
  • Wall sections and framing details at scale
  • Simpson connection chart
  • Foundation layouts at 1/4” scale (Not to Structural Specifications as each location demands specified details)
  • Construction details per plan
  • Construction notes per plan
  • Window and door schedules
  • Illustrative Rendering on cover



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

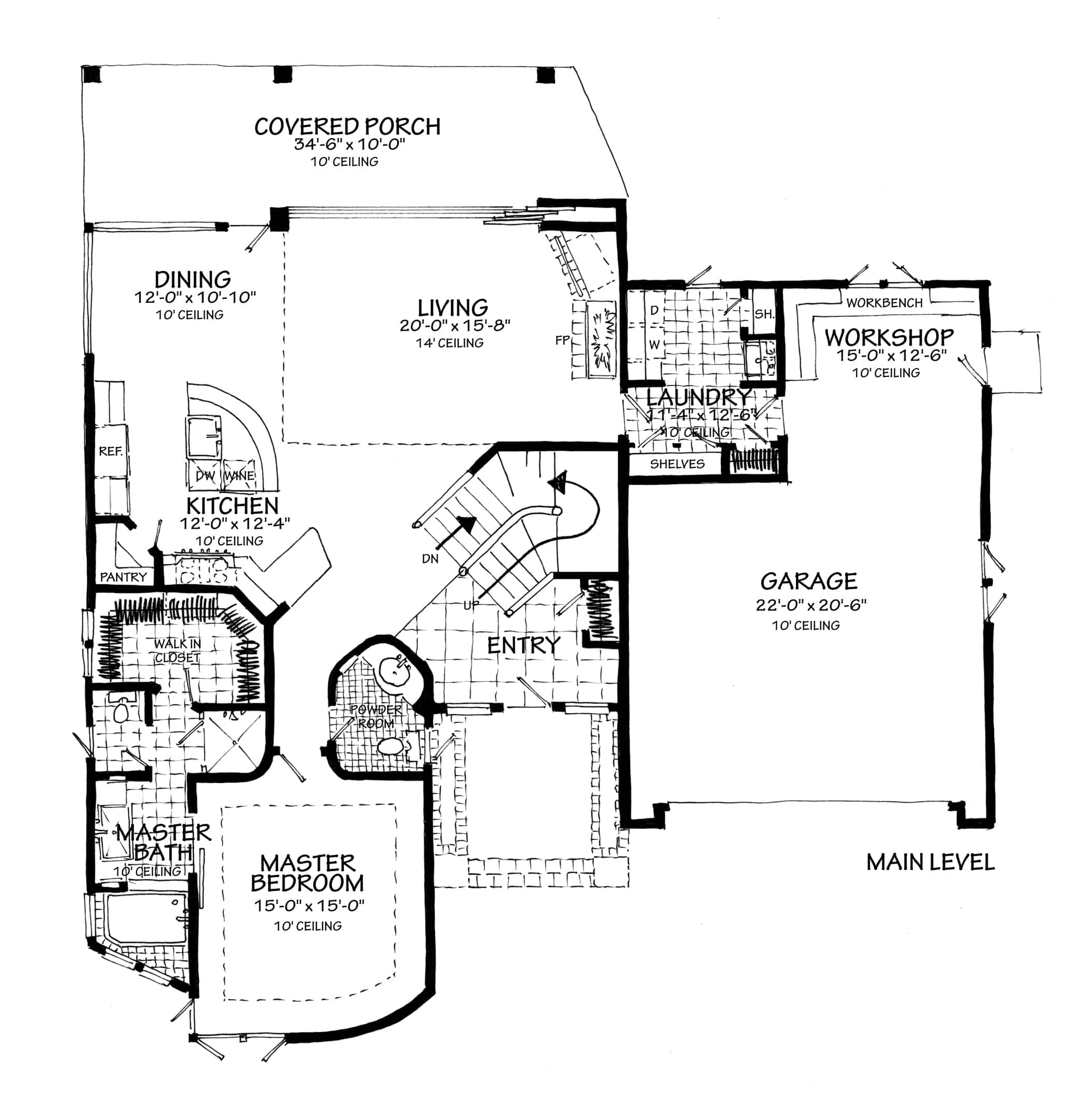

Home Plan: #205-1004 Floor Plan First Story - main level Floor Plan Main Level of Contemporary Plan #205-1004

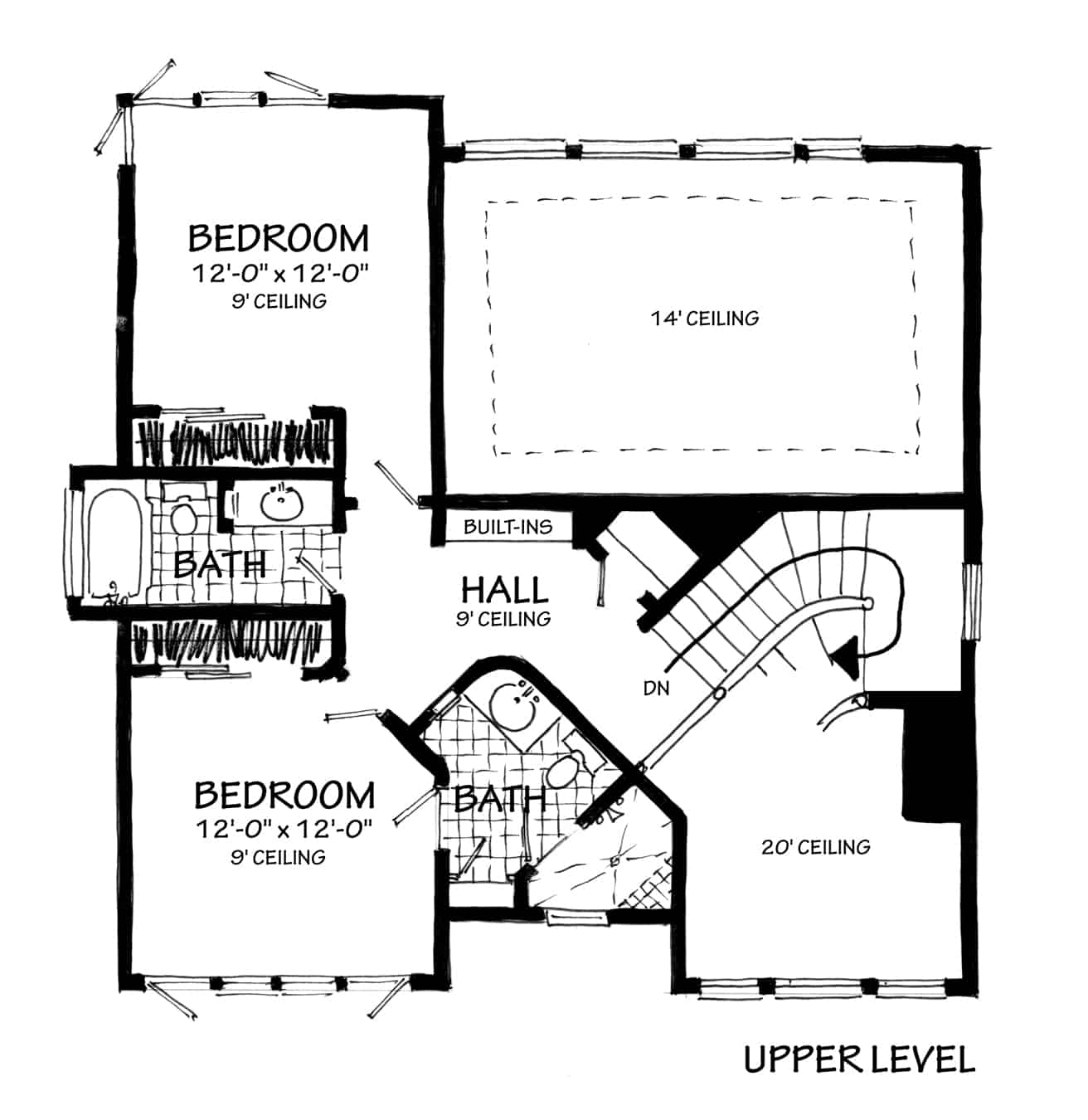

#205-1004 Floor Plan Second Story - upper level Floor Plan Upper Level of Contemporary Plan #205-1004

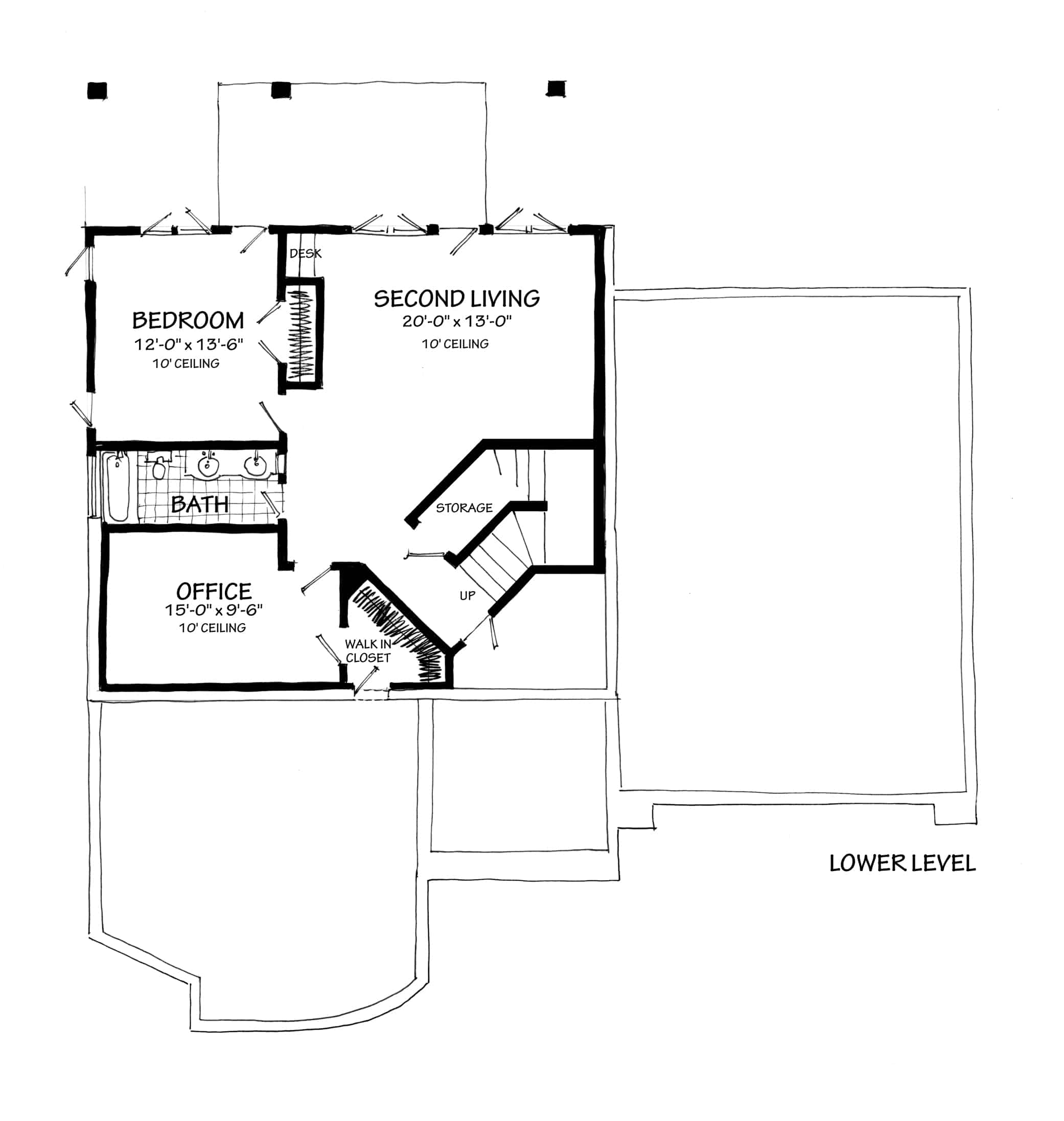

#205-1004 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #205-1004
Home Plan: #205-1004 Floor Plan First Story - main level Floor Plan Main Level of Contemporary Plan #205-1004
#205-1004 Floor Plan Second Story - upper level Floor Plan Upper Level of Contemporary Plan #205-1004
#205-1004 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #205-1004
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 205-1004
Floors:
2
Bedrooms:
3
Full Baths:
3
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2343
Main Floor:
1672
Upper Floor:
671
Unfinished Sq Ft:
Lower Floor:
882
Garage :
761
Porch :
402

Dimensions

Width:
61' 0"
Depth:
59' 10"
Ridge Height:
27' 12"

Architectural Styles

Contemporary
Modern
Prairie
Transitional
California Style

Exterior Wall Material

Stucco
Rock/Stone
Fiber Cement Product

Roofing Type

Hip
Flat

Roofing Material

Metal
Tar

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Fireplace
Family Room
Main Level Laundry
Split Bathroom
Vaulted Ceilings
Workshop
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Rear Porch
Portico

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

All plans come with a standard 2x6framing, Designer does not do 2x4 - have the builder do it on site. MEP (Mechanical, Plumbing, and Electrical) is not included

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this PDF file set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
