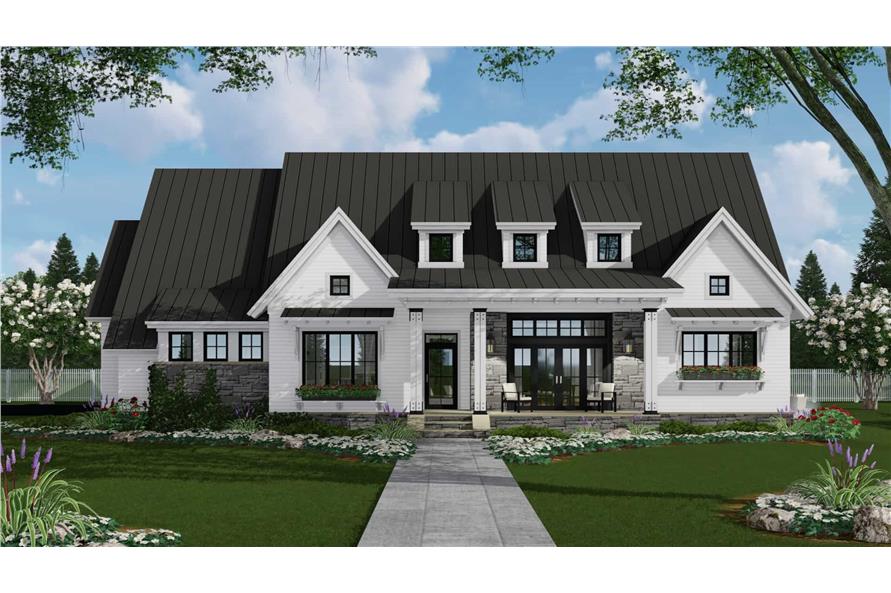

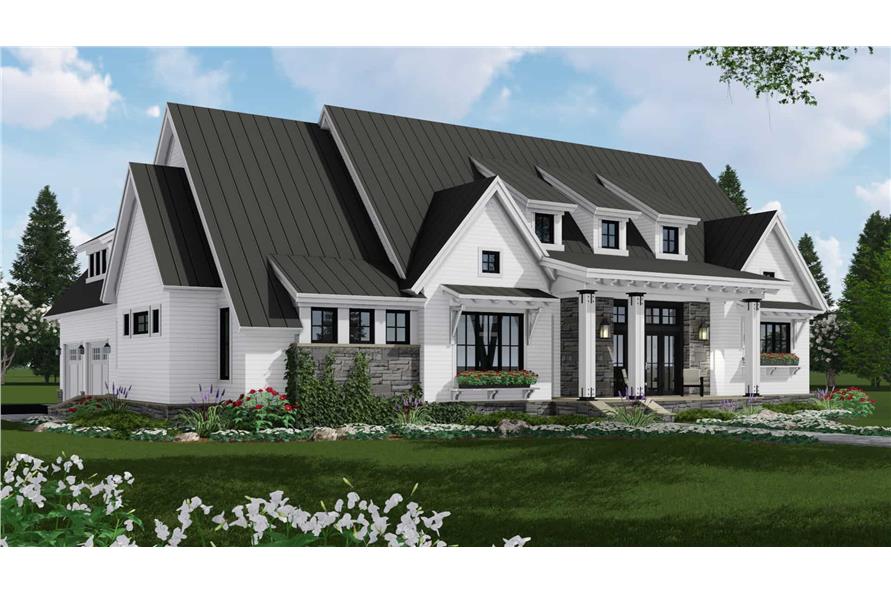

Front elevation of Ranch home (ThePlanCollection: House Plan #165-1183)

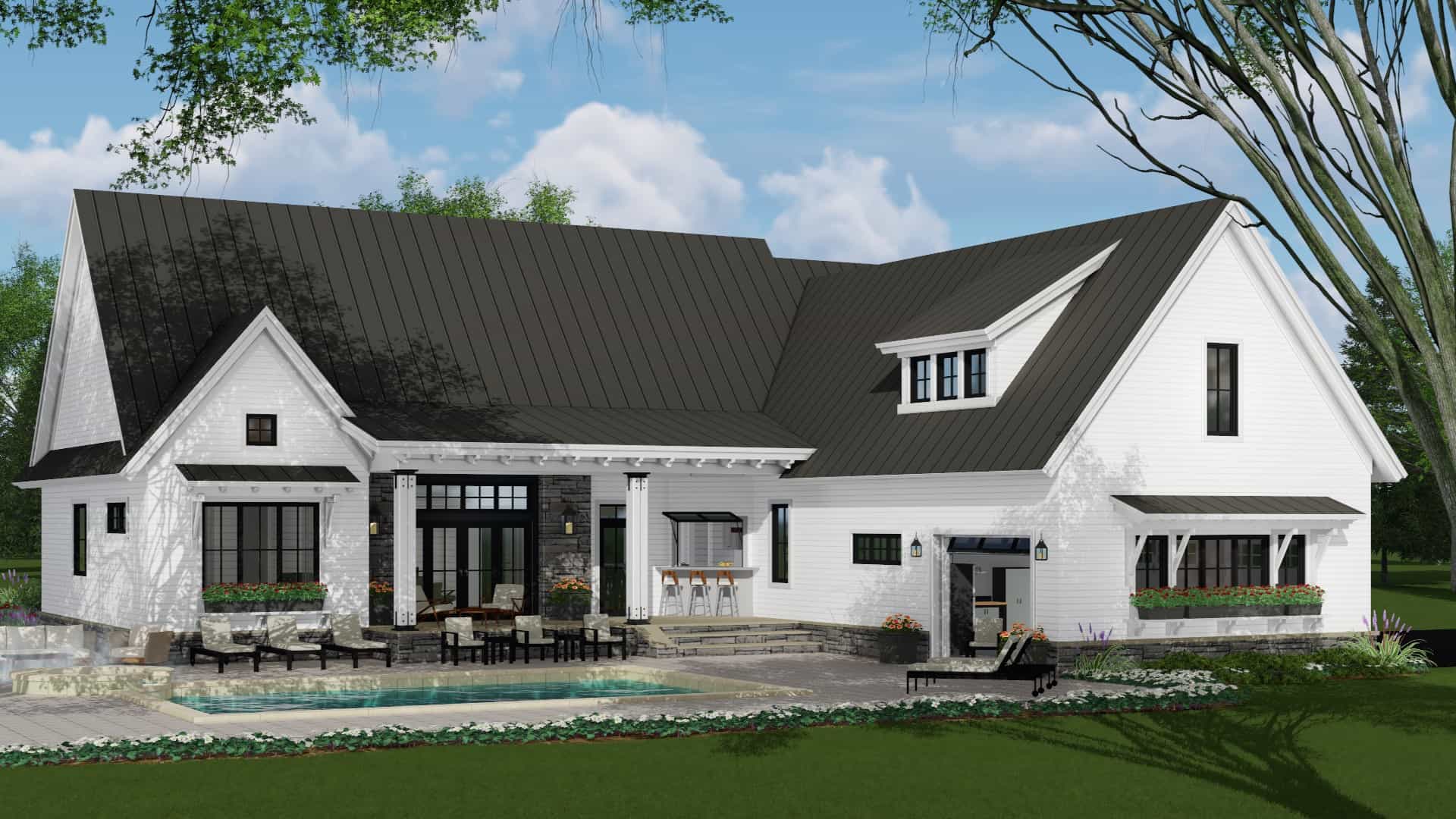

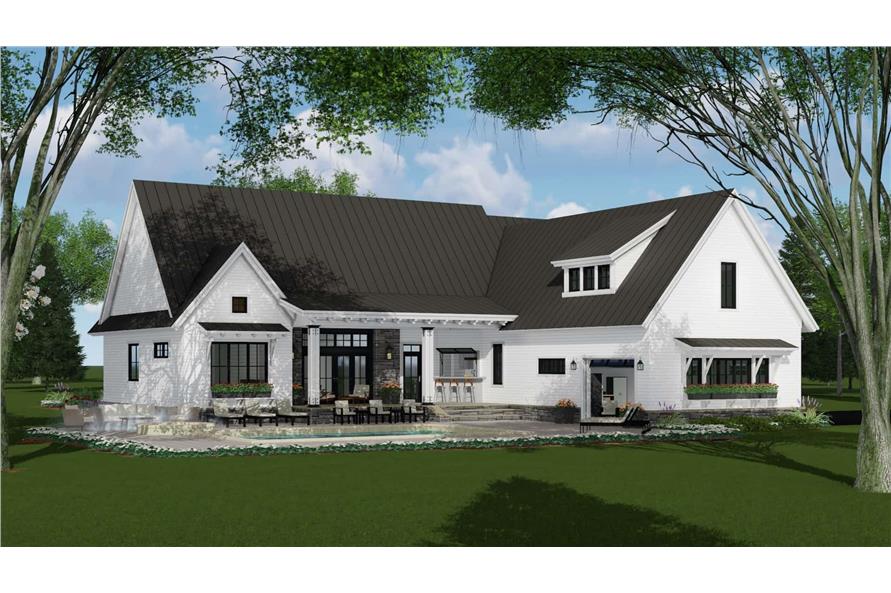

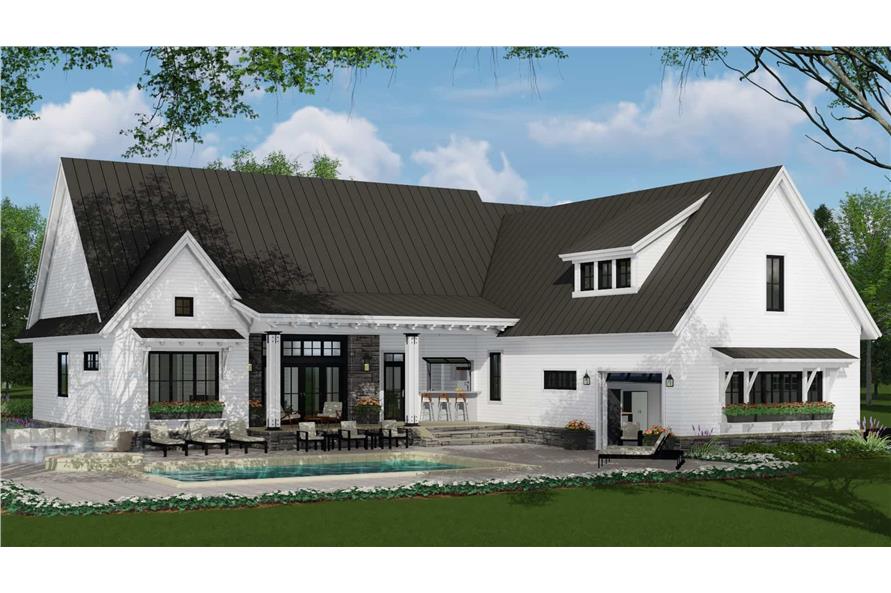

165-1183: Home Other Image-Rear View
165-1183: Home Other Image-Rear View
165-1183: Home Other Image-Rear View

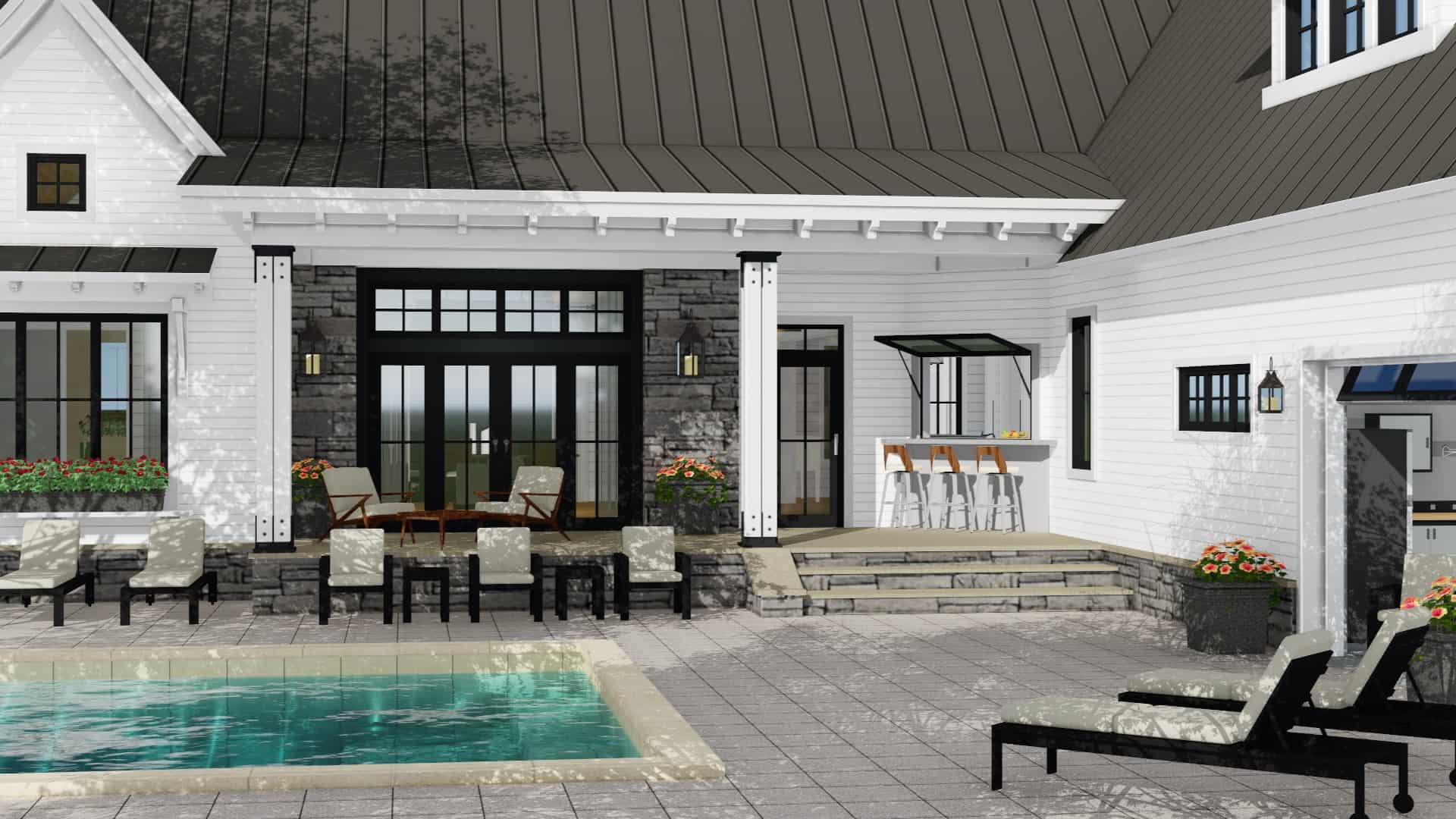

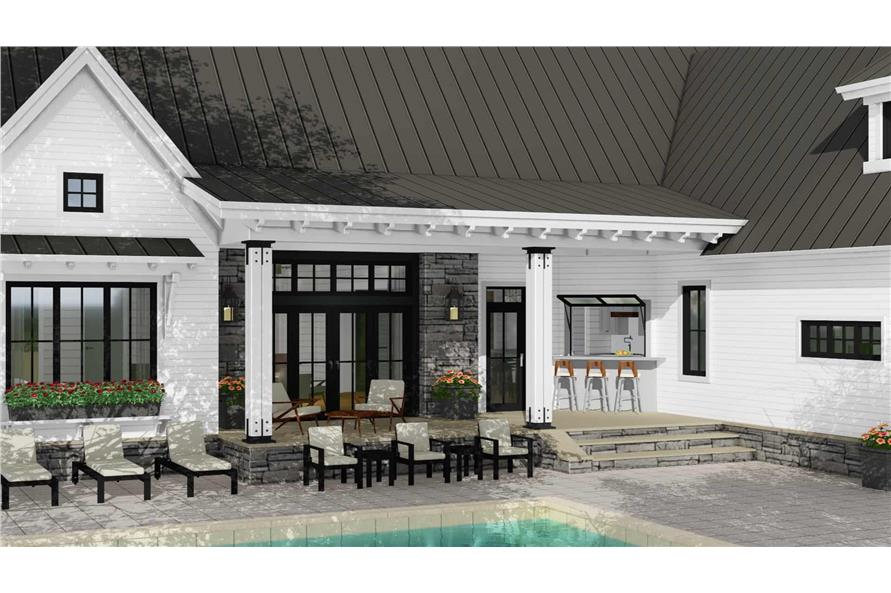

165-1183: Home Other Image-Pool
165-1183: Home Other Image-Pool

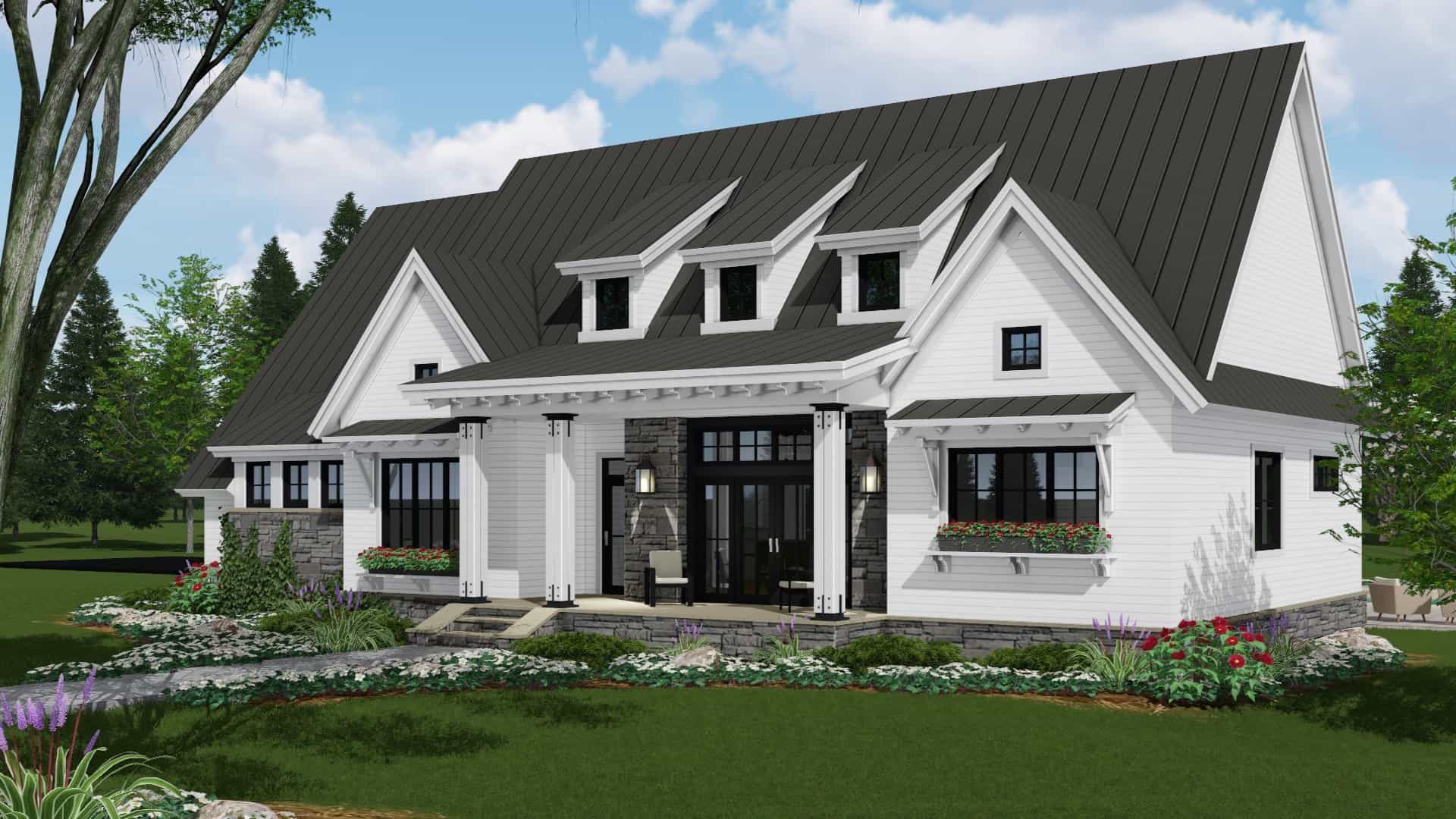

165-1183: Home Other Image-Left Side View
165-1183: Home Other Image-Right Side View

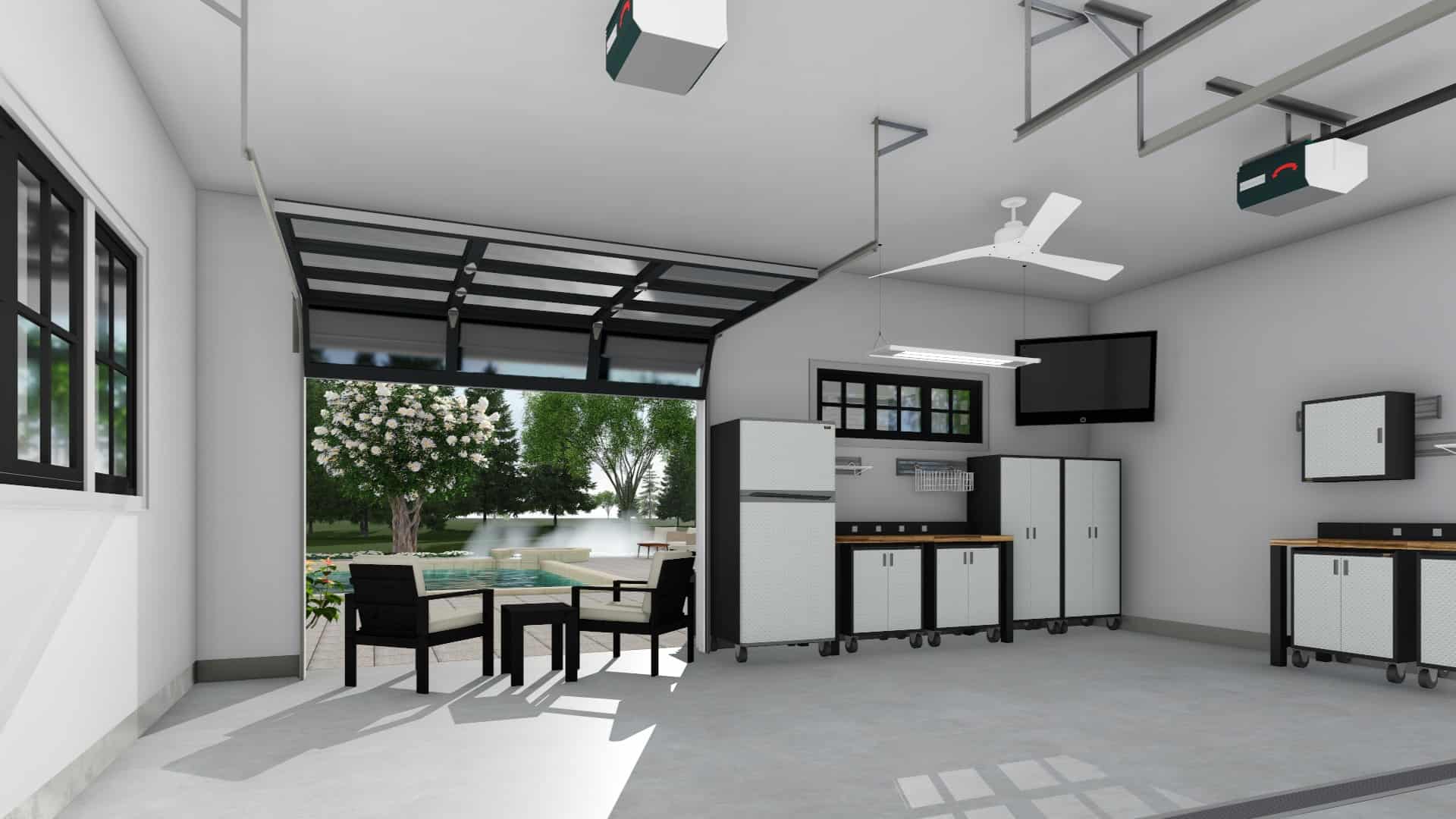

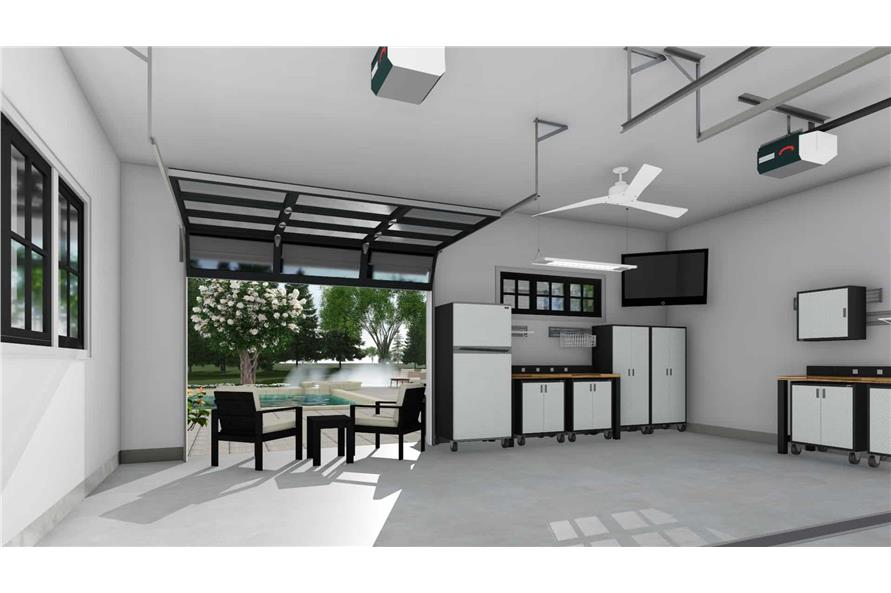

165-1183: Home Other Image-Garage
3-Bedroom, 2287 Sq Ft Ranch Home Plan - 165-1183 - Main Exterior
165-1183: Home Other Image-Rear View
165-1183: Home Other Image-Rear View
165-1183: Home Other Image-Rear View
165-1183: Home Other Image-Pool
165-1183: Home Other Image-Pool
165-1183: Home Other Image-Left Side View
165-1183: Home Other Image-Right Side View
165-1183: Home Other Image-Garage

About Plan # 165-1183

About Plan # 165-1183

2287 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 71' 0" WIDTH 73' 2" DEPTH 2 GARAGE BAY
Looking for a modern ranch farmhouse with plenty of space? This 2287 living sq ft plan comes with an optional 535 sq ft bonus room, perfect for a home office, studio, or fourth bedroom. You'll love the expansive great room and dining area with its fireplace and access to the front and rear porches, perfect for hosting family and friends. The open-concept kitchen features a center island with additional seating for up to seven people and an informal breakfast nook with a pass-through window to the back porch's outdoor seating area. Other amenities include:
  • Master suite with vaulted ceiling
  • Mudroom with both side and garage entrances
  • Resource center
  • Walk-in closets in every bedroom

Each plan set includes the following:

  • Foundation plan
  • Floor plan(s)
  • Exterior elevations
  • Building cross sections
  • Roof plan
  • Notes & details


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

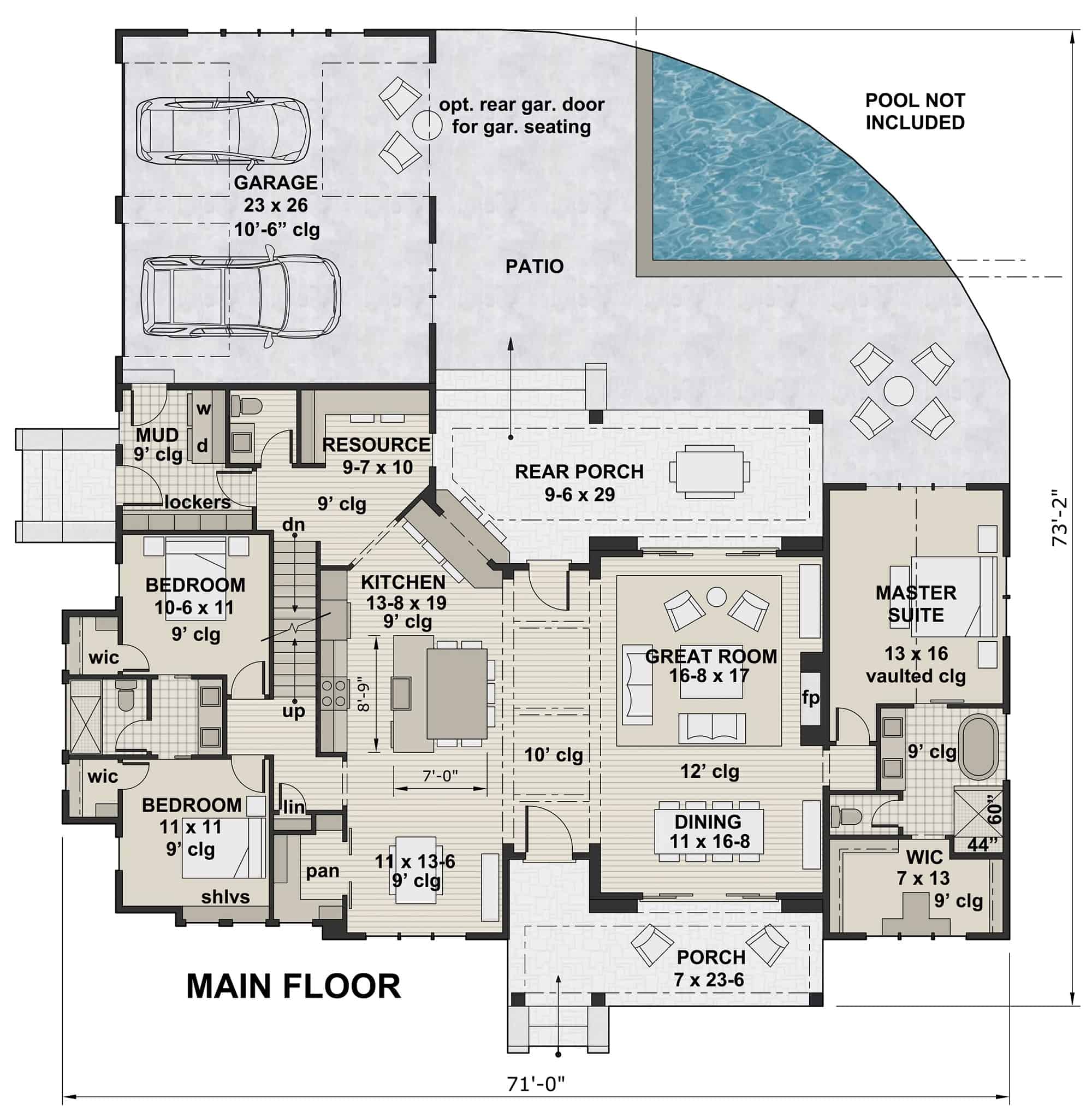

Home Plan: #165-1183 Floor Plan First Story - main level Main Level of Ranch Plan #165-1183

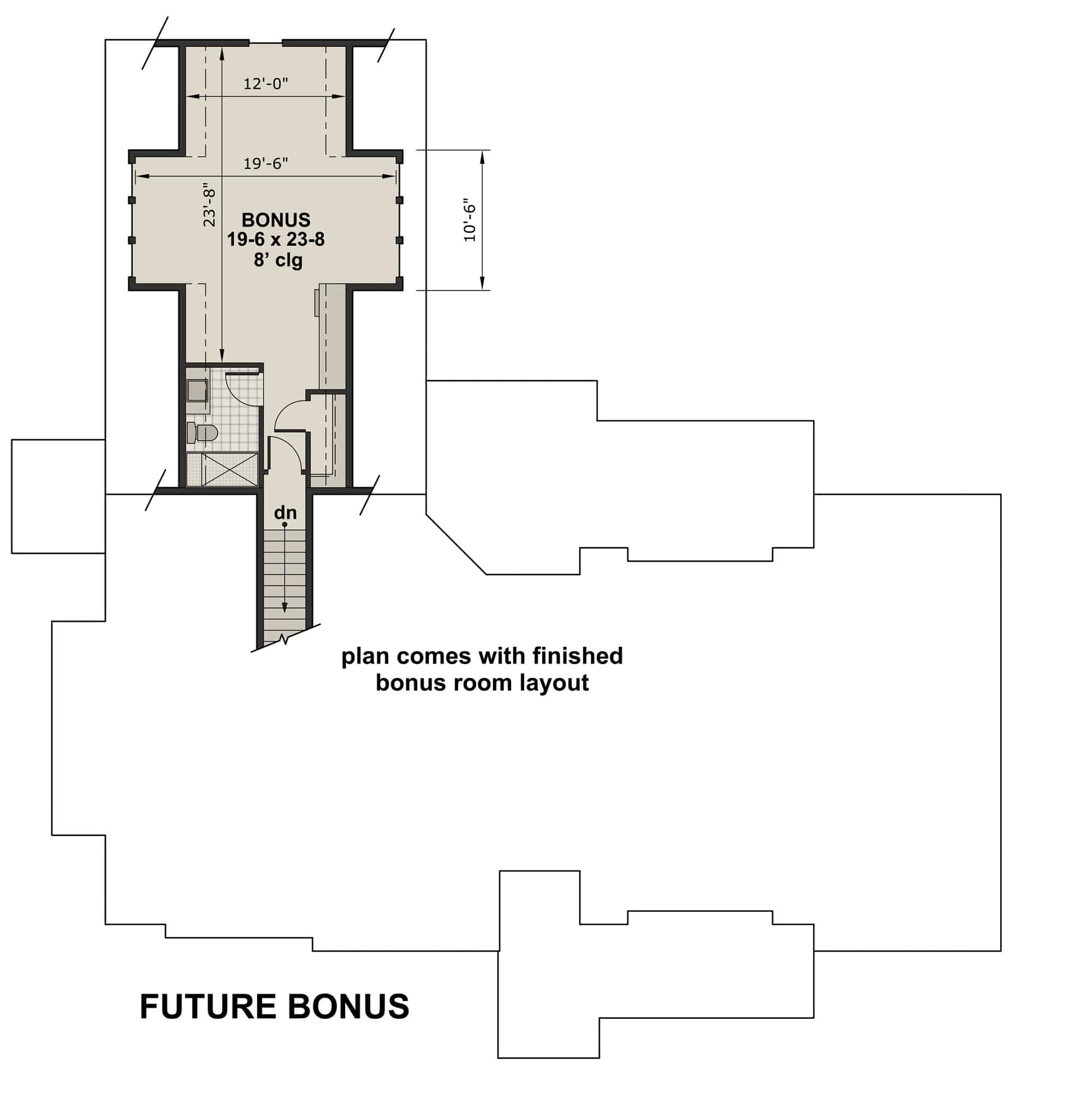

#165-1183 Floor Plan Bonus Room - bonus room Bonus Room of Ranch Plan #165-1183
Home Plan: #165-1183 Floor Plan First Story - main level Main Level of Ranch Plan #165-1183
#165-1183 Floor Plan Bonus Room - bonus room Bonus Room of Ranch Plan #165-1183
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 165-1183
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2287
Main Floor:
2287
Unfinished Sq Ft:
Bonus Room:
535
Garage :
636
Porch :
165

Dimensions

Width:
71' 0"
Depth:
73' 2"

Architectural Styles

Country
Ranch
Farmhouse
Contemporary
Transitional
Modern Farmhouse

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Gable/Dormer

Roofing Material

Metal

Roof Pitch

14/12

Ceiling Height

10 Foot Ceiling
12 Foot Ceiling

Special Feature

Fireplace
Mud Room
Bonus Room
Family Room
Main Level Laundry
Split Bathroom
Storage
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Corner Lot

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE: Materials Lists are based on the STOCK plan ONLY without modifications! Custom materials lists are available if you modify a plan. Please ask for a quote.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
