3-Bedroom, 2208 Sq Ft Vacation Homes Plan with Walk-in Pantry

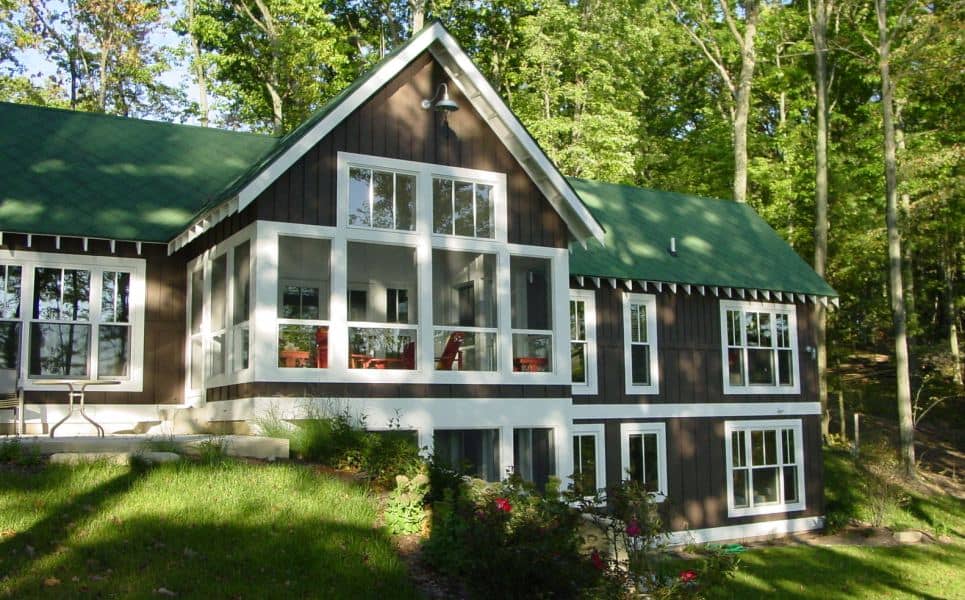

Color photograph of Vacation House Plan #168-1001.
168-1011 front

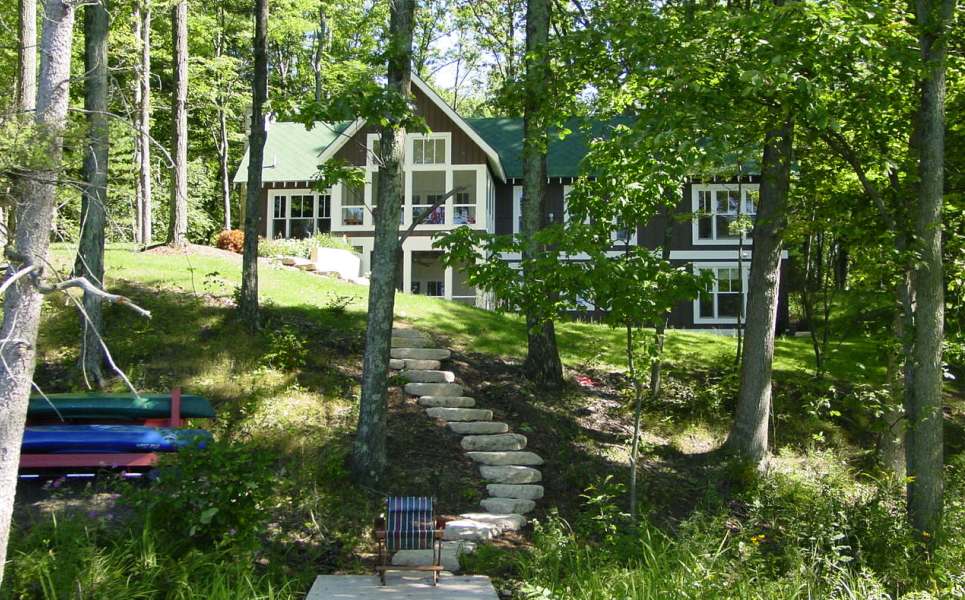

168-1011 rear view

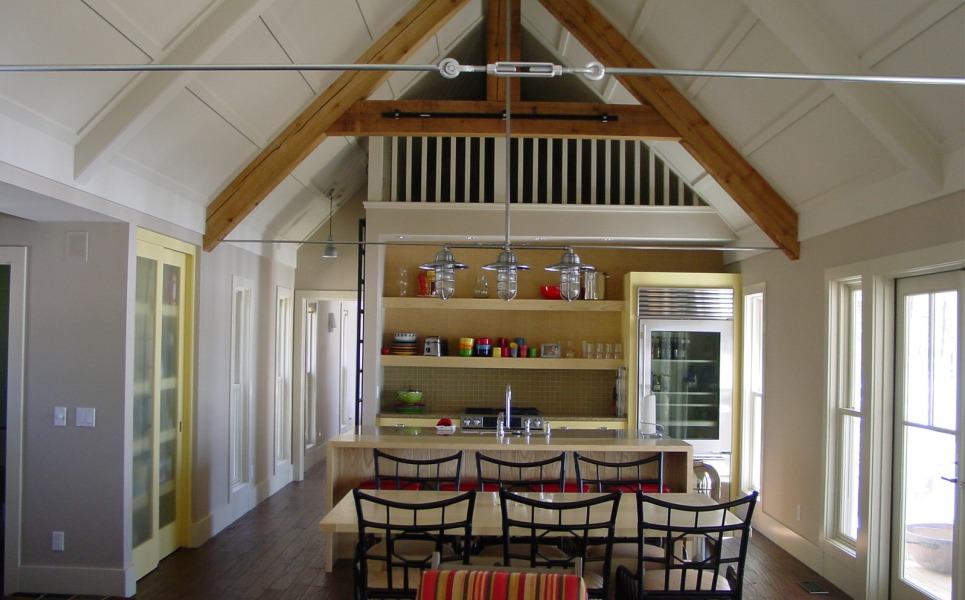

168-1001 great room
168-1001 kitchen

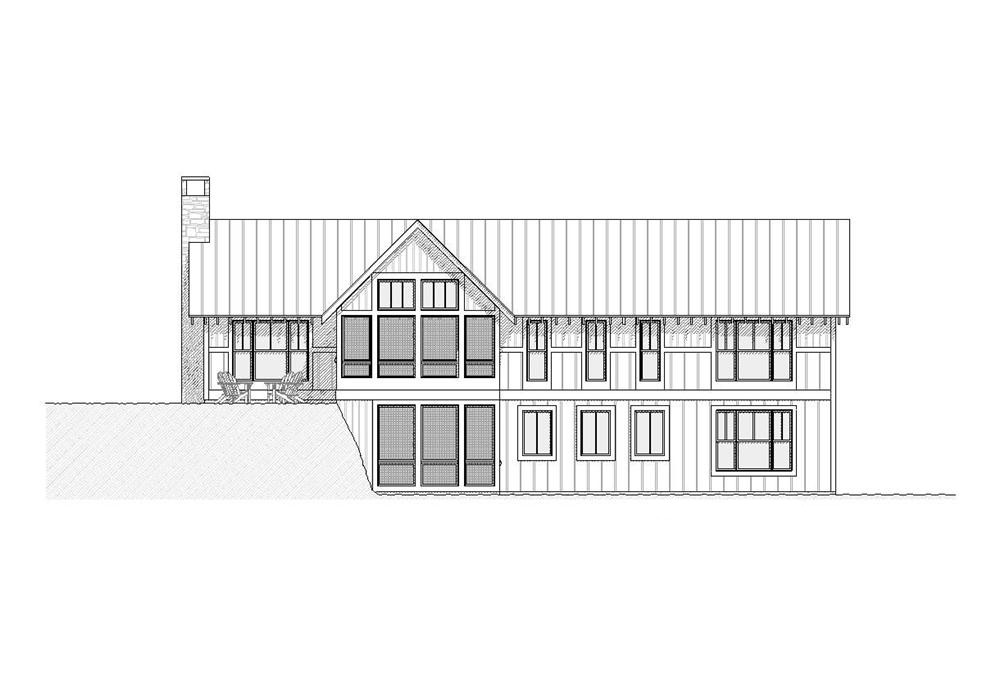

168-1001: Home Plan Rear Elevation

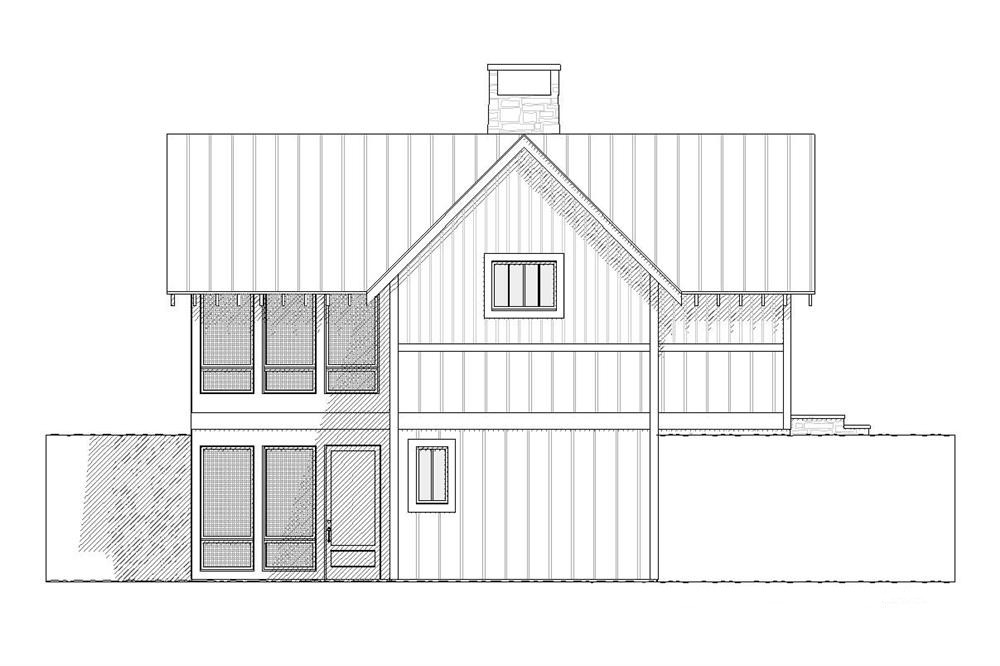

168-1001: Home Plan Left Elevation

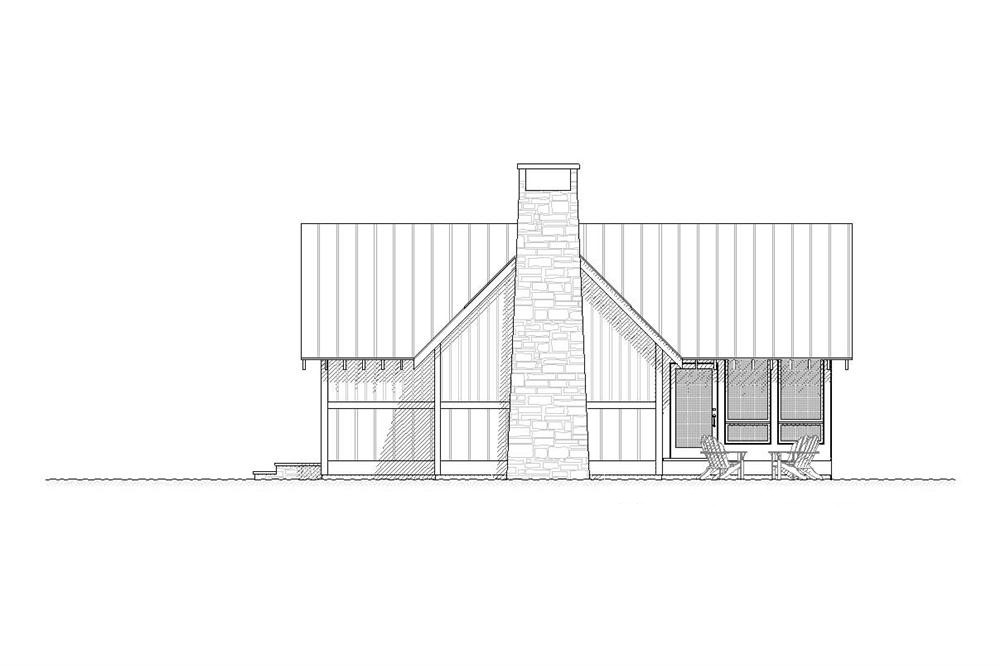

168-1001: Home Plan Right Elevation

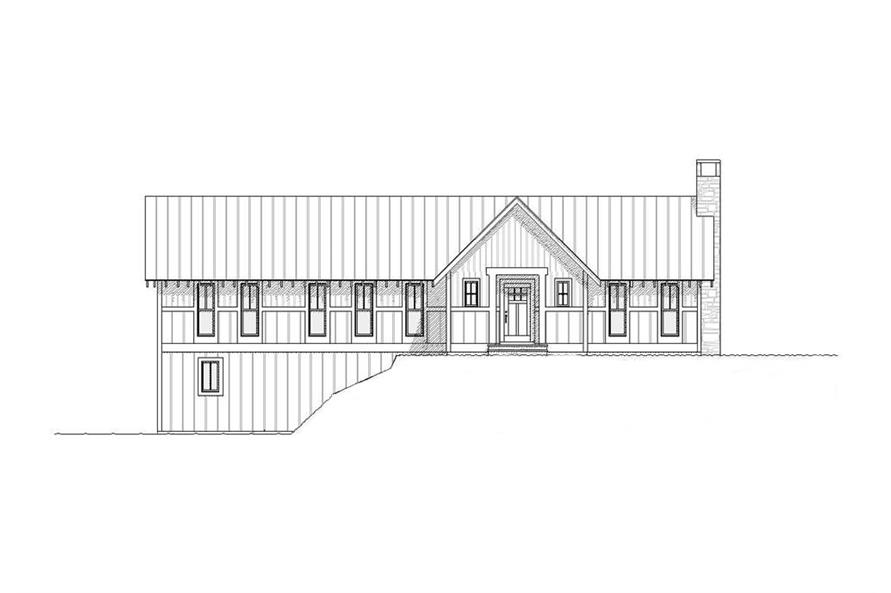

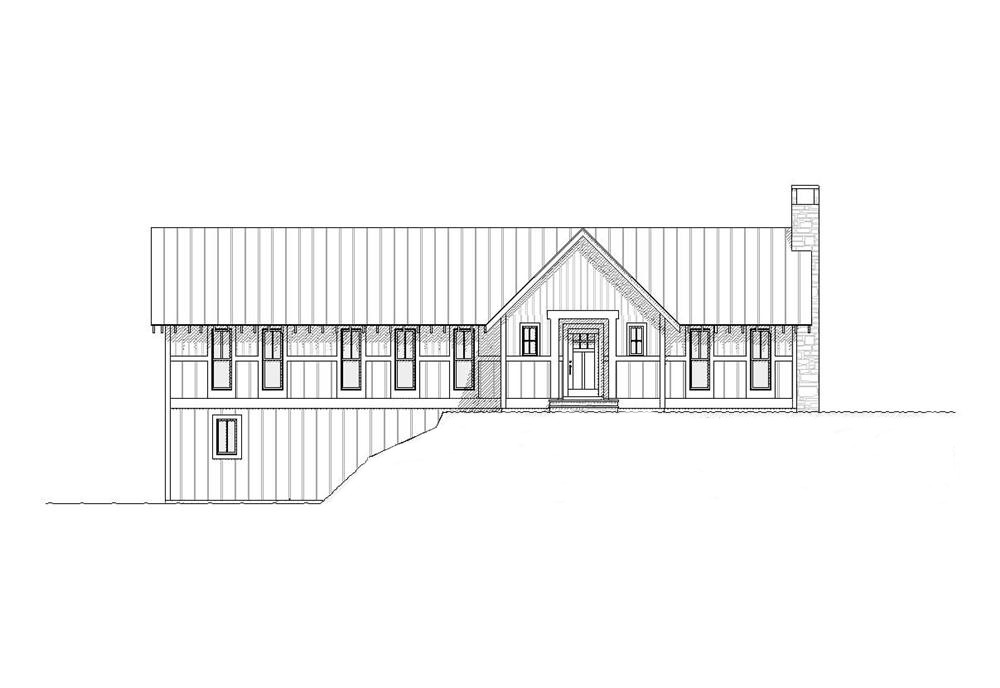

168-1001: Home Plan Front Elevation

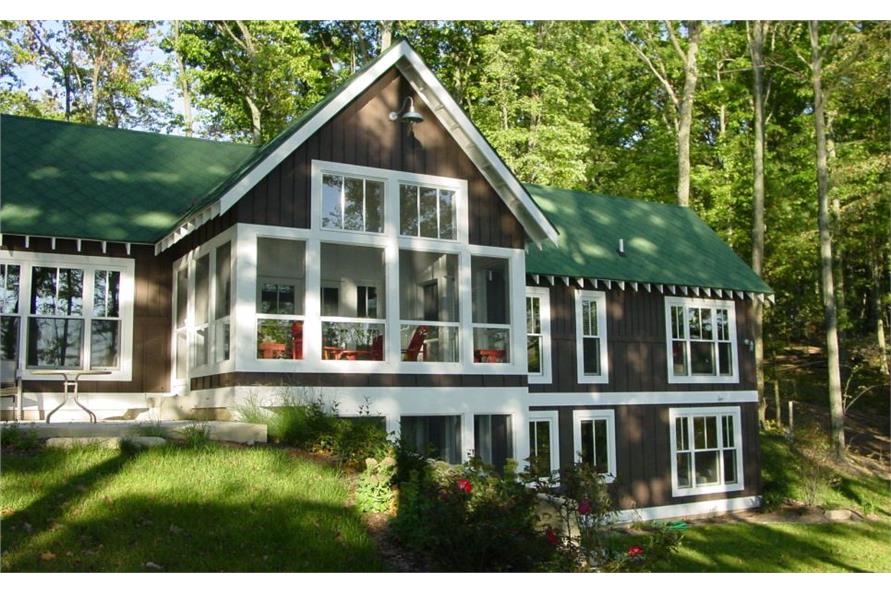

3-Bedroom, 2208 Sq Ft Vacation Homes Home Plan - 168-1001 - Main Exterior
168-1011 front
168-1011 rear view
168-1001 great room
168-1001 kitchen
168-1001: Home Plan Rear Elevation
168-1001: Home Plan Left Elevation
168-1001: Home Plan Right Elevation
168-1001: Home Plan Front Elevation

About Plan # 168-1001

About Plan # 168-1001

2208 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 62' 0" WIDTH 36' 0" DEPTH 0 GARAGE BAY

Comfortably situated on an upslope, this 2-story, 3-bedroom Vacation-style home plan sets the mood for leisure and relaxation. Sunshine seeps through the many windows of the floor plan and allows one to bask in the magnificent view of the lush natural landscape. Walk through the doors of the house plan into a spacious Great Room with kitchen-dining-living areas. The master suite is on the main floor while two bedrooms, the family room, and laundry room are on the lower level. A screened back porch opens into an outdoor area that is ideal for a summer picnic or cookout.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

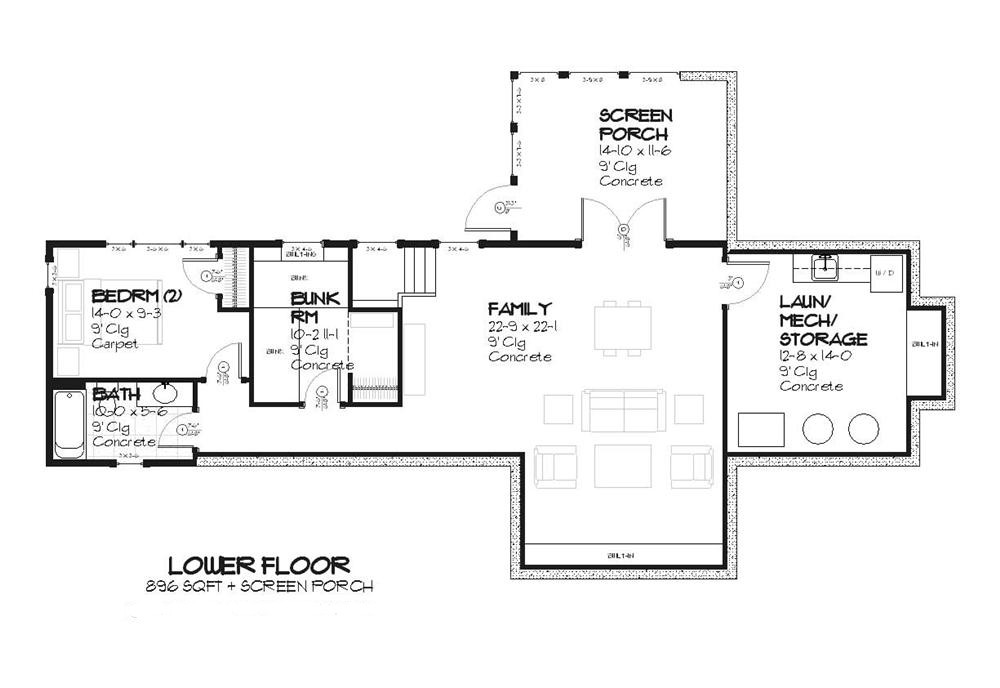

Home Plan: #168-1001 Floor Plan Basement - lower level Floor Plan Basement of Vacation Homes Plan #168-1001

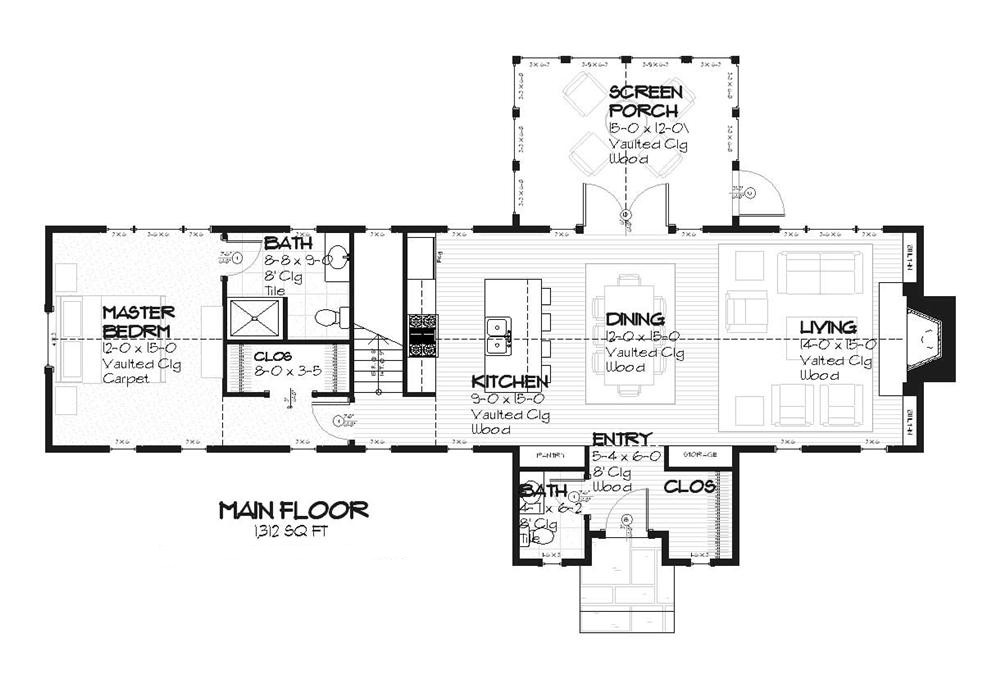

#168-1001 Floor Plan First Story - main level Floor Plan First Story of Vacation Homes Plan #168-1001
