3-Bedroom, 2149 Sq Ft Country Plan with Nook/Breakfast Area

Main image for Country house plans # 1850

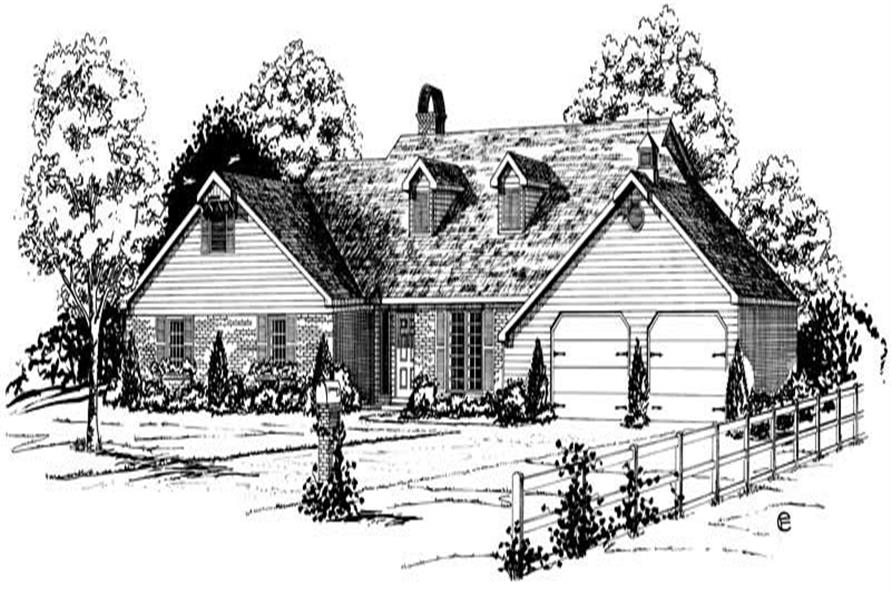

3-Bedroom, 2149 Sq Ft Country House Plan - 164-1069 - Front Exterior

About Plan # 164-1069

About Plan # 164-1069

2149 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 72' 10" WIDTH 42' 10" DEPTH 2 GARAGE BAY
Ranch House Plans RG2102 have a Dressing Area in Master and Walk-In Closets in All the Bedrooms. There is a Vaulted Ceiling in the Den. Also note the Covered Front Entry & Rear Porches. The Large Kitchen comes with a Breakfast Area. The Den is very lovely with decorative beams in the ceiling.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes cabinet & miscellaneous details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

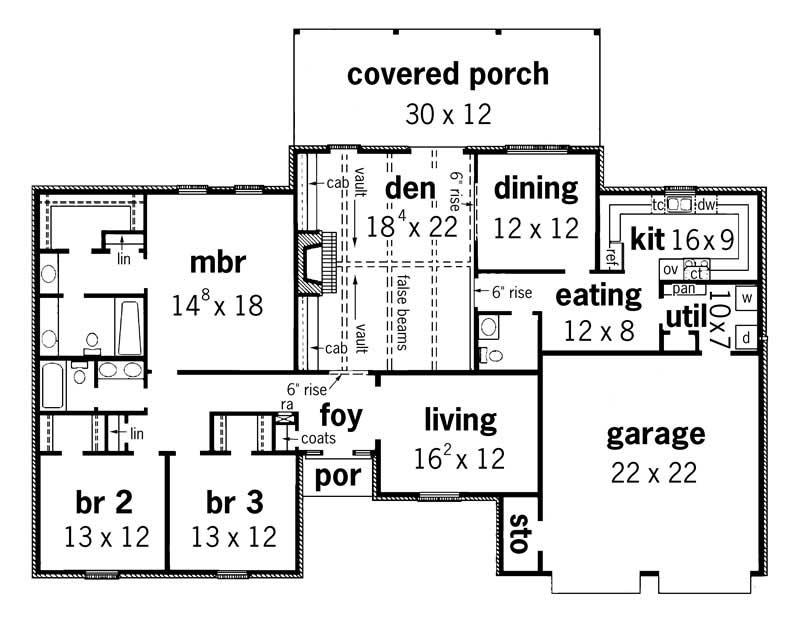

Home Plan: #164-1069 Floor Plan First Story - main Floor Plan First Story of Country Plan #164-1069
Home Plan: #164-1069 Floor Plan First Story - main Floor Plan First Story of Country Plan #164-1069
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 164-1069
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
2149
Main Floor:
2149
Unfinished Sq Ft:
Garage :
484

Dimensions

Width:
72' 10"
Depth:
42' 10"
Ridge Height:
21'-6' 0"

Architectural Styles

Country
Ranch
Traditional

Exterior Wall Material

Brick
Vinyl Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

9/12

Ceiling Height

8 Foot Ceiling

Special Feature

Den
Dining Room
Fireplace
Main Level Laundry
Split Bathroom
Storage

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
