3-Bedroom, 2130 Sq Ft Craftsman Plan with Main Floor Master

Main image for house plan # 9263
Main Elevation

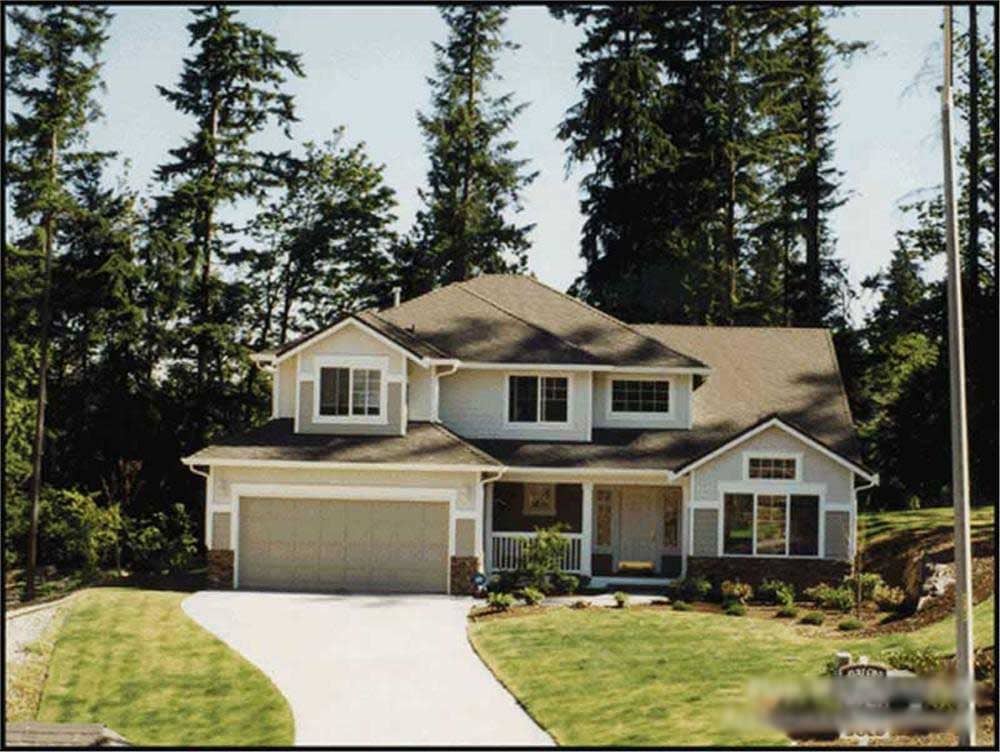

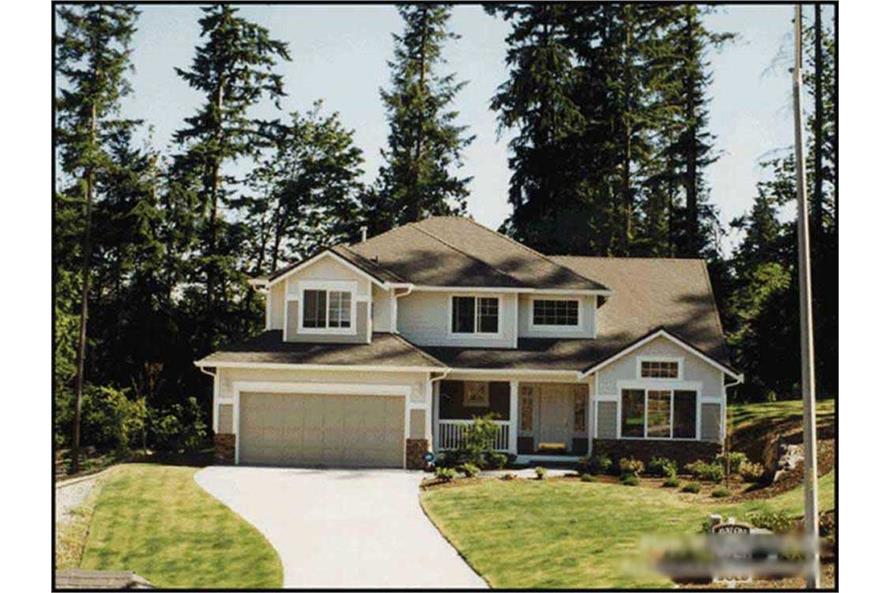

3-Bedroom, 2130 Sq Ft Craftsman House Plan - 115-1429 - Front Exterior
Main Elevation

About Plan # 115-1429

About Plan # 115-1429

2130 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 48' 0" WIDTH 38' 0" DEPTH 2 GARAGE BAY

This Craftsman style two story home is a great plan for every-day living. The first floor has all of the needed features of a family home: a beautiful foyer open to a loft above, powder room, laundry/utility, formal living room, formal dining room, kitchen, breakfast nook, and spacious family room with a fireplace. Upstairs, you'll find: a fantasic reading loft, two bedrooms and a full bathroom, and a generous master suite with walk-in & linen closets, and a full master bath with shower, full size jetted tub, and split vanities. This plan features a two car garage and large front porch.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

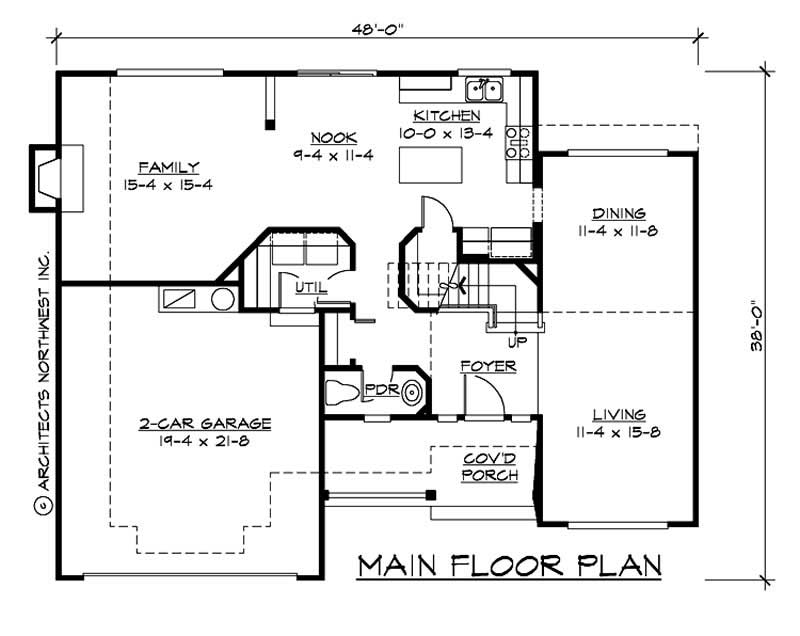

Home Plan: #115-1429 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #115-1429

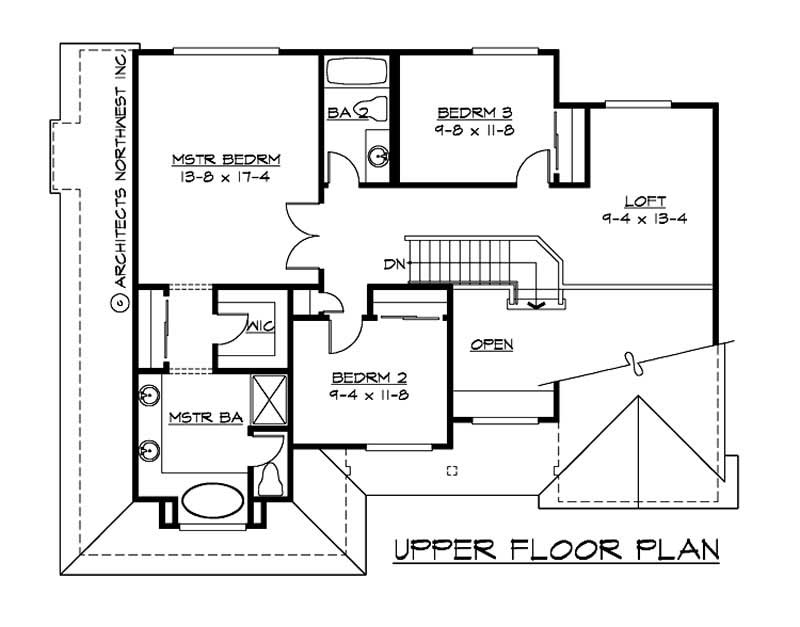

#115-1429 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #115-1429
