3-Bedroom, 2061 Sq Ft Concrete Block/ ICF Design Plan with Covered Front Porch

Main image for house plan # 9737
FRONT ELEVATION
REAR ELEVATION
3-Bedroom, 2061 Sq Ft Concrete Block/ ICF Design House Plan - 132-1499 - Front Exterior

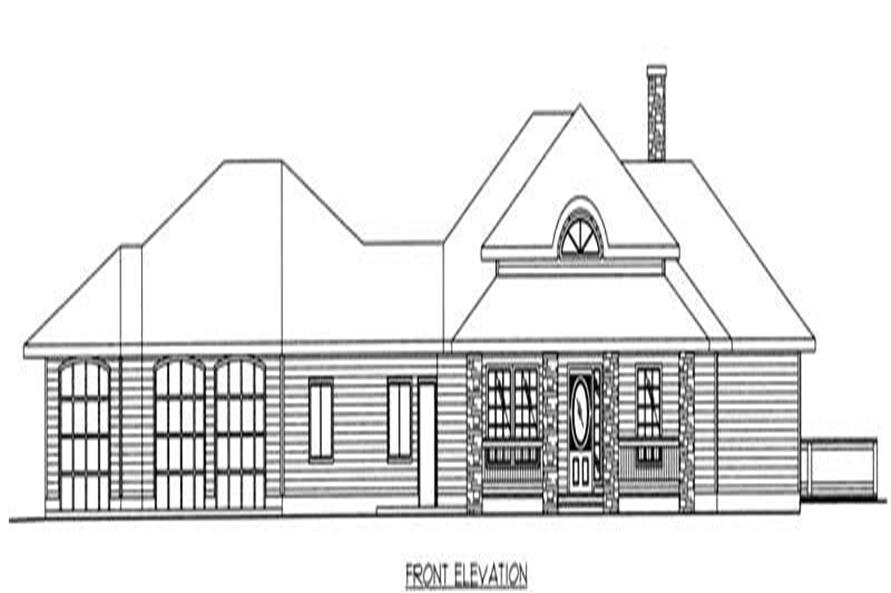

FRONT ELEVATION

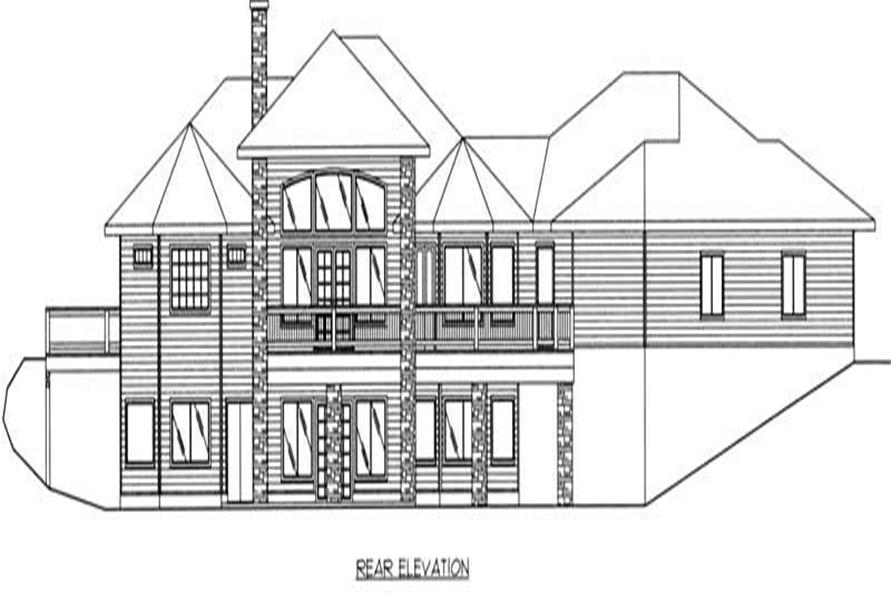

REAR ELEVATION

About Plan # 132-1499

About Plan # 132-1499

2061 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 109' 7" WIDTH 72' 3" DEPTH 3 GARAGE BAY
*Insulated Concrete Form Construction *Media Room *Office *Recreation Room *Storage Area *Wine Cellar *Great Room With Fireplace *Covered Entry Porch *Spa Tub In Master Bathroom *Kitchen Nook *Island In Kitchen *Walk-In Pantry *3-Car Garage *Den *Vacation/Ranch Style

Each plan set includes the following:

  • FLOOR PLAN: Includes interior and exterior dimensions, window/door schedule, wall framing details.
  • FOUNDATION PLAN: Shows footing, stem wall, and slab placement; includes all connection details.
  • ROOF & FLOOR FRAMING PLANS: Shows truss/rafter placements, including all beams/connection details.
  • ELECTRICAL LAYOUT
  • FRONT, REAR, AND SIDE ELEVATIONS: Shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • CROSS SECTIONS: Cut through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc. Includes general notes/details to cover the entirety of the project.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #132-1499 Floor Plan First Story - main level Floor Plan First Story of Concrete Block/ ICF Design Plan #132-1499

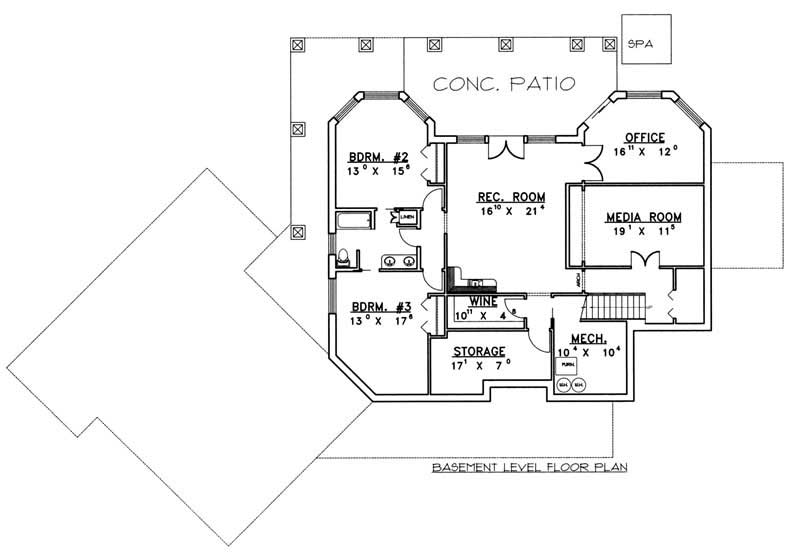

#132-1499 Floor Plan Basement - basement Floor Plan Basement of Concrete Block/ ICF Design Plan #132-1499
Home Plan: #132-1499 Floor Plan First Story - main level Floor Plan First Story of Concrete Block/ ICF Design Plan #132-1499
#132-1499 Floor Plan Basement - basement Floor Plan Basement of Concrete Block/ ICF Design Plan #132-1499
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 132-1499
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
2061
Main Floor:
2061
Unfinished Sq Ft:
Lower Floor:
2061
Garage :
1320

Dimensions

Width:
109' 7"
Depth:
72' 3"
Ridge Height:
22' 0"

Architectural Styles

Concrete Block/ ICF Design
Ranch
Vacation Homes

Exterior Wall Material

Vinyl Siding
Wood Siding

Roof Pitch

7/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Media Room

Garage Type

Attached Garage

Kitchen Features

Walk-in Pantry

Additional Notes from Designer

PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes.

PRICING OPTIONS

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
