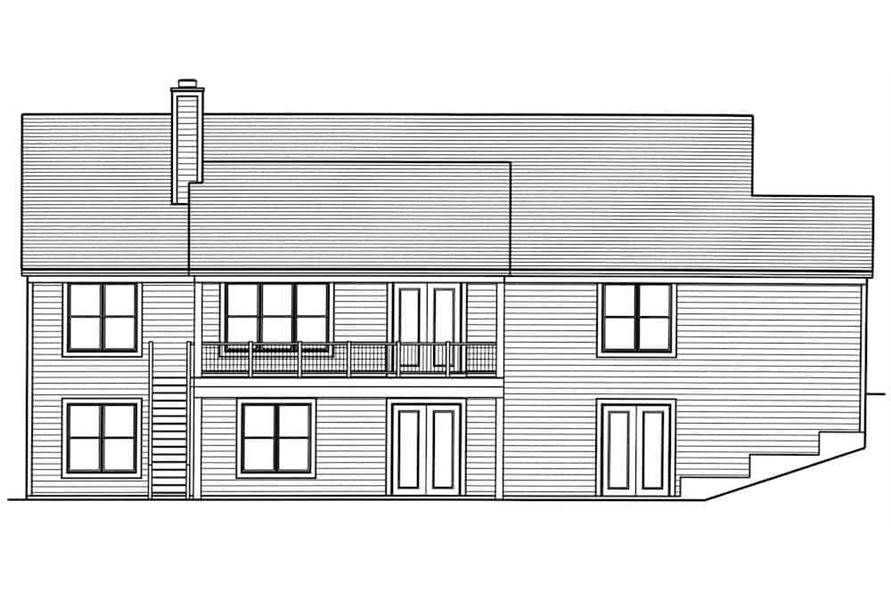

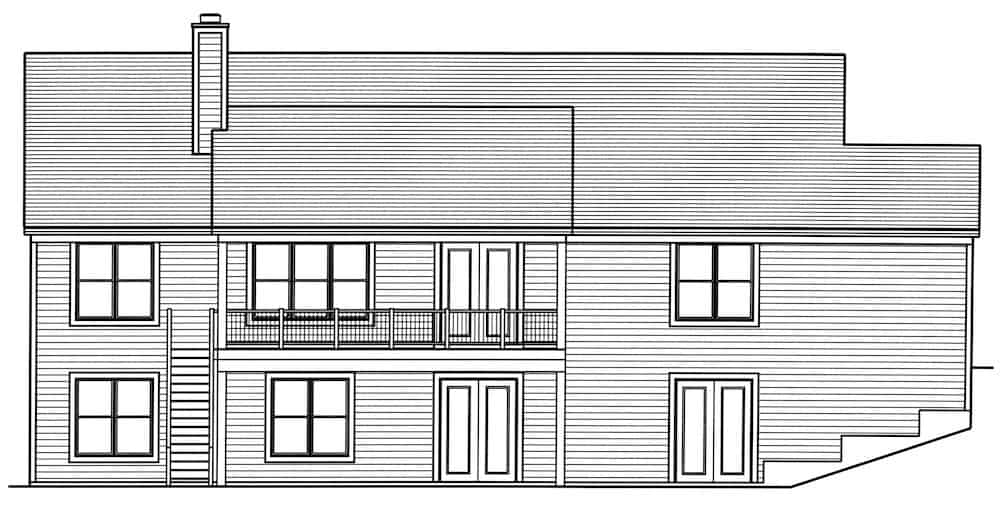

169-1190: Home Plan Rear Elevation

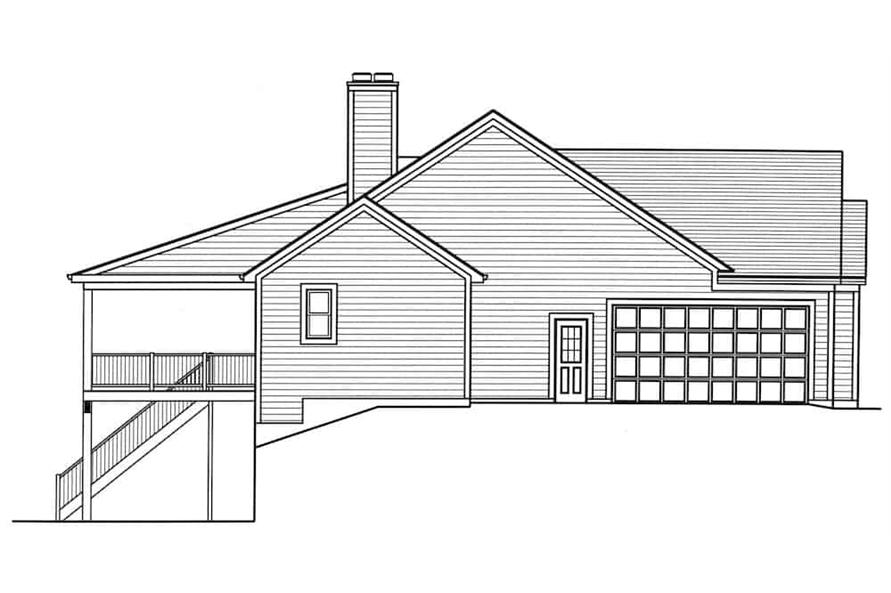

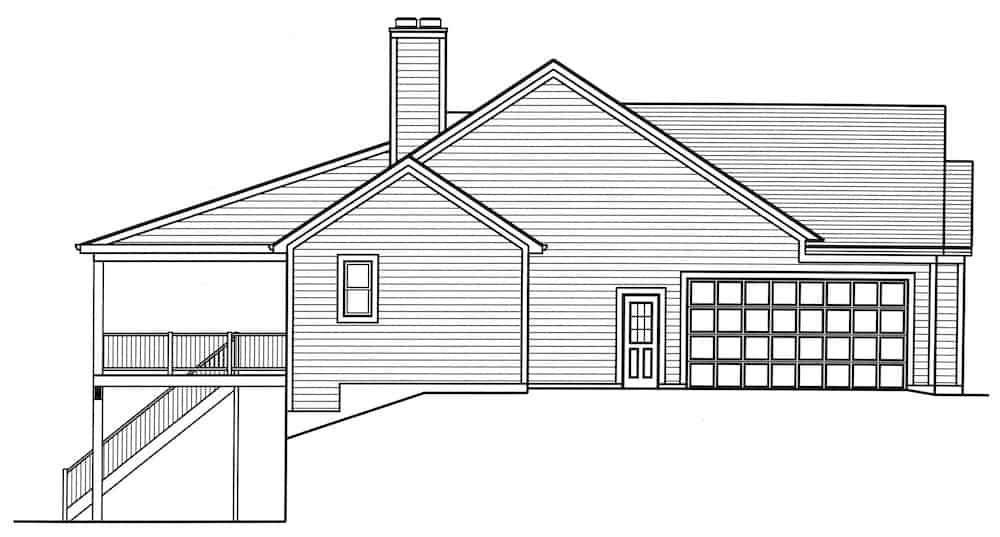

169-1190: Home Plan Left Elevation

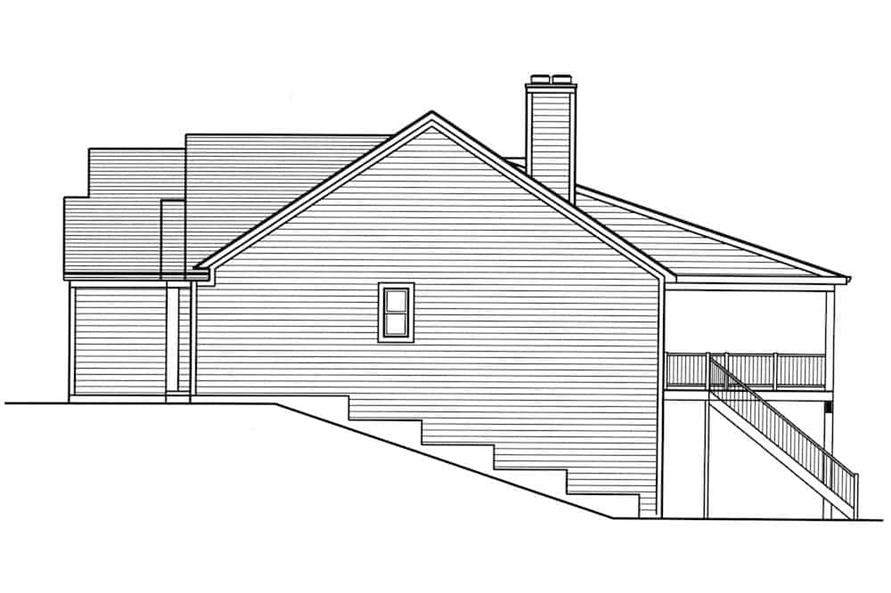

169-1190: Home Plan Right Elevation
3–4-Bedroom, 2059–3160 Sq Ft Farmhouse Home - Plan #169-1190 - Main Exterior
169-1190: Home Plan Rear Elevation

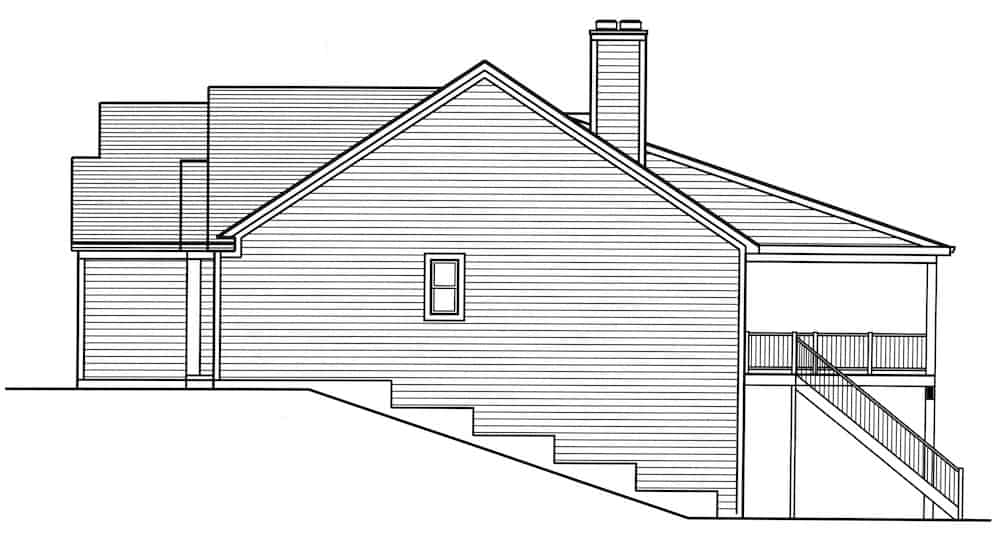

169-1190: Home Plan Left Elevation
169-1190: Home Plan Right Elevation

About Plan # 169-1190

About Plan # 169-1190

2059 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 72' 10" WIDTH 63' 0" DEPTH 2 GARAGE BAY

The impressive entrance makes this Farmhouse home with Ranch influenced design unforgettable. The house covers a heated and cooled area of 2059 square feet of fully conditioned living space with a 2059-square-foot unfinished walkout basement, which if completed according to the suggested floor plan would add a bedroom, a bathroom, and a rec room with bar in 1101 square feet of living space. You'll love the following features:

• Fireplace in the Great Room
• Large laundry room with sink
• Spacious walk-in kitchen pantry
• 14-foot vaulted ceiling in the Great Room
• 12.5-foot vaulted ceiling in the master bedroom
• Mudroom with a bench

Each plan set includes the following:

  • General notes and specifications
  • Front, rear and side elevations (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction method
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

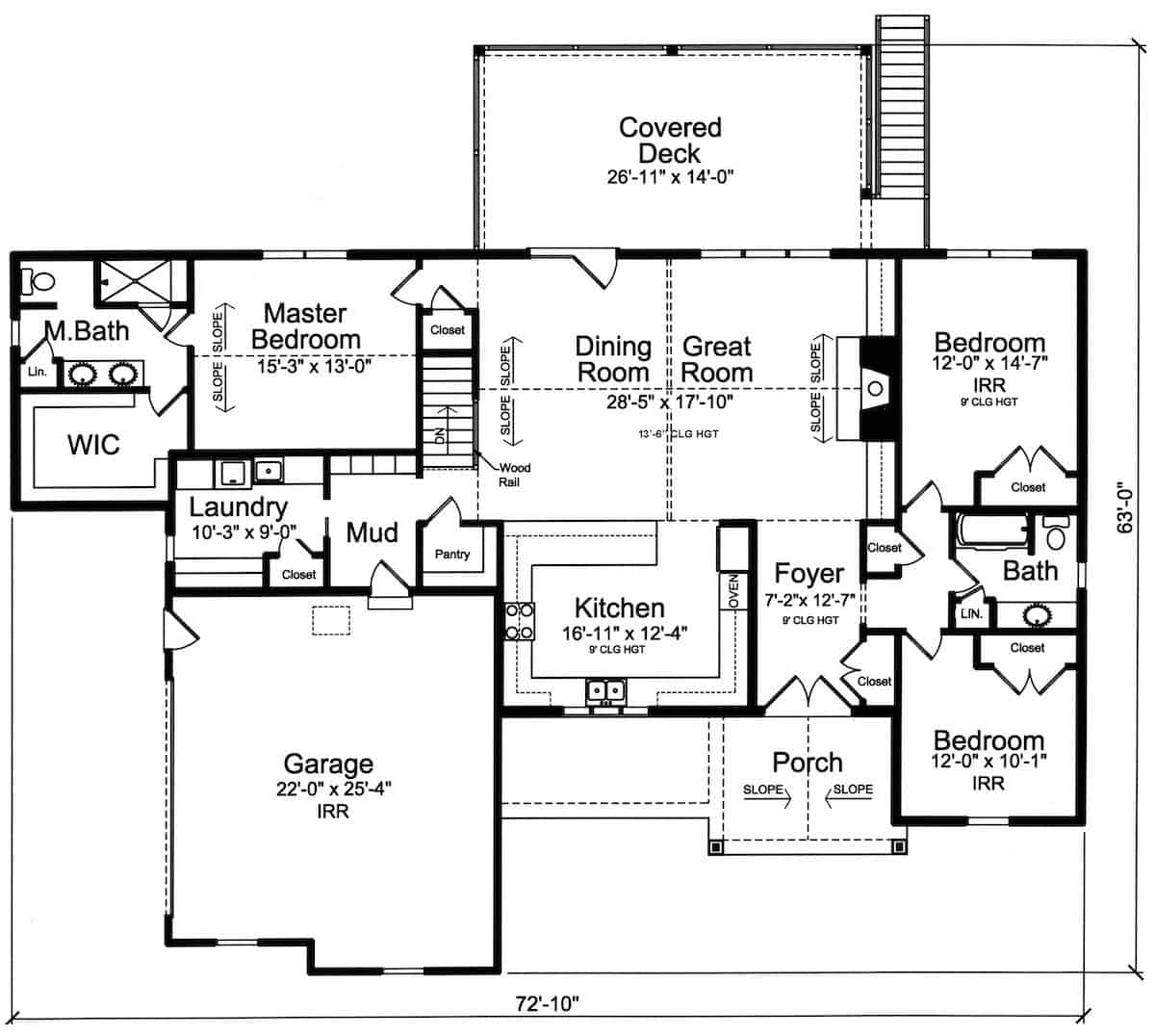

Home Plan: #169-1190 Floor Plan First Story - main level Main Level of Acadian Plan #169-1190

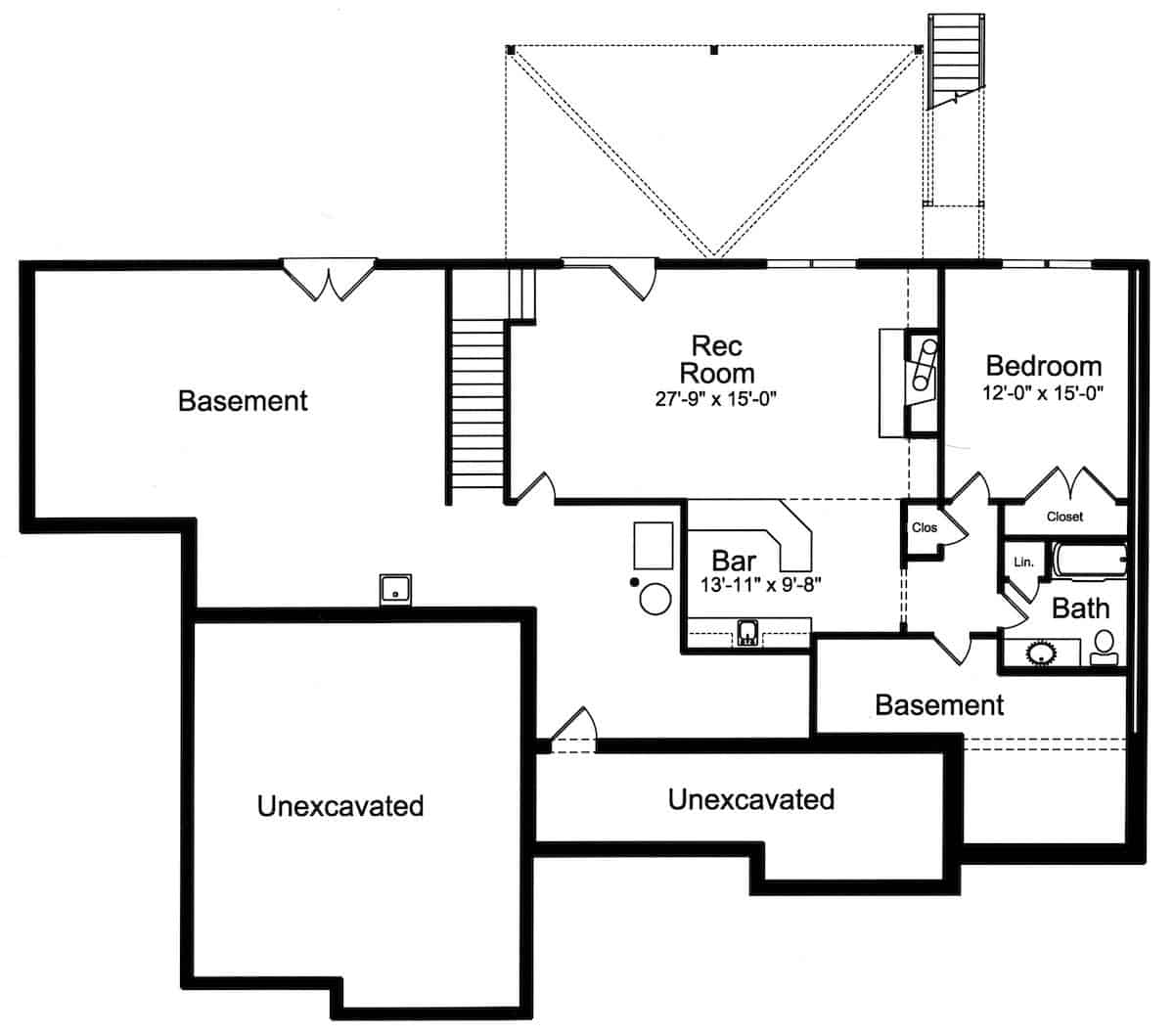

#169-1190 Floor Plan Basement - basement Basement of Acadian Plan #169-1190
Home Plan: #169-1190 Floor Plan First Story - main level Main Level of Acadian Plan #169-1190
#169-1190 Floor Plan Basement - basement Basement of Acadian Plan #169-1190
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 169-1190
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
2059
Main Floor:
2059
Lower Floor:
1101
Unfinished Sq Ft:
Lower Floor:
2059
Garage :
537
Porch :
595

Dimensions

Width:
72' 10"
Depth:
63' 0"
Ridge Height:
24' 0"

Architectural Styles

Country
Ranch
Farmhouse
Transitional

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12
10/12

Ceiling Height

9 Foot Ceiling
12 Foot Ceiling

Special Feature

Fireplace
Dining Room
Mud Room
Family Room
Main Level Laundry
Split Bathroom
Storage
Open Floor Plan
L-Shaped

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Down Site
Corner Lot

Kitchen Features

Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE: 5 sets and 8 sets include a PDF as well.

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

For use by design professionals. This file may be available. Please call or email us first so we can confirm for you. This set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
