Home > Floor Plans by Styles > European House Plans > Plan Detail for 141-1157
Main image for house plan # 7847

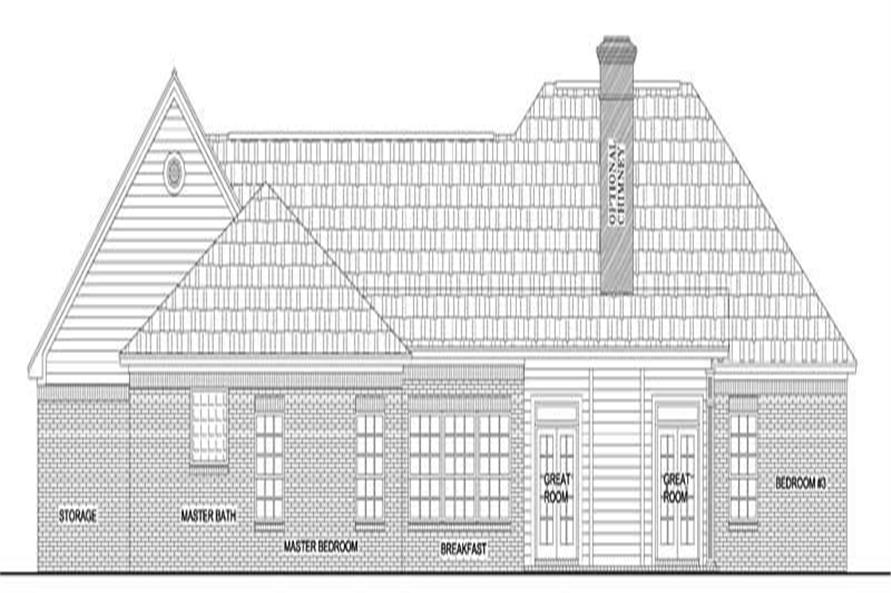

Rear Elevation
3-Bedroom, 2024 Sq Ft European Home Plan - 141-1157 - Main Exterior

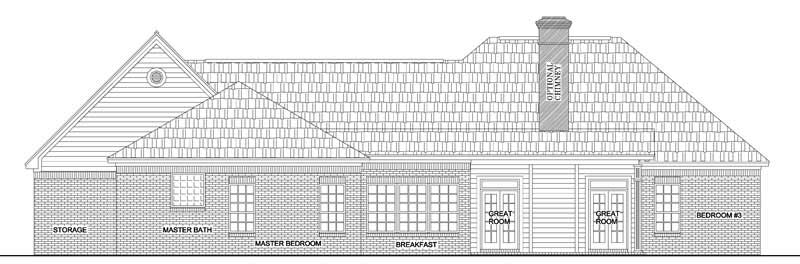

Rear Elevation

About Plan # 141-1157

About Plan # 141-1157

2024 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 73' 0" WIDTH 41' 0" DEPTH 2 GARAGE BAY

This traditional split bed room plan has a lot to offer. Can be build as a 2, 2 1/2, or 3 bath plan with 3 or 4 bedrooms. Raised ceiling in great room. Note how close the master suite is to the refrigerator. Large master suite. Bonus area above the garage is an inexpensive way to get more space for a little money per square foot. A beautiful and versatile plan. Raised bar in kitchen for conversation with friends yet they can stay out of the work triangle. Jet tub. Formal dining and breakfast.

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • Cover page with rendering
  • foundation plan with typical details
  • floor plans with ceiling framing notes
  • four exterior views of exterior
  • roof plan, and rafter layout plan
  • full cross section through house, and typical wall sections
  • stair section (if there are stairs)
  • Bonus room/garage section if there is a bonus room/garage
  • Interior cabinet drawings
  • Misc. structural details
  • Electrical plan with lighting, outlets, switches, etc..

Not Included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

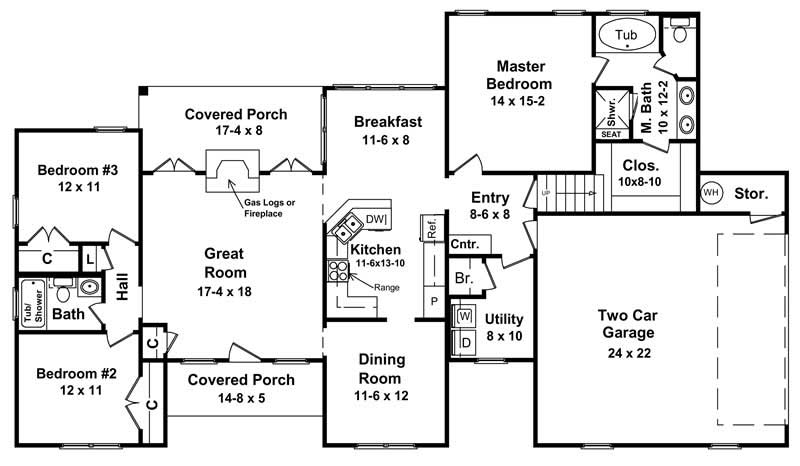

Home Plan: #141-1157 Floor Plan First Story Floor Plan First Story of European Plan #141-1157
Home Plan: #141-1157 Floor Plan First Story Floor Plan First Story of European Plan #141-1157
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 141-1157
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
2024
Main Floor:
2024
Unfinished Sq Ft:

Dimensions

Width:
73' 0"
Depth:
41' 0"
Ridge Height:
22' 0"

Architectural Styles

European
Traditional

Exterior Wall Material

Brick

Roofing Type

Gable
Hip

Ceiling Height

9 Foot Ceiling

Special Feature

Energy Efficient

Garage Type

Attached Garage

Exterior Wall Framing

2x4

Additional Notes from Designer

Please Note! This designer does NOT ship paper copies to Canada. Please order your plans in electronic format (PDF or CAD)! USDA Approval is available for this plan. If interested, submit a modification request for a free quote. What is USDA Approval? Certification that a particular house plan meets the housing requirements of the US Department of Agriculture's Rural Housing Service. This is one of the requirements if you intend to apply for a loan through the Rural Housing Service.

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
