3-Bedroom, 2017 Sq Ft Ranch Plan with His & Her Walk-in Closets
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 2017 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 59' 6" WIDTH | 60' 0" DEPTH | 2 GARAGE BAY |
Stepping up to the front of the house, you'll be astonished by this Country Ranch style home, with its wide covered front porch, large windows, and flared porch columns, all of which combine to enhance the exterior and welcoming nature of the house. The adorable home's 1-story floor plan has 2017 square feet of living space and includes 3 bedrooms.
Each plan set includes the following:
- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
- ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. All two story homes have a through section showing information on the stairs. Most one-story plans do not have a through section but a typical wall section can be provided.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

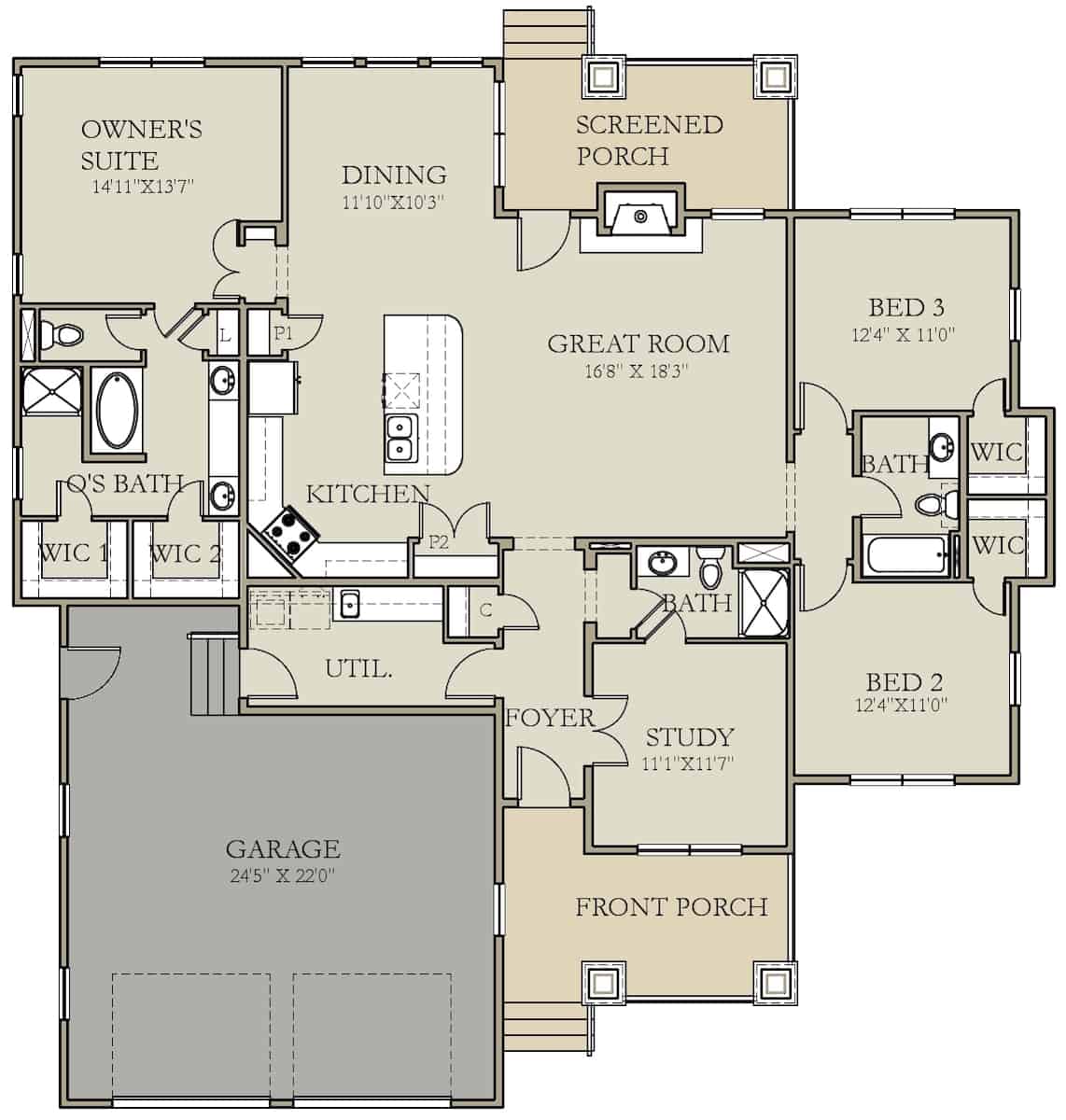

Home Plan: #207-1002 Floor Plan First Story
-
