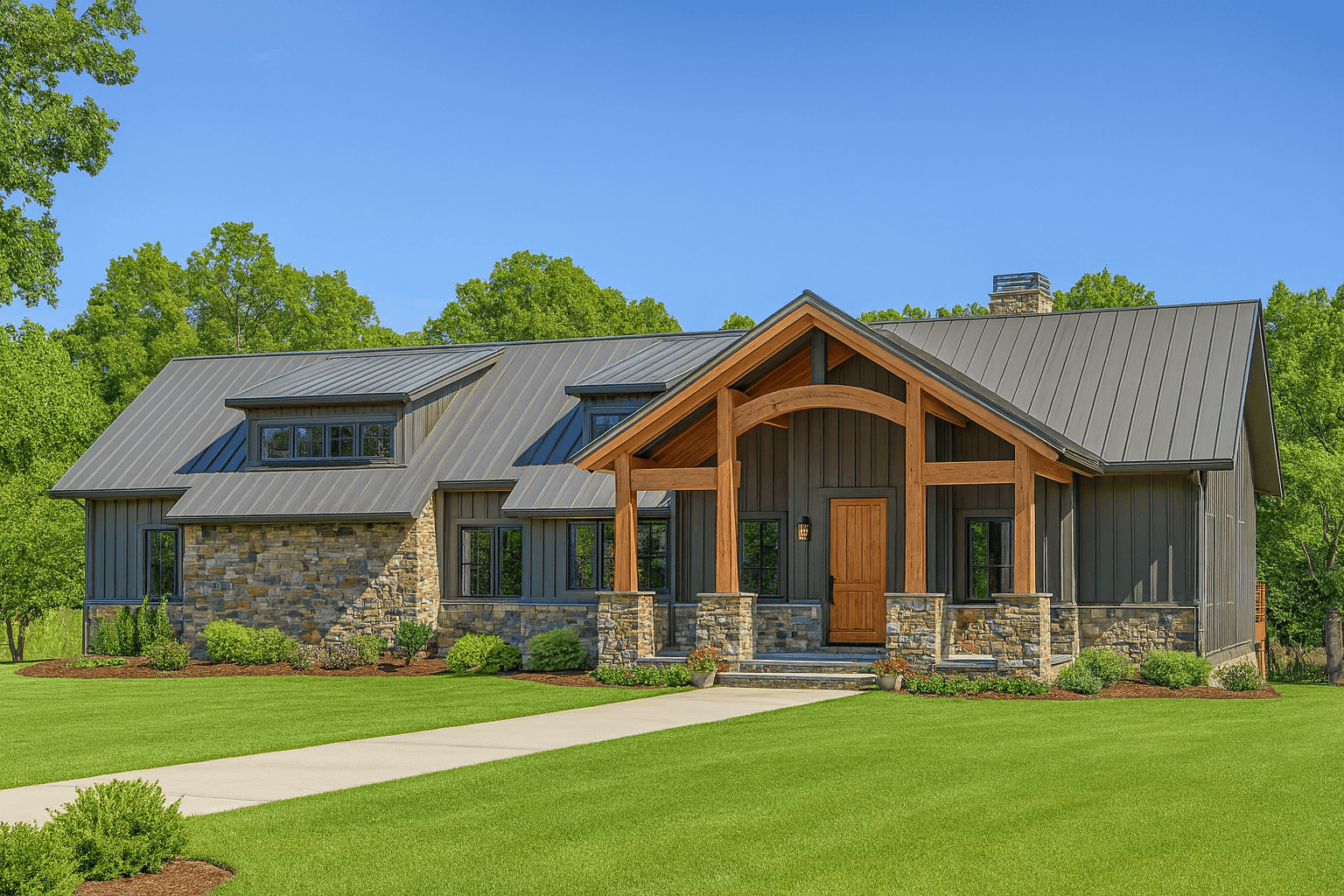

Contemporary home (ThePlanCollection:  Plan #193-1055)

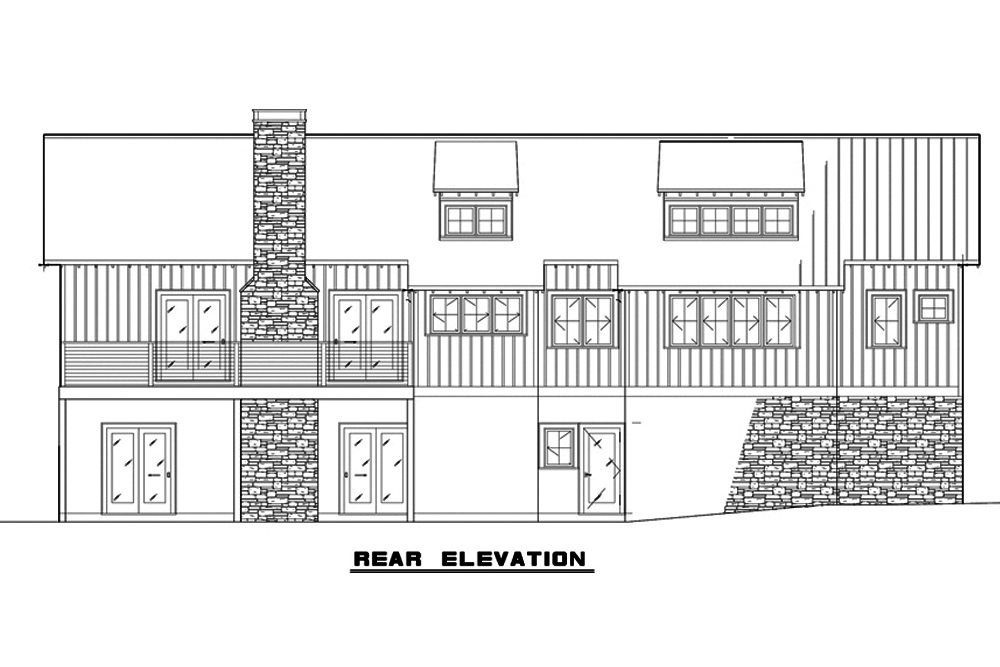

193-1055: Home Plan Rear Elevation
3-Bedroom, 1981 Sq Ft Contemporary House - Plan #193-1055 - Front Exterior
193-1055: Home Plan Rear Elevation

About Plan # 193-1055

About Plan # 193-1055

1981 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 70' 5" WIDTH 35' 0" DEPTH 0 GARAGE BAY

This country ranch home combines a rustic vibe with a modern twist (Plan #193-1055). The great room, kitchen and dining area is impressively vaulted. The spacious deck is perfect for entertaining. The large kitchen island offers an eating bar that can seat four comfortably. The main floor has a master suite while in the walk-out basement are 2 additional bedrooms and 1 bath.

Each plan set includes the following:

  • Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

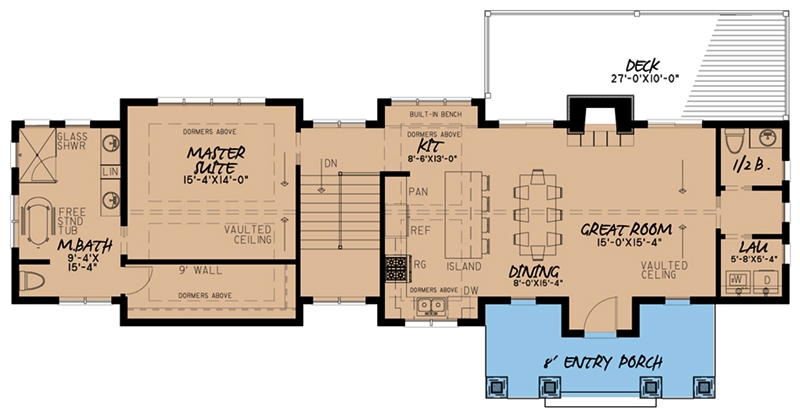

Home Plan: #193-1055 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #193-1055

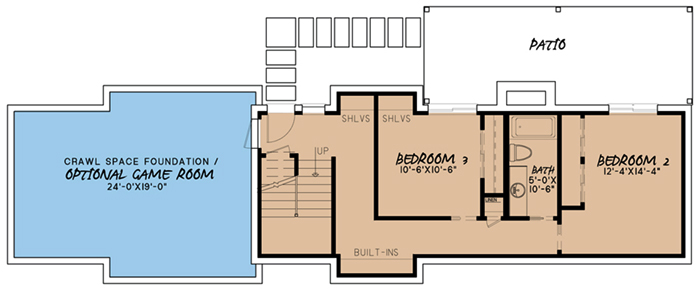

#193-1055 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #193-1055
Home Plan: #193-1055 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #193-1055
#193-1055 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #193-1055
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 193-1055
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
1981
Main Floor:
1291
Lower Floor:
690
Unfinished Sq Ft:
Porch :
153

Dimensions

Width:
70' 5"
Depth:
35' 0"
Ridge Height:
19' 0"

Architectural Styles

Country
Ranch
Farmhouse
Vacation Homes
Contemporary
Transitional
California Style

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Gable/Dormer

Roofing Material

Metal

Roof Pitch

12/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Family Room
Game Room
Main Level Laundry
Vaulted Ceilings
Open Floor Plan

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. if you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
