3-Bedroom, 1885 Sq Ft Arts and Crafts Plan with Covered Front Porch

Front elevation of Arts and Crafts home (ThePlanCollection: House Plan #180-1039)
180-1039: Home Plan Rendering
3-Bedroom, 1885 Sq Ft Arts and Crafts Home Plan - 180-1039 - Main Exterior
180-1039: Home Plan Rendering

About Plan # 180-1039

About Plan # 180-1039

1885 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 78' 10" WIDTH 59' 3" DEPTH 2 GARAGE BAY

This lovely Arts and Crafts style cottage (House Plan #180-1039) has 1885 square feet of living space. The 2 story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRAMING PLANS

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

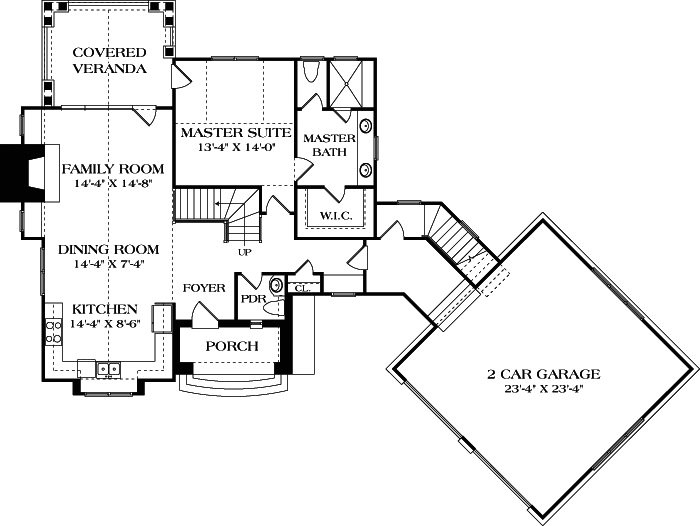

Home Plan: #180-1039 Floor Plan First Story - main level Floor Plan First Story of Arts and Crafts Plan #180-1039

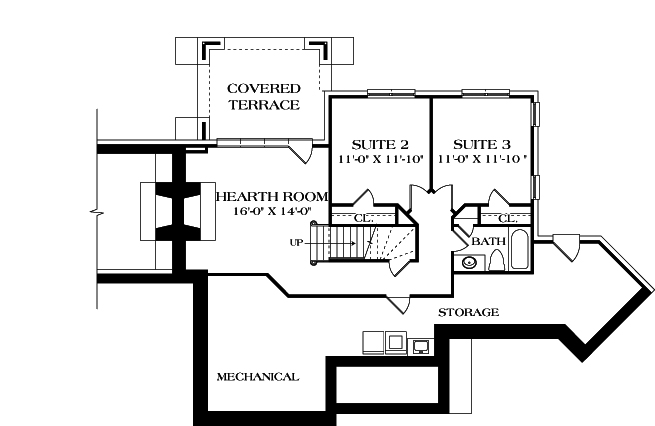

#180-1039 Floor Plan Basement - basement Floor Plan Basement of Arts and Crafts Plan #180-1039

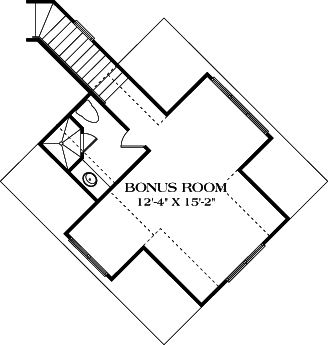

#180-1039 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Arts and Crafts Plan #180-1039
Home Plan: #180-1039 Floor Plan First Story - main level Floor Plan First Story of Arts and Crafts Plan #180-1039
#180-1039 Floor Plan Basement - basement Floor Plan Basement of Arts and Crafts Plan #180-1039
#180-1039 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Arts and Crafts Plan #180-1039
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
