About Plan # 117-1116

About Plan # 117-1116

1764 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 58' 5" WIDTH 61' 11" DEPTH 2 GARAGE BAY
TPC - Home Plan #117-1116

Each plan set includes the following:

  • Detailed floor plans
  • Exterior elevations
  • Cabinet elevations
  • Sections/Details
  • Framing plans
  • Foundation plans
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

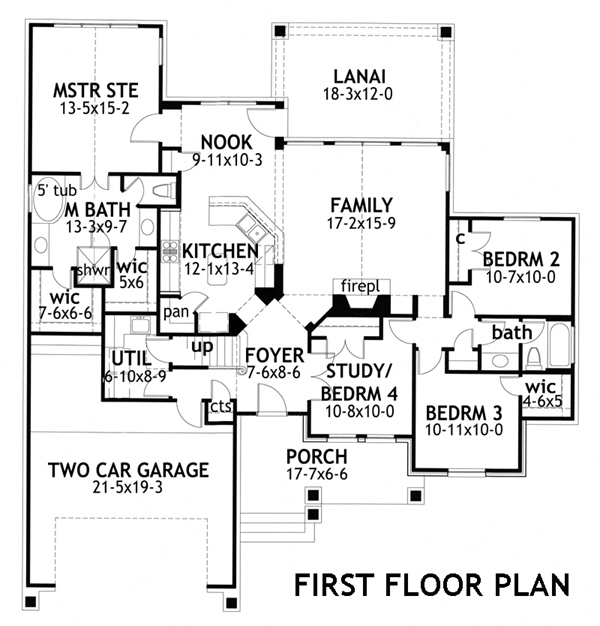

Home Plan: #117-1116 Floor Plan First Story - main level Floor Plan First Story of Cottage Plan #117-1116

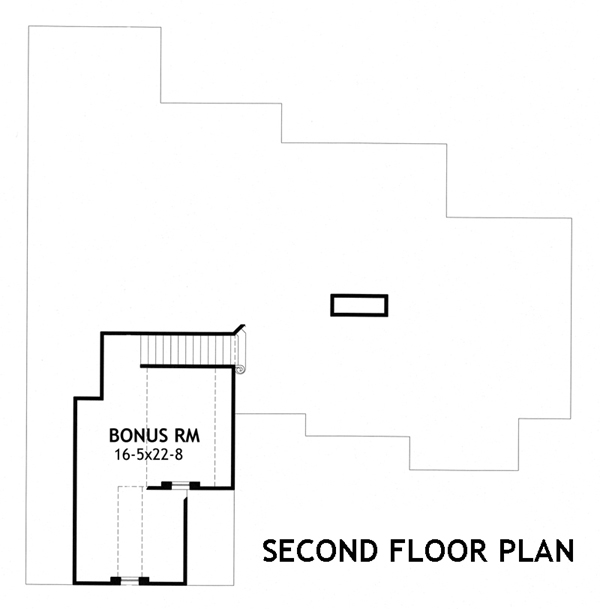

#117-1116 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Cottage Plan #117-1116
Home Plan: #117-1116 Floor Plan First Story - main level Floor Plan First Story of Cottage Plan #117-1116
#117-1116 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Cottage Plan #117-1116
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1116
Floors:
2
Bedrooms:
4
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1764
Main Floor:
1764
Unfinished Sq Ft:
Bonus Room:
350
Garage :
476
Porch :
159

Dimensions

Width:
58' 5"
Depth:
61' 11"
Ridge Height:
30' 0"

Architectural Styles

Craftsman
Florida Style
Texas Style
Cottage

Exterior Wall Material

Brick
Rock/Stone
Shakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
4/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Bonus Room
Main Level Laundry
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
