Cabin-style House - Plan #108-1706 (ThePlanCollection)

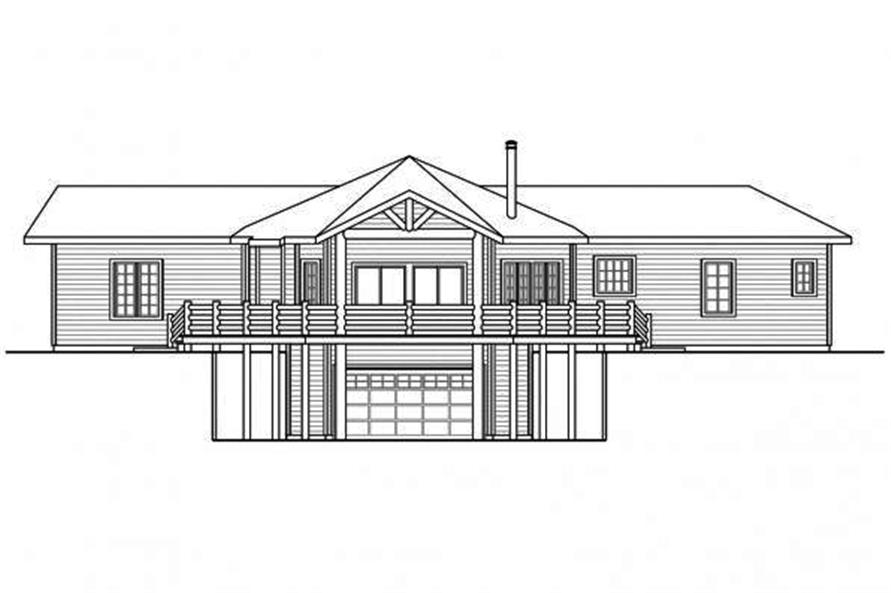

108-1706: Home Plan Rear Elevation

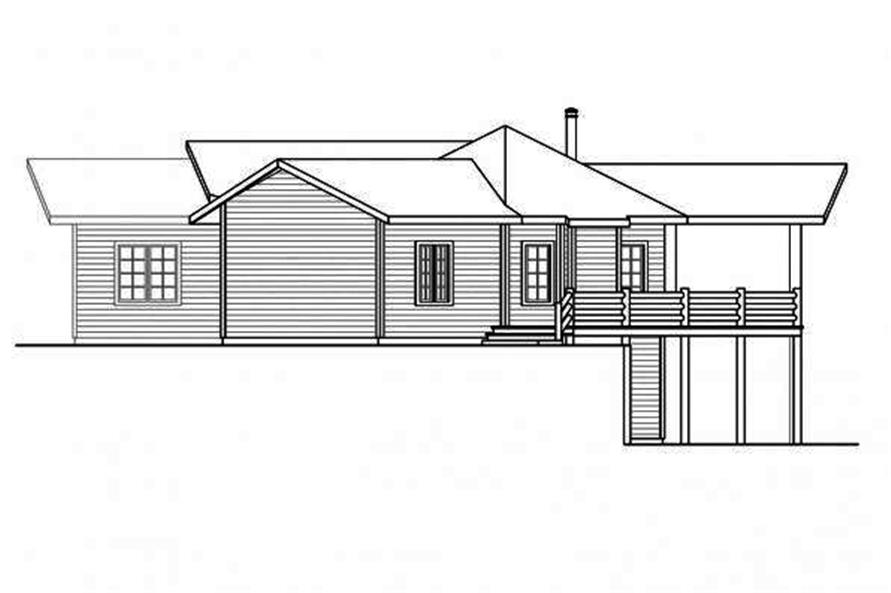

108-1706: Home Plan Left Elevation

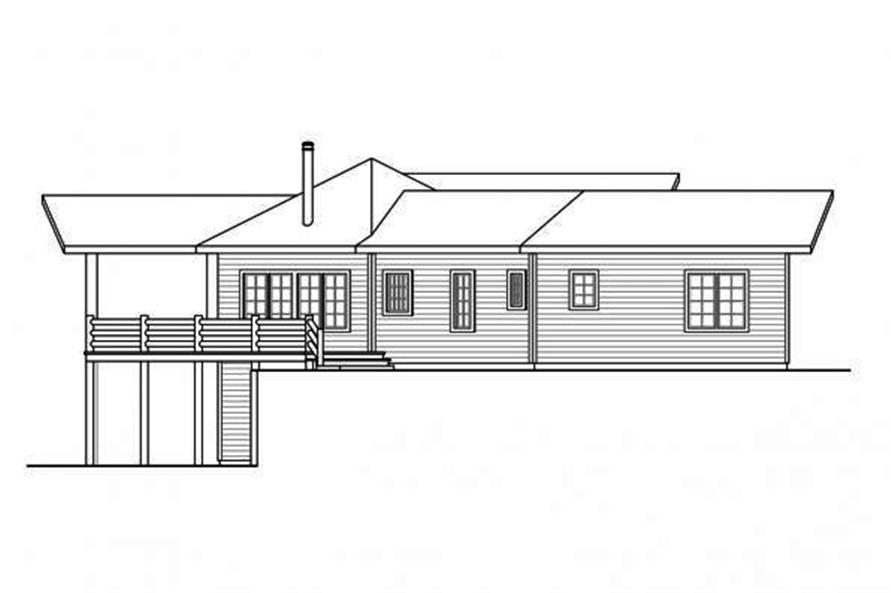

108-1706: Home Plan Right Elevation

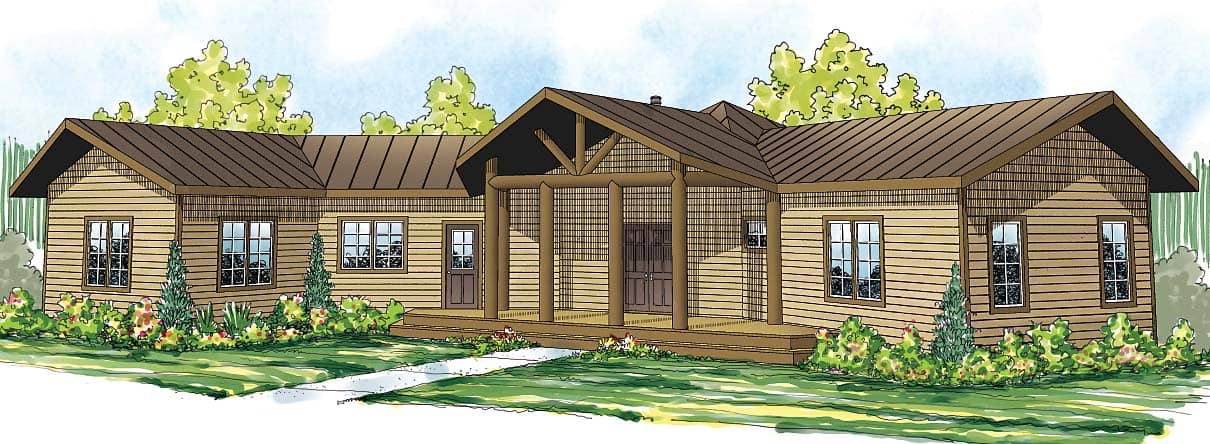

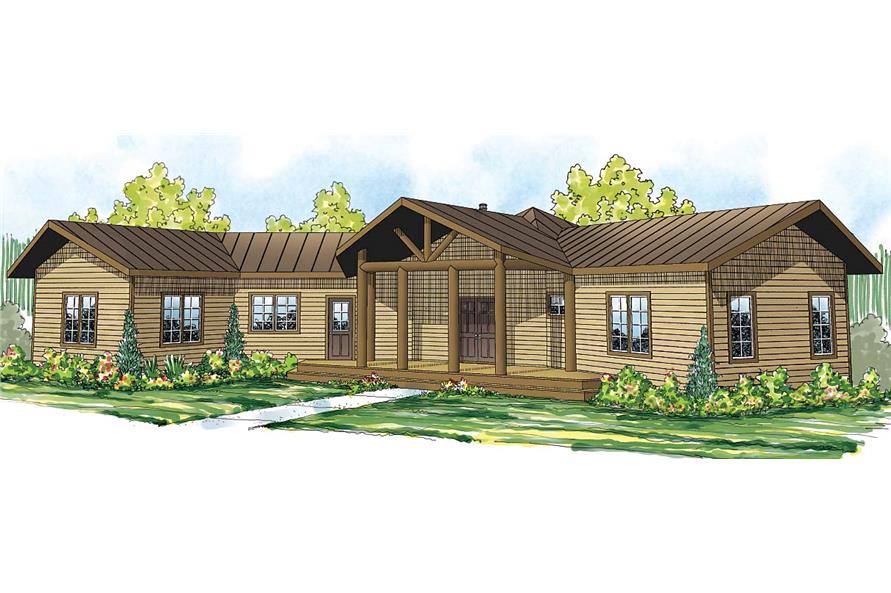

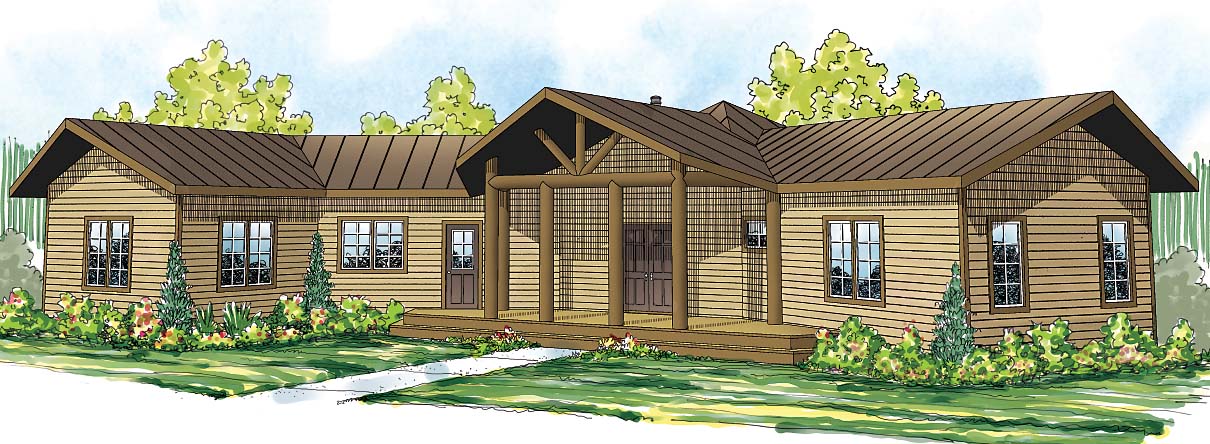

2-Bedroom, 1735 Sq Ft Vacation Homes Home - Plan #108-1706 - Main Exterior
108-1706: Home Plan Rear Elevation
108-1706: Home Plan Left Elevation
108-1706: Home Plan Right Elevation

About Plan # 108-1706

About Plan # 108-1706

1735 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 76' 10" WIDTH 64' 0" DEPTH 2 GARAGE BAY

Perfect as a vaction home or getaway retreat, this attractive cabin style ranch home (Plan #108-1706) has 1735 square feet of living space. The 1 story floor plan includes 2 bedrooms and 2 full bathrooms, plus a rear-entry lower-level 2-car garage.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #108-1706 Floor Plan First Story - main level Floor Plan First Story of Vacation Homes Plan #108-1706
#108-1706 Floor Plan Basement - lower level Floor Plan Basement of Vacation Homes Plan #108-1706
Home Plan: #108-1706 Floor Plan First Story - main level Floor Plan First Story of Vacation Homes Plan #108-1706
#108-1706 Floor Plan Basement - lower level Floor Plan Basement of Vacation Homes Plan #108-1706
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1706
Floors:
1
Bedrooms:
2
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1735
Main Floor:
1735
Unfinished Sq Ft:
Garage :
581

Dimensions

Width:
76' 10"
Depth:
64' 0"
Ridge Height:
19' 5"

Architectural Styles

Country
Ranch
Vacation Homes
Cabin

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roofing Material

Metal

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Fireplace
Family Room
Main Level Laundry
Den
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Under Main Floor Entry
Rear Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Down Site
View Lot

Kitchen Features

Kitchen Island
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
