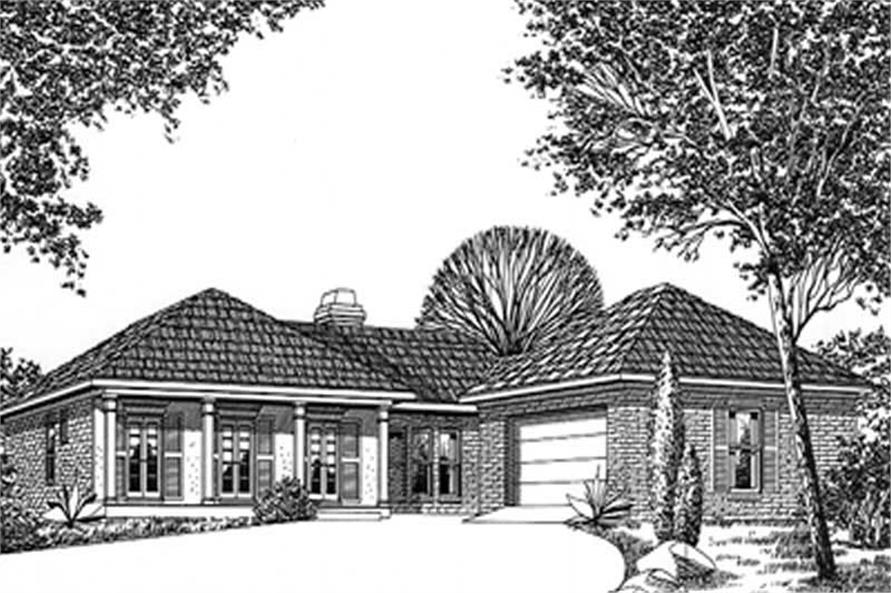

Side Elevation

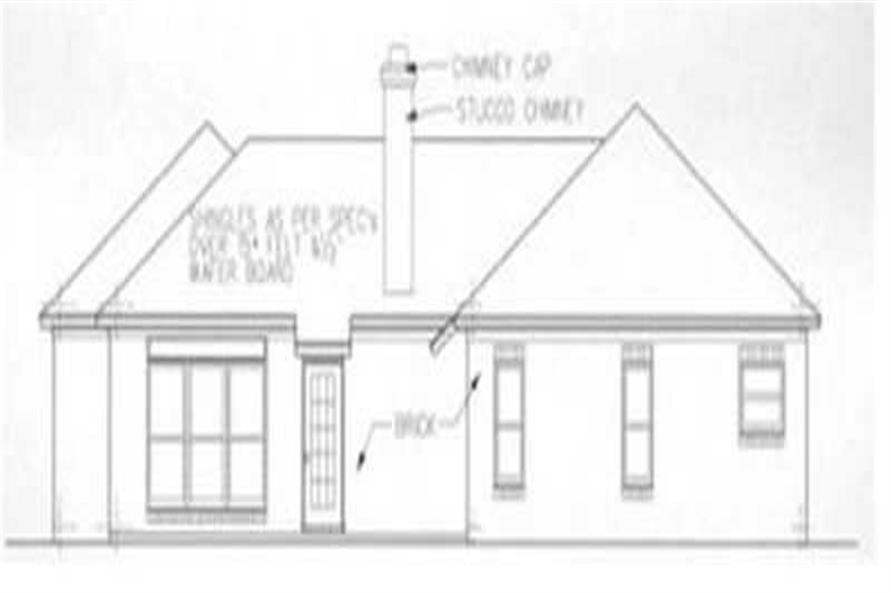

Rear Elevation
3-Bedroom, 1692 Sq Ft Ranch Home Plan - 113-1009 - Main Exterior

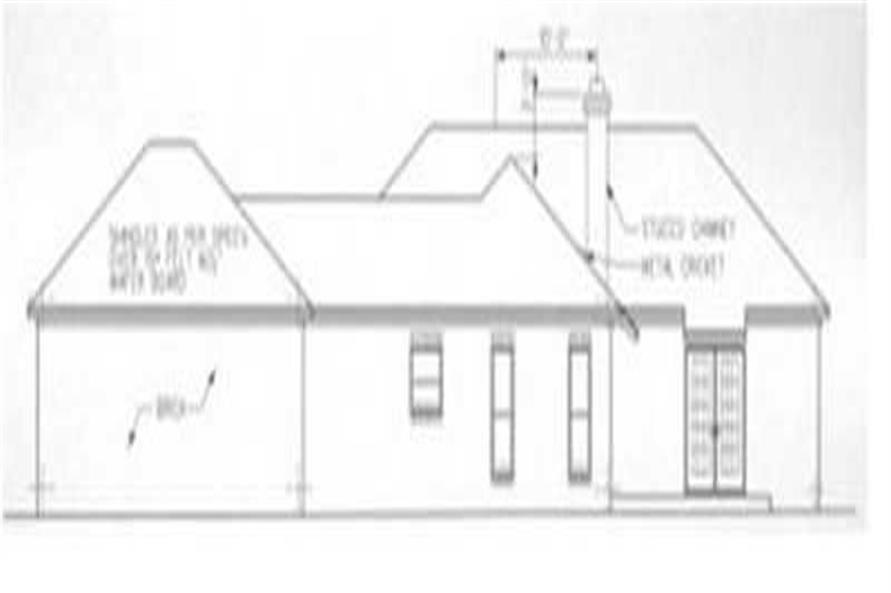

Side Elevation
Rear Elevation

About Plan # 113-1009

About Plan # 113-1009

1692 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 54' 0" WIDTH 77' 0" DEPTH 2 GARAGE BAY
This formal single level home has three bedrooms, two baths, two car garage with stairway up to utility area. Front country-style porch leads in to spacious living room with fireplace next to eating area and kitchen. Large rear patio has doorway into master bedroom which has walk-in closet and large bath.

Each plan set includes the following:

  • Information Cover Sheet
  • Foundation Plan
  • Detailed Floor Plans
  • Window & Door Schedules
  • Electrical Layout
  • Exterior Elevations
  • Building Sections
  • Complete Construction Details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

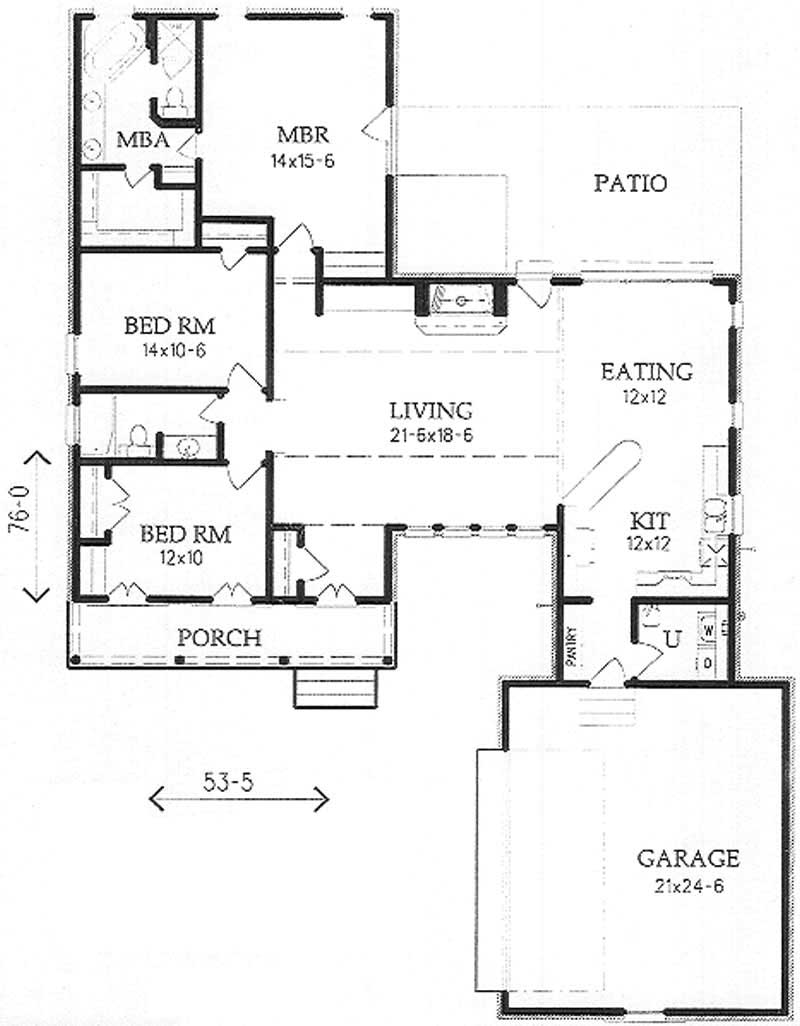

Home Plan: #113-1009 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #113-1009
Home Plan: #113-1009 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #113-1009
