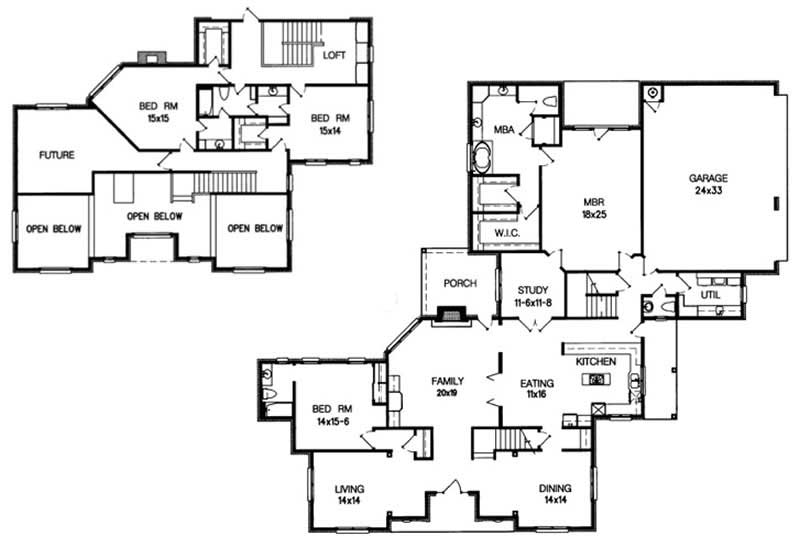

These great home plans have four bedrooms, three bathrooms, three car garage, utility, spacious main level master suite, rear porch, study, family room with fireplace, eating area, kitchen with island and bar, formal dining room, living room, main level bedroom. Upper level includes loft, bedrooms, future, and areas open to lower
Each plan set includes the following:
- Information Cover Sheet
- Foundation Plan
- Detailed Floor Plans
- Window & Door Schedules
- Electrical Layout

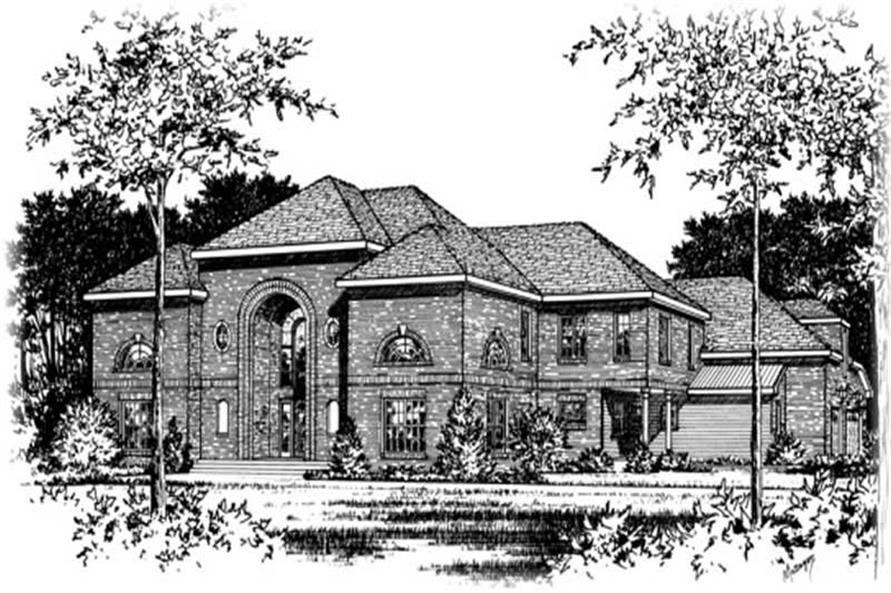

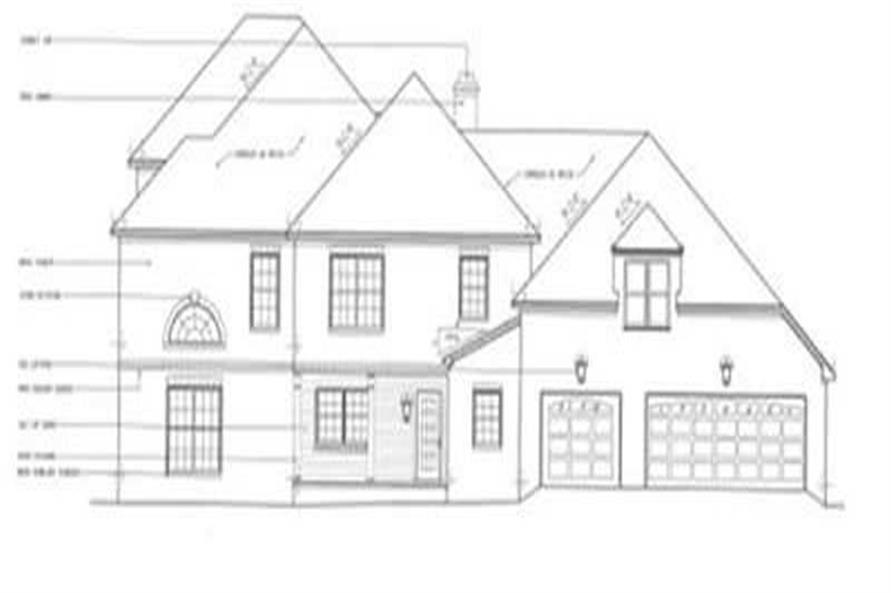

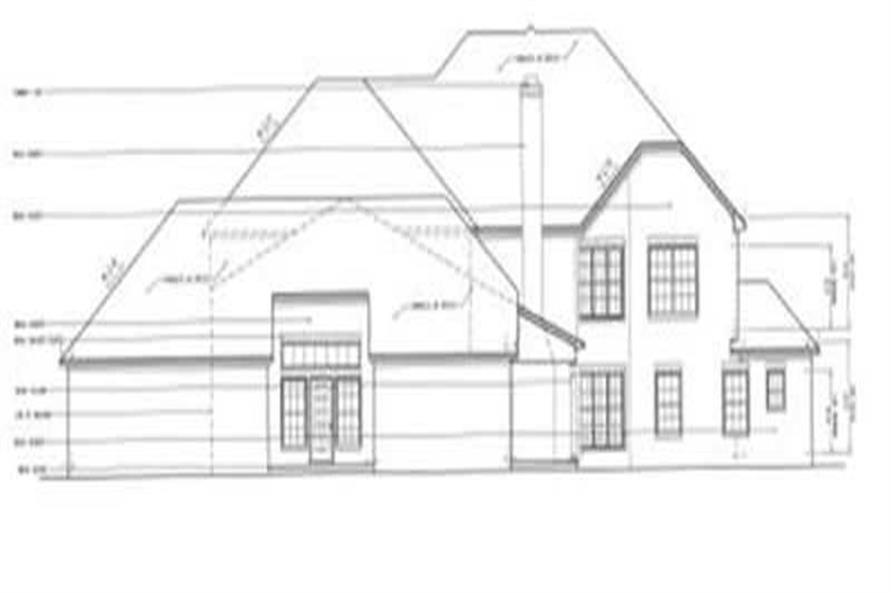

- Exterior Elevations
- Building Sections
- Complete Construction Details
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
