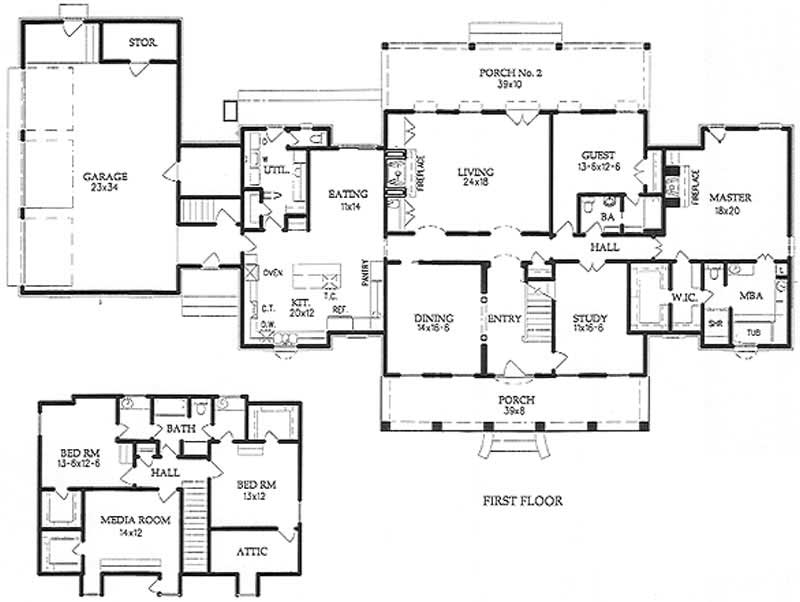

This home plan has four bedrooms, 3.5 baths, three-car garage with storage space, country-style front porch, dining room, study, staircase to upper level including bedrooms, attic, and media room, master suite on main level, rear porch, guest room, living room with fireplace, large utility, spacious kitchen with eating area.
Each plan set includes the following:
- Information Cover Sheet
- Foundation Plan
- Detailed Floor Plans
- Window & Door Schedules
- Electrical Layout

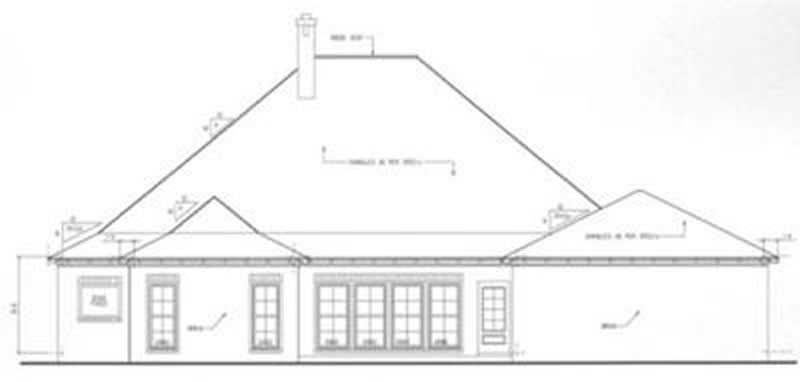

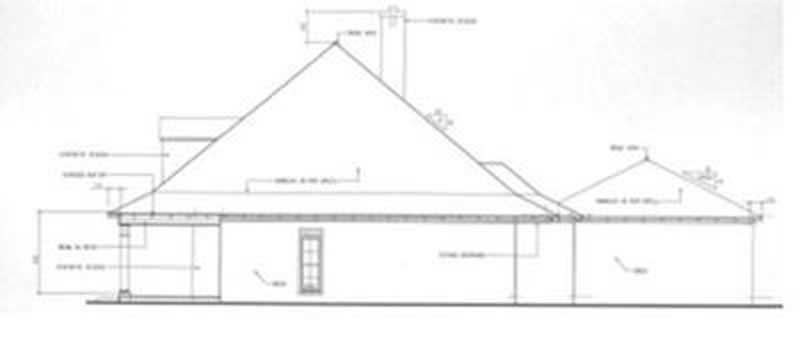

- Exterior Elevations
- Building Sections
- Complete Construction Details
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
