3-Bedroom, 1612 Sq Ft Ranch Plan with Kitchen Island

About House Plan #146-1562

1612

Sq Ft

3

Bedrooms

2

Baths

0

Half Baths

3

Cars

1

Stories

65' 0'

Width

55

Depth

Starting at$980.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

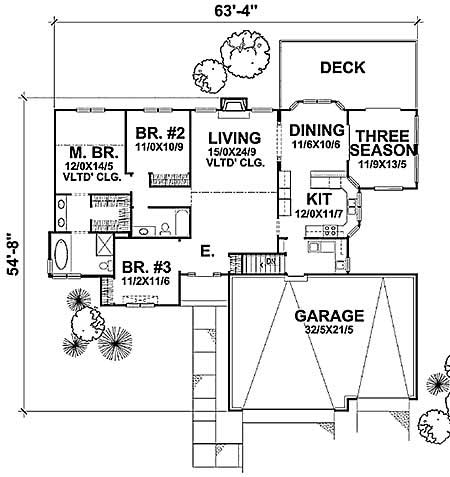

Floor Plan First Story

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

House Plan Description

The cross section of this ranch sticks out both figuratively and literally. The vaulted living room also has a fireplace and will almost keep you from going anywhere else in this home. The dining room has a bayed sitting area and the U-shaped kitchen will barely be able to pull you away. The master bedroom raises a vaulted ceilings and leads to the master bathroom.

Home Details

Summary

Plan #:146-1562

Starting at:$980.00

Floors:1

Bedrooms:3

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:1612 Sq. Ft.

First Floor:1612 Sq. Ft.

Unheated Area:

Basement:1445 Sq. Ft.

Dimensions

Ridge Height:22'0"' 0''

Architectural Styles

Ranch

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roof Pitch

8/1210/12

Special Feature

FireplaceDining RoomVaulted Ceilings

Garage Type

Front Entry

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Porches and Exterior Features

Sundeck

Master Suite Features

Main Floor MasterMaster BathroomWalk In Closet

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Foundation plan

Exterior elevations

Floor plans

Cross-sections

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
