3-Bedroom, 1610 Sq Ft Ranch Plan with Walk-in Pantry

Main image for house plan # 18476

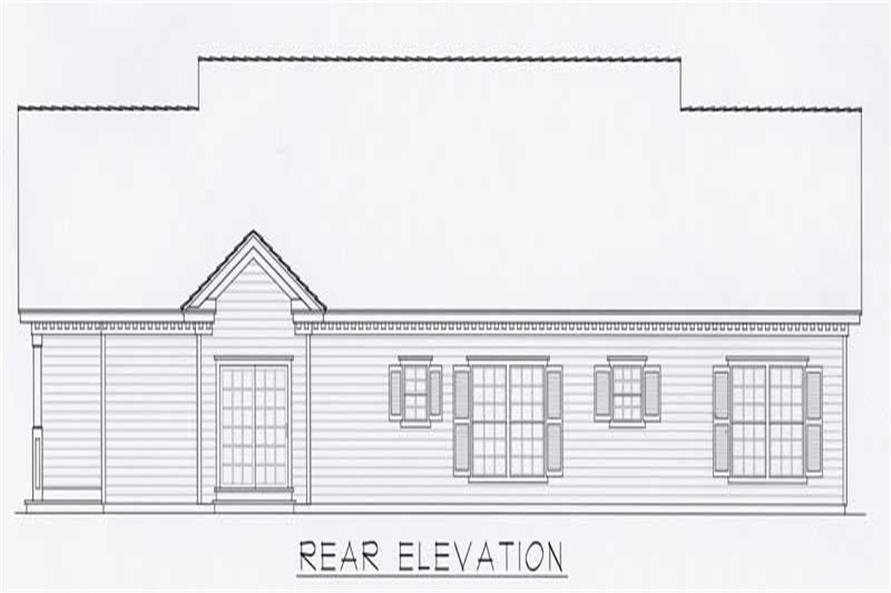

House Plan RDI-1610R1-B Rear Elevation
3-Bedroom, 1610 Sq Ft Ranch House Plan - 162-1033 - Front Exterior
House Plan RDI-1610R1-B Rear Elevation

About Plan # 162-1033

About Plan # 162-1033

1610 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 72' 0" WIDTH 40' 6" DEPTH 2 GARAGE BAY
Plan RDI-1610R1-B features a traditional floor plan with generous rooms. Highlights include 9 foot ceilings, built-ins, a fireplace, and covered porches. The master suite has a walk-in closet and private bath. The unfinished basement doubles the size of the home and provides opportunities for future expansion.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF FRAMING PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes cabinet elevations, stair detail, wall section and notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

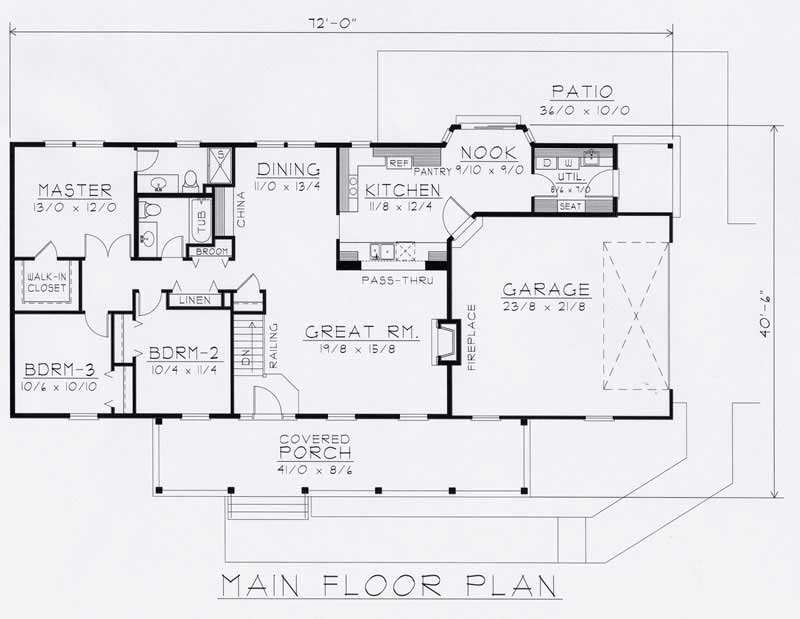

Home Plan: #162-1033 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #162-1033
