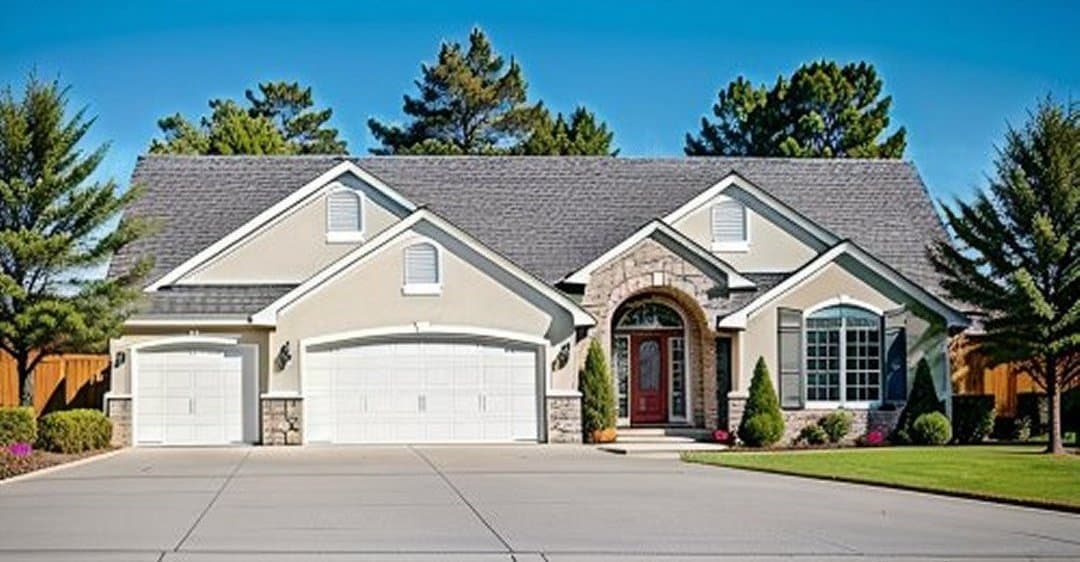

3-Bedroom, 1451 Sq Ft Ranch Home Plan - 103-1036 - Main Exterior

About Plan # 103-1036

About Plan # 103-1036

1451 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 54' 0" WIDTH 49' 0" DEPTH 3 GARAGE BAY

This home has an optional finish basement with rec room, two beds, and one full bath. There are vaulted ceilings in the living, dining, kitchen, master bed and bed #2. Other features include plant shelves, 10' ceiling foyer, hearth room, bay window, 3-way fireplace, Jacuzzi tub, walk-in closets, walk-in pantry, raised bar, covered porch and deck.

Each plan set includes the following:

  • Front, Side & Rear Elevations
  • Floor Plan
  • Foundation Plan
  • Roof Plan (Birdseye view)
  • Electrical Layout (location of outlets, switches - it does not have wiring schematics)
  • Cabinet Details
  • Wall Section
  • Stair Details
  • Building Cross Section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

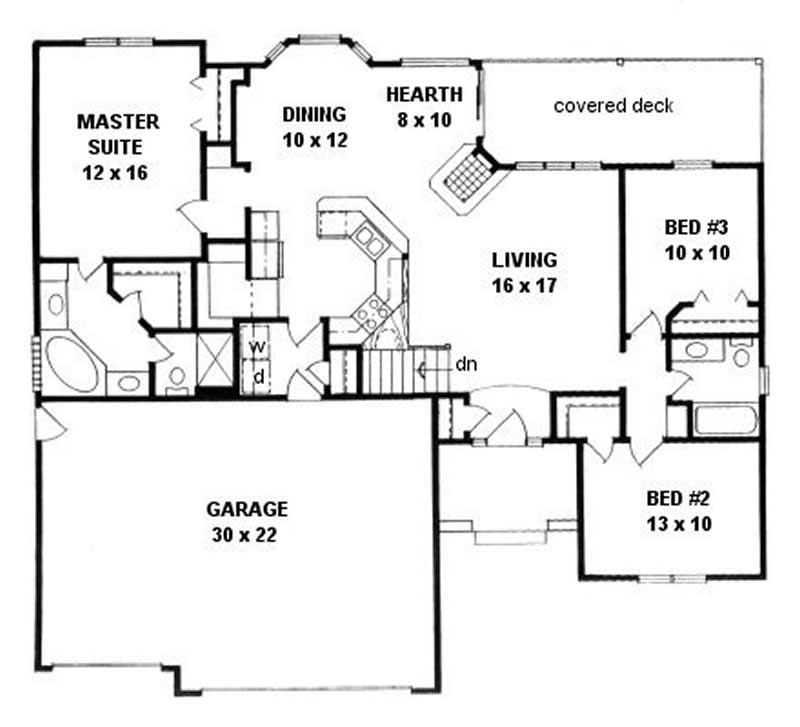

Home Plan: #103-1036 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #103-1036
Home Plan: #103-1036 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #103-1036
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 103-1036
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1451
Main Floor:
1451
Unfinished Sq Ft:
Lower Floor:
1312
Garage :
660

Dimensions

Width:
54' 0"
Depth:
49' 0"
Ridge Height:
18' 0"

Architectural Styles

Ranch
Traditional
Small House Plans

Exterior Wall Material

Brick
Stucco
Rock/Stone

Roofing Type

Gable

Roof Pitch

6/12
8/12

Ceiling Height

10 Foot Ceiling
8 Foot Ceiling

Special Feature

Fireplace

Garage Type

Attached Garage

Kitchen Features

Walk-in Pantry

Additional Notes from Designer

PLEASE NOTE: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions!
