About Plan # 170-2724

About Plan # 170-2724

1437 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 40' 0" WIDTH 48' 0" DEPTH 0 GARAGE BAY
This inviting ranch style home with a small footprint has 1437 square feet of living space. The one story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • Foundation
  • Floor Plans
  • Framing
  • Roof
  • Cabinet
  • Stair Detail
  • Elevation
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

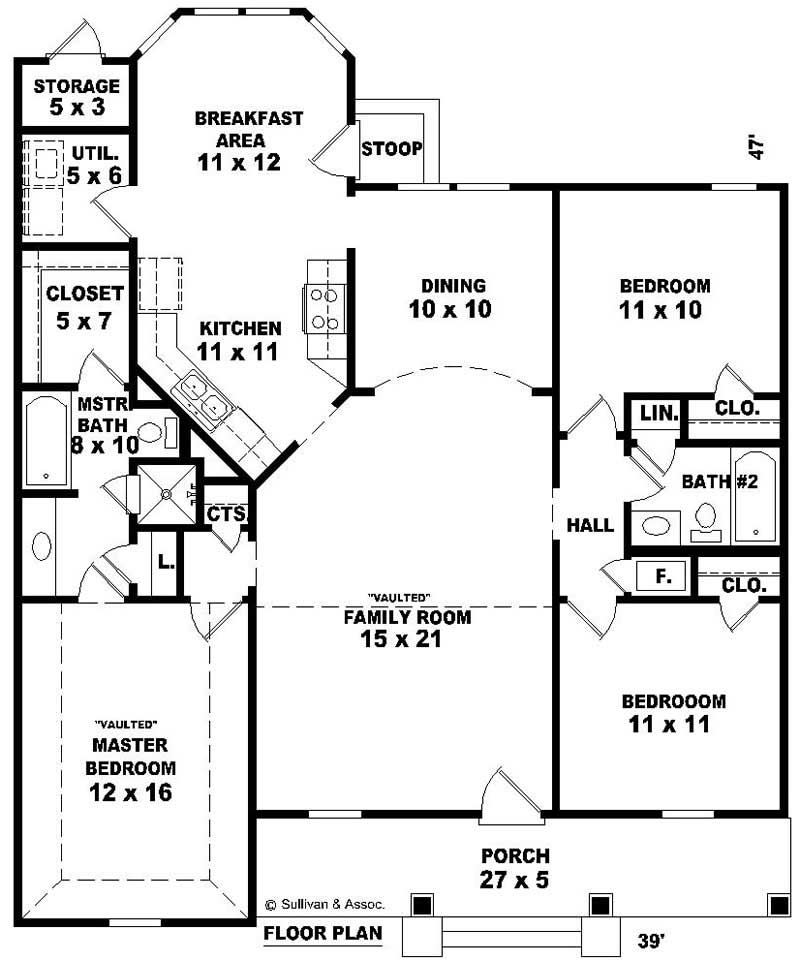

Home Plan: #170-2724 Floor Plan First Story Floor Plan First Story of Ranch Plan #170-2724
