3-Bedroom, 1370 Sq Ft Ranch Plan with Sundeck

Main image for house plan # 13413

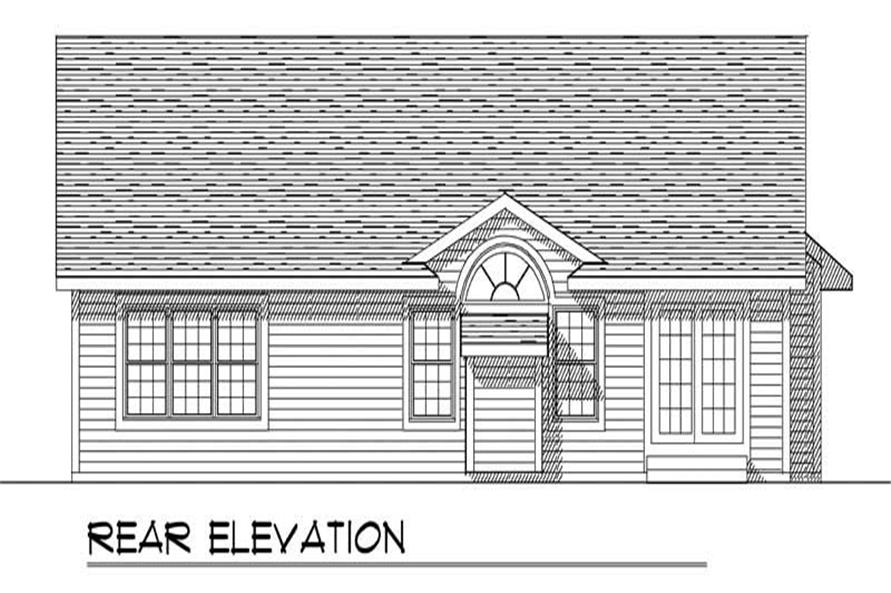

REAR ELEVATION
3-Bedroom, 1370 Sq Ft Ranch Home Plan - 101-1149 - Main Exterior
REAR ELEVATION

About Plan # 101-1149

About Plan # 101-1149

1370 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 49' 0" WIDTH 49' 0" DEPTH 2 GARAGE BAY
This attractive three-bedroom ranch home is waiting for your family. The entry opens into the living room, which has an elegant cathedral ceiling and a fireplace perfect for cozy gatherings. The dining room has sliding glass doors that lead to the backyard. The kitchen is ready for your family's cook with plenty of cupboard space. A main floor laundry is located just off the eat-in kitchen. A two-stall garage has extra space for storage or a workbench. The sleeping quarters are on the opposite side of the plan. The master suite is located at the rear of the home. It has a decorative tray ceiling with a private bath, walk-in closet, and a great view of the backyard. Two more bedrooms have ample closet space and share a full bath. You will find plenty of room on the lower level for expansion or recreation.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

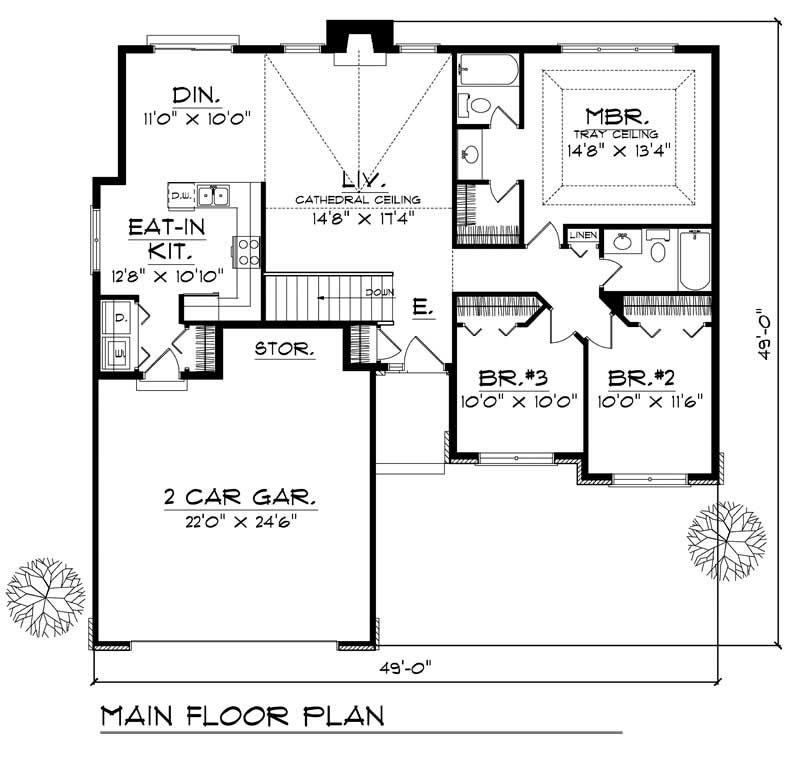

Home Plan: #101-1149 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1149
