3-Bedroom, 1343 Sq Ft Cottage Plan with Split Master Bedroom

Cottage style home plan (ThePlanCollection: House Plan #160-1033)
3-Bedroom, 1343 Sq Ft Cottage Home Plan - 160-1033 - Main Exterior

About Plan # 160-1033

About Plan # 160-1033

1343 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 36' 0" WIDTH 46' 6" DEPTH 0 GARAGE BAY

This lovely Cottage style home plan with Vacation Homes influences (House Plan #160-1033) has 1343 square feet of living space. The 2 story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

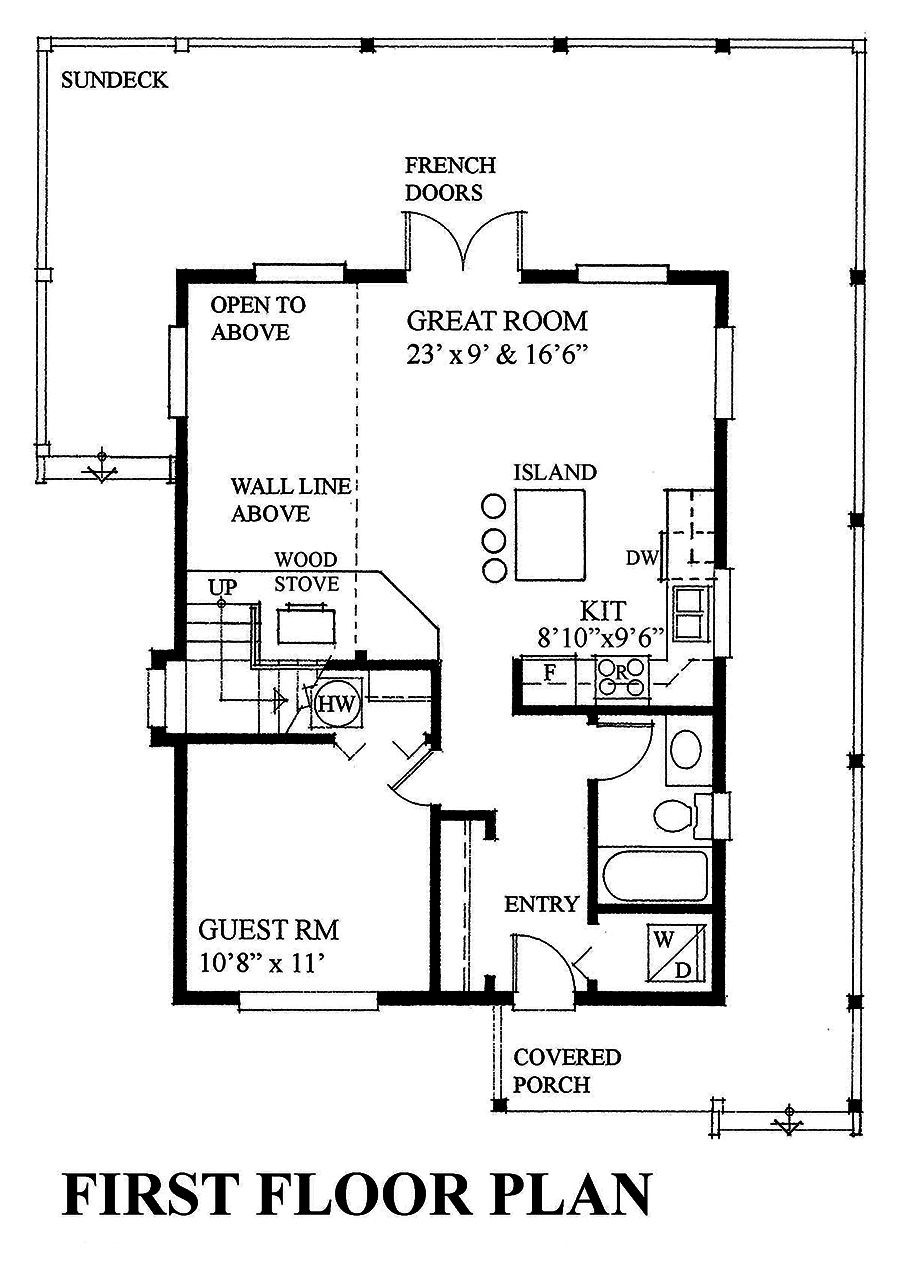

Home Plan: #160-1033 Floor Plan First Story - main level Floor Plan First Story of Cottage Plan #160-1033

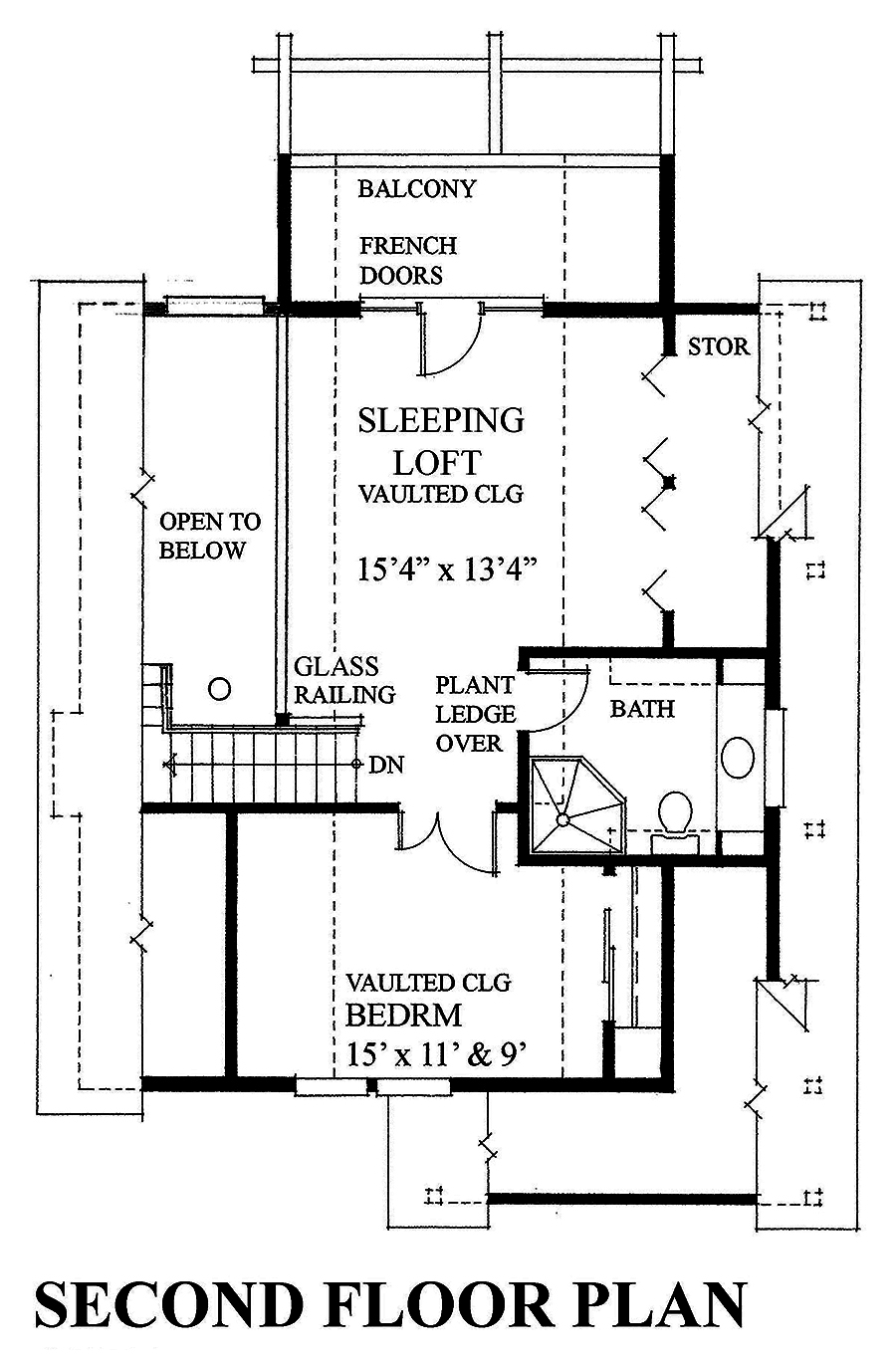

#160-1033 Floor Plan Second Story - upper level Floor Plan Second Story of Cottage Plan #160-1033
Home Plan: #160-1033 Floor Plan First Story - main level Floor Plan First Story of Cottage Plan #160-1033
#160-1033 Floor Plan Second Story - upper level Floor Plan Second Story of Cottage Plan #160-1033
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1033
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1343
Main Floor:
768
Upper Floor:
575
Unfinished Sq Ft:
Porch :
768

Dimensions

Width:
36' 0"
Depth:
46' 6"
Ridge Height:
25' 0"

Architectural Styles

Vacation Homes
Traditional
Cottage

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Metal

Roof Pitch

12/12

Ceiling Height

10 Foot Ceiling
8 Foot Ceiling

Special Feature

Guest Room
Family Room
Main Level Laundry
Loft
Storage
Vaulted Ceilings
Balcony
Open Floor Plan

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Wrap Around Porch
Sundeck

Master Suite Features

Walk In Closet
Private Deck
Second Floor Master
Split Master Bedroom

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
