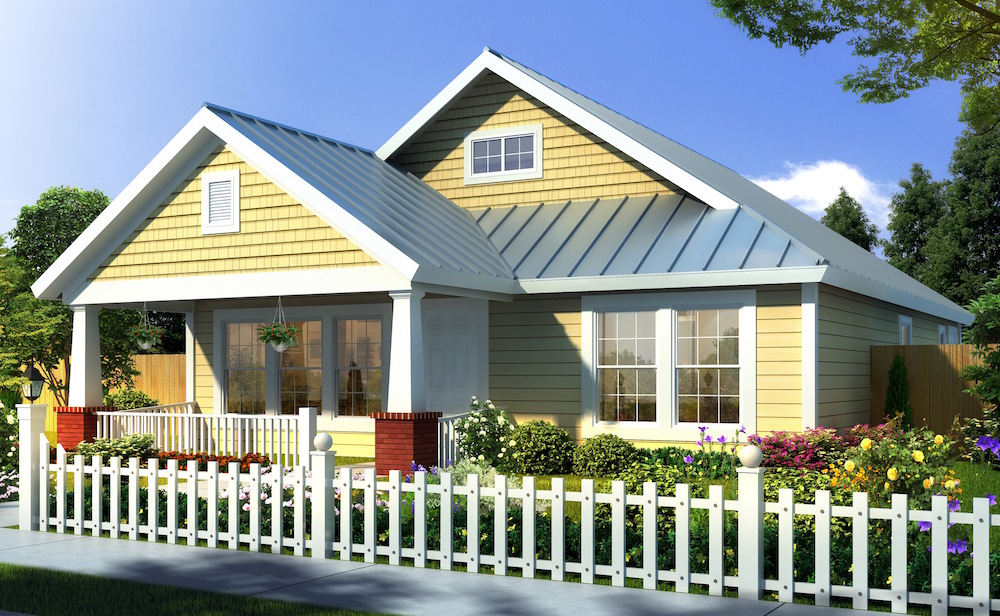

3-Bedroom, 1260 Sq Ft Country Plan with Outside-Access Storage

Each plan set includes the following:

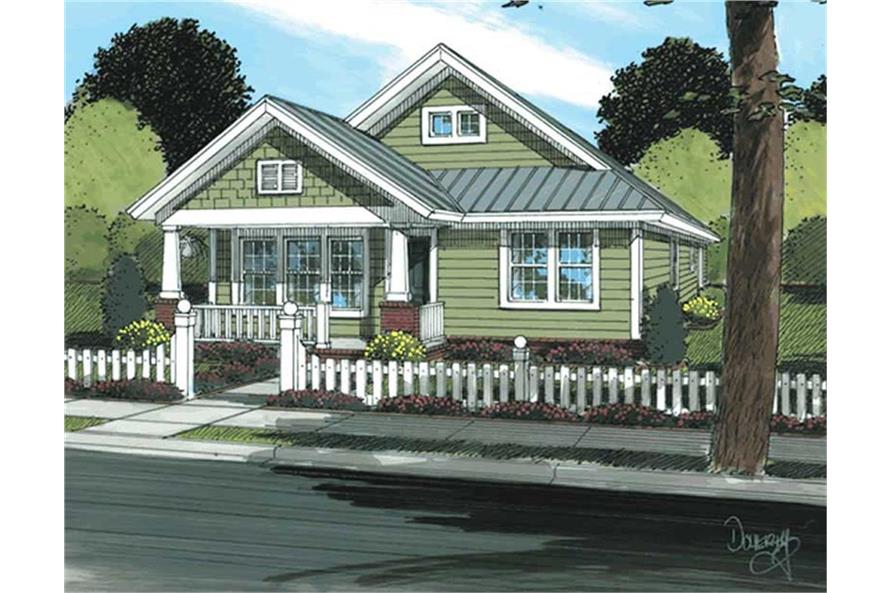

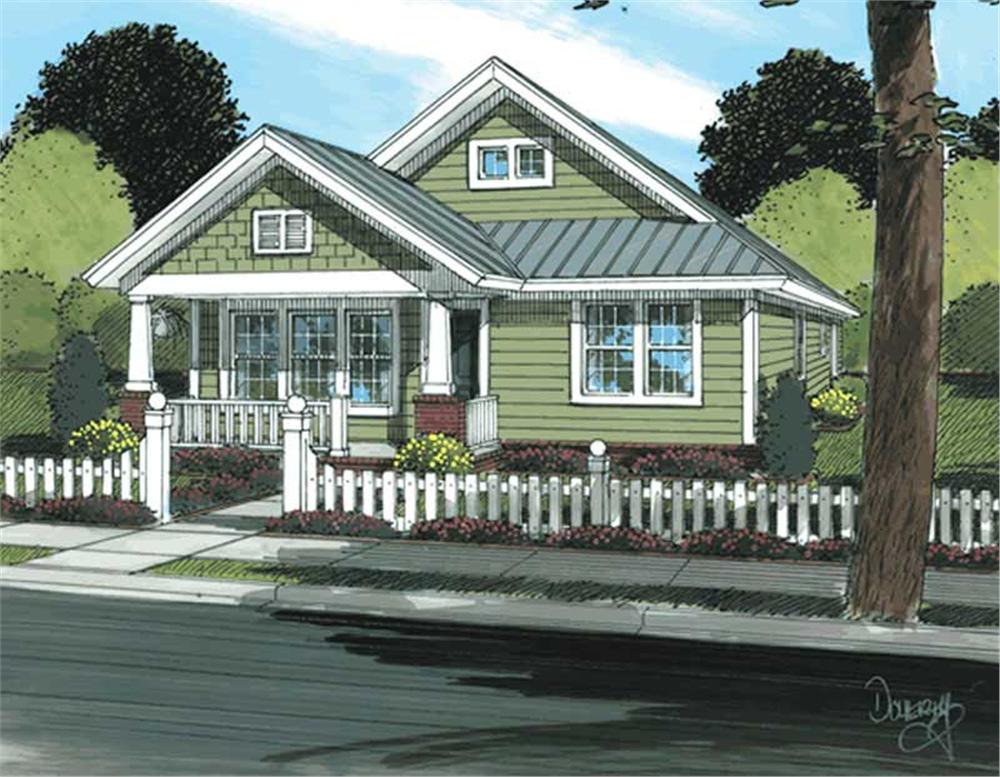

• Front elevation and construction notes

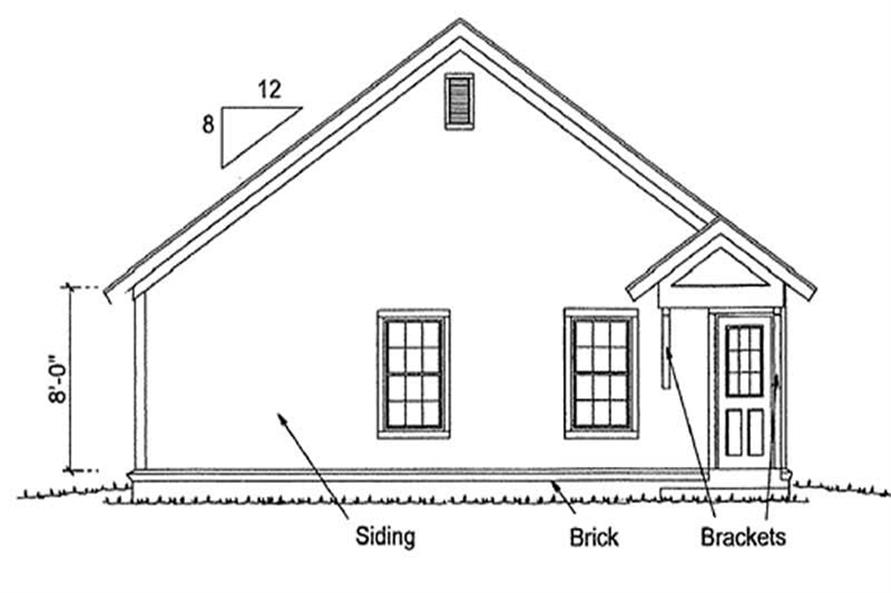

• Rear and side elevations

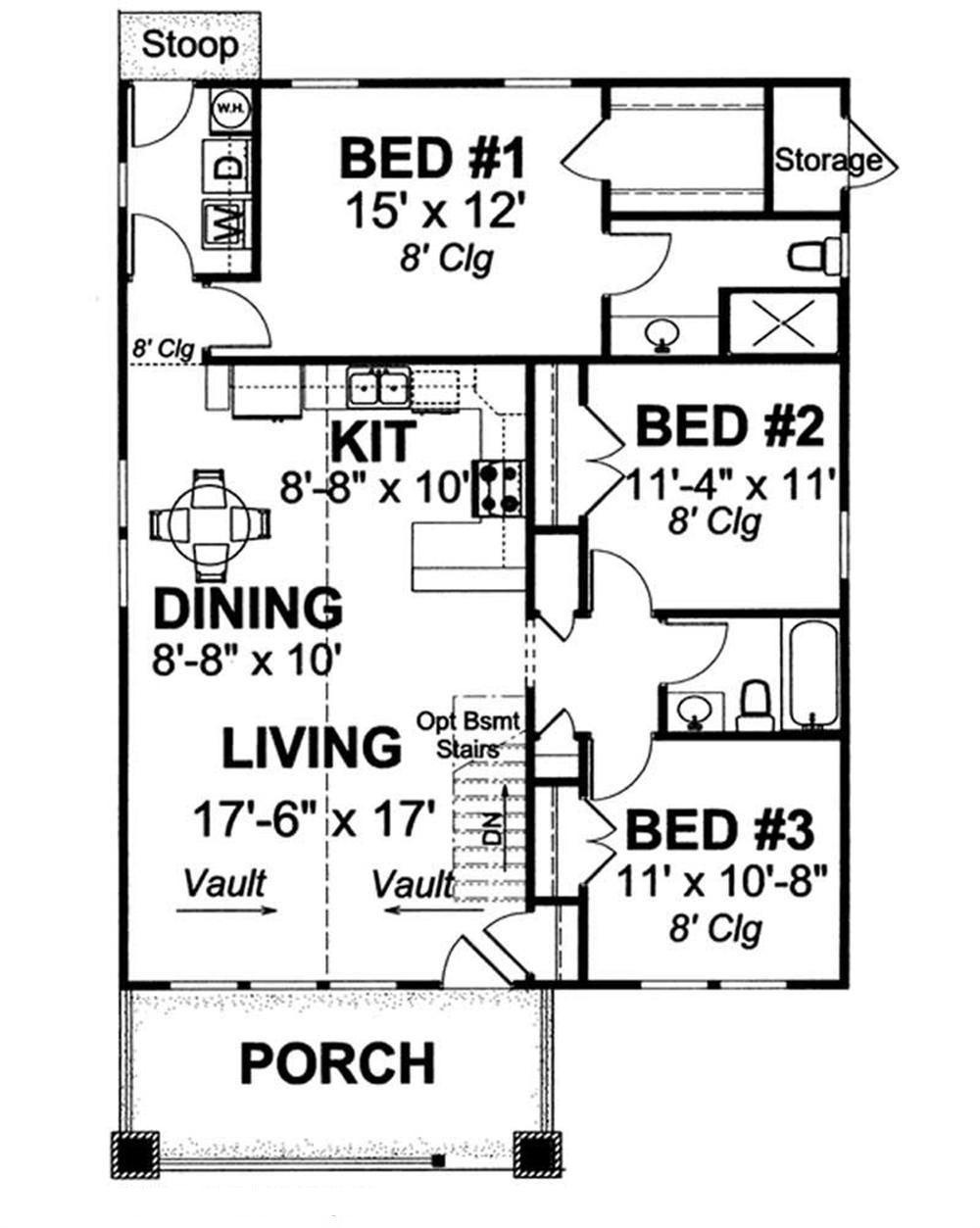

• Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
• Second-floor plan (if applicable) with the same info as shown on first-floor plan
• Typical wall section
• Typical foundation details
• Roof plan showing roof pitches, ridges & valleys.
• Foundation plan

These items are NOT included:

• Architectural or Engineering Stamp - handled locally if required.
• Site Plan - handled locally when required.
• Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
• Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
• Energy calculations - handled locally when required.
