3-Bedroom, 1186 Sq Ft Ranch Plan with Master Bathroom
| 1186 SQUARE FEET | 3 BEDROOMS | 1 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 66' 4" WIDTH | 32' 0" DEPTH | 2 GARAGE BAY |
You will be amazed at how much comfort you will find in only 1,186 square feet! This lovely American traditional ranch home begins with a porch flanked by graceful columns. The entry opens to the great room, which offers uninterrupted flow to the serving-bar kitchen and bright dining room. A nearby laundry room with extra storage serves as a makeshift mudroom. The sleeping quarters include two secondary bedrooms and a master bedroom, which all share a convenient hall bath. A two-car garage with plenty of extra storage completes the plan.
Each plan set includes the following:

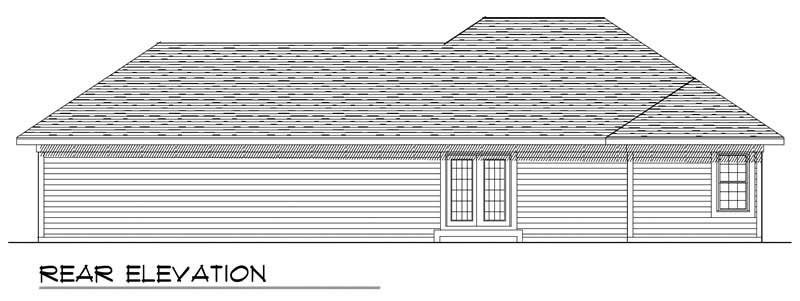

- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

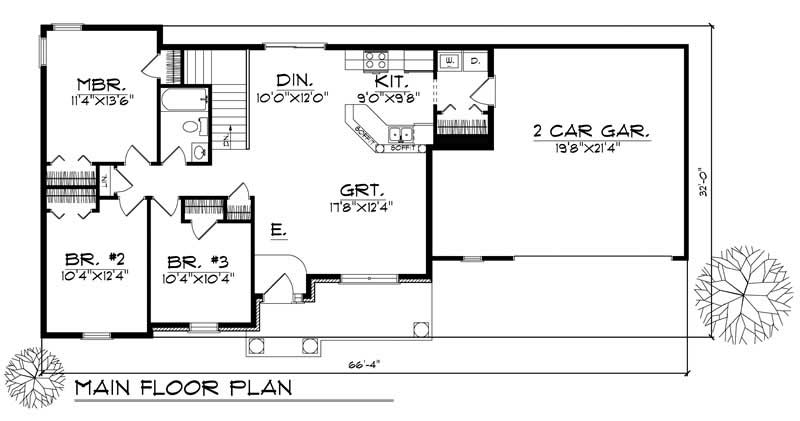

Home Plan: #101-1527 Floor Plan First Story
-
