3-Car, 1 Bedroom, Traditional

Front elevation of Traditional home (ThePlanCollection: House Plan #100-1289)
1-Bedroom, 1001 Sq Ft Traditional Home Plan - 100-1289 - Main Exterior

About Plan # 100-1289

About Plan # 100-1289

1001 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 39' 0" WIDTH 33' 0" DEPTH 3 GARAGE BAY

This lovely Traditional garage with Garage w/Apartments influences (Garage House Plan #100-1289) has a 3-car garage and 1001 square feet of living space . The 2 story floor plan includes 1 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Shows the placement of walls and the dimensions for the rooms, doors, windows, stairways, etc. for each floor.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Shows the location of outlets, fixtures, and switches. Shown as a separate sheet to make the floor plans more legible.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the exterior materials, details, and measurements.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. The cross sections include a typical wall section and a typical stair section. Cabinets are also shown.
  • COVER SHEET: Show the front elevation and typical notes and requirements.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

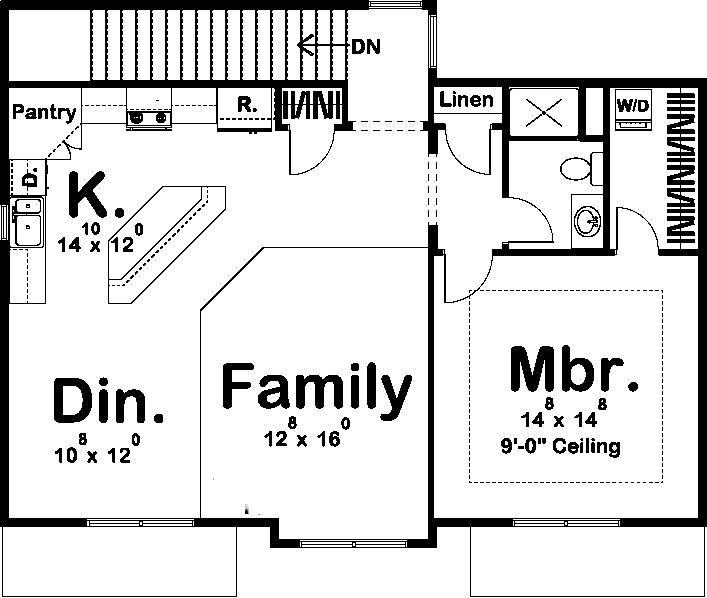

Home Plan: #100-1289 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #100-1289

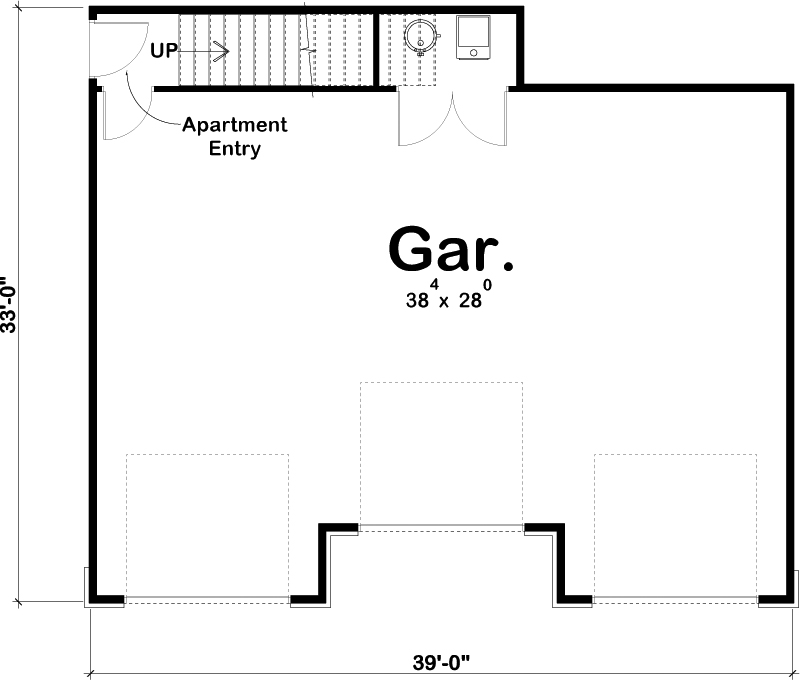

#100-1289 Floor Plan Garage - garage Floor Plan Garage of Traditional Plan #100-1289
