Contemporary, 2-Car, 1 Bedroom Garage Apartment Plan

Contemporary Garage w/Apartment (ThePlanCollection: Plan #100-1355)
100-1355: Home Plan Rendering-Right View
100-1355: Home Plan Rendering-Rear View

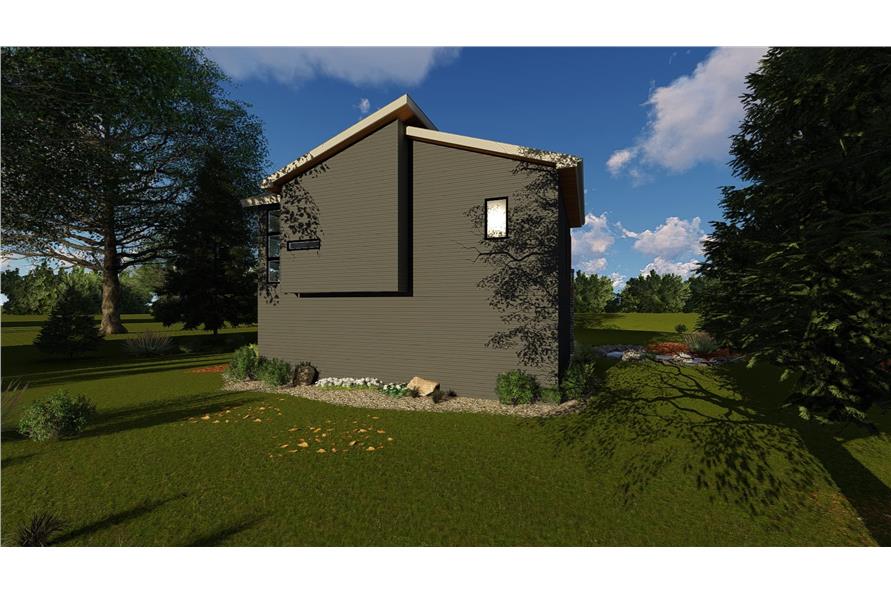

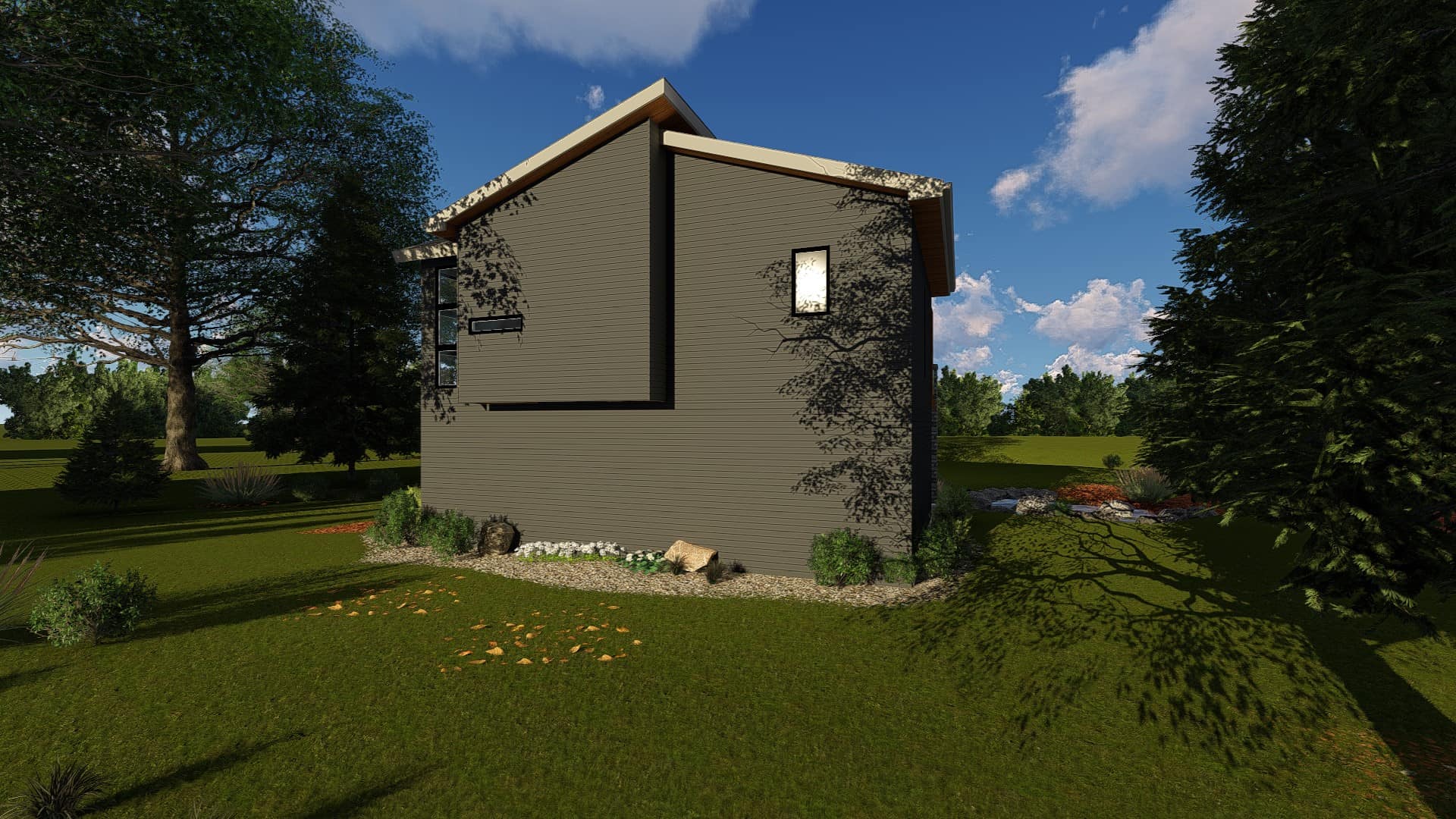

100-1355: Home Plan Rendering-Left View

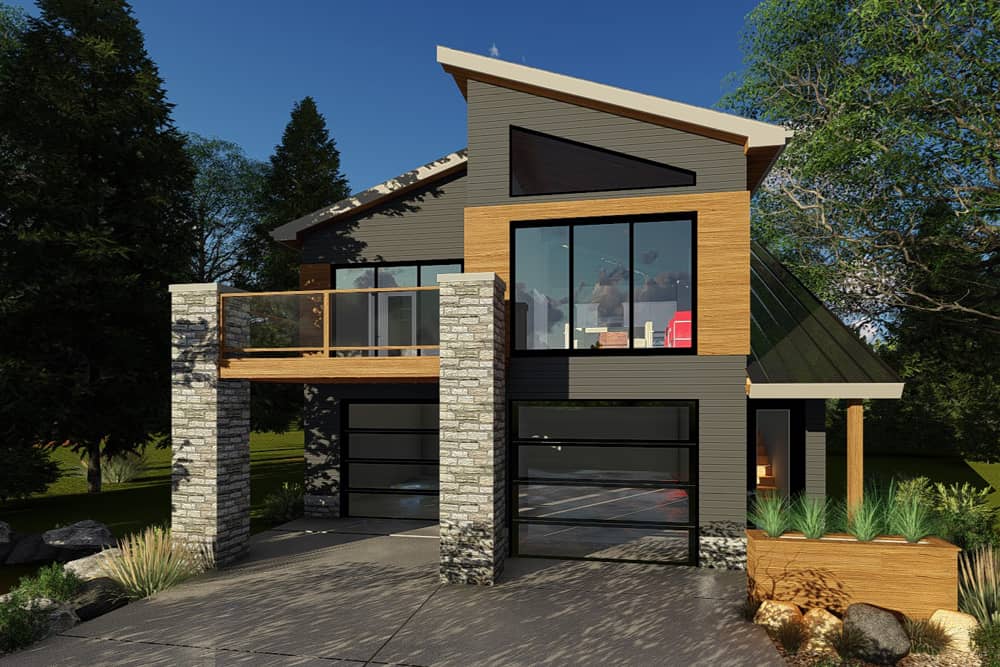

1-Bedroom, 758 Sq Ft Garage w/Apartments House - Plan #100-1355 - Front Exterior
100-1355: Home Plan Rendering-Right View
100-1355: Home Plan Rendering-Rear View
100-1355: Home Plan Rendering-Left View

About Plan # 100-1355

About Plan # 100-1355

758 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 31' 8" WIDTH 32' 0" DEPTH 2 GARAGE BAY

This wonderfully comfy contemporary garage apartment plan can have many uses over the years. The many uses include a guest house, in-law or at-home adult child suite, or home business office. The stone detail and wood siding give the home wonderful curb appeal to boast about. The two car garage is below – ideal for vehicles, toys, or even just storage. The upper lever enjoys top to bottom windows and 9’ ceilings that enrich the living area with natural light giving it a cozy and spacious feel. The kitchen offers a pantry, island and eating bar. The dining area is open to the family room which leads to the deck and floods the room with natural light. The bedroom offers a walk-in closet and access to the deck. The balcony deck is great for entertaining and enjoying the outdoors close to home. The plan has 758 living sq ft, 1 bedroom and 1 bath. The bold, modern styles will certainly make a lasting impression.

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

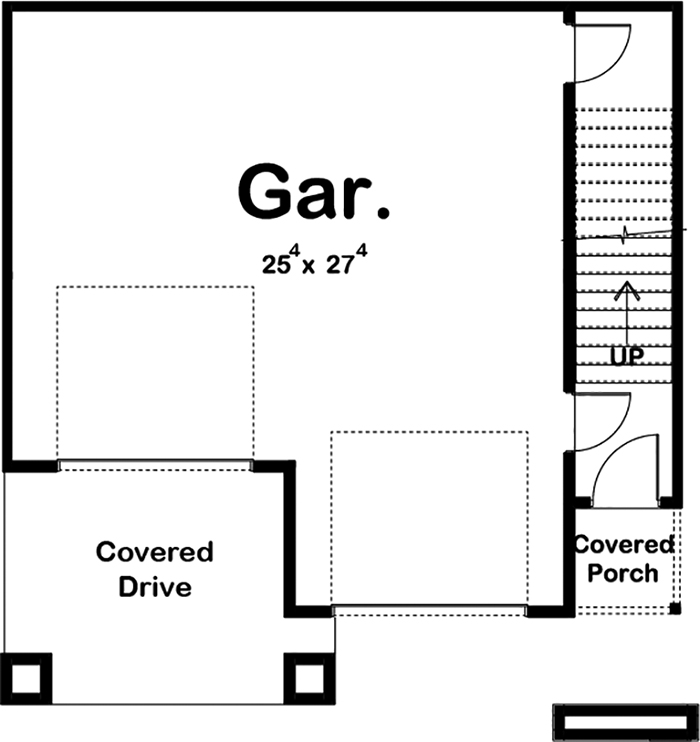

Home Plan: #100-1355 Floor Plan First Story - main level Floor Plan First Story of Garage w/Apartments Plan #100-1355

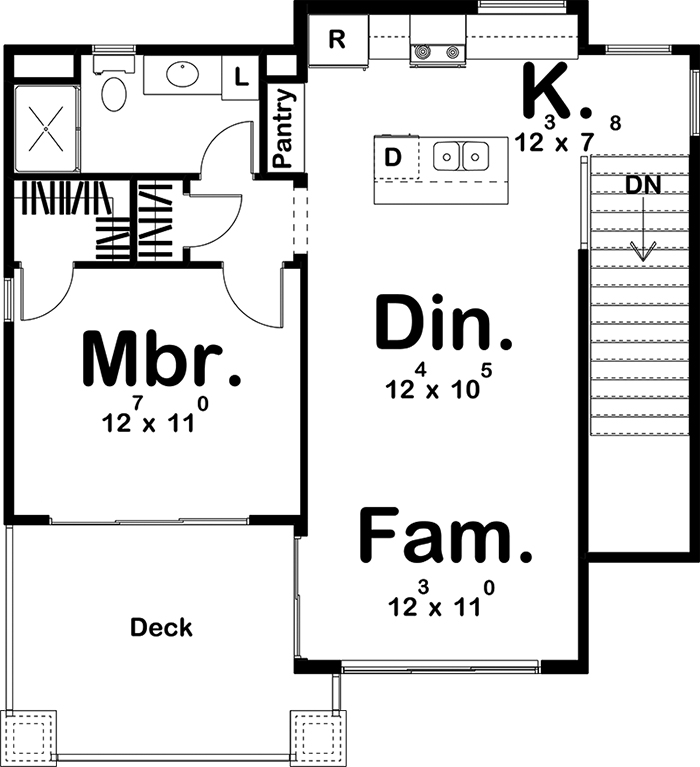

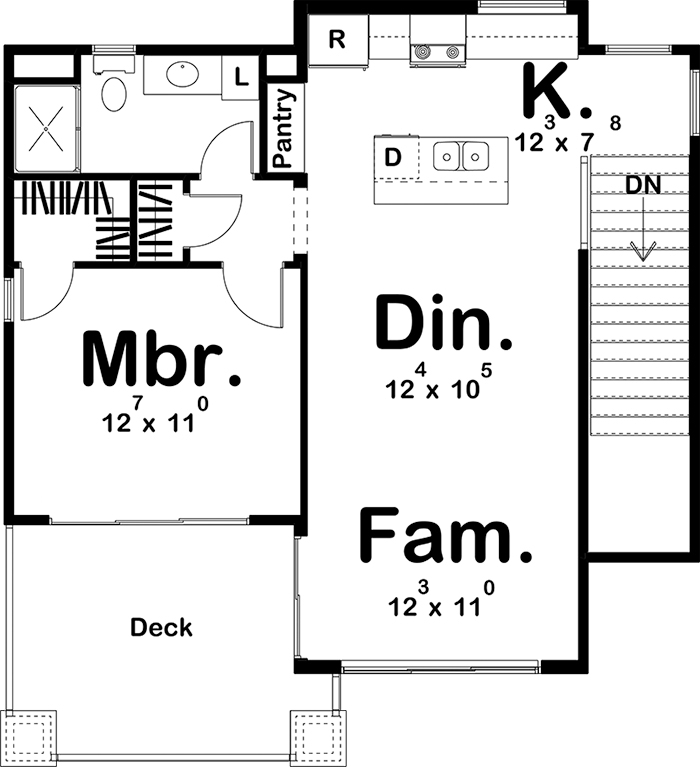

#100-1355 Floor Plan Second Story - upper level Floor Plan Second Story of Garage w/Apartments Plan #100-1355
Home Plan: #100-1355 Floor Plan First Story - main level Floor Plan First Story of Garage w/Apartments Plan #100-1355
#100-1355 Floor Plan Second Story - upper level Floor Plan Second Story of Garage w/Apartments Plan #100-1355
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 100-1355
Floors:
2
Bedrooms:
1
Full Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
758
Main Floor:
758
Unfinished Sq Ft:
Garage :
757

Dimensions

Width:
31' 8"
Depth:
32' 0"
Ridge Height:
26' 0"

Architectural Styles

Contemporary
Modern
Mid-Century Modern

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Gable
Double Shed

Roofing Material

Metal

Roof Pitch

4/12
6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Family Room
Open Floor Plan

Garage Type

Attached Garage
Under Main Floor Entry

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Sundeck

Master Suite Features

Master Bathroom
Walk In Closet
Second Floor Master

Additional Notes from Designer

The CAD File formats are drawn in SoftPlan. PLEASE NOTE: Plans by this designer do NOT come with FRAMING!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
