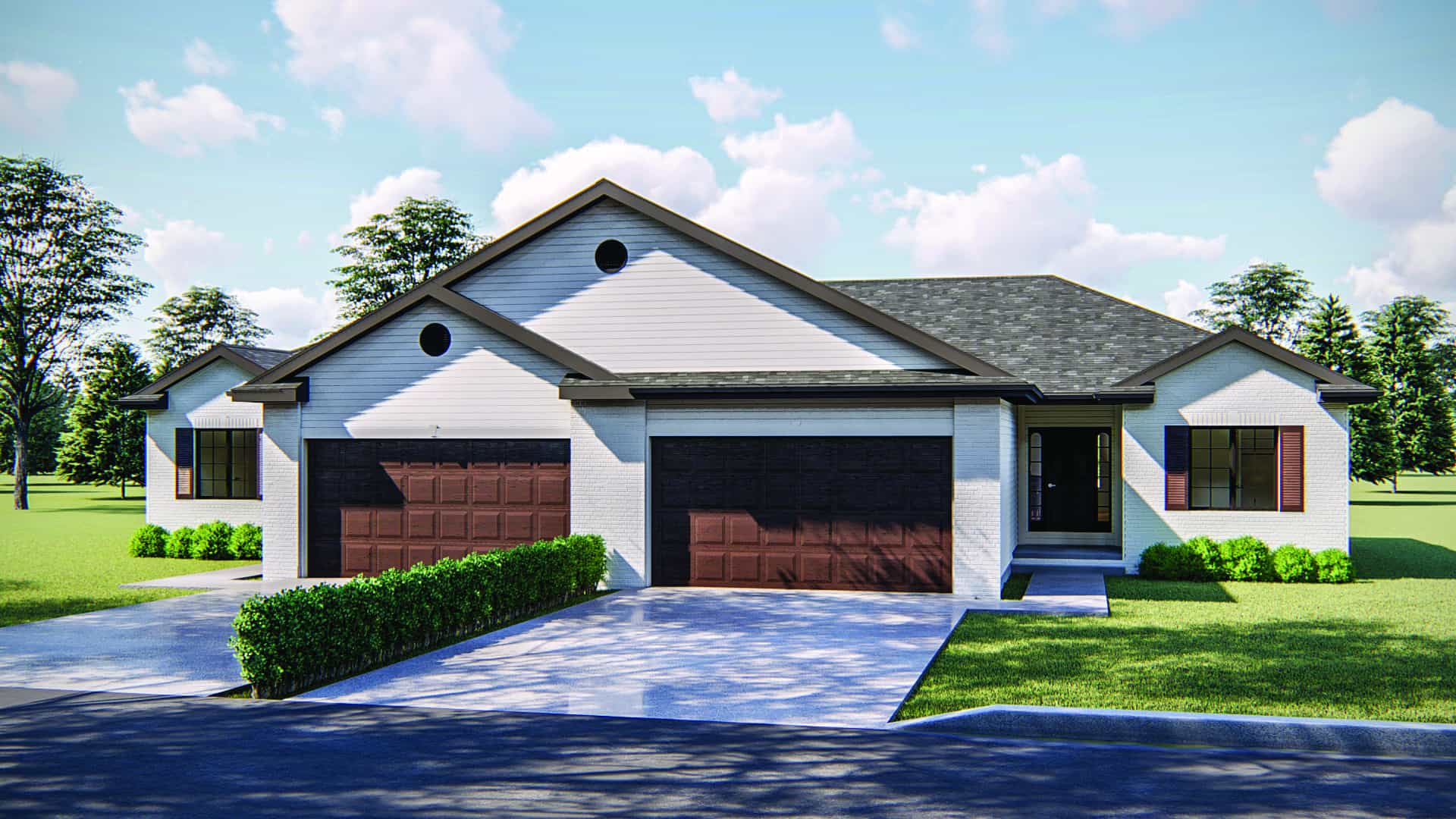

Front elevation of Multi-Unit home (ThePlanCollection: House Plan #100-1248)
100-1248: Home Other Image-Right Side View
100-1248: Home Other Image-Left Side View
100-1248: Home Other Image-Rear View
100-1248: Home Other Image-Front View

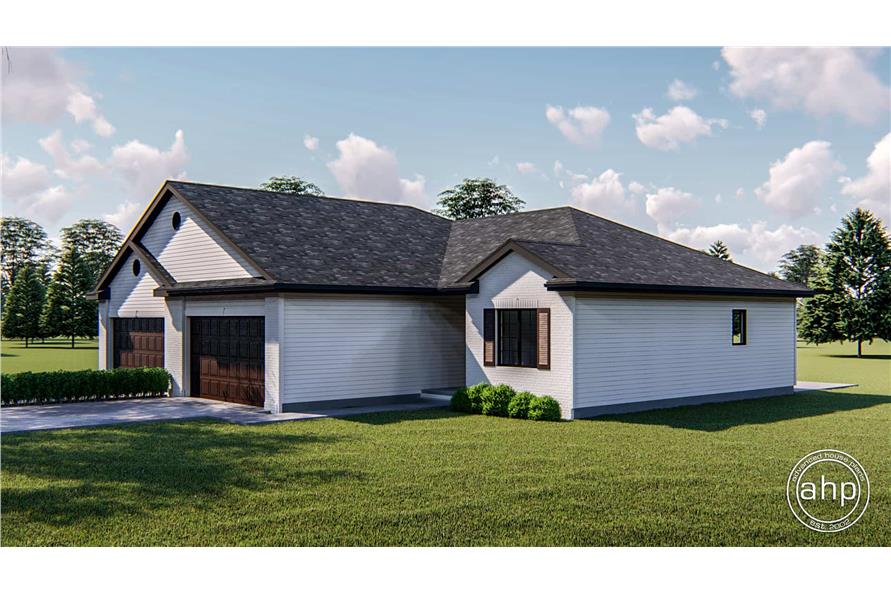

2-Bedroom, 1189 Sq Ft Multi-Unit Home Plan - 100-1248 - Main Exterior
100-1248: Home Other Image-Right Side View
100-1248: Home Other Image-Left Side View
100-1248: Home Other Image-Rear View
100-1248: Home Other Image-Front View

About Plan # 100-1248

About Plan # 100-1248

1189 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 78' 0" WIDTH 51' 0" DEPTH 2 GARAGE BAY

This duplex with cottage influences has 1189 square feet of living space per unit. The 1-story floor plan includes 2 bedrooms per unit. The total width is 78 feet and the total depth is 51 feet.

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

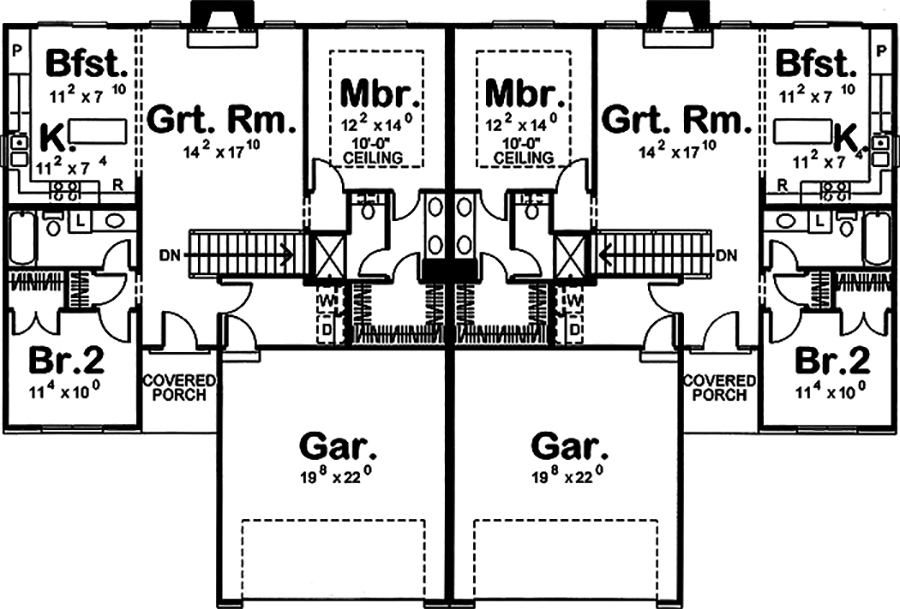

Home Plan: #100-1248 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #100-1248
